P90 Magazine Clamp

by skaterqwertyuiop in Outside > Launchers

2442 Views, 1 Favorites, 0 Comments

P90 Magazine Clamp

 The P90, or E90 as Echo 1 calls it, is one of the most versatile airsoft SMGs ever made. One problem with it is the low magazine capacity. You could buy a high-cap, but they are always hit- or- miss- I own 1, and my friend owns 2, Only one out of the 3 feeds correctly.
How do you cut your reloading time with a mid-cap?
A Magazine clamp.
You could spend $10 on Evike, or you could make your own...
Which will you choose? ;P
**This project is for the airsoft P90,but it would most likely work with a real-steel rifle also. This instructable is intended for airsofters.**

Materials

 Materials
Scrap Metal (I got mine from a dead computer... No Joke)
(2) 2.5" Screws with matching nuts.

Tools
Dremel (I used my trusty Roto- Zip)
Drill
Vice (optional)

And of course, OZZY OSBOURNE!!!

Drawing

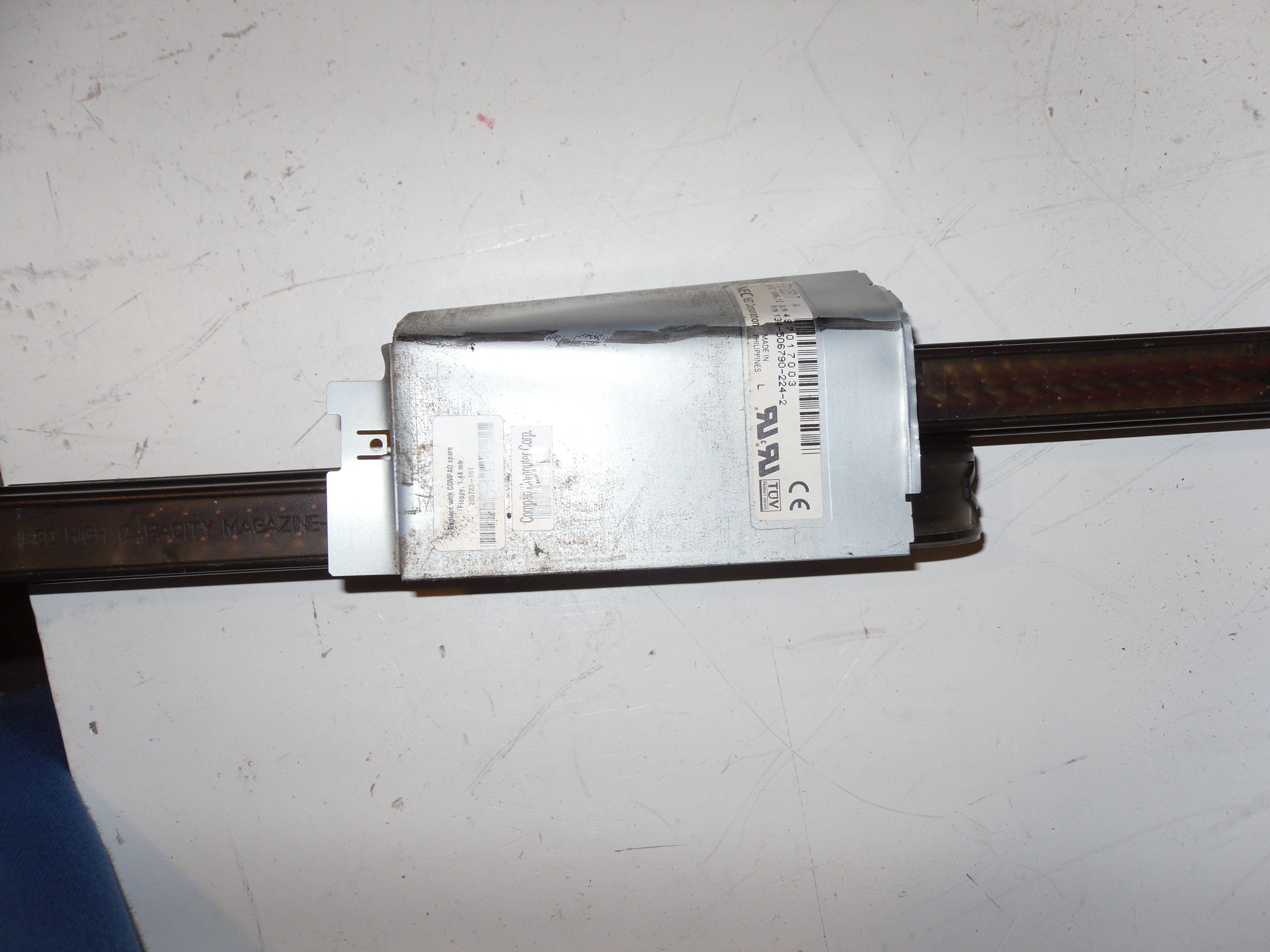

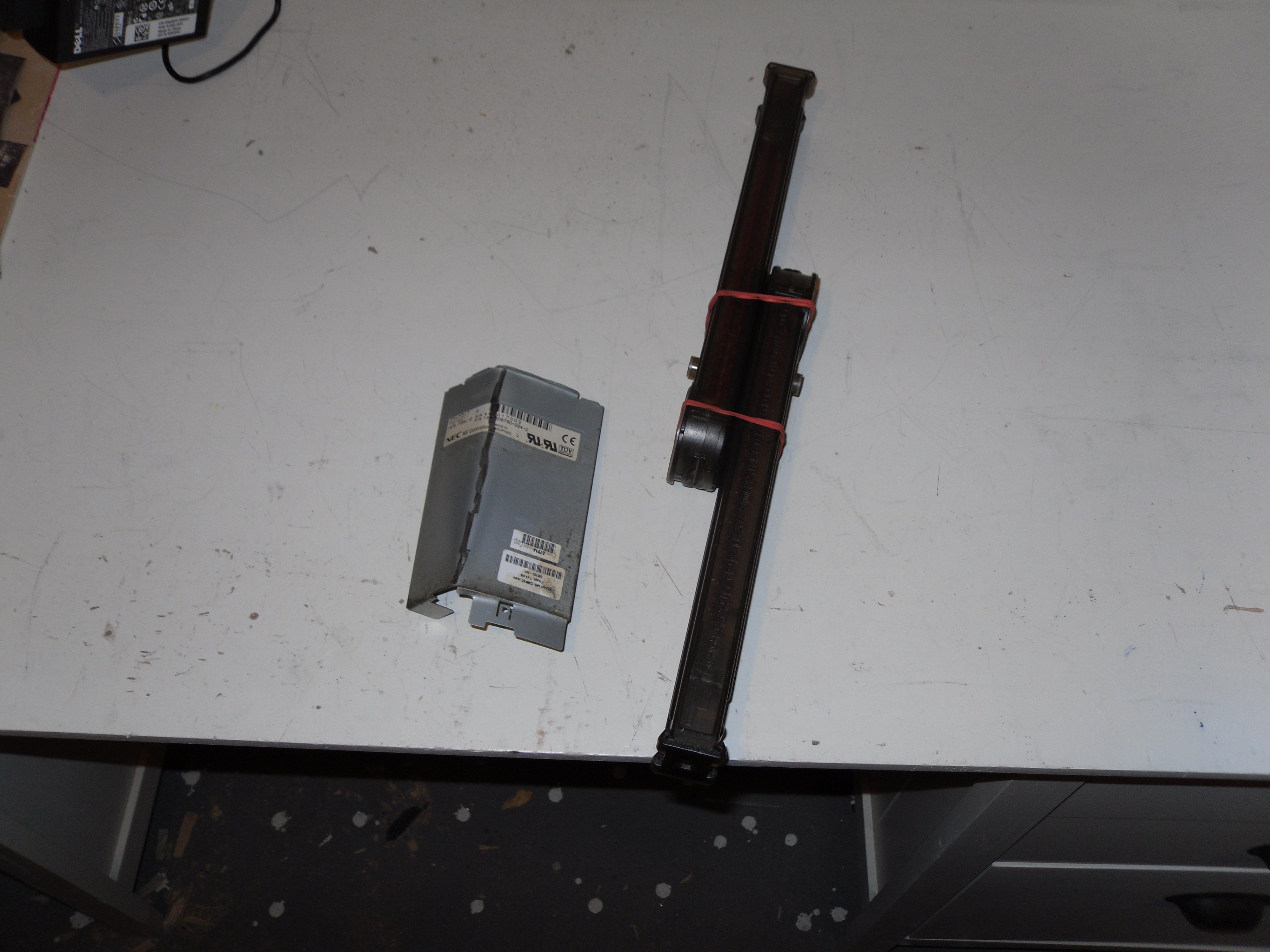

 Match up the metal with the magazines and determine where the metal will be bent (don't bend it yet)

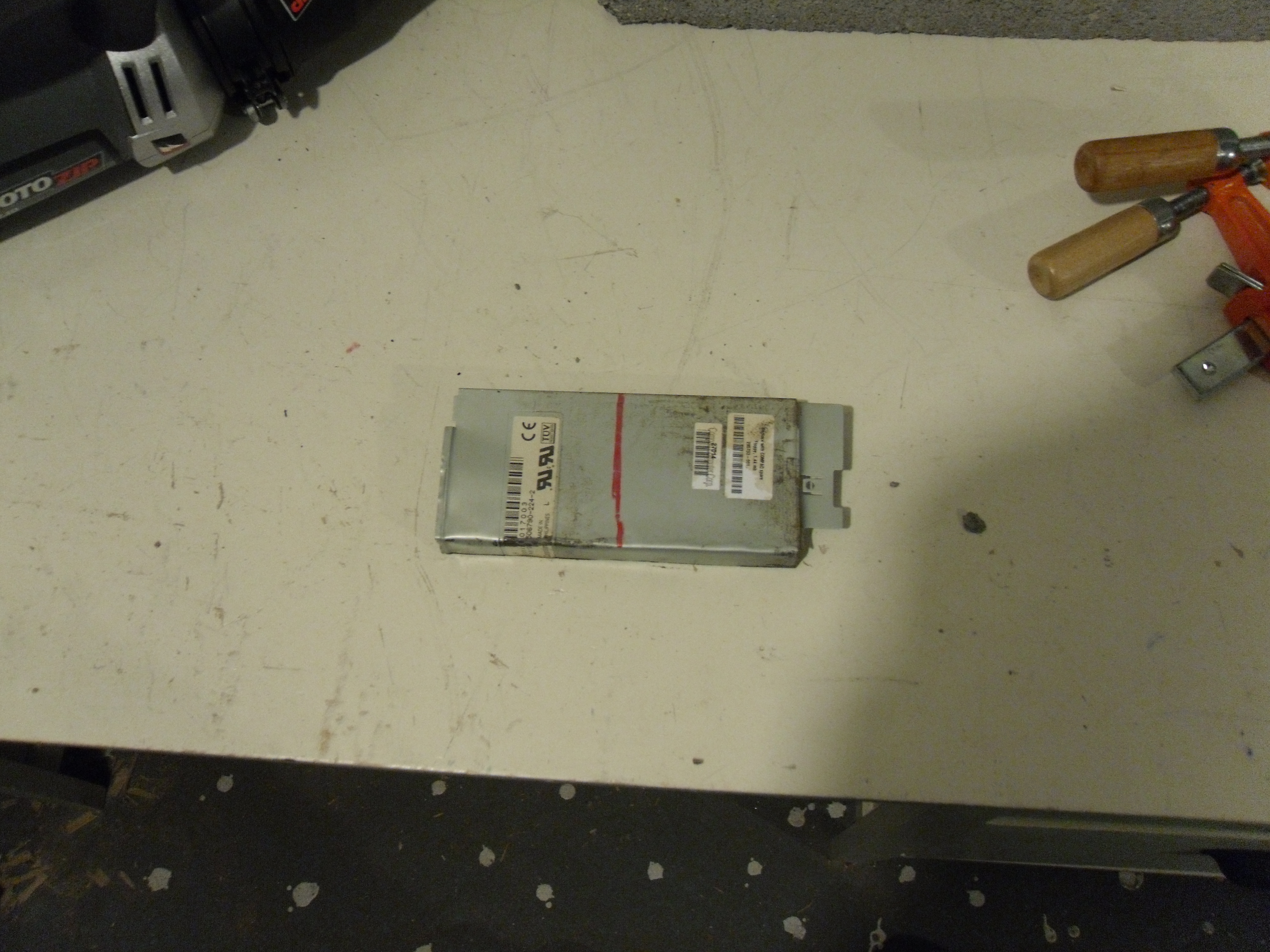

Then make a parallel line 1/2" below that line.
Do this on both sides

Cutting and Shaping

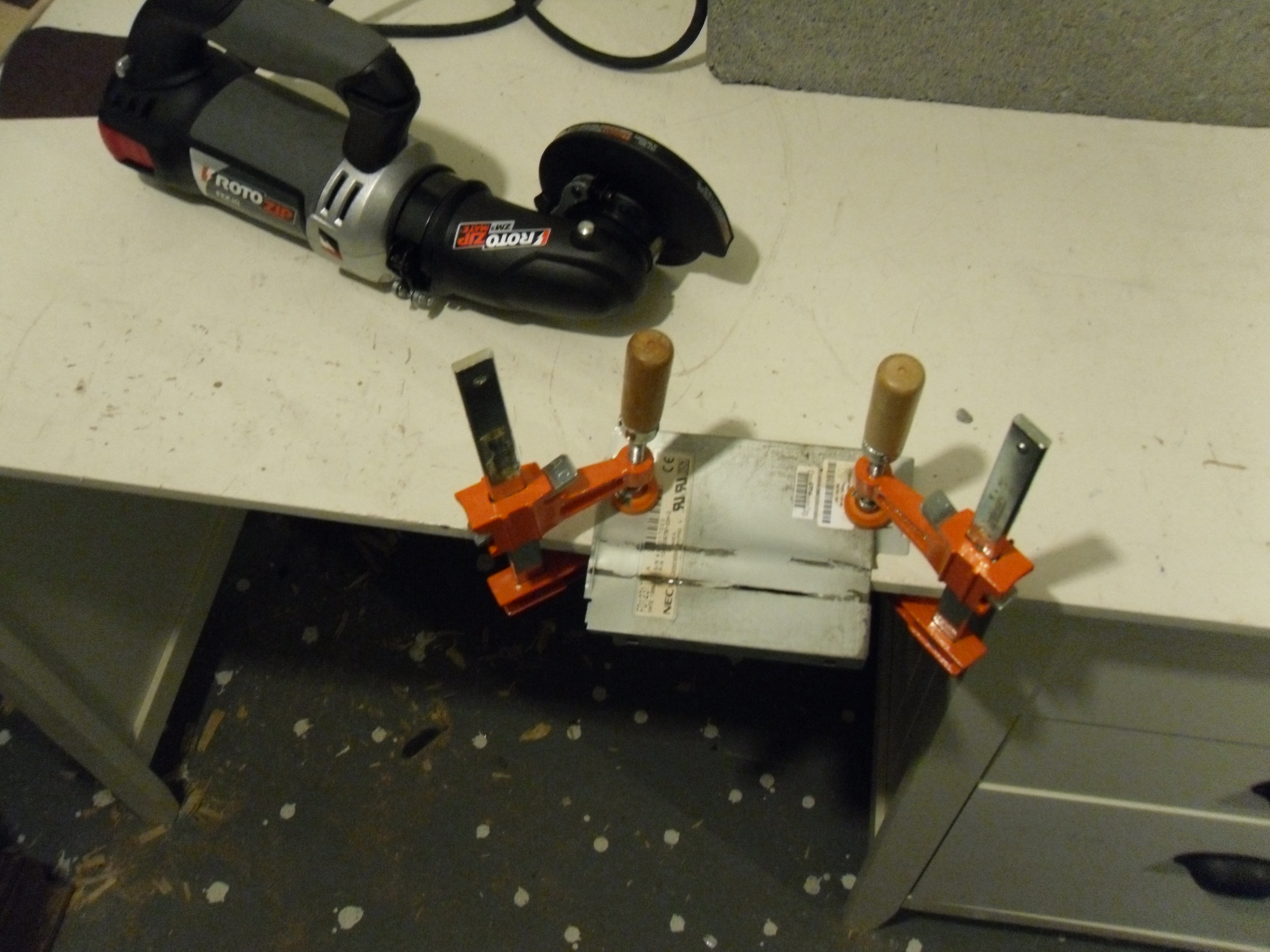

 Cut along the second line.
Do on both sides.

Shaping

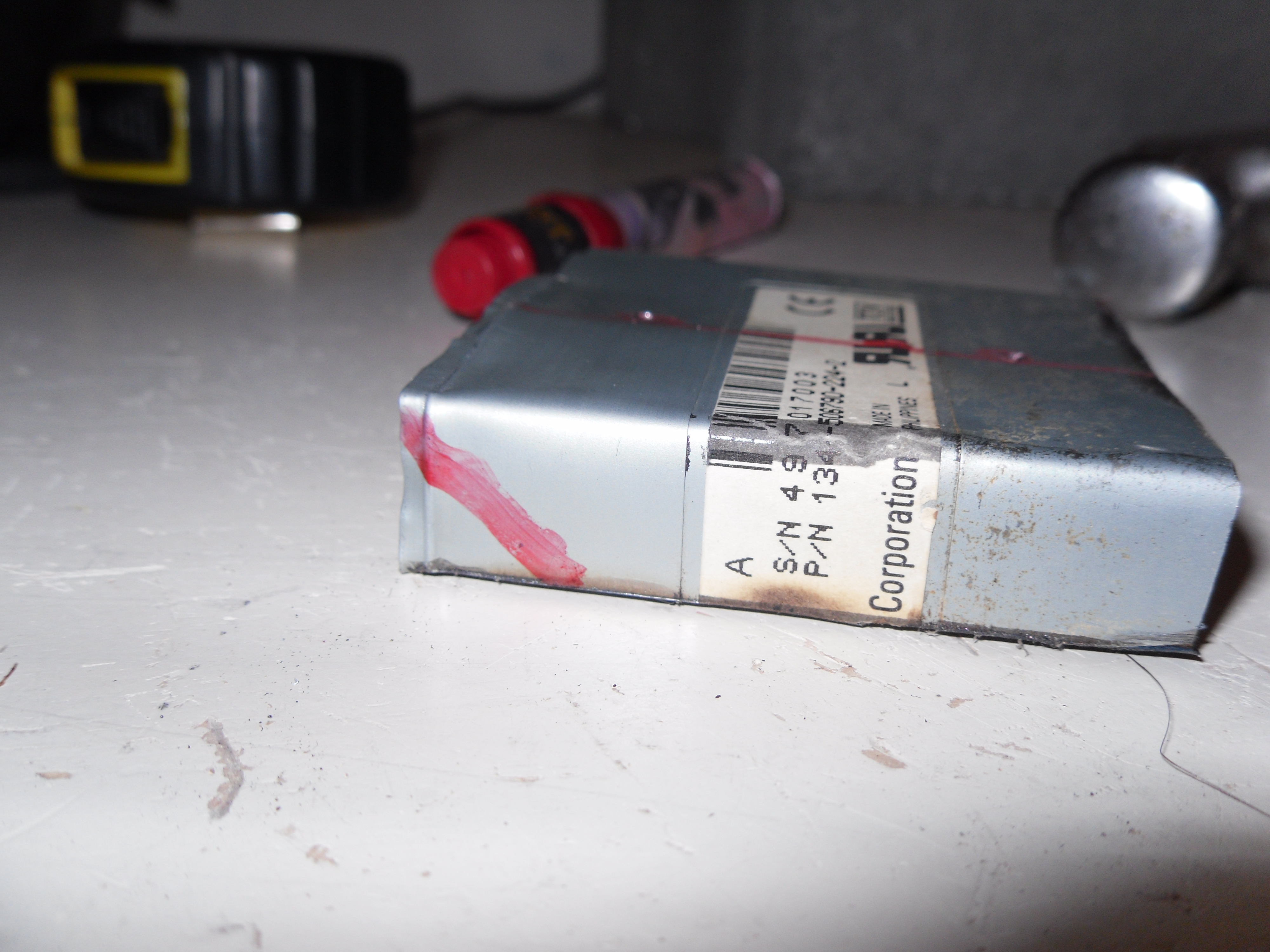

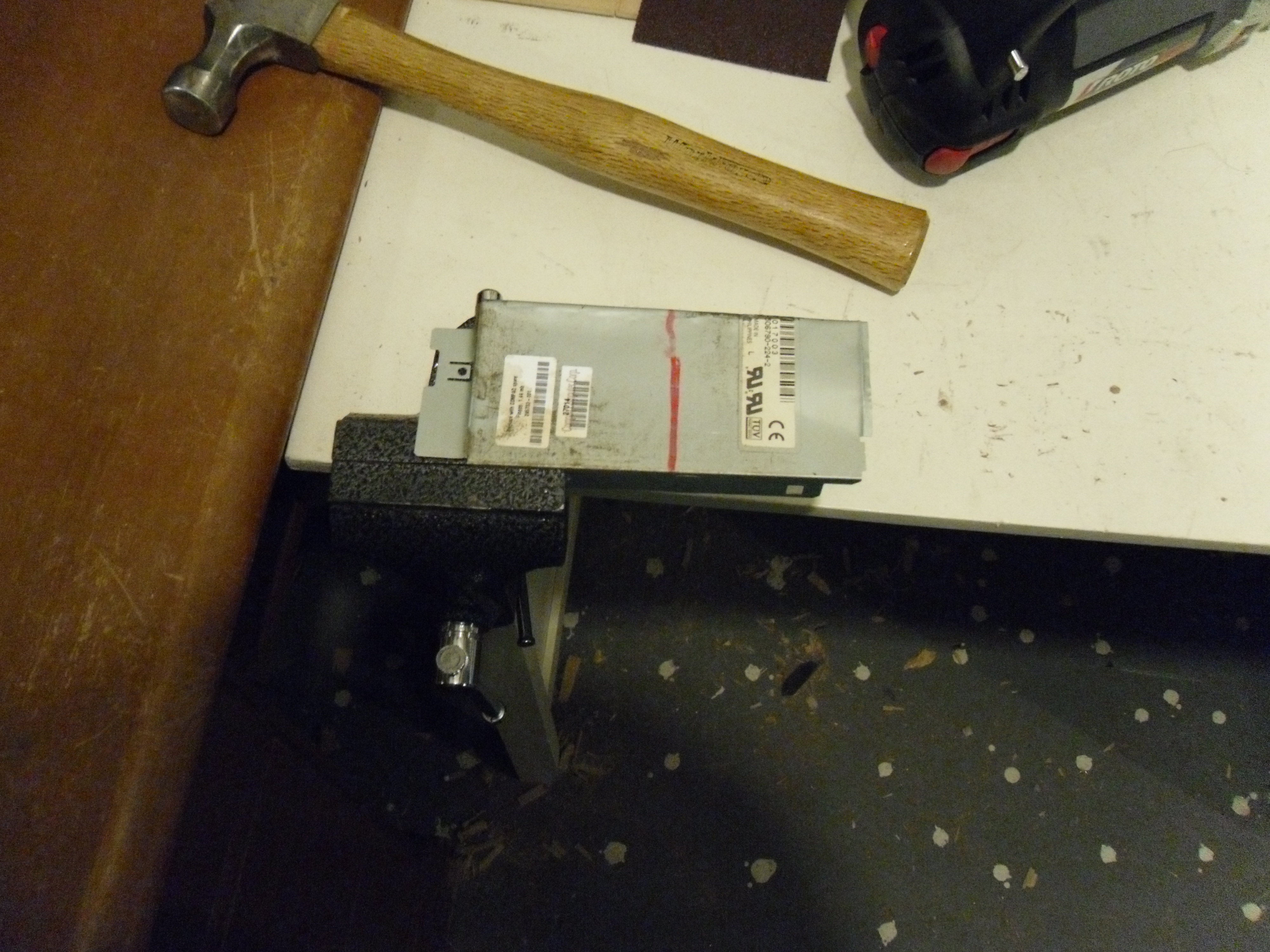

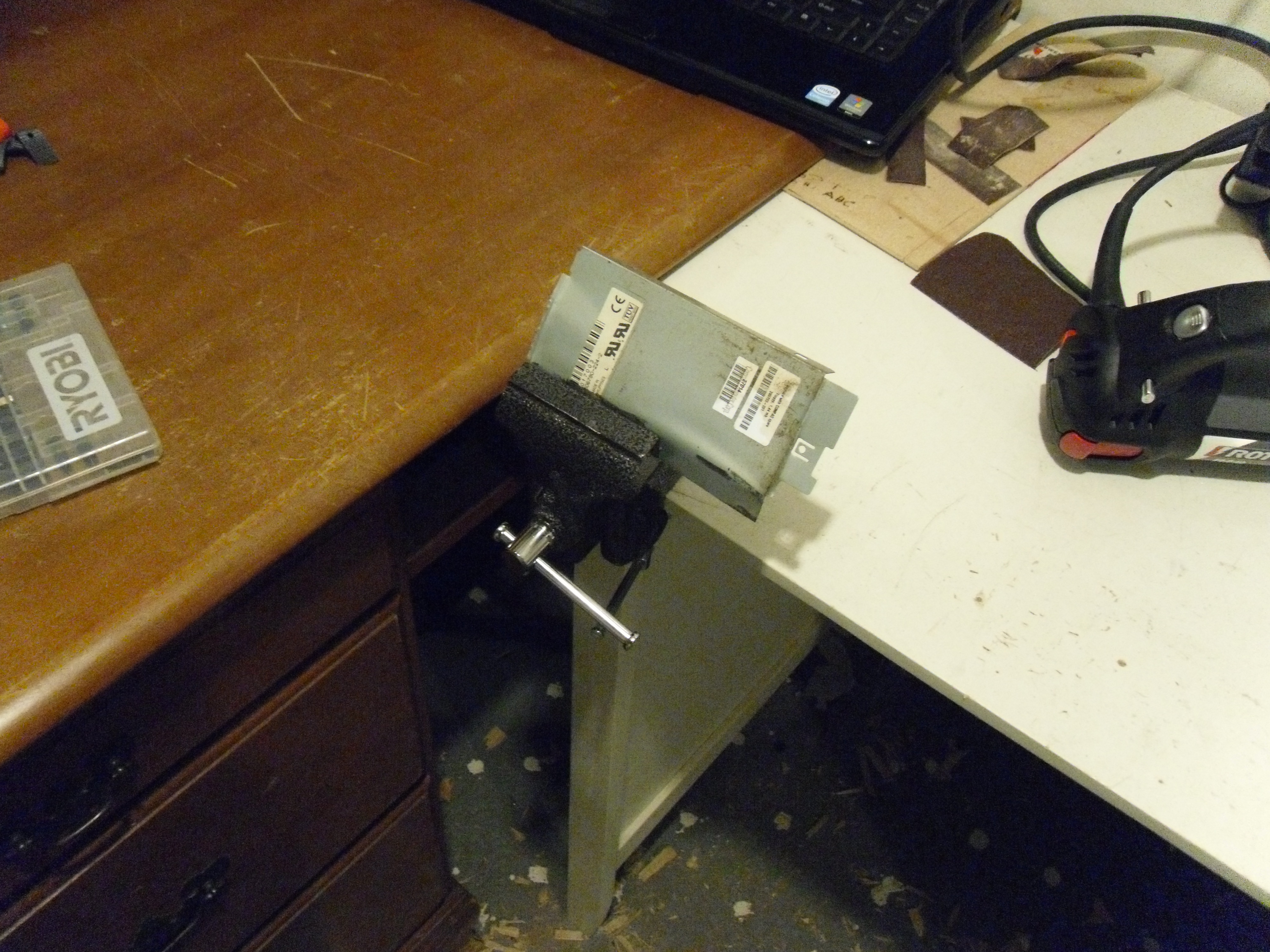

Put the metal in a vice (or place on any other metal/concrete right angle) and bend it at a 90 degree angle.
Do for both sides.
To make the bend sharper, tap with a hammer along edge.

Cut It in Half

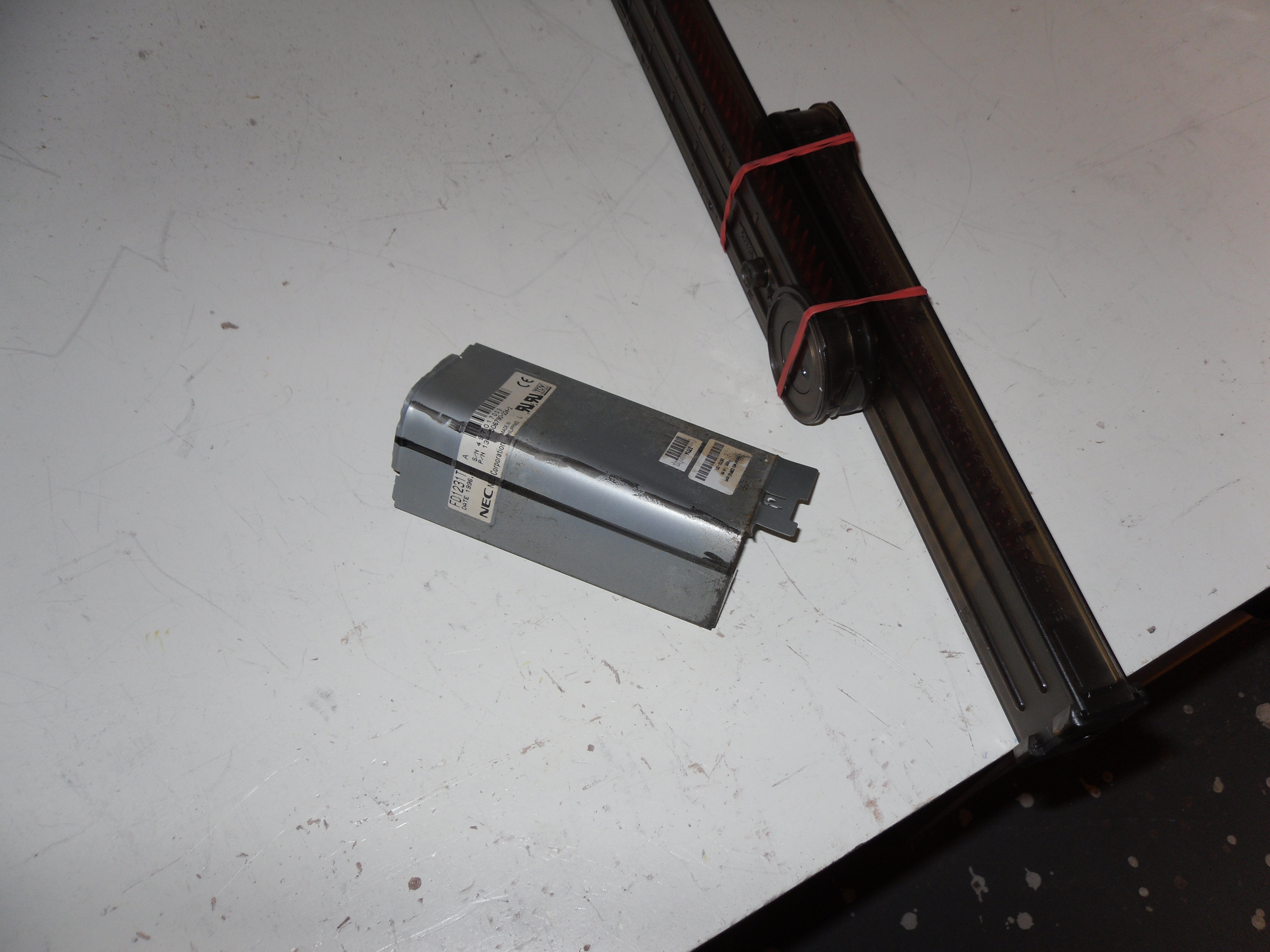

 Measure the metal and cut directly down the center (See picture).

More Cutting

See pictures for instructions

Drilling

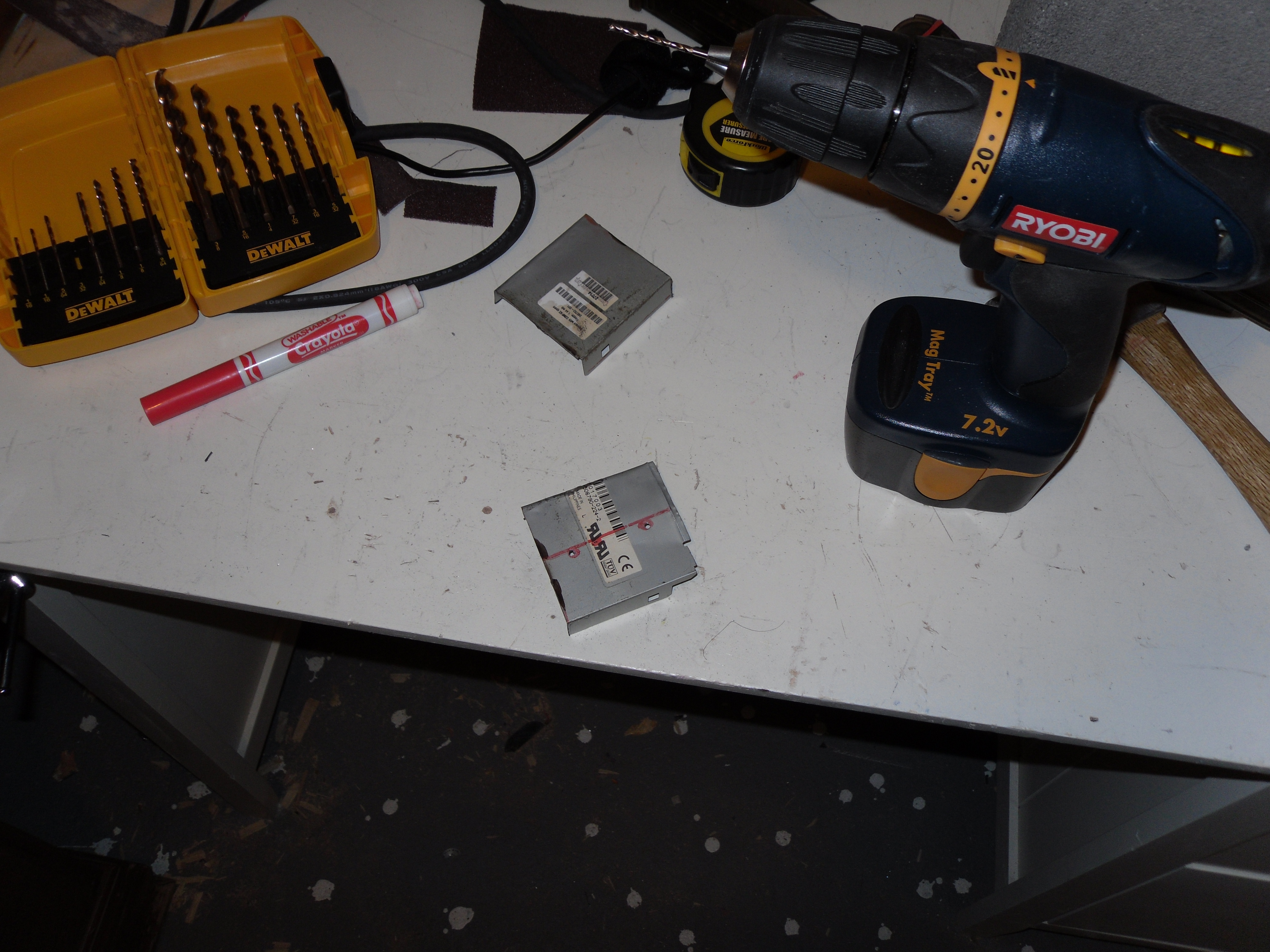

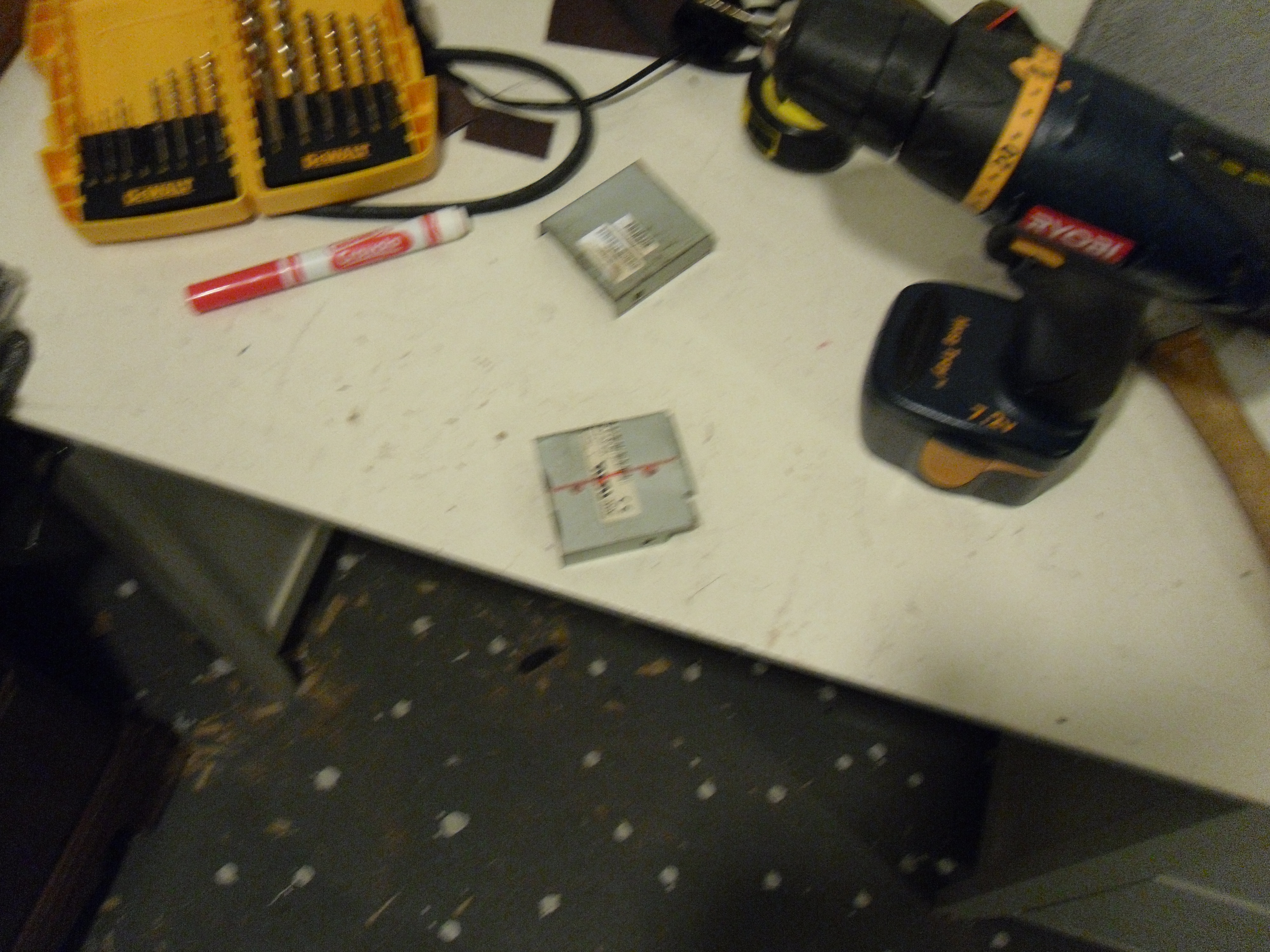

 Time to break out the drill.
Draw a line dividing the one piece in half. Then along the line, mark 2 dots.
Then drill into them.

For the second piece, flip the first piece over and mark through the holes with a marker.
Drill through marked dots.

Screws

 Put the 2 screws through the holes.
Screw the nuts on.
Cut the excess off.

Have Fun

 Go out, play airsoft (in a safe and controlled environment).
**Disclaimer, the below picture is a picture of an airsoft SMG, not an actual firearm. Airsoft rifles are relatively harmless and fire a 6mm plastic pellet, at a low velocity**
