Over 120 Meter Control 8 Channel Relay Module With 433MHz Wireless Transmitter and Receiver

by samirso in Circuits > Arduino

12513 Views, 18 Favorites, 0 Comments

Over 120 Meter Control 8 Channel Relay Module With 433MHz Wireless Transmitter and Receiver

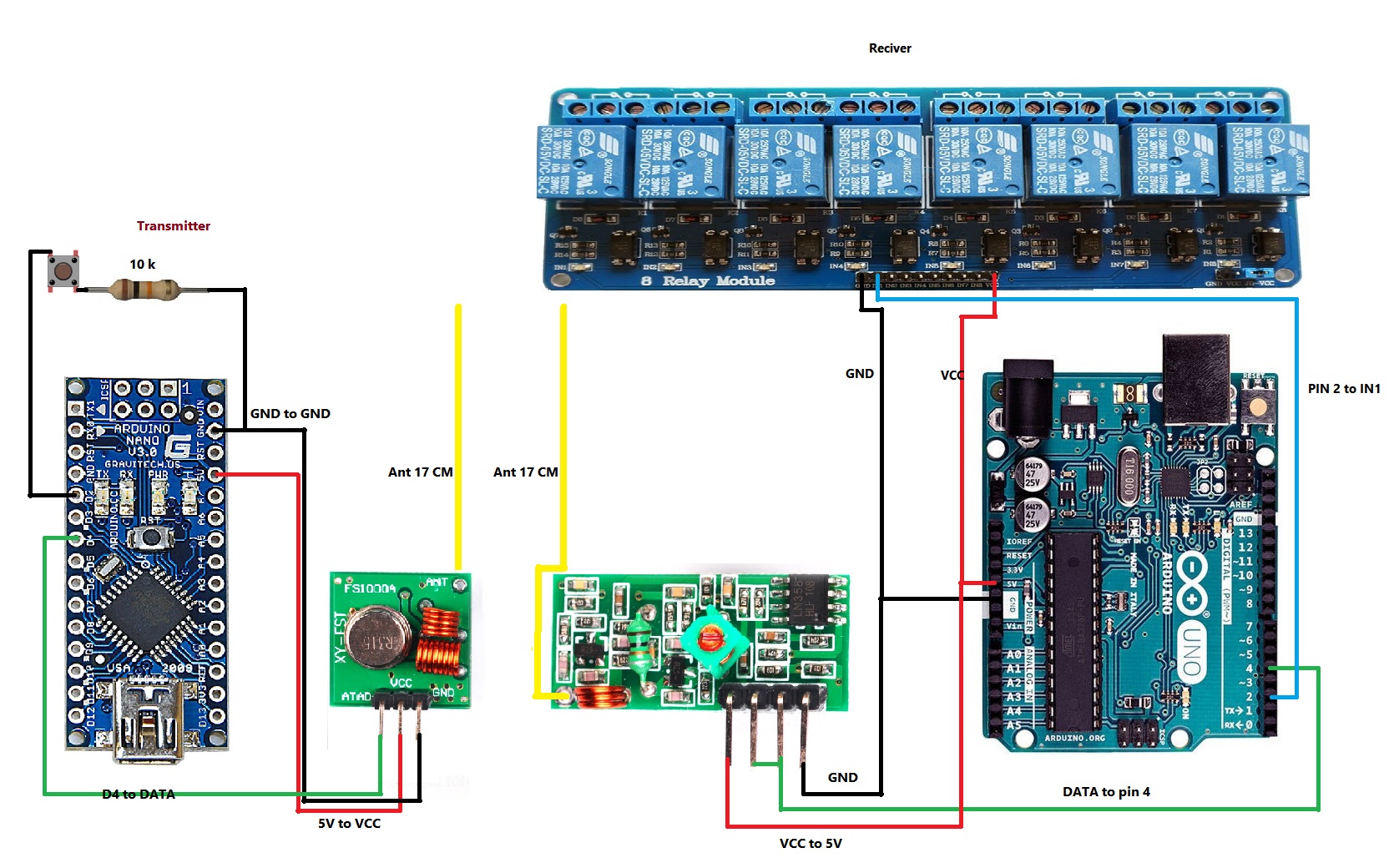

Circuit and Program


Hi all in this project you will need

1 - 433 MHz transmitter and receiver

2 - Arduino nano

3 - Arduino uno

4 - push button

5 - 10 k resistor 1/4 watt

6 - some wire

7 - 5 volt to power Arduino nano

8 - the library , transmit and receive program all include in all files

With my best regards

Samir
