Oriental-Inspired Lamp
This is an oriental-inspired lamp that features hand-made joinery. No nails or screws involved!
You can change the dimensions, construction, etc to fit your needs.
Materials:
> 1/4" thick wood for the horizontal beams
> 2”x2” wood for the vertical posts
> 1/4" dowel for the legs
> Specialty paper for the lampshade
> Lighting: whatever lighting setup you prefer (keep reading to see the lighting setup I used)
If you like this, please click on the Vote button in the upper-right corner.
You can change the dimensions, construction, etc to fit your needs.
Materials:
> 1/4" thick wood for the horizontal beams
> 2”x2” wood for the vertical posts
> 1/4" dowel for the legs
> Specialty paper for the lampshade
> Lighting: whatever lighting setup you prefer (keep reading to see the lighting setup I used)
If you like this, please click on the Vote button in the upper-right corner.
Joinery
I decided to use mortised joints for their strength and to hide the joints for a cleaner appearance. This is a 3D illustration of the joinery.
If I were to do this project again, I would select a different joinery method because I had to chop 16 mortises in total and it was very time consuming. See the next step for the joinery method that I would recommend over this one.
If I were to do this project again, I would select a different joinery method because I had to chop 16 mortises in total and it was very time consuming. See the next step for the joinery method that I would recommend over this one.
Joinery - Recommended

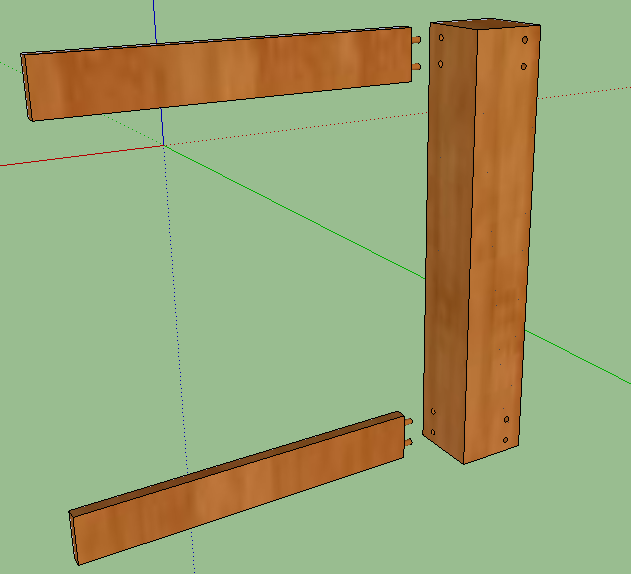

The recommended method uses hidden dowel joints. This method still provides a clean look and takes much less time to construct.
Paper
The paper I selected met the following requirements:
> Diffuses light well
> Have good heat resistance
> Doesn’t rip easily
> Economical
I ended up using baking/wax paper because it was ideal for my requirements. I used an all purpose glue (Weldbond) to attach the paper to the wooden frame.
> Diffuses light well
> Have good heat resistance
> Doesn’t rip easily
> Economical
I ended up using baking/wax paper because it was ideal for my requirements. I used an all purpose glue (Weldbond) to attach the paper to the wooden frame.
Lighting Setup

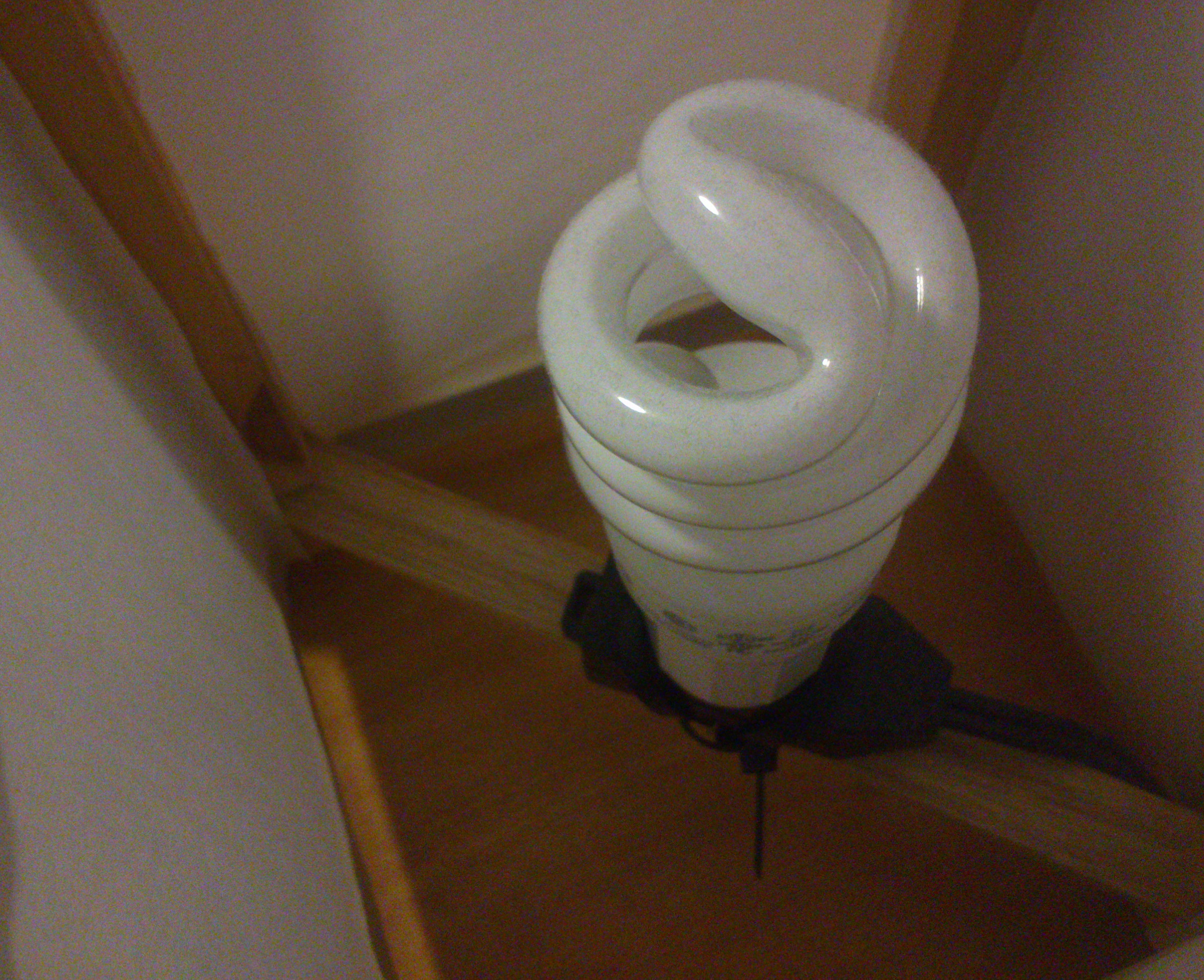

In the picture, from top to bottom:
> Compact fluorescent lamp – cool white
> 120V to lamp socket adapter (available at many hardware stores)
> Extension cord, zip-tied onto the beam below it
Not in picture:
> 120V on/off switch at other end of extension cord
> Compact fluorescent lamp – cool white
> 120V to lamp socket adapter (available at many hardware stores)
> Extension cord, zip-tied onto the beam below it
Not in picture:
> 120V on/off switch at other end of extension cord
Conclusion

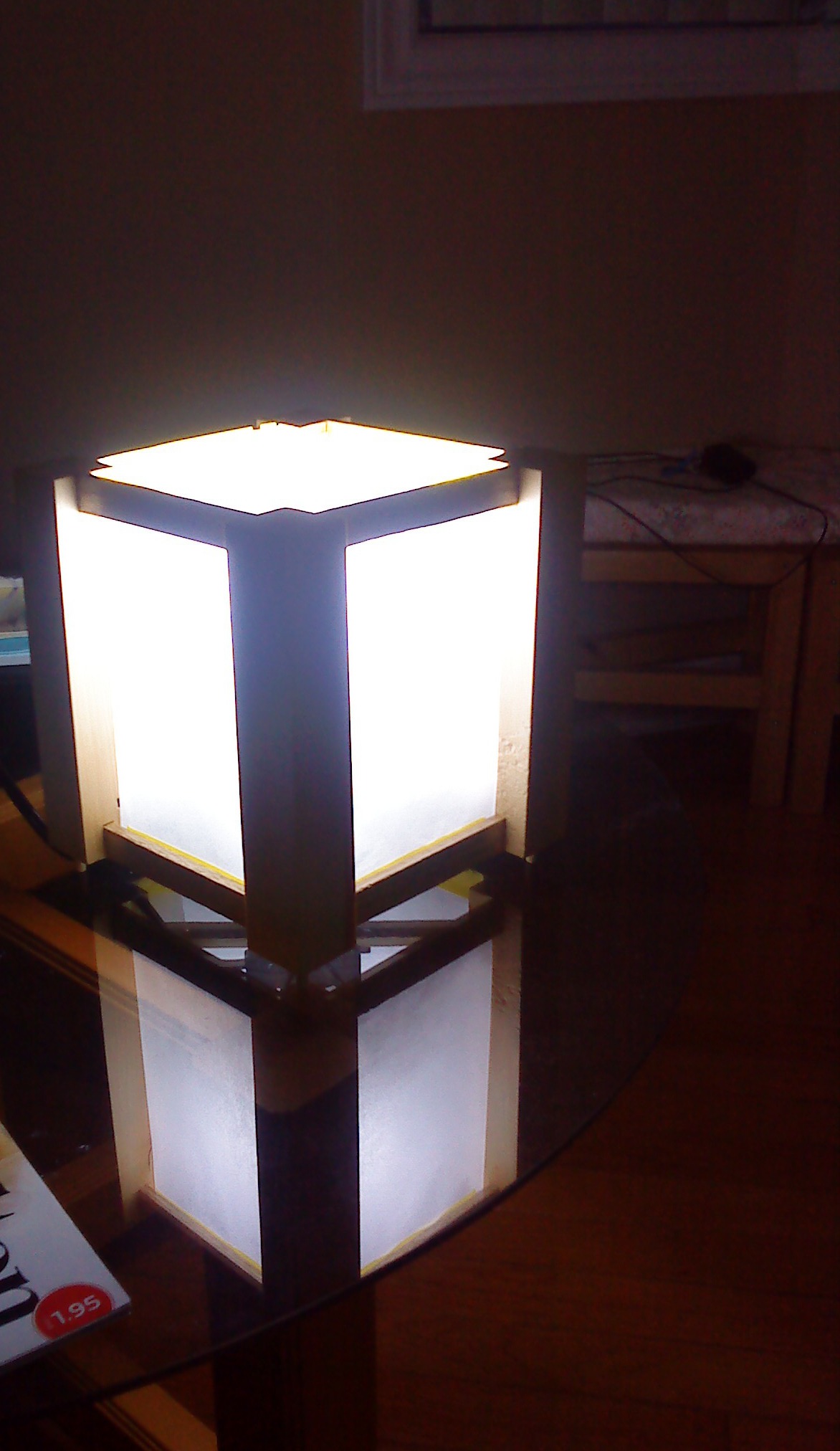

Here is the finished product.
