Old Tv to New Tv

by zachary phillips in Circuits > Electronics

4726 Views, 9 Favorites, 0 Comments

Old Tv to New Tv


an old TV transformed

Materials

The first thing you need us an old TV with a spot for VHF connectors. And a f connector to a VHF connector. And a TV to wall connector cable.

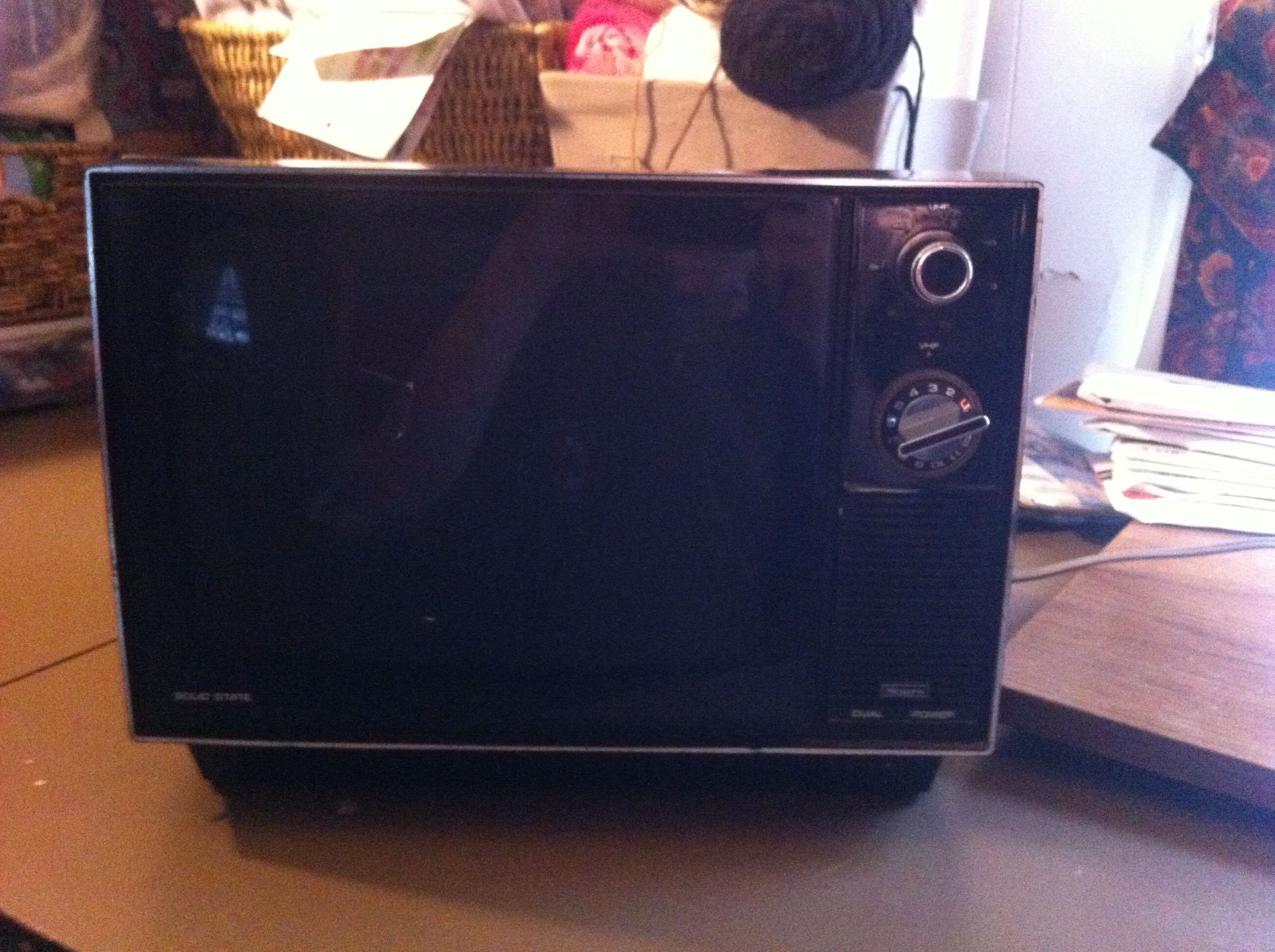

My TV's Parts

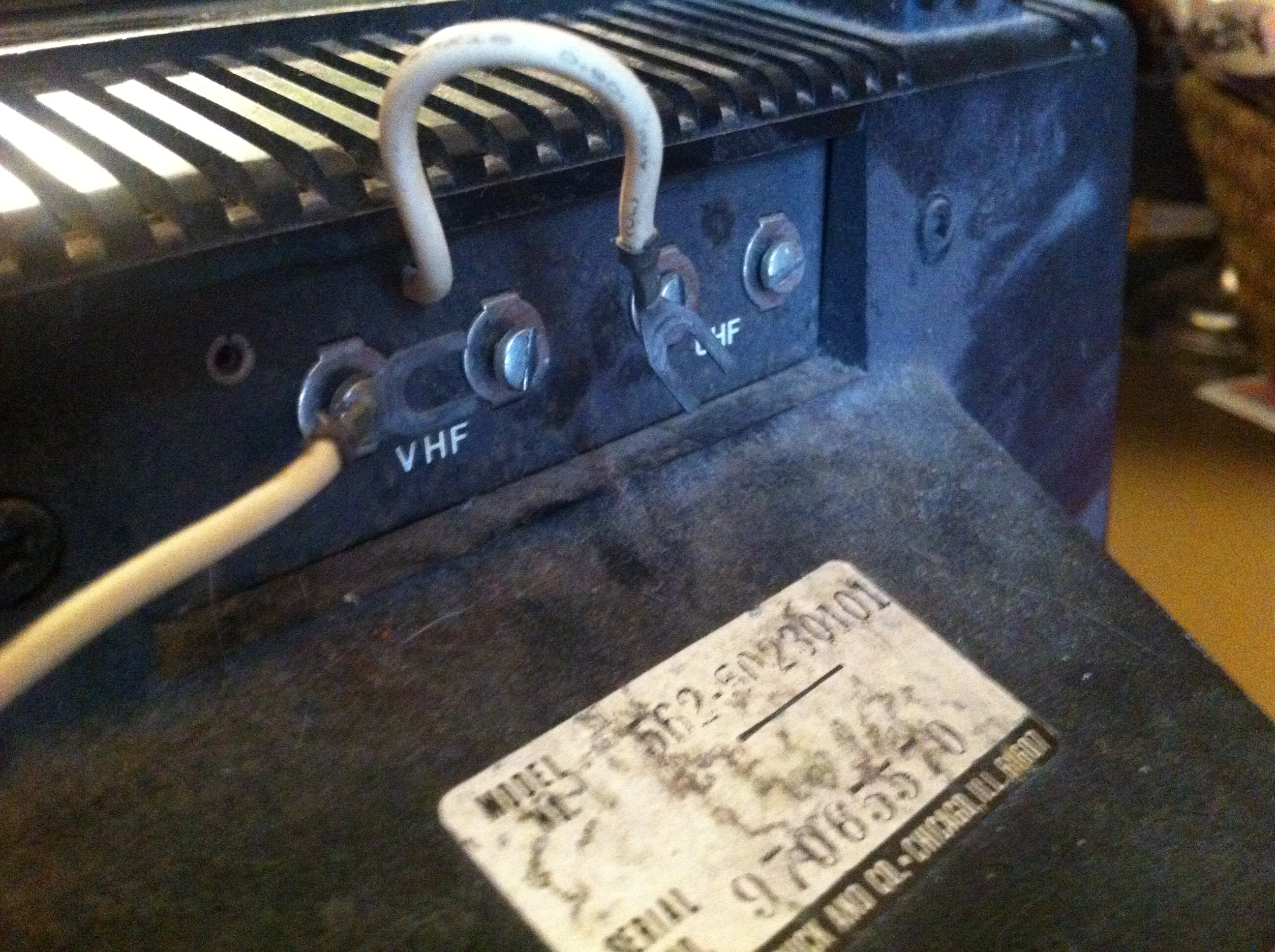

To show the age of the TV.

Connection Time

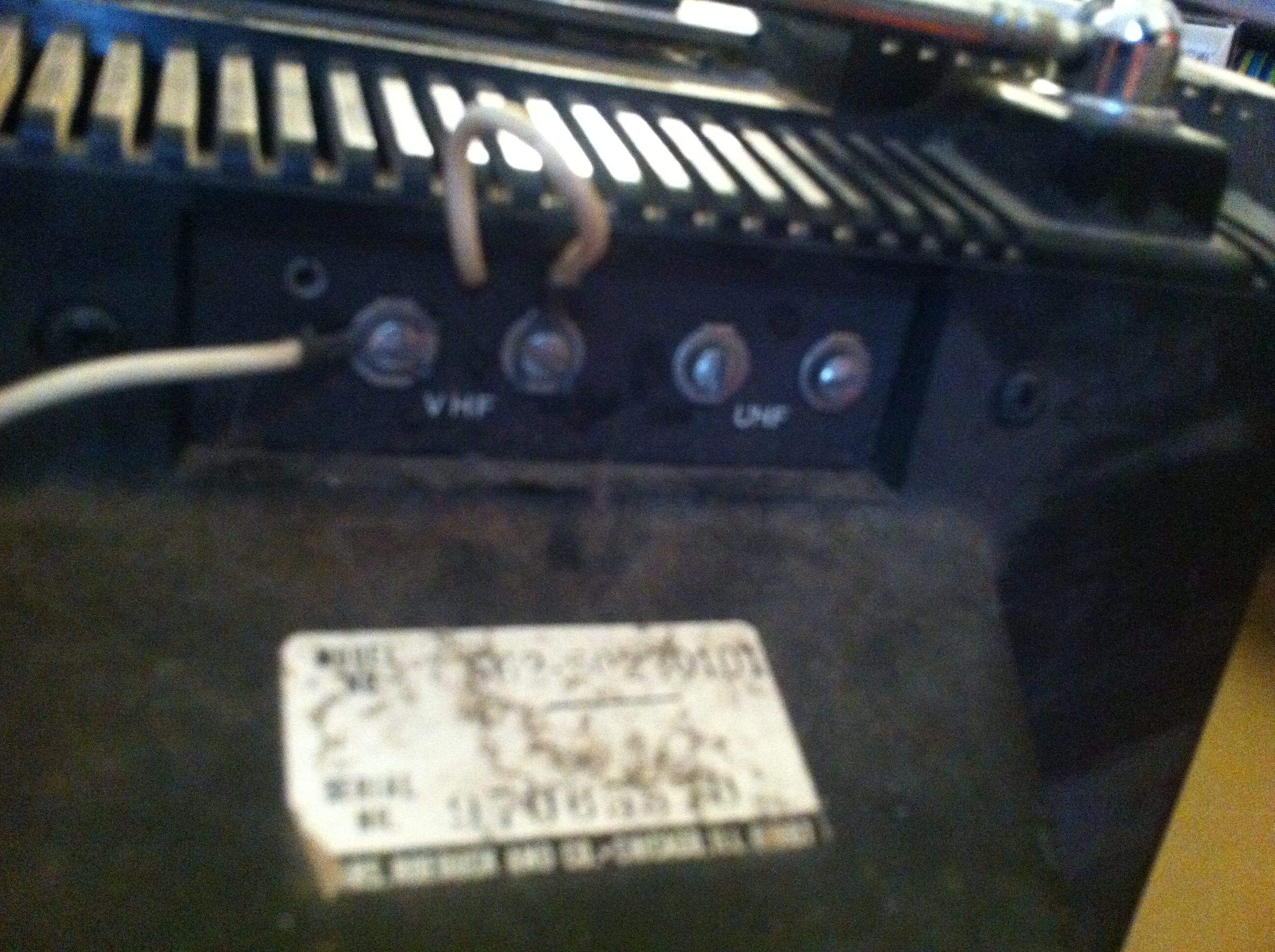

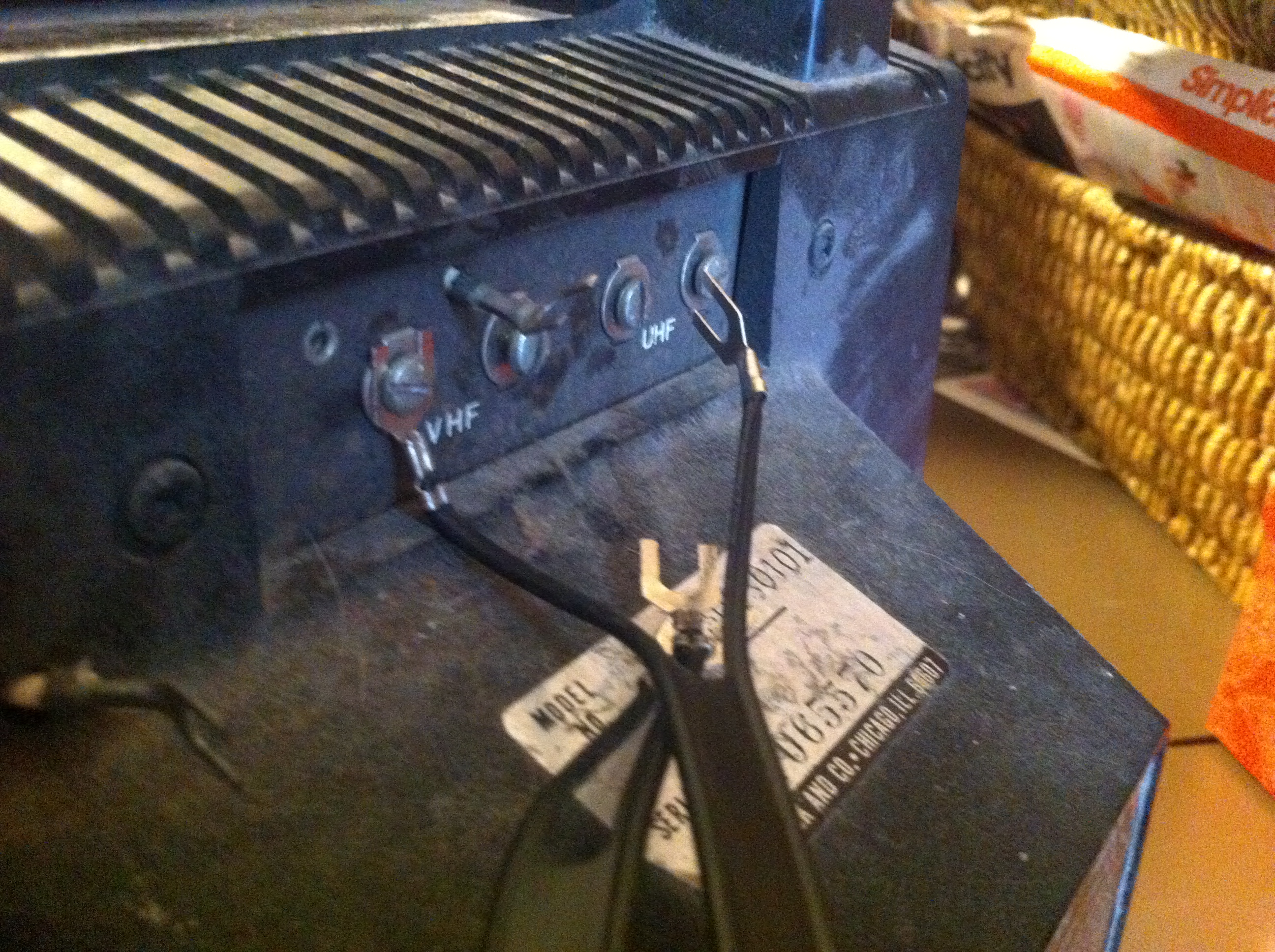

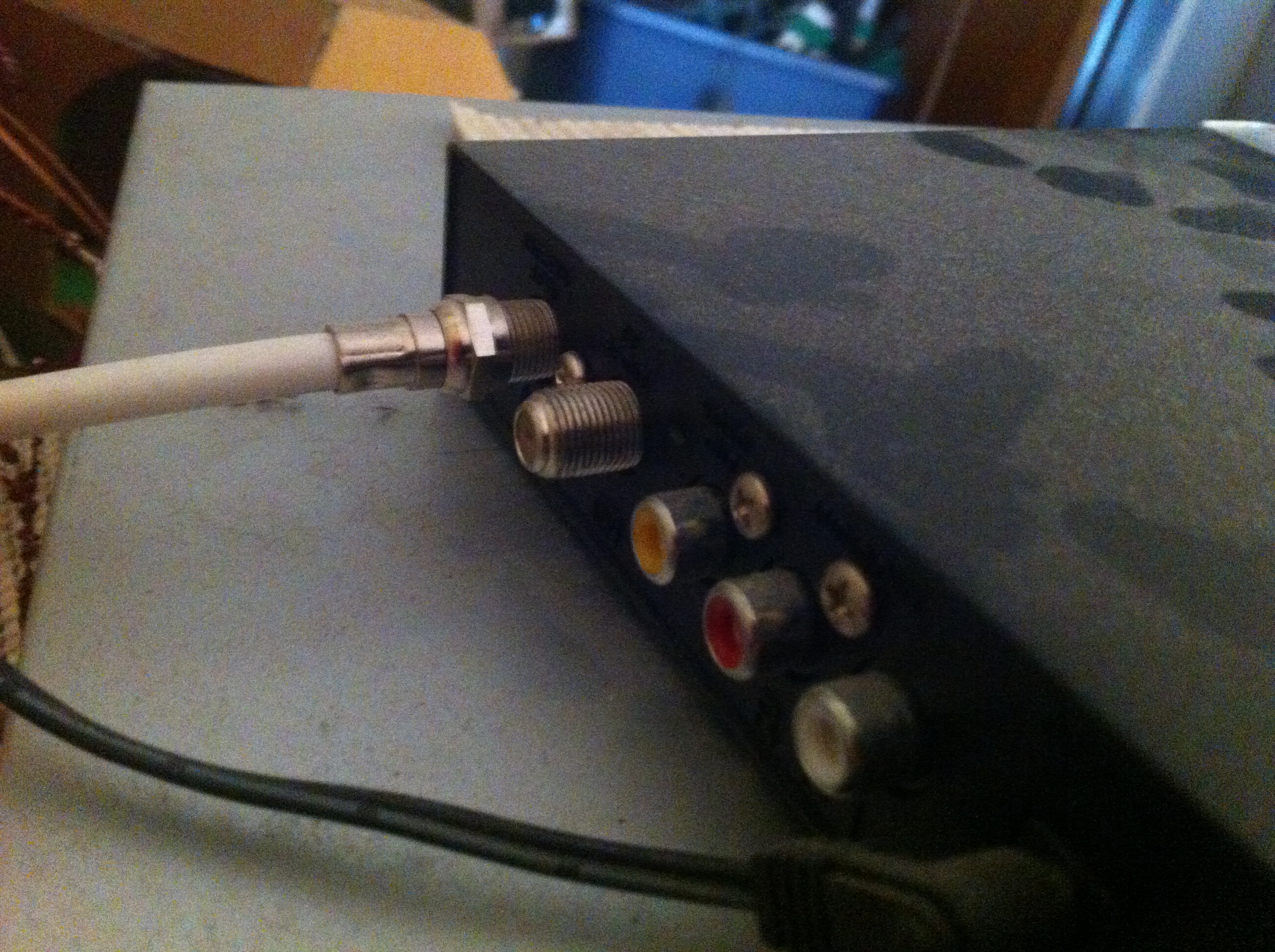

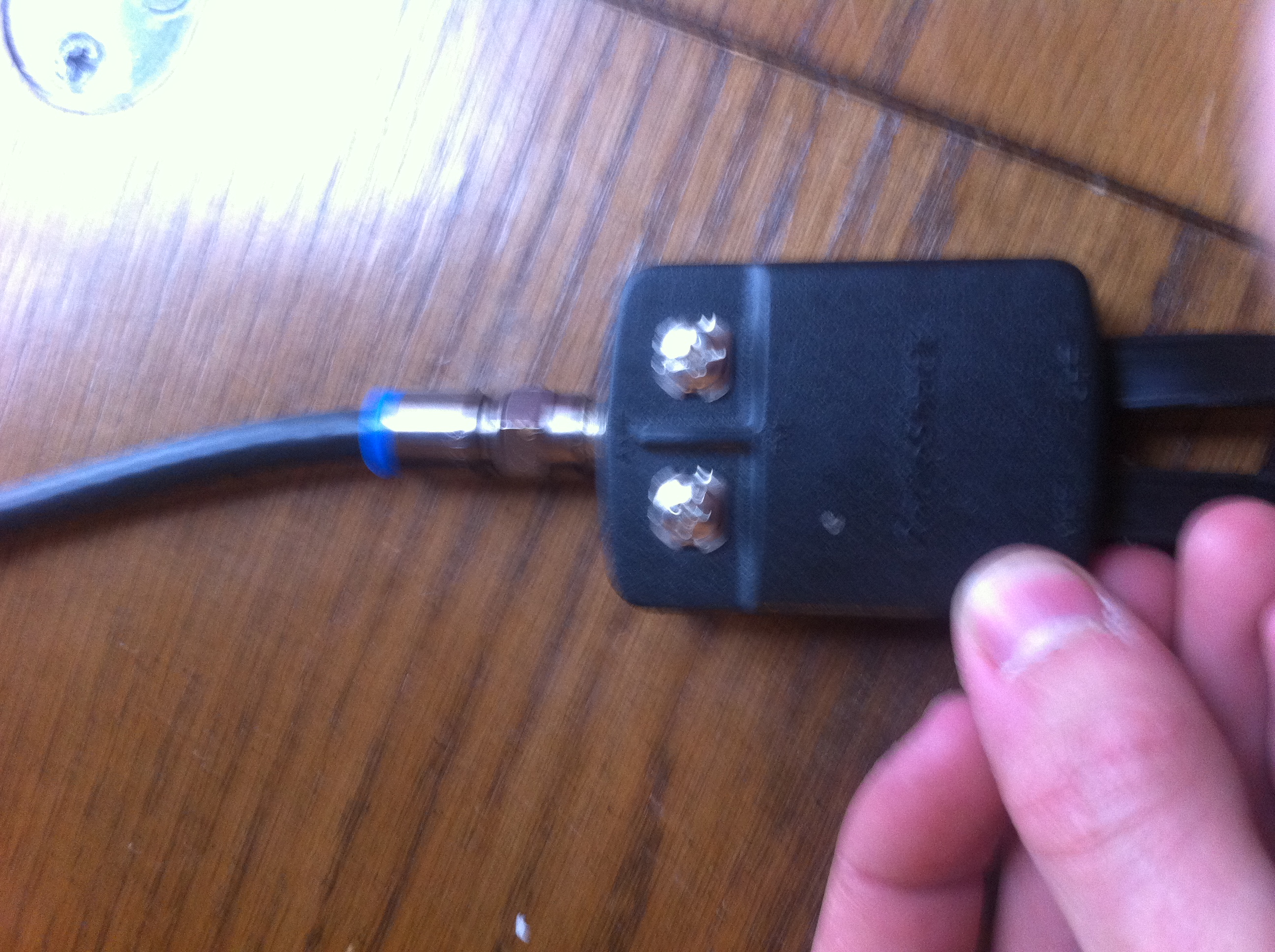

First connect the TV cable to the f connector port. Second connect the VHF connectors to the TV. Then we want to connect the TV cable to the box. And connect the box to the antenna. Also for reference VHF stands for very high frequency.

TV Time

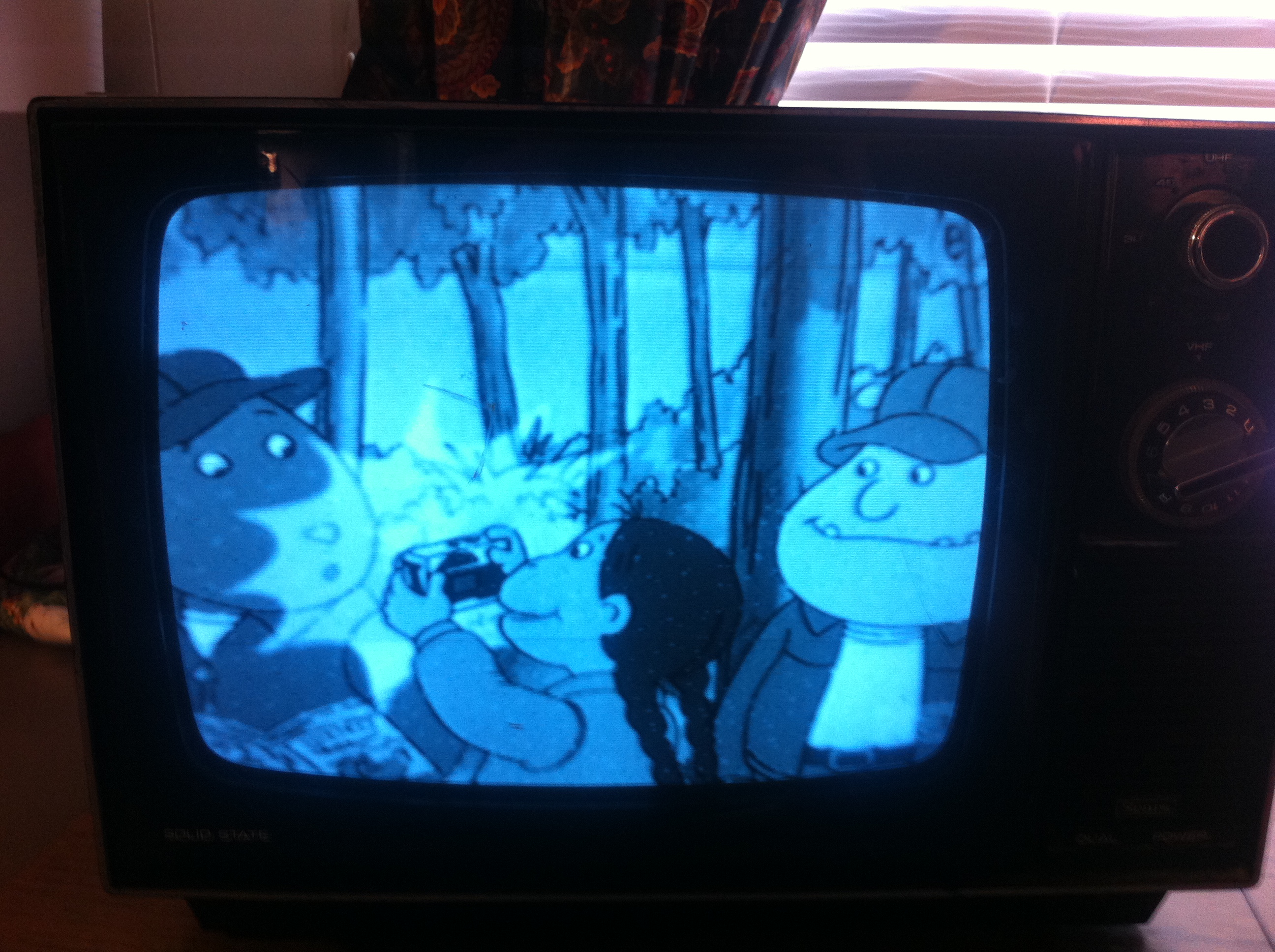

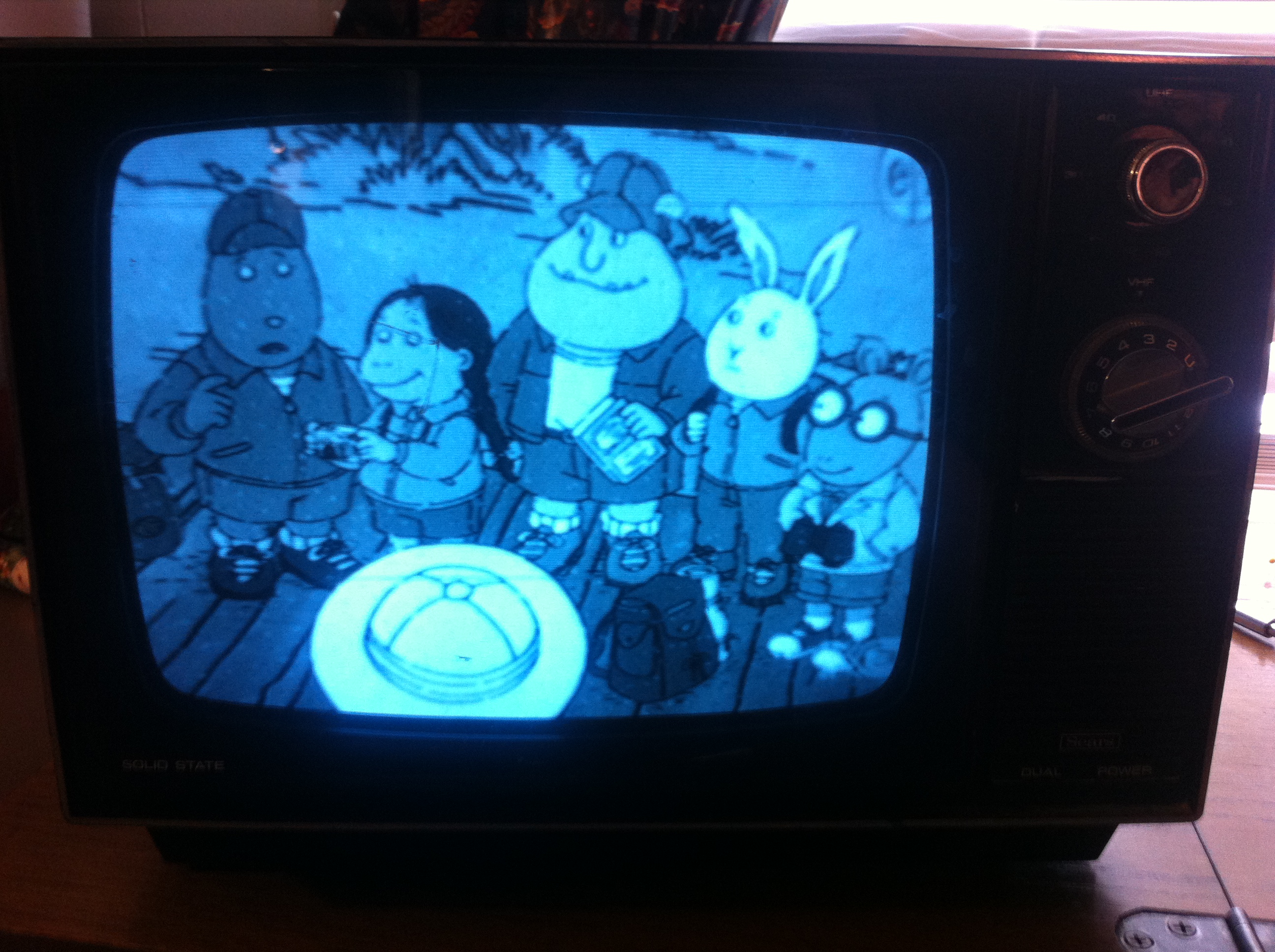

All you should need to do is find the Chanel your TV needs to be set to and go. For me the Chanel is 3.

Also as I ask if you would like to see anything make please let me know. And if you have any questions please ask me.
