DIY Old Keyboard 5-pin DIN to PS2 Converter
by shahbazali4u in Circuits > Computers
90386 Views, 26 Favorites, 0 Comments
DIY Old Keyboard 5-pin DIN to PS2 Converter
![2013-11-23 13.191.jpg](/proxy/?url=https://content.instructables.com/FOT/CW6G/HPFZZGBK/FOTCW6GHPFZZGBK.jpg&filename=2013-11-23 13.191.jpg)
Last Week at 2am in the night in the midst of submitting an important assignment suddenly many of my keyboard keys turned faulty.
As all shops were closed I had to thought of some way.
In my junk I found my old DIN-5 keyboard for my old Pentium II
I took me an hour to convert it to PS2
As all shops were closed I had to thought of some way.
In my junk I found my old DIN-5 keyboard for my old Pentium II
I took me an hour to convert it to PS2
![2013-11-23 12.472.jpg](/proxy/?url=https://content.instructables.com/F18/PZXP/HPG4NMSZ/F18PZXPHPG4NMSZ.jpg&filename=2013-11-23 12.472.jpg)

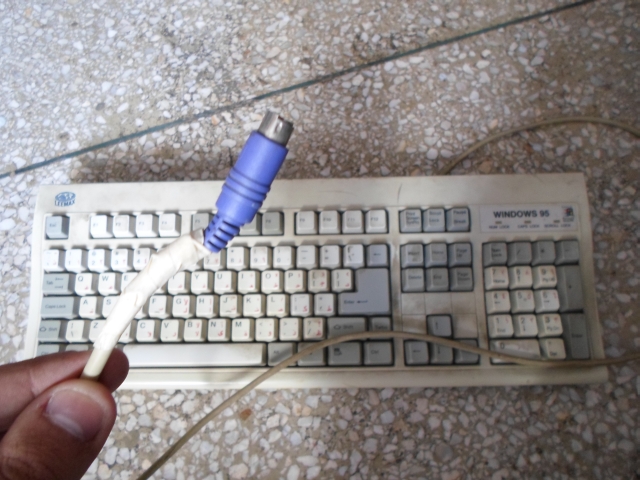

My Old Keyboard with a DIN-5 pin
![2013-11-23 12.481.jpg](/proxy/?url=https://content.instructables.com/F02/DM1Y/HPG4NMTF/F02DM1YHPG4NMTF.jpg&filename=2013-11-23 12.481.jpg)

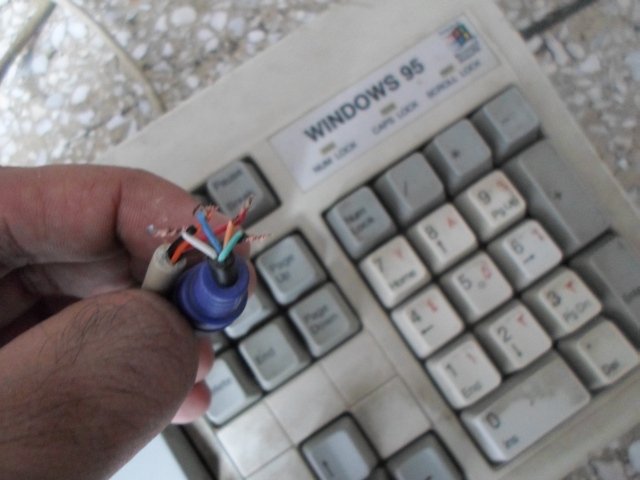

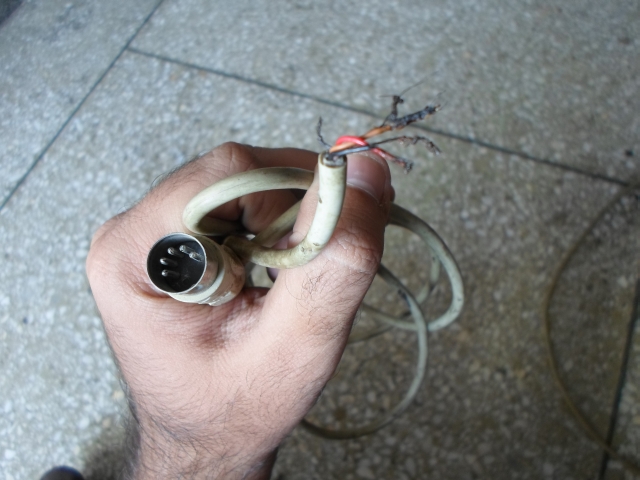

I cut the old and my existing keyboard wires
![2013-11-23 12.491.jpg](/proxy/?url=https://content.instructables.com/FCD/U4BN/HPFZS3QJ/FCDU4BNHPFZS3QJ.jpg&filename=2013-11-23 12.491.jpg)
![2013-11-23 12.501.jpg](/proxy/?url=https://content.instructables.com/FPL/M2AZ/HPG4NMTR/FPLM2AZHPG4NMTR.jpg&filename=2013-11-23 12.501.jpg)
![Keyboard PS2 Pinout.jpg](/proxy/?url=https://content.instructables.com/FPQ/8XUM/HPG4NMTS/FPQ8XUMHPG4NMTS.jpg&filename=Keyboard PS2 Pinout.jpg)
With the help of a Multimeter I determined pin no. with its corresponding colour
![2013-11-23 13.011.jpg](/proxy/?url=https://content.instructables.com/F4A/ZBP5/HPFZS3TF/F4AZBP5HPFZS3TF.jpg&filename=2013-11-23 13.011.jpg)
![Keyboard PS2 Pinout.jpg](/proxy/?url=https://content.instructables.com/FWM/RHEA/HPFZZGE8/FWMRHEAHPFZZGE8.jpg&filename=Keyboard PS2 Pinout.jpg)
Join the wires with each other with respect to its purpose not its colour i-e clock with clock, data with data etc.
![2013-11-23 13.191.jpg](/proxy/?url=https://content.instructables.com/FUZ/WCC7/HPFZS3TX/FUZWCC7HPFZS3TX.jpg&filename=2013-11-23 13.191.jpg)
Tape it up and
VOILA!
Your DIY PS2 keyboard.
VOILA!
Your DIY PS2 keyboard.
