Oil Jug Speaker

This instructable shows how to make a speaker out of a reused oil jug and some various other upcycled parts.

Parts;
speaker
oil jug
headphone cord
paper towel tube
Elmer's spray-on adhesive (similar to plasti-dip)
screws

Tools;
utility knife
soldering iron
philips screwdrivers




Since the speaker was the same size around as a CD,  I decided to use a CD as a template. I found where I wanted the speaker, lined up the CD and marked around it with a marker. Next I took my utility knife and cut along the line.

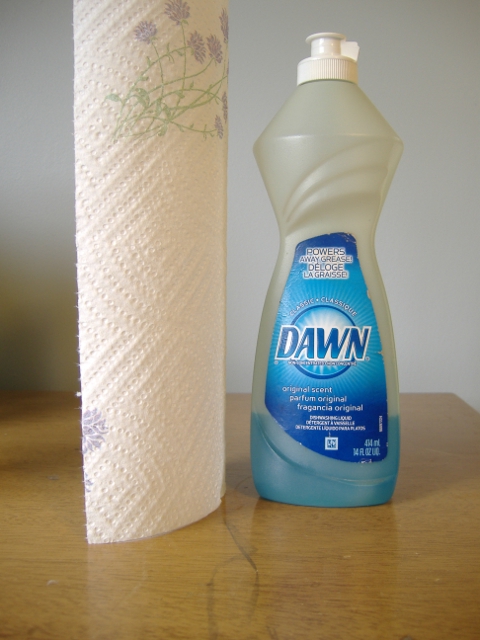

After cutting the hole for the speaker I wiped out all the oil with a paper towel, and washed it out with dawn dish soap.

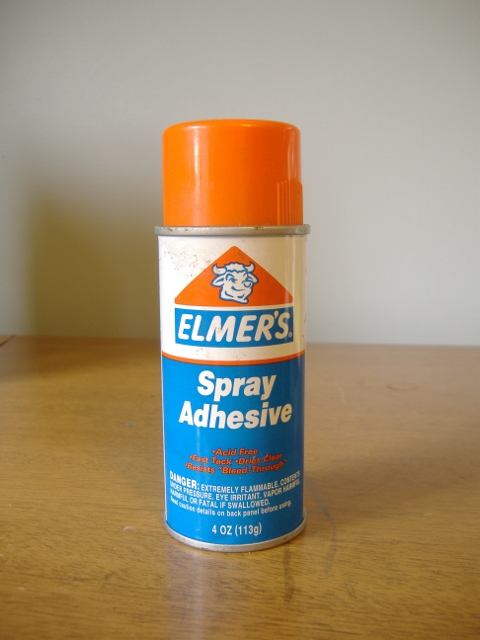

Now that the inside surface is free of oil it is time to glue in the bass reflect. I used elmers spray adhesive to glue it in place. (Plasti-dip spray should also work)

To prepare for the wiring I punched a hole just below the handle on the oil jug for the headphone wire. After that tied a knot in the wire to prevent the wire from ever being pulled out.

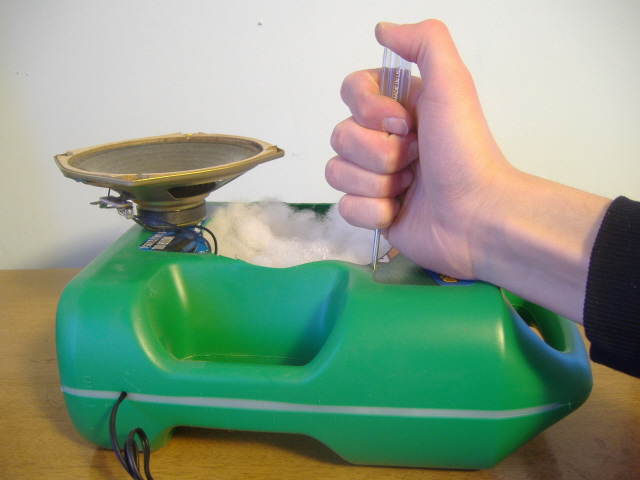

To make it easier to drive in the screws in, I punched holes with a small phillips screwdriver. You might want to remove the speaker when you are punching the holes so you don't accidently punch holes in the speaker too.

Put the speaker back in the hole and make sure the holes in the oil jug line up with the holes in the rim of the speaker. Screw in the screws.

Plug it into your ipod, Mp3 player, or stereo and crank it up. It sounds great; a lot better than I ever thought it would.
