Oh Sew Stylish - IPod Control Evening Dress

"Bright Patches" is a lovely silk halter-back evening dress by Lynne Bruning.

Gorgeous, yes? Now look closely. Notice anything...?

Now why would we ask such a question?

Remember, Aniomagic is about stylishly blending electronics with fashion.

After studying this project, you'll be able to dramatically reach for your dress to change songs on your iPod/iPhone.

Credits:
Photography | Carl Snider
Fashion | Lynne Bruning
Model | Dallas
MUA | Courtney Snider

Ingredients

Ingredients:

a fabulous dress, sweater, coat, or jacket

magic dock connector

conductive fabrics

conductive thread

some bias tubes to route and insulate the conductive thread

some extra fabric to match and compliment your garment

Conductive Fabric & Preparation

We use two types of conductive fabric for this project:

The light gray one is very conductive; used for the Forward/Volume UP actions.

The darker one is not so conductive; used for the Back/Volume DOWN actions.

Cut each piece of conductive fabric into two small 1-inch squares.

You'll also need to cut four pieces of fabric: two for making a pouch, and two for an insulator/divider between conductive layers.

Experiment with hole sizes:

- too small requires a hard squeeze

- too large and the remote may turn on even when you don't press it.

The Switch

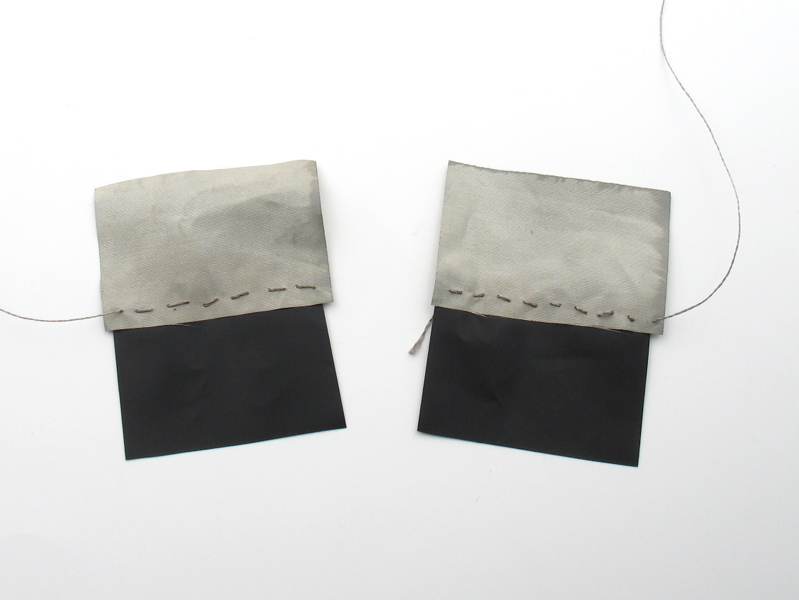

Use conductive thread to sew two pieces of conductive fabric together. Leave

several feet of conductive thread after sewing each pair. It will be routed

to the magic dock.

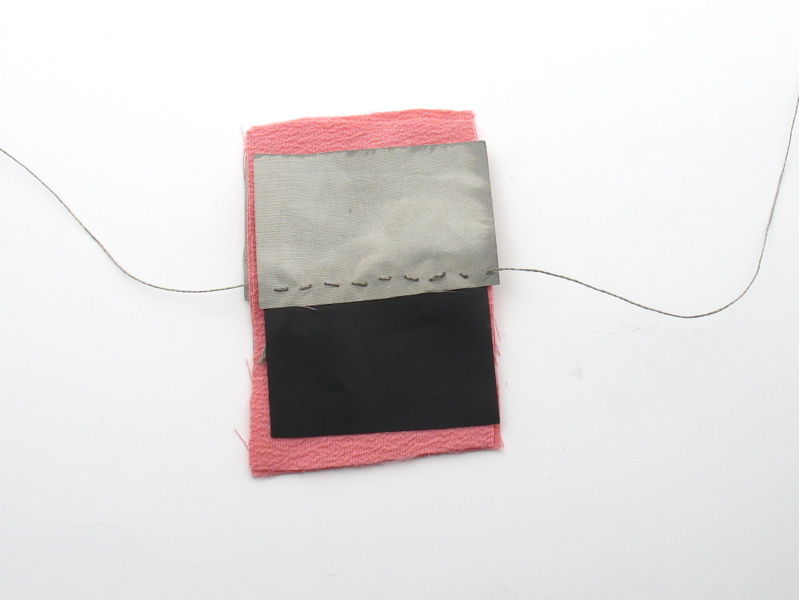

Create a stack: conductive fabric, regular fabric, conductive fabric.

The two sides of conductive fabric will make contact through the holes when

you press. Align gray to gray and black to black.

Use regular thread to sew the entire ensemble together.

Use a multimeter to test the resistance when you squeeze the switch. You're

measuring across the two strands of conductive thread. It should read 1kΩ or

less when you press the gray (zelt) part, and about 50kΩ when you press the

black (velostat) part. More technical details.

Bias Tubes & Magic Dock

Since the switch is all the way in the train of the dress, you'll need about 4 feet of conductive thread leading to the dock. Use a fabric bias tube for a stylish way of insulating the thread.

Textile enchantress Lyne Bruning shows how to make a bias tube in this Instructable.

With a large needle, feed the conductive thread down each bias tube... you'll need two to keep the conductive threads separate.

Follow these instructions from a previous example to connect and assemble your magic dock. (the colors of the bias tubes are different, but the technique is the same)

Make the Pouch for the Remote Switch

Create a small pouch to hold the remote switch. You can sew this directly on the dress.

Slide the conductive switch assembly into this pouch and seal it.

Use existing hems in the dress as anchor points to attach the bias tubes to your dress. You can also use fabric glue if you prefer.

Pocket for IPod

Next, use another piece of regular fabric to create a svelte pocket for the iPod. You'll sew this into the lining of the dress so you can easily slide it in on the go.

You might also consider making a buttoned flap to keep it secure.

Total Glamtronic

Like the diva you are, we expect you to dramatically reach for your dress to change songs on your iPod. xoxo
