Of the Cats, by the Cats, for the Cats

One day my best friend noticed that she was not spending much time with her cats and she felts a bit sorry.

This is why I am starting this project.

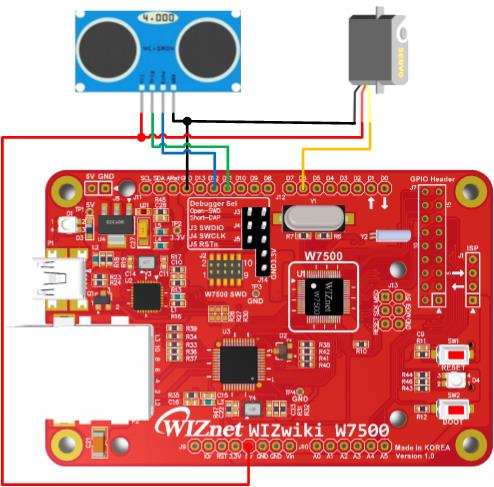

Arm ... You just prepare only the part

- WIZwiki-W7500

- HC-SR04(Ultrasonic)

- SG-90(Servomotor)

- Jumper cable

mbed :mbed link

#include "mbed.h"<br>#include "stdlib.h"  //For rand function
#include "Servo.h"

#include "HCSR04.h"

HCSR04 sensor(D11, D12); //(Trig Pin, Echo Pin)

Servo myservo(D6);

int main()
{
  	int number = 0;

        while(1){

		long d = sensor.distance(1);
        	printf("d = %d\r\n",d);

		myservo = 0.5;

		if(d<=25)    //25cm
	        {
			number = rand()%11;  //0~10

			double a = number*0.1;

			printf("%d = %3f\r\n",number,a);

			myservo = number*0.1;
		}

	wait(0.2);
    }

}

The size is greater than or equal to Card.

The cats were constantly coming and going.

You can make it easier.

If you have a question, please send me email(iriankim1225@gmail.com) or write the comment about this project
