Obstical Avoider

In this video i shoed a working Digram of obstacle sensor

This project shows how to implement the Obstacle Avoiding Robot as an Online Simulation using the TinkerCad Software. So my robot will move left if it senses a Object within 20cms and it will move forward if there is not any obstacle.

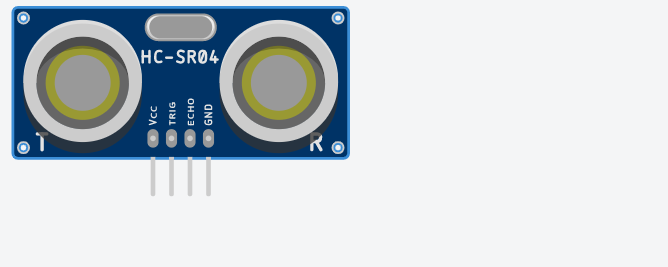

ultra sonic.png

The Following Components which I Required used in this Experiment are-

1 Arduino UNO - 1 L293D (Motor Driver) - 1 dc -Motors - 2 Nos -Ultrasonic Sensor - 1 bradebord

full pic.png

Do all the Connections as Shown in the picture.

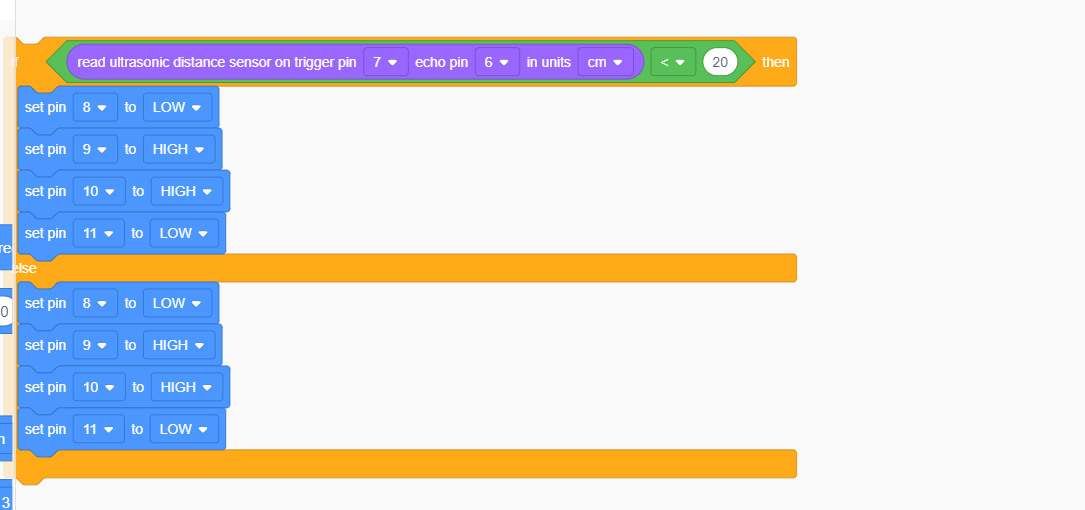

Do the CodeBlocks as shown in the picture using the TinkerCad Simulation Software.
