Obstical Avioding Robot
This is a simple obstacle avoiding virtual circuit built using the tinkercad simulation. In this project our virtual circuit is made to make the motors turn in left direction when the distance is less than 10 cms else it will rotate forward.
Components Required
The following are the components that is required to make this circuit
- beadboard- 1 no
- aurduino- 1 no
- motors- 2 no
- L293D- 1 no
- ultrasonicsensor- 1 no
Connection

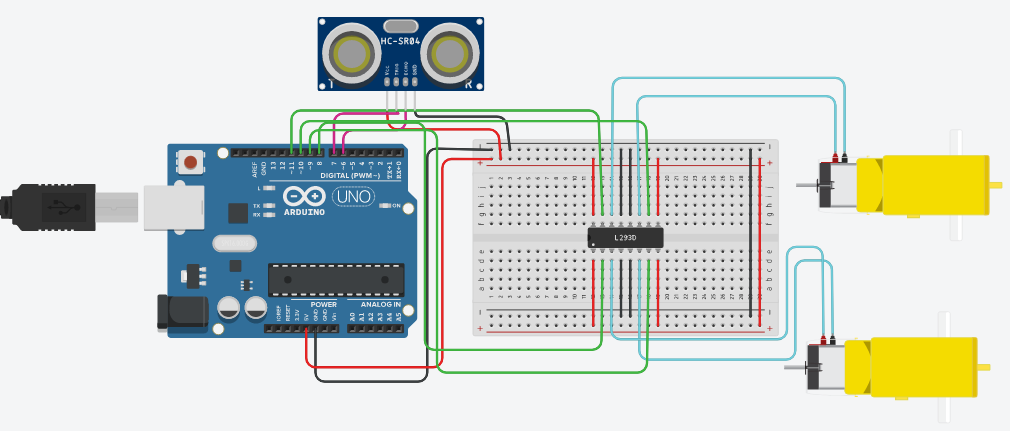

Make the following connection as shown in the above image
Codeblock

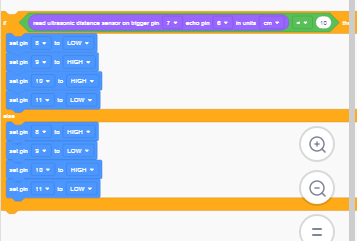

Assemble the following codeblocks as shown in the image using the tinkercad simulation enviorment
