Obstacle Avoiding Virtual ROBOT CIRCUIT

Robot with obstacle avoidance

This is a Simple Tinker Cad Experiment known as Obstacle Avoiding Robot. In this particular experiment my simulation circuit makes the motors to rotate in the left direction if an obstacle is in the front of it else the motors will go on forward.

Components

arduino uno R3.png
Ultrasonic distance sensor.png
l293d motor driver'.png
2_hobby gear motors.png

The following are the components required for the OAR (obstacle avoiding robot).
1) Breadboard *#1 ( *meaning 1 part required)
2)Arduino UNO R3 #1
3) Ultrasonic Distance Sensor HC-SR04 #1
4)L293D H-Bridge Motor Driver #1
5) Hobby gear motors **#2 (**meaning 2 parts required)

Connecting the Circuit


Complete the following connections to our OAR circuit.
Use the Tinker Cad software

As shown in the image.

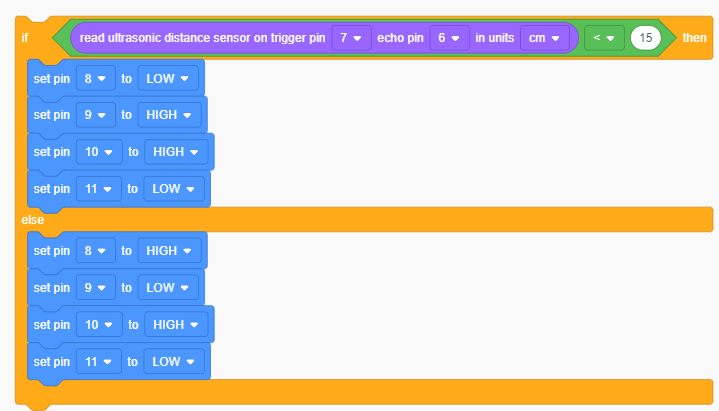

Code Blocks for the Arduino


Assemble the above code blocks for over Arduino UNO R3.

Use the Tinker Cad software.
