Obstacle Avoiding Virtual Circuit

My Post (6).png
My First Robotics Simulation

This is a Simple Obstacle Avoiding Robot where if the distance between the obstacle is less then 10 cms the robot turns left and if it is greater than 10 cms it will turn for forward

Supplies

  • Breadboard - 1 Nos.
  • L293D - 1 Nos.

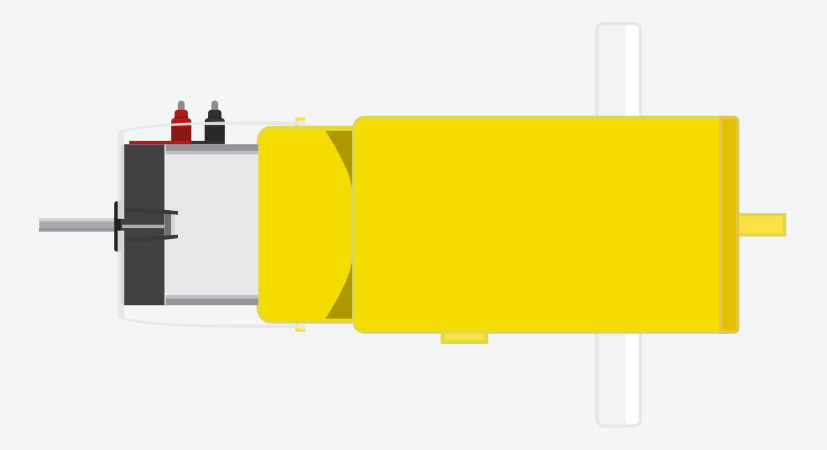

  • Motors - 2 Nos.

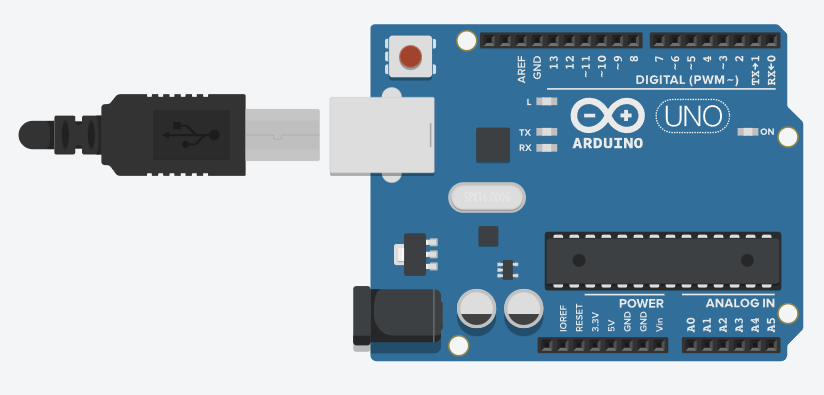

  • Arduino UNO - 1 Nos.
  • Ultrasonic Sensor - 1 Nos.

Connections


Make the connections as shown in the above picture using the TInkerCAD website

CodeBlocks


Assemble the following CodeBlocks as shown in the above picture using the TinkerCAD Website
