Obstacle Avoiding Robot (online Simulation)

Simulation using ultrasonic sensor/ Vaishnav AR

This video is about a obstacle avoiding robot (online simulation) which moves leftwards when it senses a obstacle below 15cm distance.

ultrasonic sensor.png
hobby gear motors.png

Things you need to make a online obstacle avoiding robot.

1. Arduino-1nos

2.Breadboard-1nos

3.L293d(motor driver)-1nos

4.hobby gear motor-2nos


this is how you need to make the connections to simulate the robot.

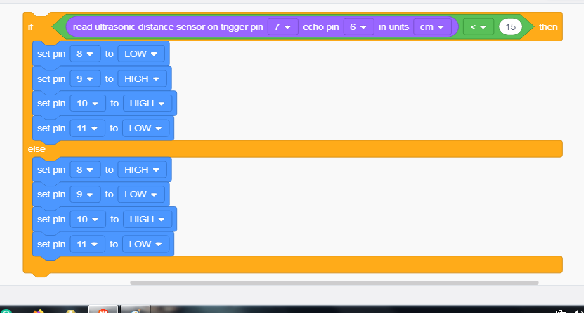

After you have made the connections , code it like this. Then click in the option start simulation and enjoy the simulation.

BYE BYE .
