Obstacle Avoiding Robot - TinkerCAD Simulation

Master Praharsha's first online simulation in tinkercad

This is a TinkerCAD Simulation Video of Obstacle Avoiding Robot

Components Required


You will require the Following Components

01. Breadboard - 1 No.

02. L293D - 1 No.

03. DC Motor - 2 No.

04. Ultrasonic Sensor - 1 No.05.

Arduino UNO - 1 No.

Connections


Connect the Components as shown in the above Image.

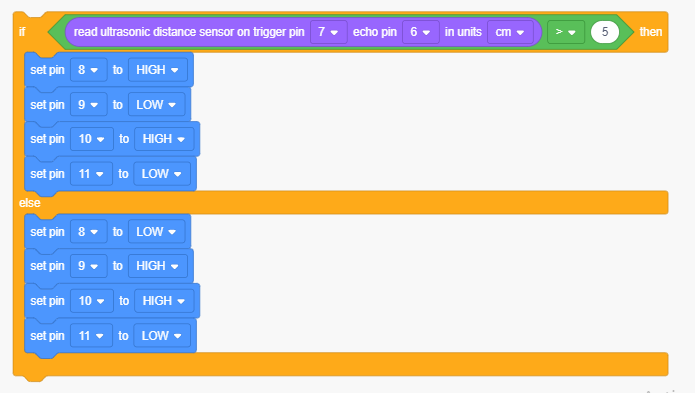

Blocks


Assemble the blocks as shown in the above image for the Obstacle Avoiding Robot
