Obstacle Avoiding Robot - TinkerCAD Simulation

My First Robotic Simulation

This is a TinkerCAD Simulation Video of Obstacle Avoiding Robot

Components Required


You will require the Following Components

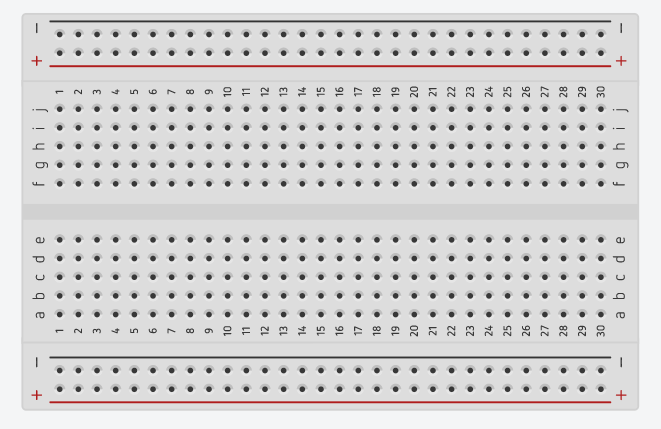

01. Breadboard - 1 No.
02. L293D - 1 No.
03. DC Motor - 2 Nos.

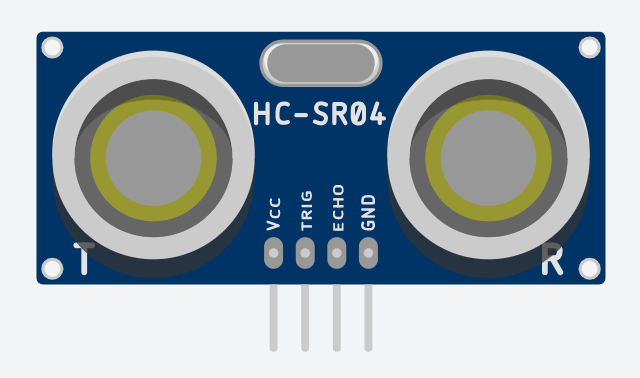

04. Ultrasonic Sensor - 1 No.

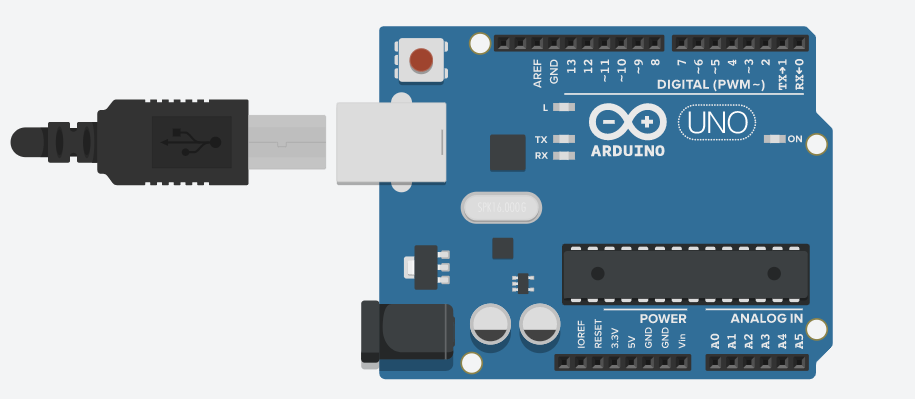

05. Arduino UNO - 1 No.

Connections

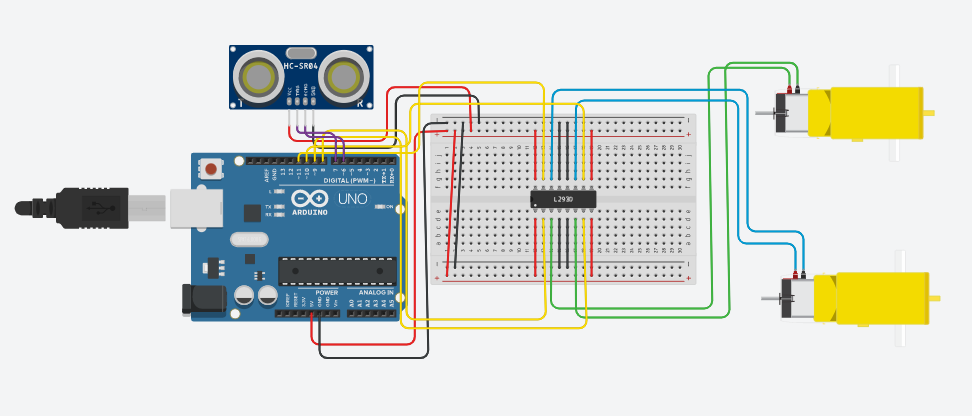

Connect the Components as shown in the above Image.

Blocks


Assemble the blocks as shown in the above image for the Obstacle Avoiding Robot
