Obstacle Avoiding Robot - Introduction - How to Make a Circuit Using a Code?

Hello guys,

Here is the process for making the circuit using the different components. Just connect the wires according to the video and picture I posted above. Then do the code. You will see it in the last step. Use this website to make the circuit. https://www.tinkercad.com/

There are some components you need to make this circuit. They are:

• A breadboard
• 2 hobby motors
• A motor driver (L293D)
• Arduino UNO R3

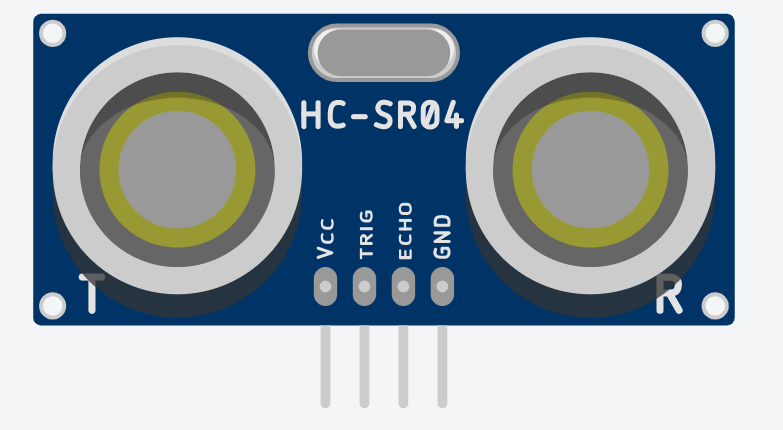

• Ultrasonic sensor ( Dark blue color)

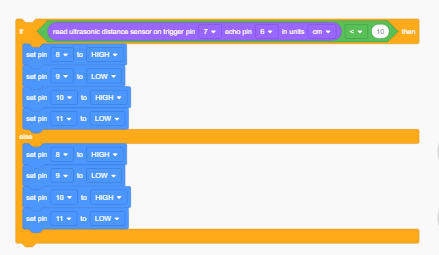

Do the code according to the picture given above. The explanation is also given in the video. Please watch it thoroughly. There will be a button above called "Code". It will be next to the "Start Simulation" button. You will find the blocks in these categories:

• Control (Orange)
• Math (Green)
• Input (Purple)
• Output (Blue)
