Obstacle Avoiding Robot - B8

My First Robotics Simulation

In this particular Article I have made a Simple Obstacle Avoiding Virtual Circuit. In this Circuit my Motors will rotate in Forward direction if the distance is greater than 10 cms and it rotates Left if it is less than 10 cms.

Components Required


The following are the components that is required to make this circuit:

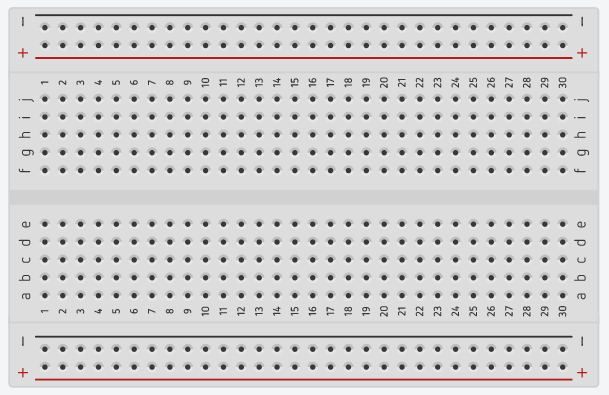

  • Breadboard
  • L293D - Motor Driver
  • Motors - 2 Nos.
  • Arduino UNO
  • Ultrasonic Sensor

Connections


Make the Connection as shown in the above picture in the TinkerCad Circuits

CodeBlocks


Assemble the following codeblocks in the TinkerCAD software
