Obstacle Avoiding Robot - B7

by vishaljegadeesan10 in Circuits > Arduino

253 Views, 2 Favorites, 0 Comments

Obstacle Avoiding Robot - B7

My First Robotics Simulation - Backward Experiment

This project shows how to Implement the Obstacle Avoiding Robot as an Online Simulation using the TinkerCad Software. So My Robot will move left it detects an obstacle within 20 cms and it will move forward if there is no obstacle.

Components Required

ultrasonic Sensor.png

The following are the components which is required to do the Experiment

  • Breadboard - 1 Nos.
  • L293D (Motor Driver) - 1 Nos.

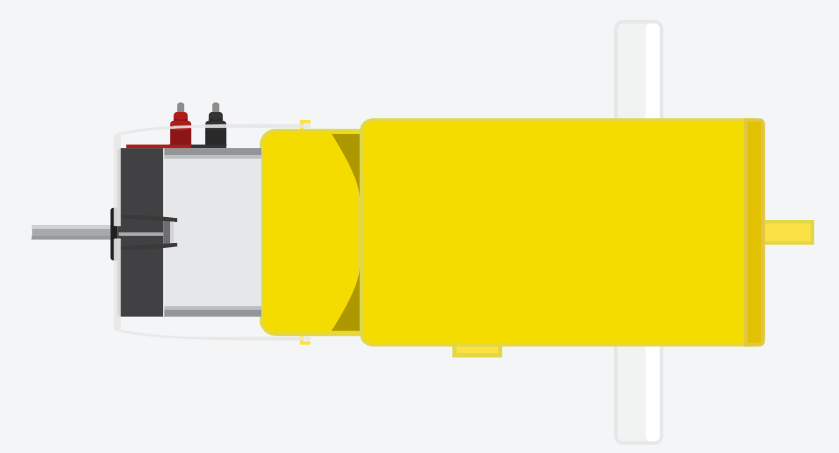

  • DC Motors - 2 Nos.
  • Arduino UNO - 1 Nos.
  • Ultrasonic Sensor - 1 Nos.

Connections


Make the Connections as shown in the Picture.

CodeBlocks

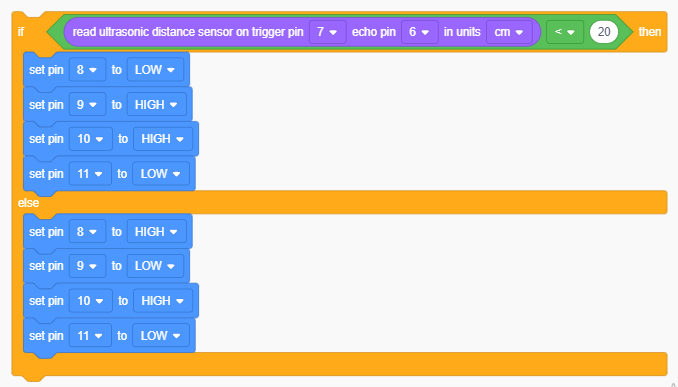

Make the following CodeBlocks using the TinkerCad Simulation Software.
