Obstacle Avoiding Robot - B4

My First Robotics Simulation - Backward Navigation

In this Project you will learn How to create a Obstacle Avoiding Robot Virtual Simulation using TinkerCad Circuits.

Components Required


To do this Project I will require the following Components
(Drag the Components from the Menu and put it inside the Project area)

  • Breadboard - 1 No.

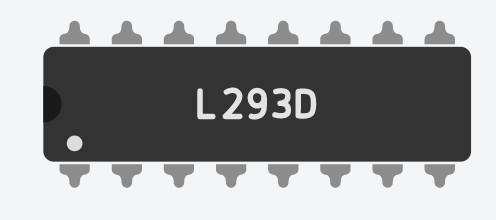

  • L293D (Motor Driver) - 1 No.
  • DC Motors - 2 Nos.
  • Arduino UNO - 1 No.
  • Ultrasonic Sensor - 1 No.

Connections


Make the connections as shown in the above diagram

Blocks or Coding


Make the following blocks as shown in the above Image
