Obstacle Avoiding Robot - B12

by vishaljegadeesan10 in Circuits > Arduino

137 Views, 0 Favorites, 0 Comments

Obstacle Avoiding Robot - B12

Circuit design Fantastic Sango Tinkercad 1

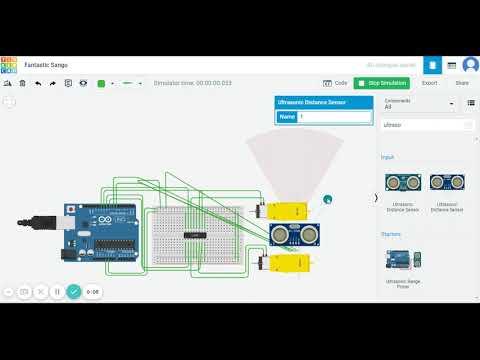

This is a Simple Obstacle Avoiding Virtual Circuit Built using the TinkerCAD Simulation. In this Project our Virtual Circuit is made to make the motors turn in left direction when the distance is less than 10 cms else it will rotate forward.

Components Required

Ultrasonic Sensor.PNG

The Following are the components that is required to make this Circuit:

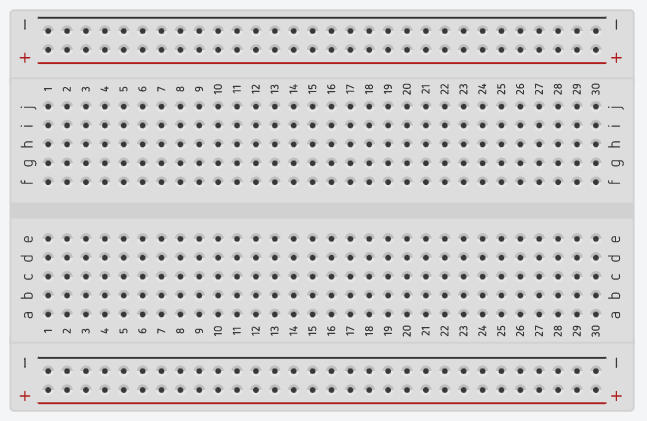

  • Breadboard - 1 No.

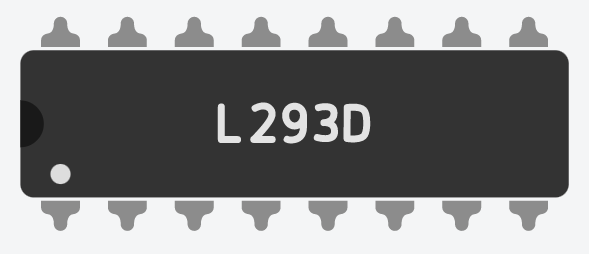

  • L293D (Motor Driver) - 1 No.
  • DC Motors - 2 Nos.

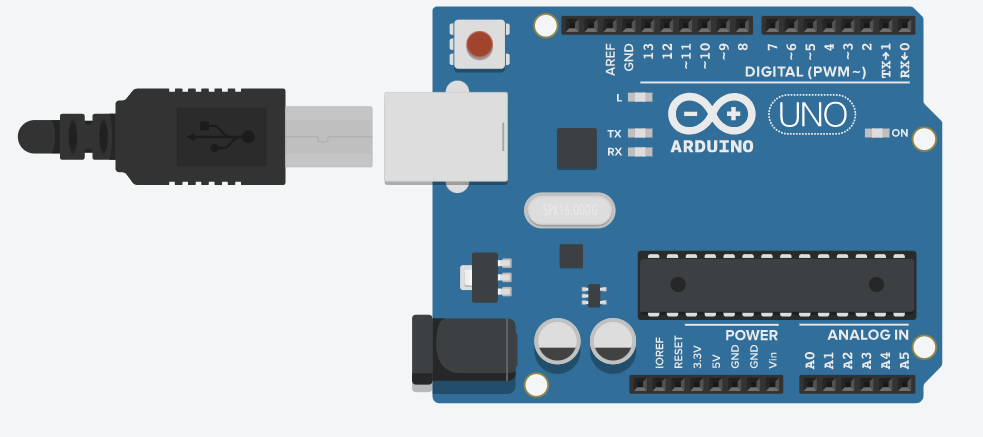

  • Arduino UNO - 1 No.
  • Ultrasonic Sensor - 1 No.

Connections

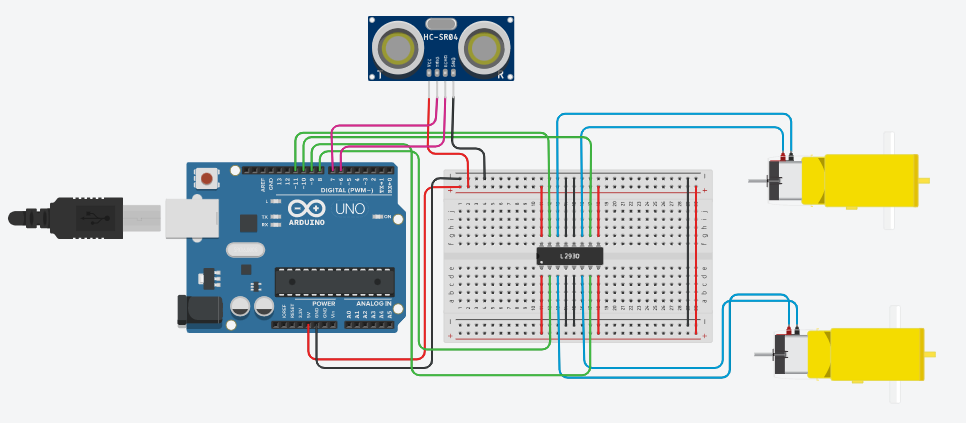

Make the following connections as shown in the above Image

CodeBlocks

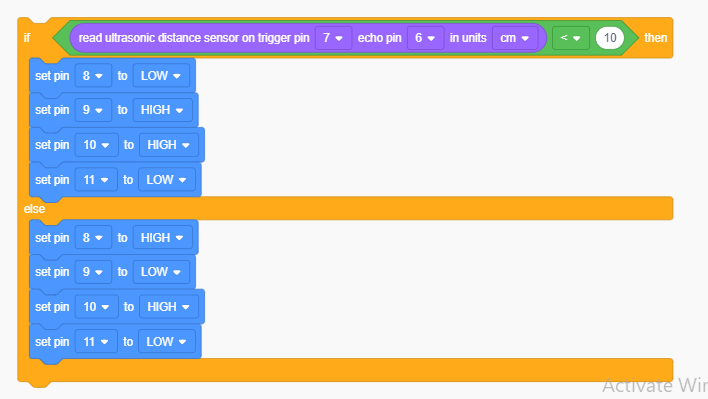

Assemble the following Codeblocks as shown in the Image using the TinkerCAD Simulation Environment.
