Obstacle Avoiding Robot B10

by vishaljegadeesan10 in Circuits > Arduino

97 Views, 1 Favorites, 0 Comments

Obstacle Avoiding Robot B10

My First Robotics Simulation

This Instructable Article is about the Virtual Obstacle Avoiding Robot which make the circuit to move forward when the distance is greater than 15 cms between the Robot and the Object else it will make the robot to go left. Thank You for watching

Components Required


The following are the Components requried:

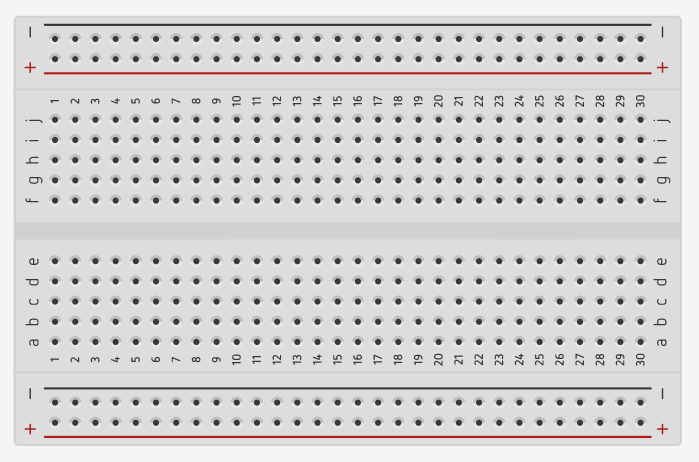

  • Breadboard - 1 Nos.
  • L293D Motor Driver - 1 Nos.
  • Motor - 2 Nos.

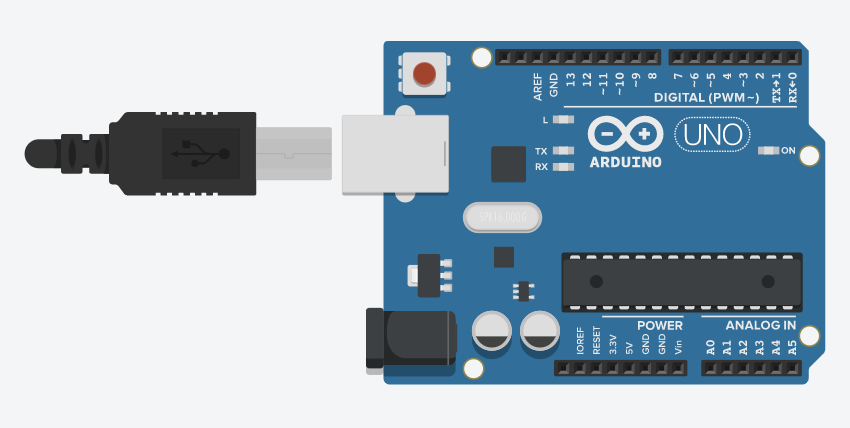

  • Arduino UNO - 1 Nos.

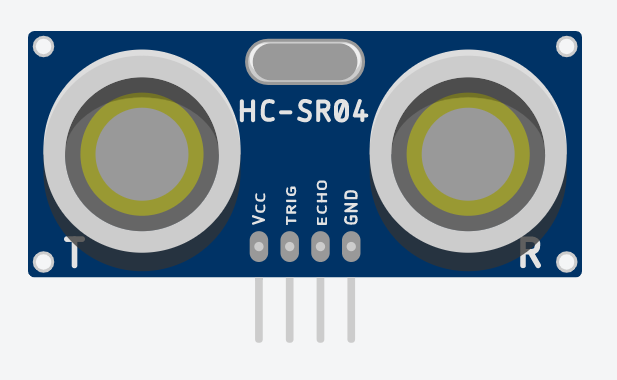

  • Ultrasonic Sensor - 1 Nos.

Connections

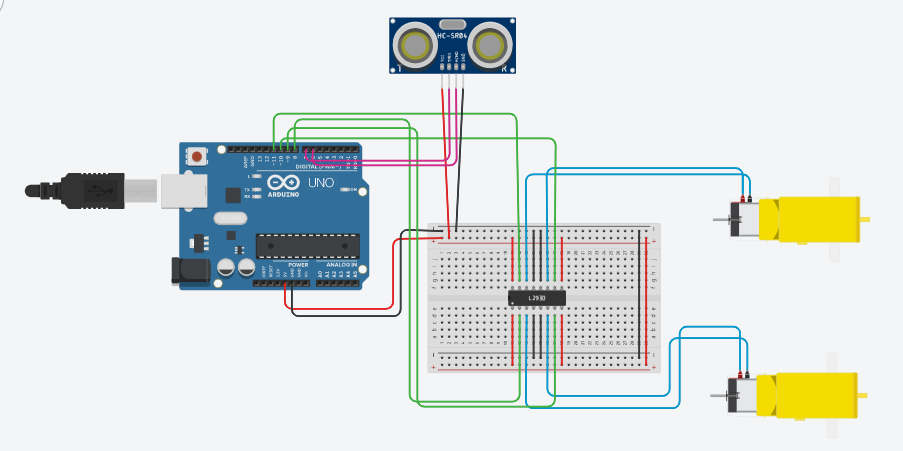

Connect the following connections as shown in the above picture using the TinkerCAD Software

Code Blocks

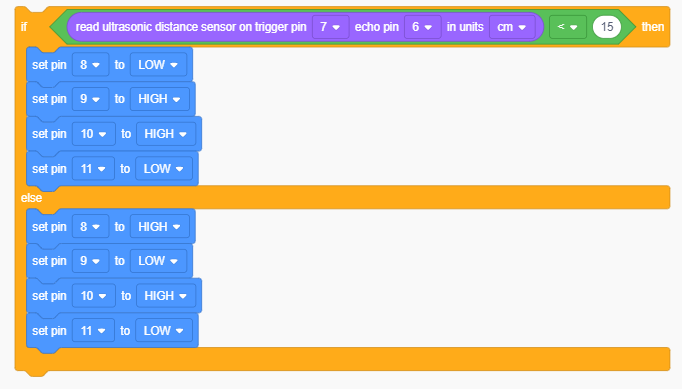

Assemble the Code Blocks as shown in the above Image using the TinkerCAD Software
