Obstacle Avoiding Robot

My second robotic simulation

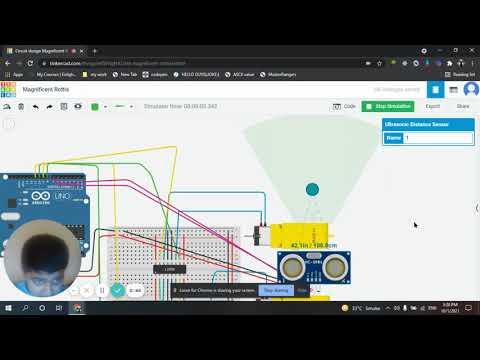

This is a Simple Obstacle Avoiding Virtual Circuit Built using the TinkerCAD Simulation. In this Project our Virtual Circuit is made to make the motors turn in left direction when the distance is less than 10 cms else it will rotate forward.

Components Required

Arduino UNO R3.png
Ultrasonic sensor.png

The Following are the components that is required to make this Circuit:

  • Breadboard - 1 No.

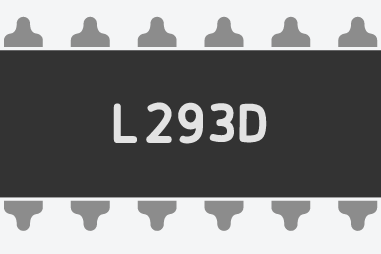

  • L293D (Motor Driver) - 1 No.

  • DC Motors - 2 Nos.

  • Arduino UNO - 1 No.

  • Ultrasonic Sensor - 1 No.

Connections


Make the following connections as shown in the above Image

Code-Blocks


Assemble the following Codeblocks as shown in the Image using the TinkerCAD Simulation Environment.
