Obstacle Avoiding Robot

by audagouni yashwanth in Circuits > Arduino

113 Views, 0 Favorites, 0 Comments

Obstacle Avoiding Robot

My second robotics simulation - obstacle avoiding robot - Audagouni Yashwanth

This is a simple virtual circuit of a obstacle avoiding robot.In this circuit what happens is the robot turns left if the distance between the robot and the obstacle is less than 10 cm else it will move forward .

Components Required

bread board.png
ultrasonic sensor.png

The following are the components required to make this circuit :

1. Breadboard - 1 Nos

2. L293D (Motor Driver) - 1 Nos

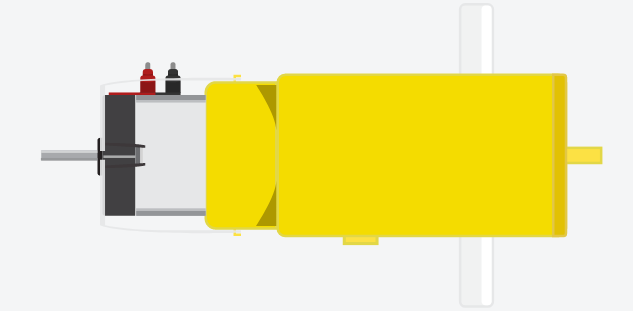

3. Motor - 2 Nos

4. Arduino - 1 Nos

5. Ultrasonic Sensor

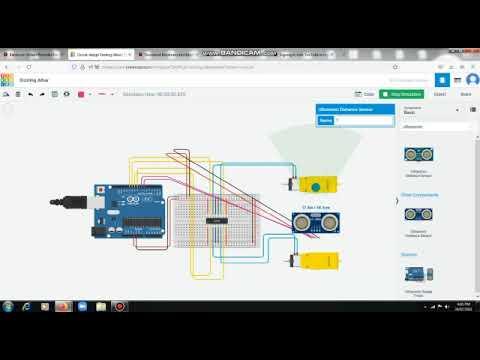

Connections


Make the following connections as shown in this image using TINKERCAD software

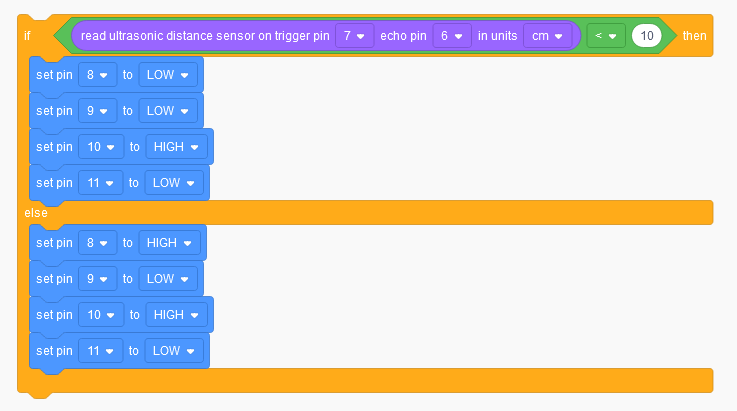

Codeblocks


Assemble the following codeblocks as shown in the picture using the TINKERCAD software
