Obstacle Avoiding Circuit

by gameboss693 in Circuits > Arduino

74 Views, 1 Favorites, 0 Comments

Obstacle Avoiding Circuit


I have made a obstacle avoiding circuit in this circuit if there is any object within 10 cm of the robot then it will go left else it will go front

Supplies

Bread board.PNG
adruino uno.PNG
L29 3d motor driver.PNG
ultrasonic sensor.PNG

The parts you need to make this are as follows:

  • Bread board (small)
  • L293d (motor driver)
  • Motor 2 nos.
  • Arduino UNO R3
  • Ultrasonic sensor - distance

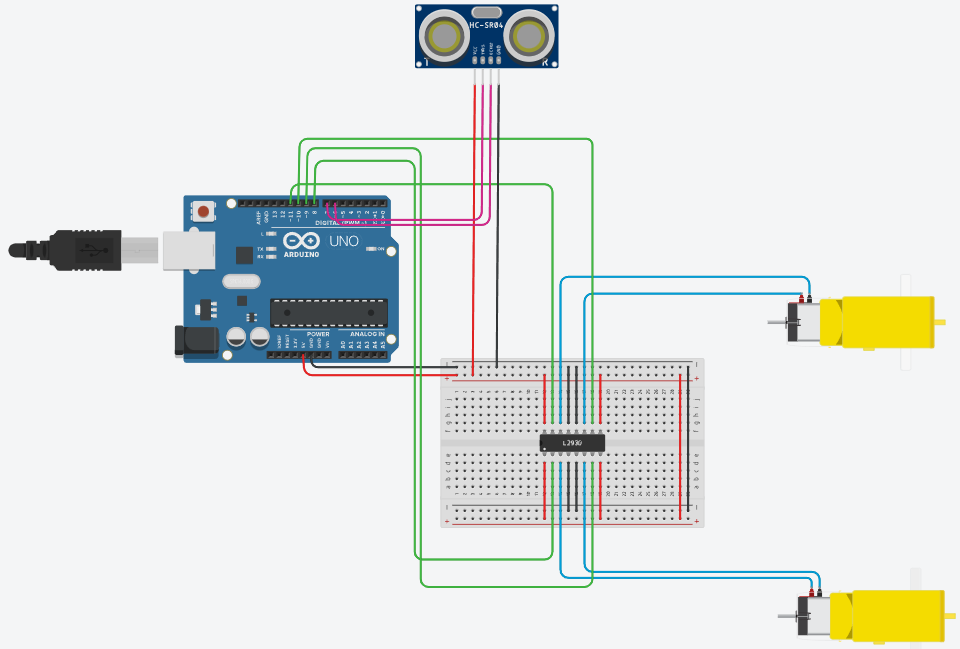

The Wiring


Do the wiring as shown in the picture

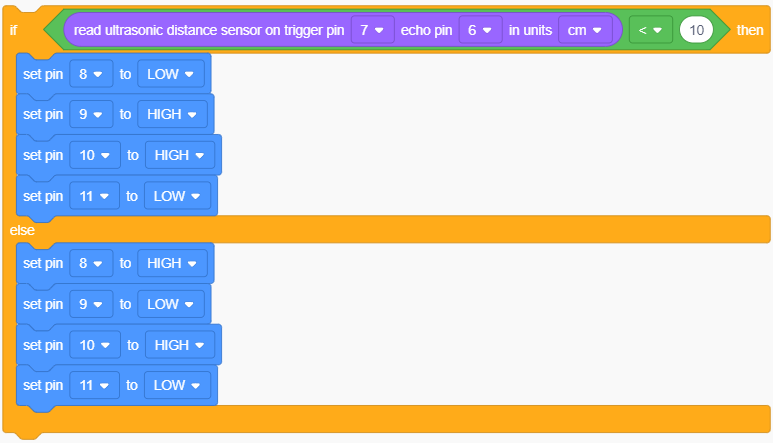

The Code


Do the code as shown in the picture
