Obstacle Avoidance Virtual Circuit

by vishaljegadeesan10 in Circuits > Arduino

15 Views, 0 Favorites, 0 Comments

Obstacle Avoidance Virtual Circuit

My First Robotics Simulation

This is a Simple Obstacle Avoidance Virtual Circuit made using the TinkerCad Circuit. In this Project the Motors rotate in the Forward Direction when the distance between the Sensor and the Object is greater than 15 cms. Else it will rotate in Left Direction.

Supplies


Components Required for this Virtual Circuit

  • Breadboard - 1 Nos.

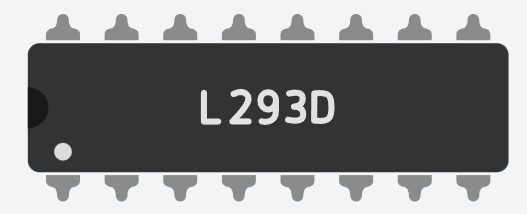

  • L293D (Motor Driver) - 1 Nos.

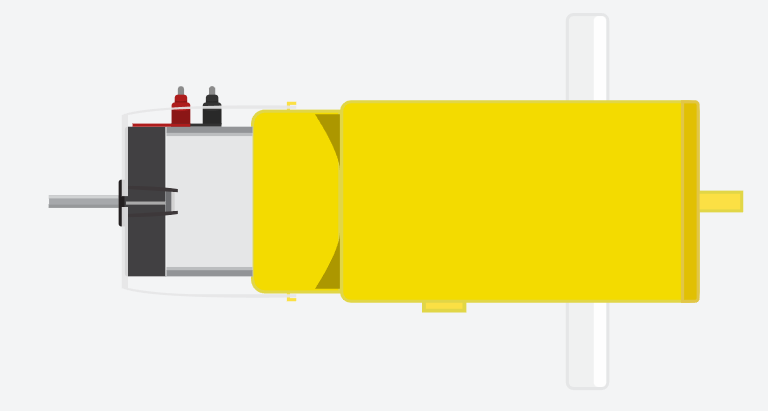

  • Motors - 2 Nos.

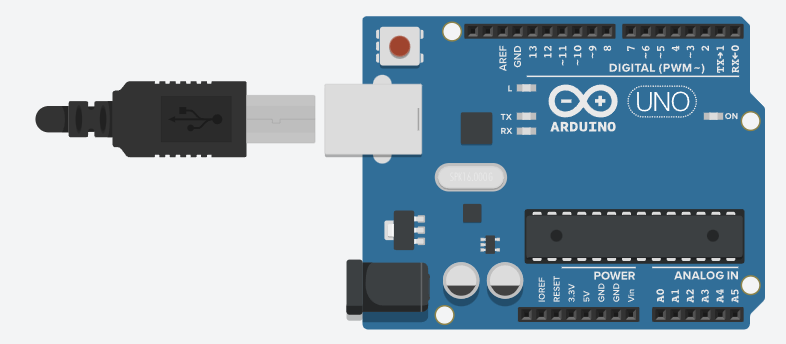

  • Arduino UNO - 1 No.

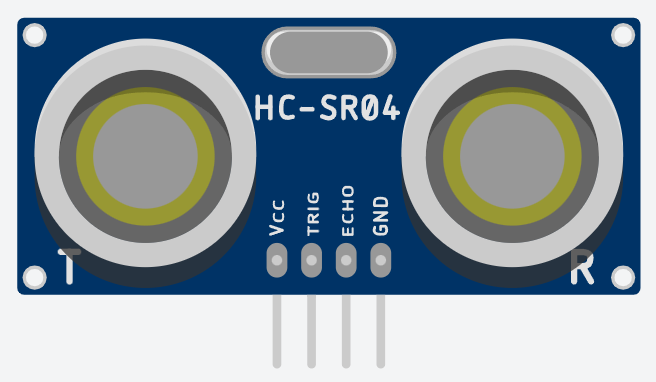

  • Ultrasonic Sensor - 1 No.

Connections

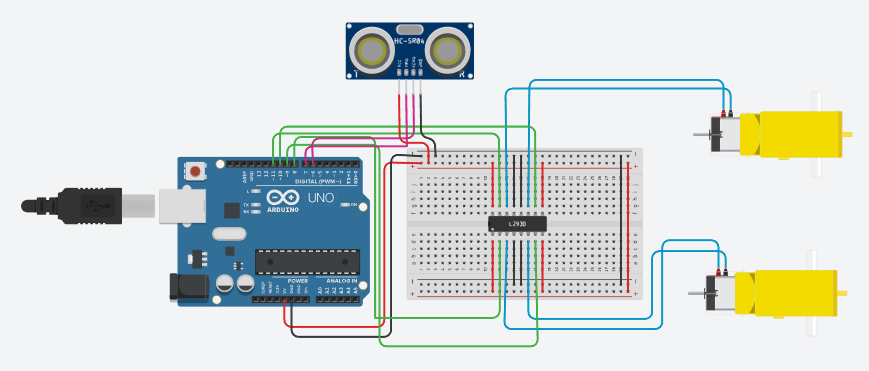

Make the Connections as shown in the above image using the TinkerCAD Software

CodeBlocks

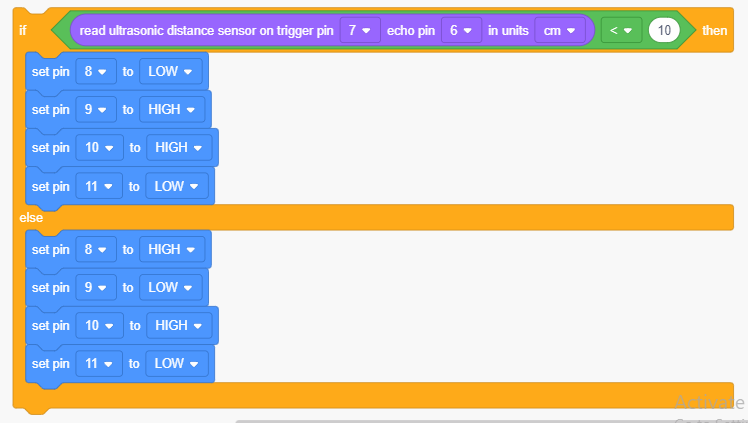

Assemble the following CodeBlocks as shown in the Image
