Obstacle Avoidance Robot - Online Using TinkerCAD Software

Circuit design Ultrasonic sensor

This is a online obstacle avoidance robot using the TinkerCAD software .

Components Required

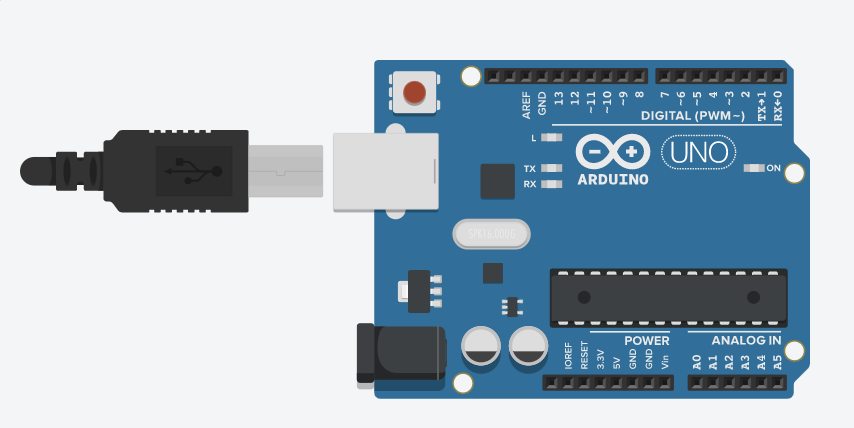

Arduino UNO.png
bread board.png

01. Arduino UNO - 1

02.Breadboard - 1

03.L293d motor driver IC - 1

04.Gear Motors - 2

05. Ultrasonic distance sensor.- 1

Circuit Diagram


You need to do all the connection as shown above in the image

Code Blocks for Project


You need to do all the things as shown in the image.
