Obstacle Avoidance Robot

by rishabh.karthikeyan11 in Circuits > Arduino

239 Views, 1 Favorites, 0 Comments

Obstacle Avoidance Robot

Obstacle avoidance robot

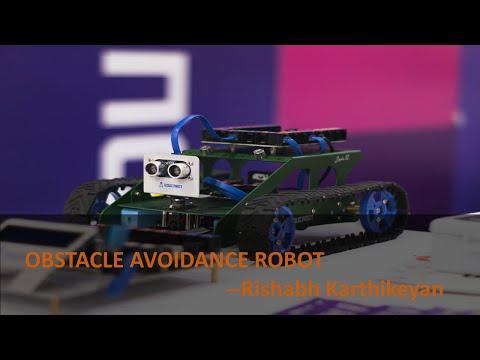

This is a circuit That I have made, for a motor to sense obstacles on its way, via the ultrasonic sensor. This is called obstacle avoidance robot. This helps a motor change it's direction, if it sees an obstacle.

Materials Needed

Screenshot (317).png
Screenshot (318).png
Screenshot (320).png
Screenshot (319).png
Screenshot (321).png

Here are the materials needed:

1. Hobby Gear Motor - x2

2. Motor driver - x1

3. Ultrasonic distance sensor- x1

4. Bread board - x1

5. Arduino UNO chip - x1

Connections

Screenshot (323).png

Make the connections shown using TinkerCAD software as shown in the picture:

Code Blocks

Screenshot (325).png

Make the code in the TinkerCAD software > circuits as shown in the picture
