Virtual Obstacal Avoiding Robot- TinkerCAD

Circuit design Obstical Avoiding Robot

This is a simple Virtual Circuit of an obstacle-avoiding robot. In this Circuit the robot turns left if the distance between the robot and an object or an obstacle is less than 10cm or else it will move straightly

Components Required

Arduino UNO.png

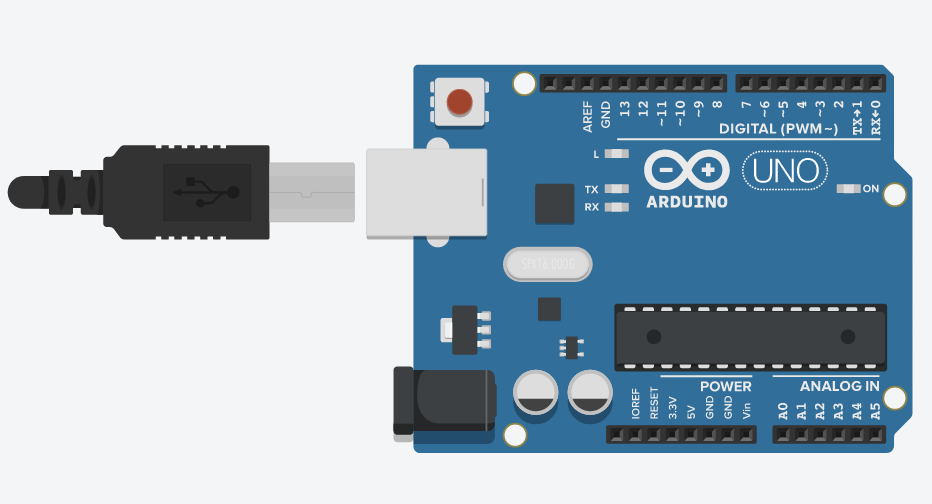

Hobby Motor.PNG
Ultasonic distance sensor.png

The following components are required for this circuit:

  1. Arduino- 1nos.

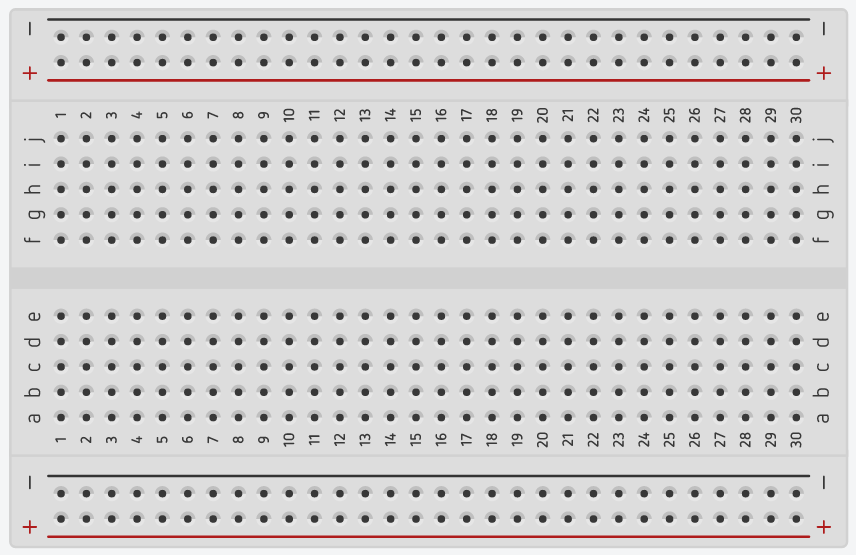

  2. BreadBoard- 1nos.
  3. L293D- 1nos.

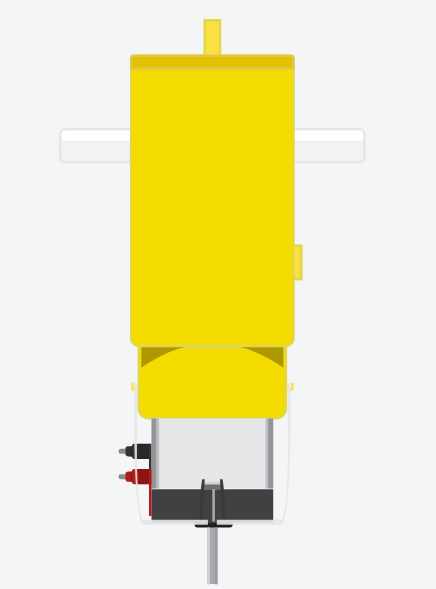

  4. Motor- 2nos.
  5. Ultrasonic distance sensor/Sonar Sensor- 1nos.

Connections


Make the following connections as shown in this image using TinkerCad Software

Code

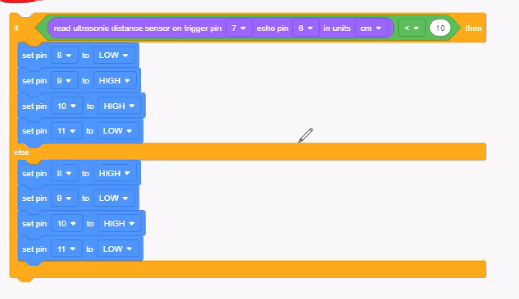

assemble the following code blocks as shown in the figure using TinkerCad software
