Obsctacle Avoiding Robot - Online Simulation

by raathifismail7 in Circuits > Arduino

87 Views, 0 Favorites, 0 Comments

Obsctacle Avoiding Robot - Online Simulation

Car - Online Simulation Model

This is a simple TinkerCad Expreiment Known as obstacle avoiding Robot. In this particular experiment my simulation circuit makes the motors to rotate in left direction if there an obstacle else it will make the motors rotate in forward direction.

Components Required

WhatsApp Image 2021-06-04 at 9.20.22 PM.jpeg
WhatsApp Image 2021-06-04 at 9.18.51 PM.jpeg
WhatsApp Image 2021-06-04 at 9.18.52 PM (1).jpeg
WhatsApp Image 2021-06-04 at 9.18.52 PM (2).jpeg
WhatsApp Image 2021-06-04 at 9.18.52 PM.jpeg

The following are components which is required to makes this circuit:

01.Bread Board - 1 Nos.

02.Arduino UNO - 1 Nos.

03.Ultra Sonic Sensor - 1 Nos.

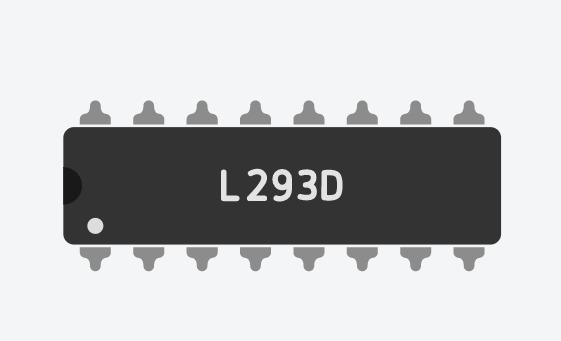

04.L293D Motor driver - 1 Nos.

05.Gear Motor - 2 Nos.

Connections

Car - Online Simulation Model

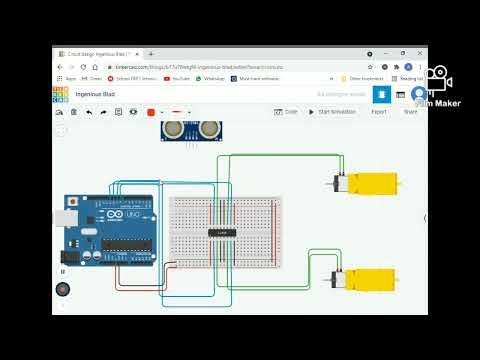

Make the folowing Connections using the TinkerCad software as shown in the picture.

Code Blocks


Assemble the following Code blocks using the TinkerCad Software as shown in the picture.
