Obsctacle Avoiding Robot -- Online Simulation

Circuit design Super Jofo Tinkercad

This is a Tinkercad Experiment known as Obstacle Avoiding Robot. In this Experiment, my simulation circuit makes the motors to rotate in the left direction if there is an Obstacle else it will make the motors to rotate in Forward direction

Components Required


The following are the components that are required to make this circuit.

01. Bread Board - 1 Nos

02.Arduino UNO - 1 Nos

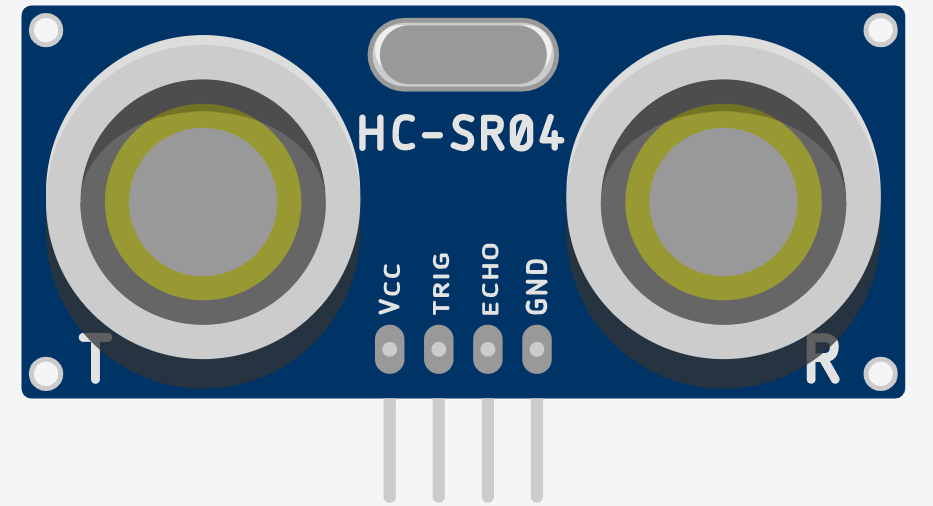

03. Ultra Sonic Sensor - 1 Nos

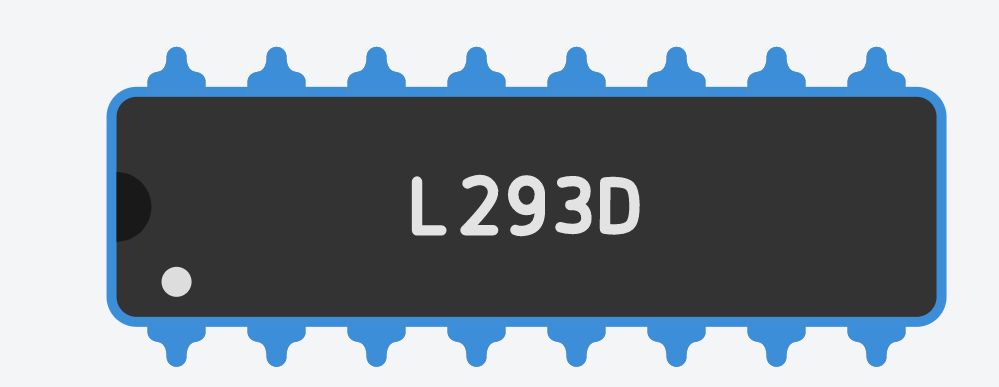

04.L293D - 1 Nos

05.Motor - 2 Nos

Connections


Make the following Connections using the Tinkercad software as shown in the picture

Code Blocks

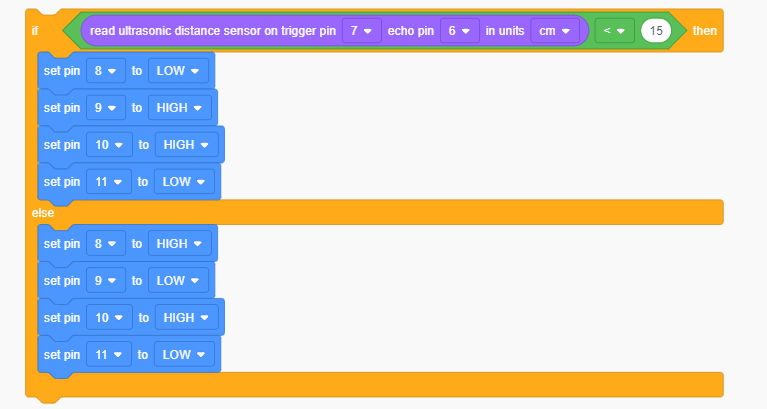

Assemble the following Code Blocks using the Tinkercad Software as shown in the picture
