ORIGINAL FANS OF ENDER3 With the E3DV6 and Orbiter V1.5 or V2.0

This bracket directly uses the original fans of the ender3, supports E3DV6, and can add a Orbiter V1.5 or Orbiter V2.0and a 3D touch if it is extended.

Notice:

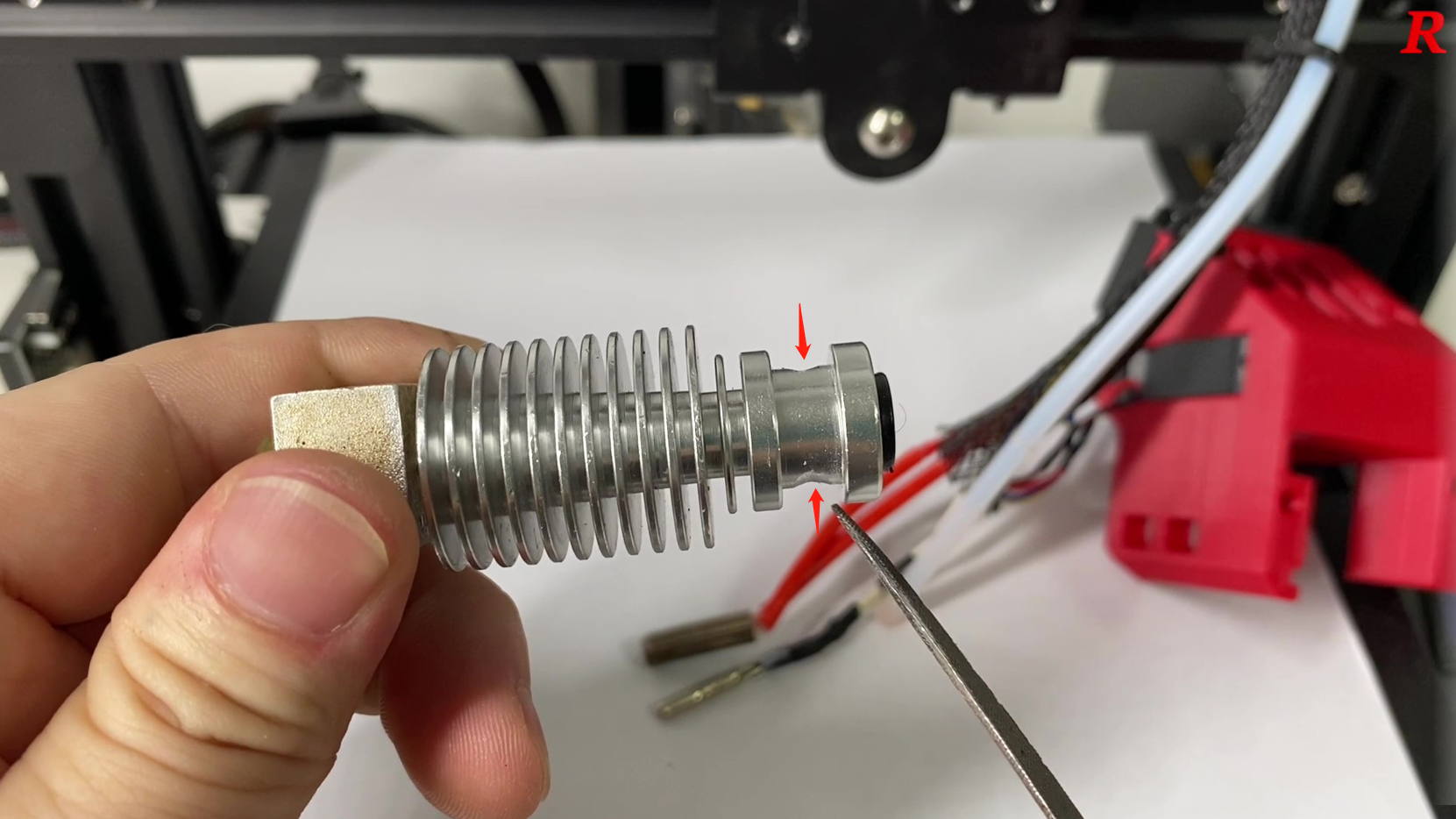

1 E3DV6 needs to be slightly polished with a file (as per the video);

2 If you want to install the Orbiter V1.5 or V2.0 and 3D touch, you need to insert the nut first(Nut holes have been reserved);

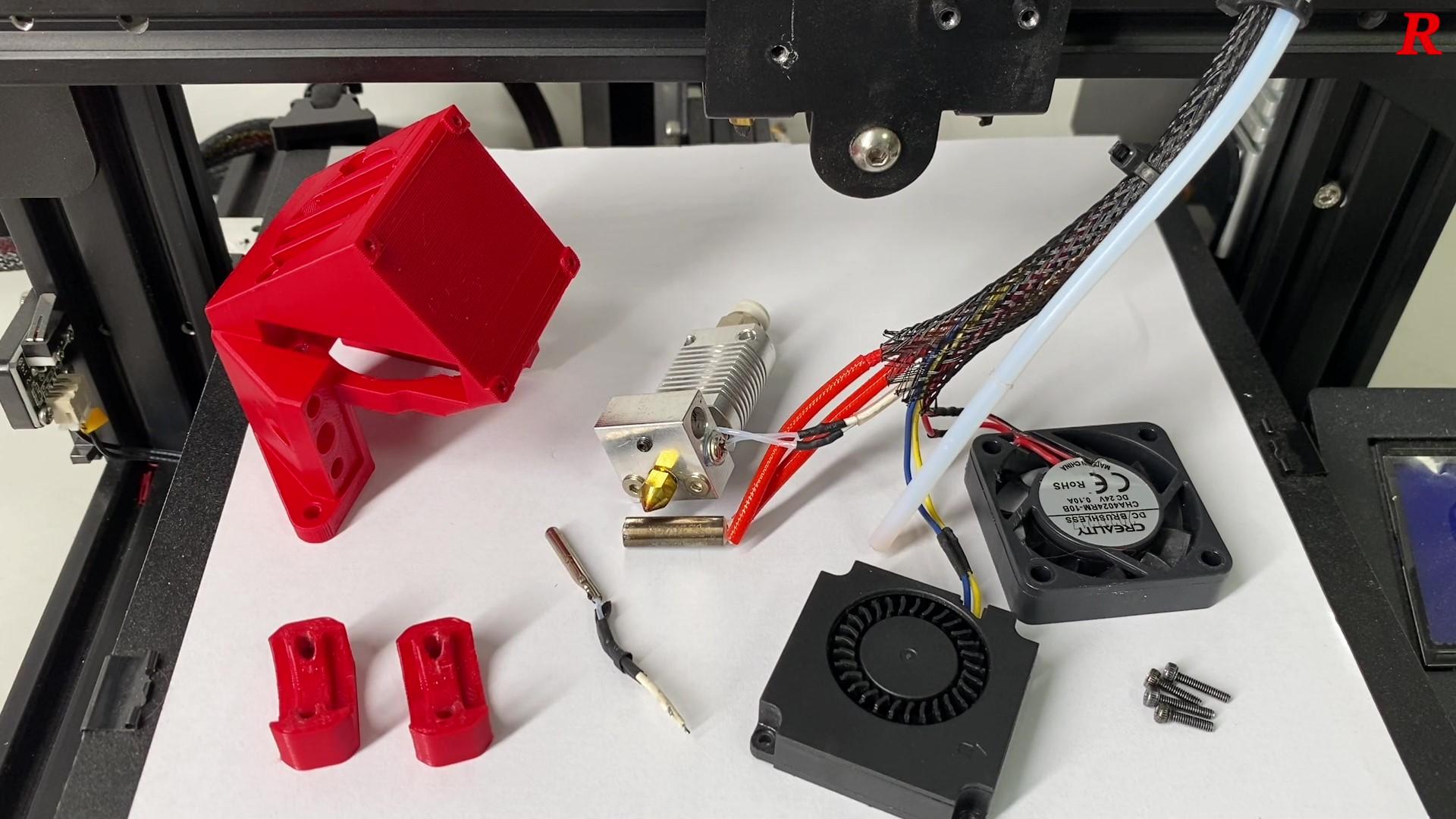

1 3 prints；

2 M3 X 8 Socket Head Cap (1)；

3 M3 X 18 Socket Head Cap (4)；

To add orbiter V1.5 and 3D touch;

4 M3 X 6 Socket Head Cap (2)；

5 M3 X 8 Socket Head Cap (2)；

6 M3 Knurled Brass Nut(M3X4X4.5mm) (4);

7 the Orbiter V1.5 or Orbiter V2.0;

8 3D touch(or BL touch);

Carefully unscrew the screw and put it away, taking care not to damage the fans.

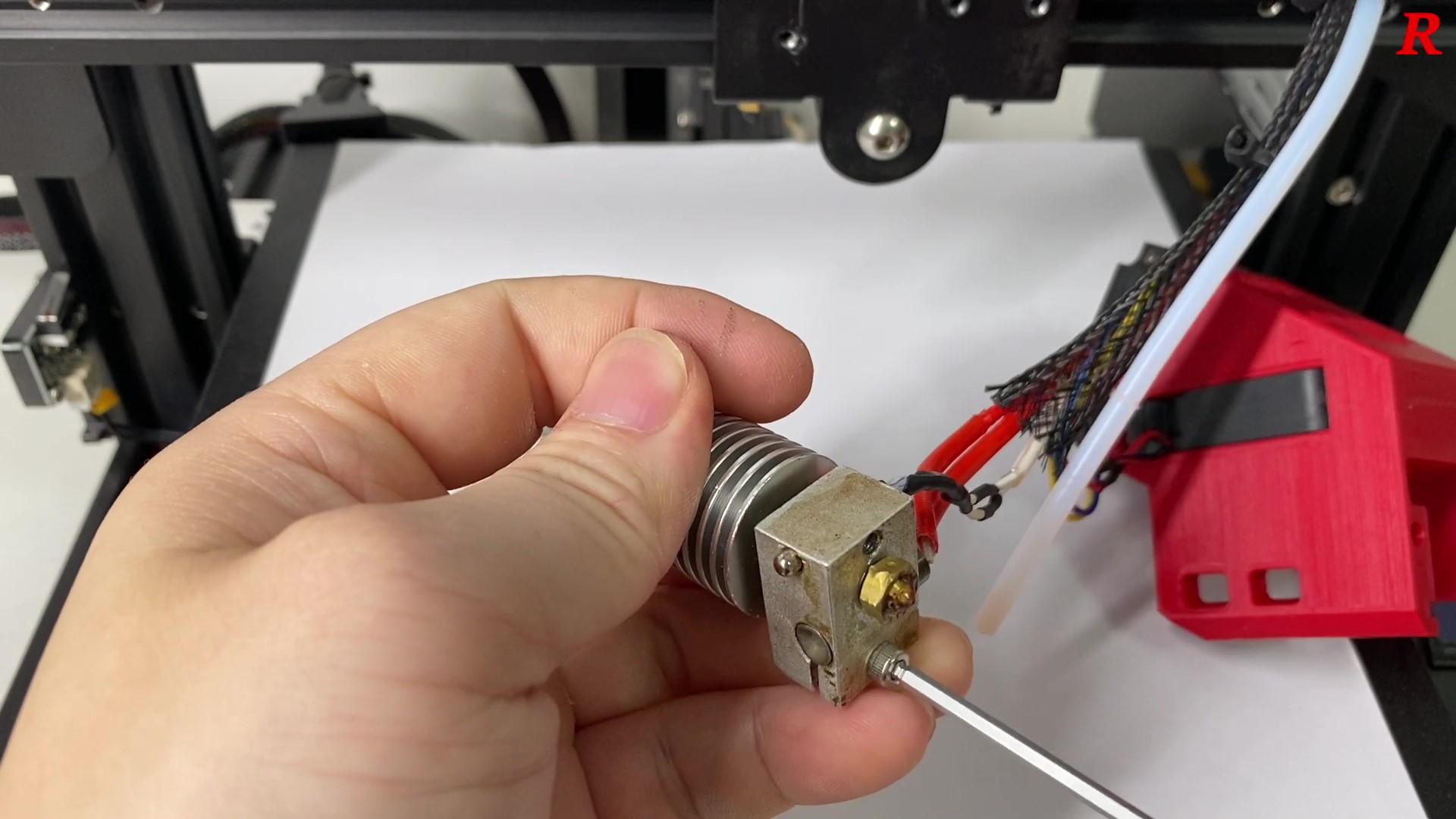

Cut the thermistor wire as shown, because the original thermistor does not fit the E3DV6

Welded rod thermistor, 3mm diameter, 100K resistance

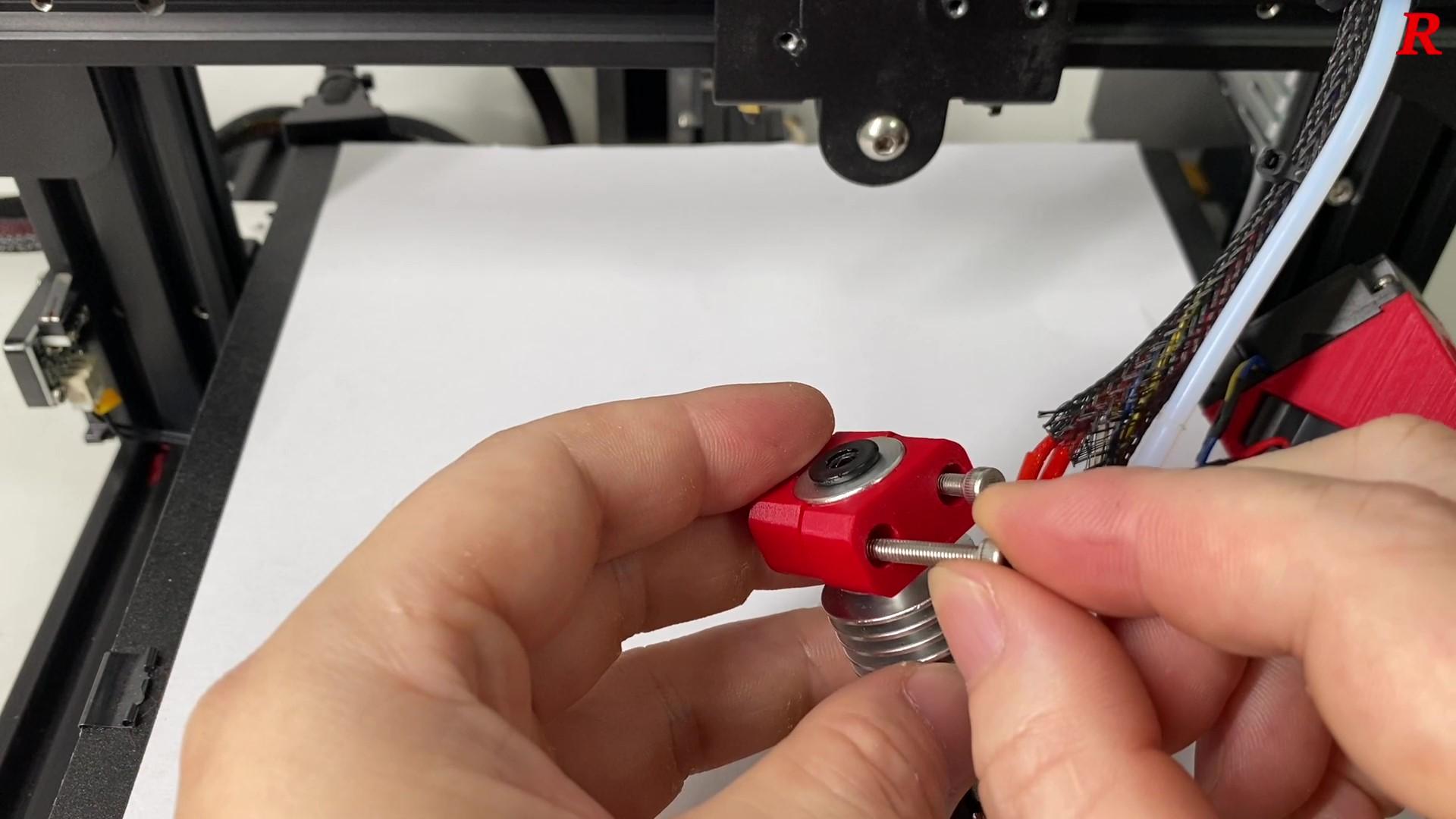

Push in slowly and install M3X18 screws after installation.

The screws are original M2X8 and M2X10 screws.

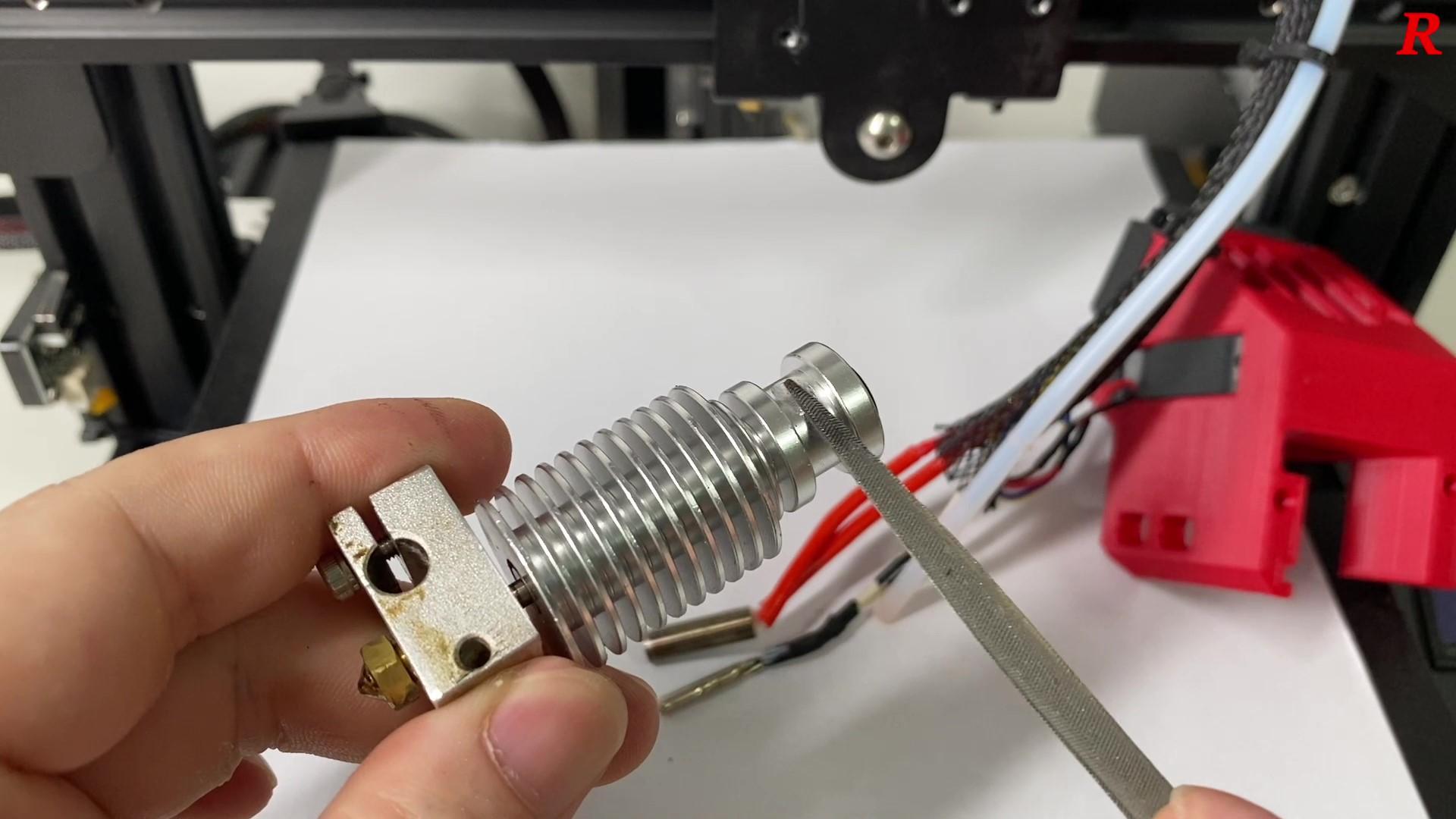

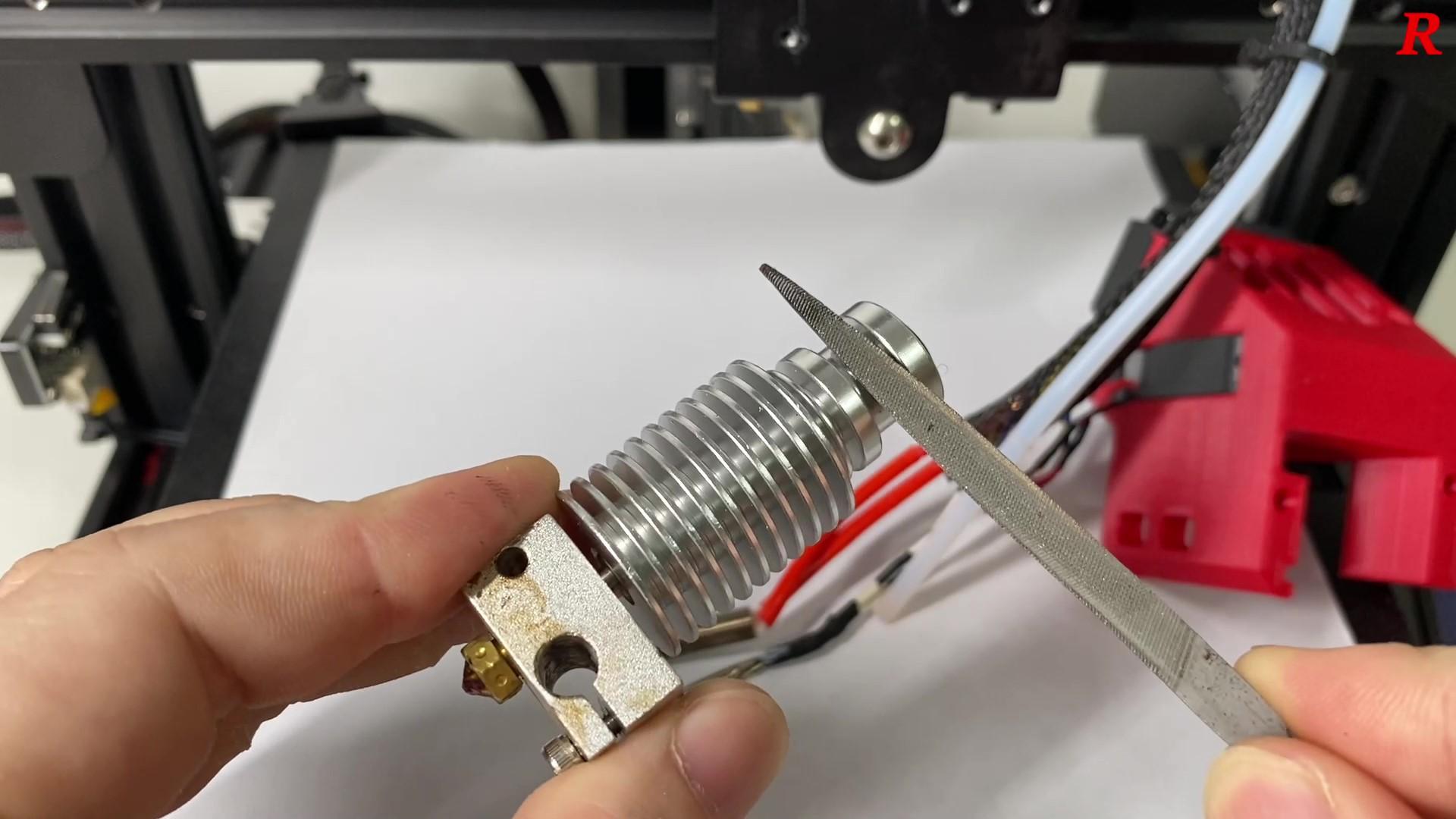

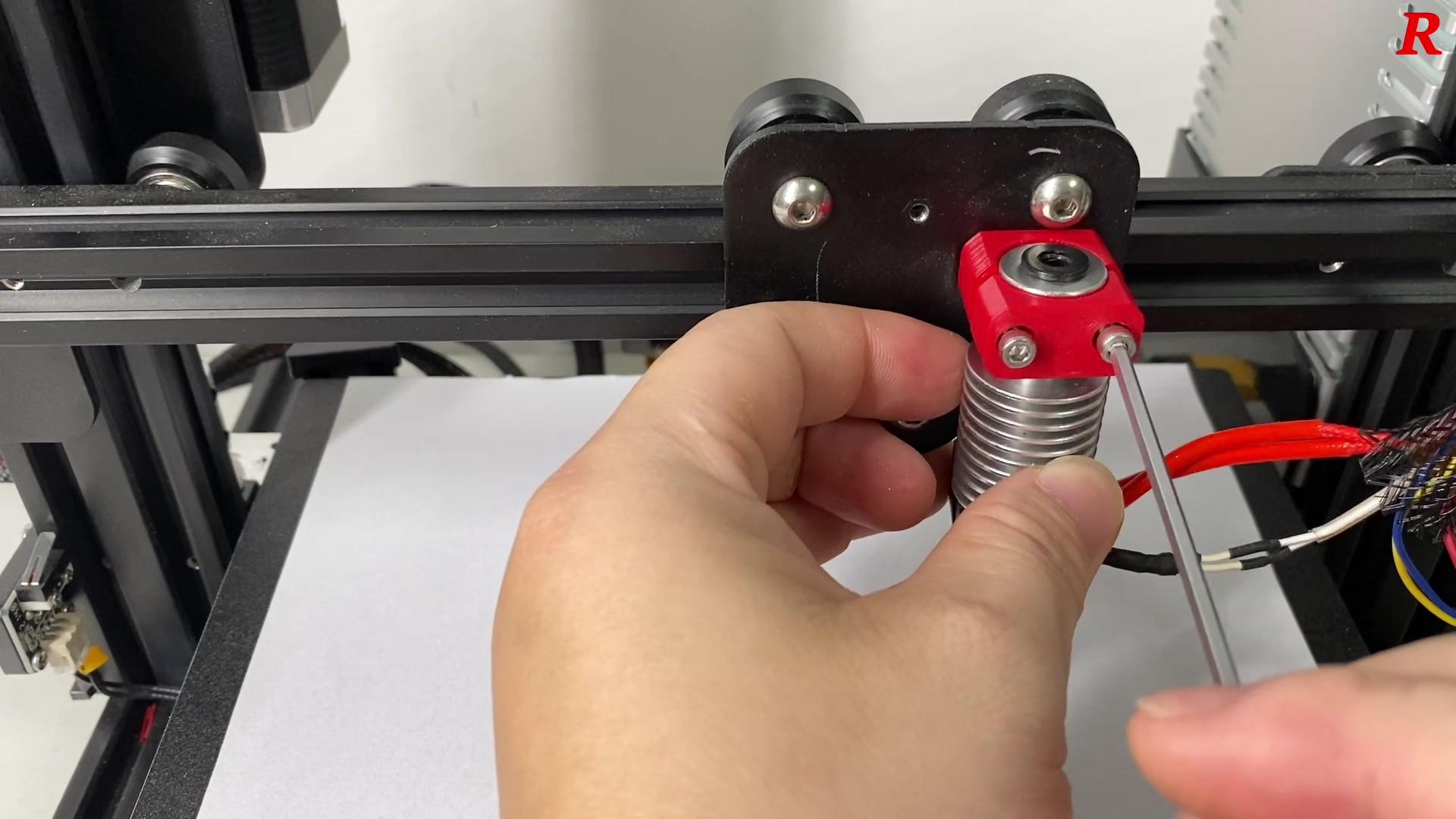

First make sure that the E3DV6 has been tightened, then along the direction parallel to the heating block, both sides are slightly grooved with a file.

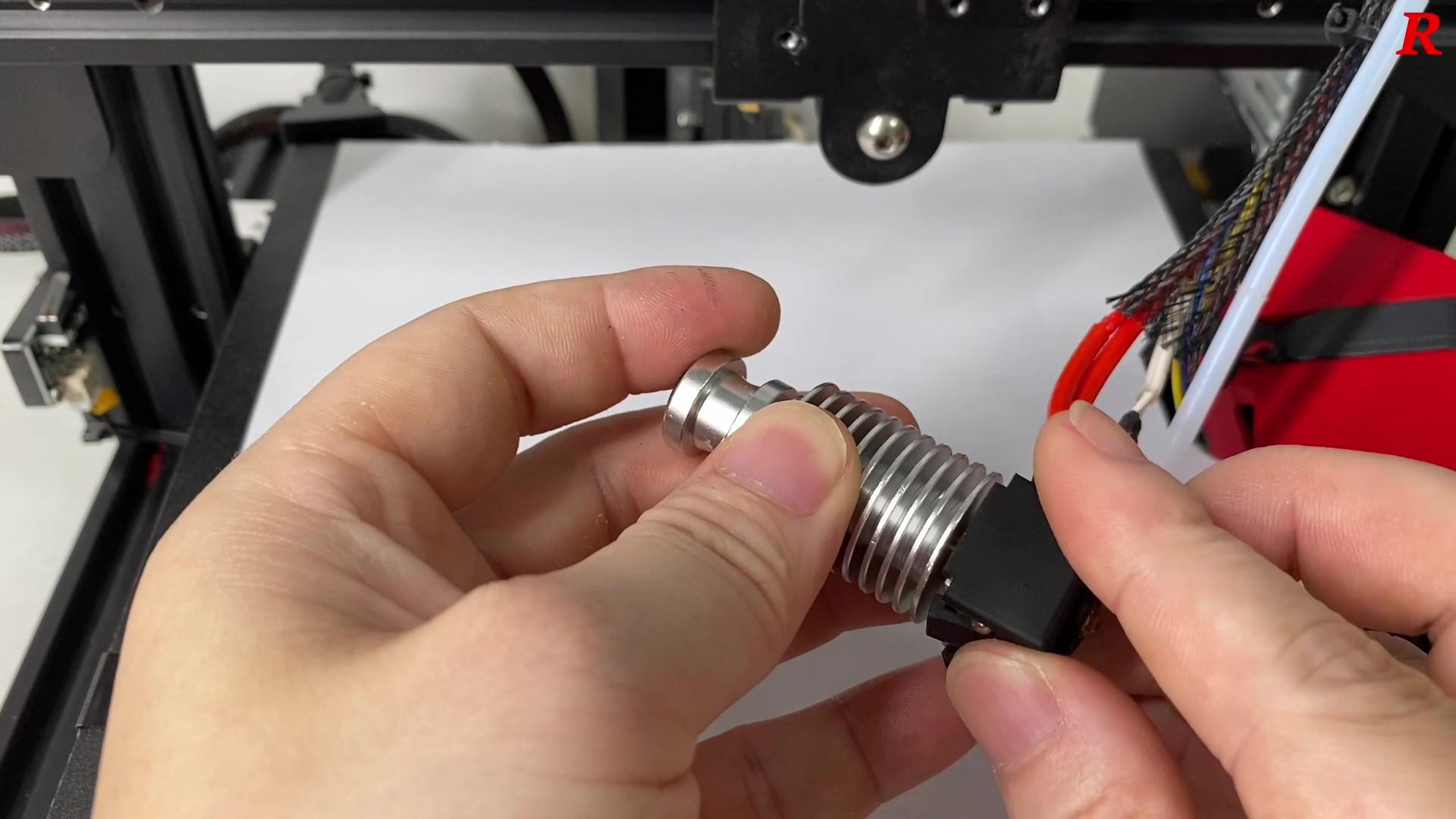

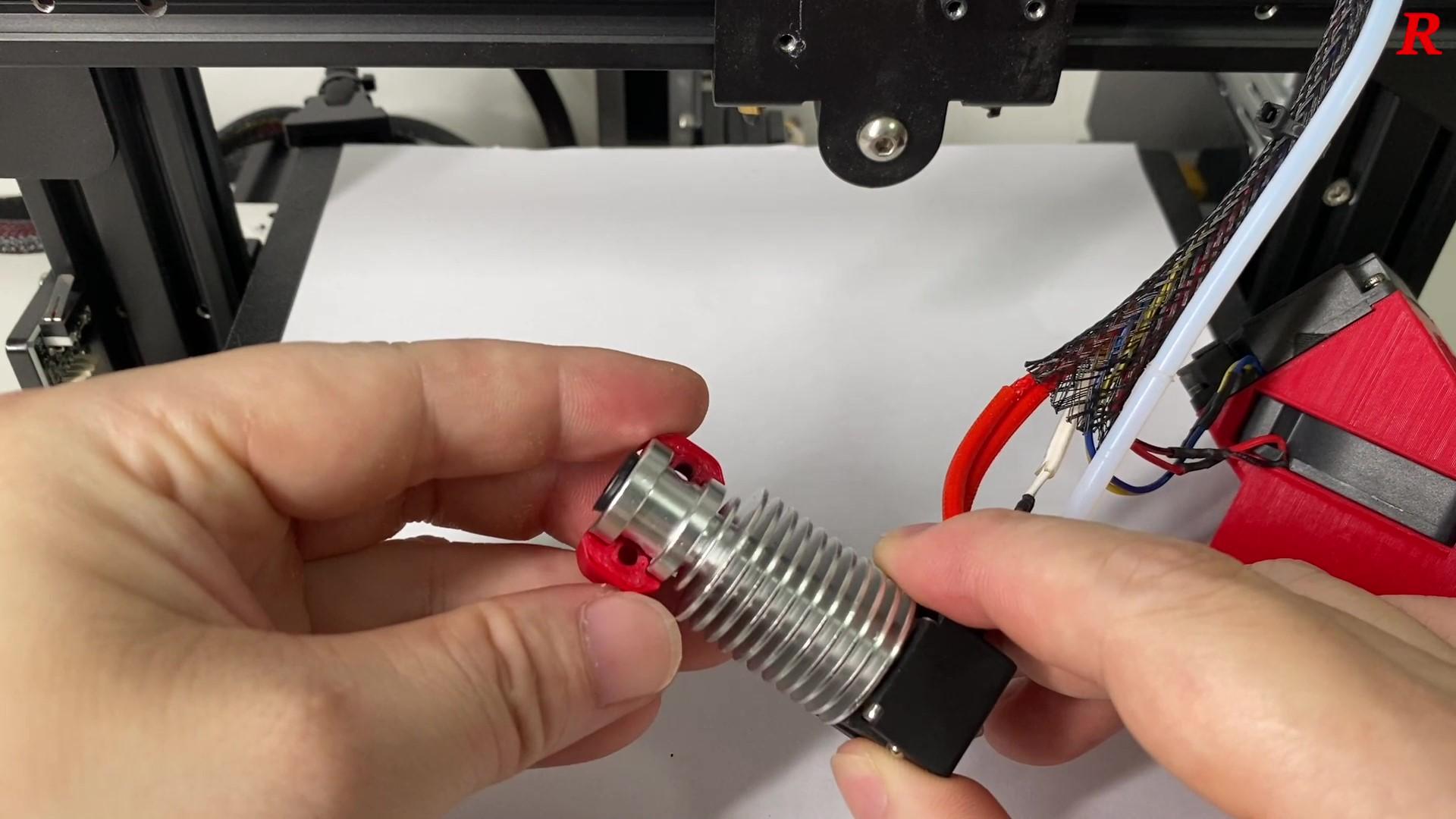

Need to tighten the screws, then put on the silicone cover.

Need to use M3X18 screws.

Insert the Teflon tube first, then insert the clip, then install the bracket and fix it with M3X8 screws.
