OGIV3 or How to Spherize Astera's Helios Tubes With a Paper Ball


OGIV3 is an accessory in four 3D printed parts to combine three helios tubes Astera Brand and a common China paper ball 24 inch/60cm size.

Please note that only balls with respectively 14.5 cm and 21 cm diameter opposite holes are compatible for the moment. It's seems to be the most common paper ball made in china distributed in France.

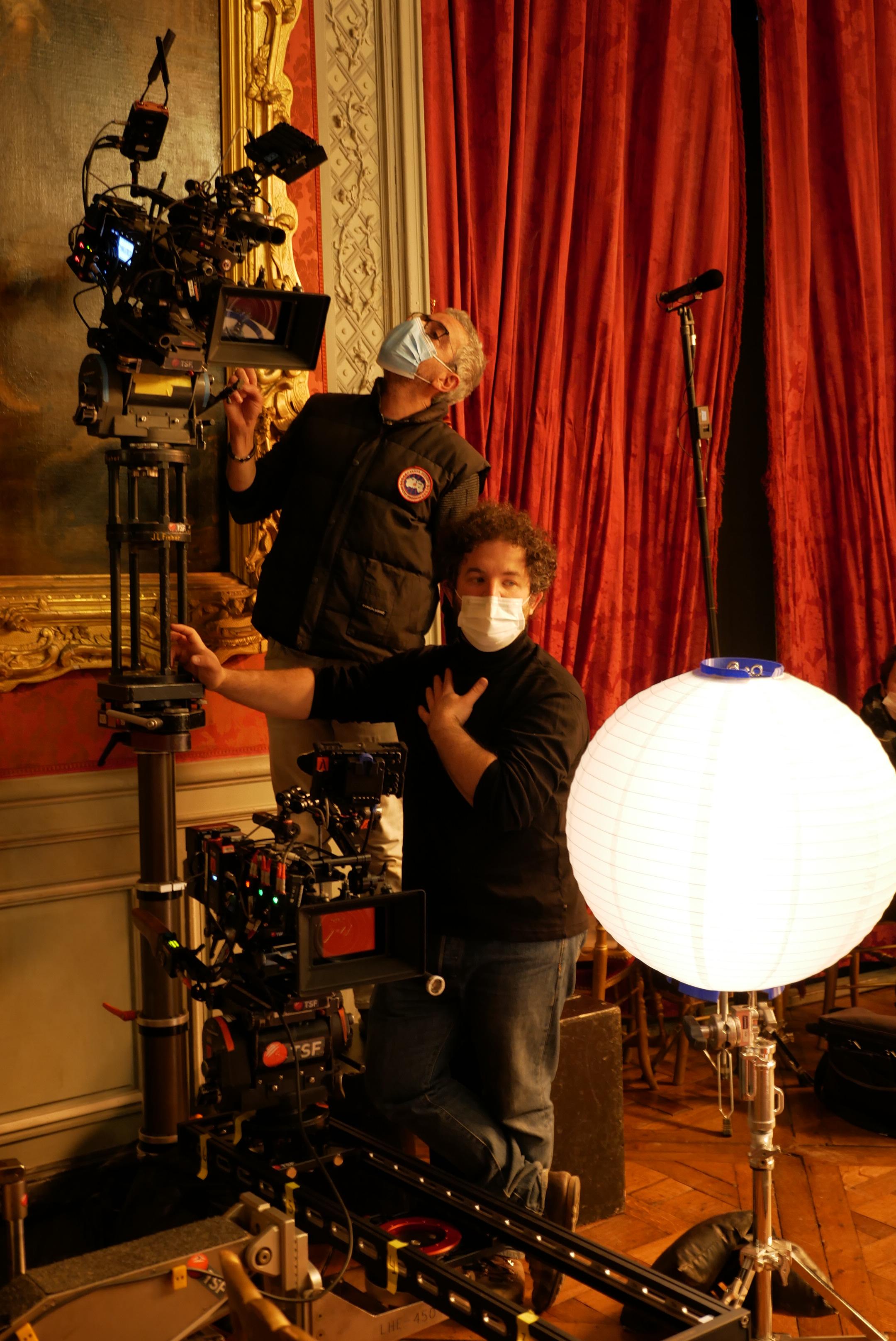

This creation is made for the TV, Cinema, or Theater lighting technicians. Enjoy.

Ogiv3 © 2020 by Light Club is licensed under Attribution-NonCommercial-ShareAlike 4.0 International

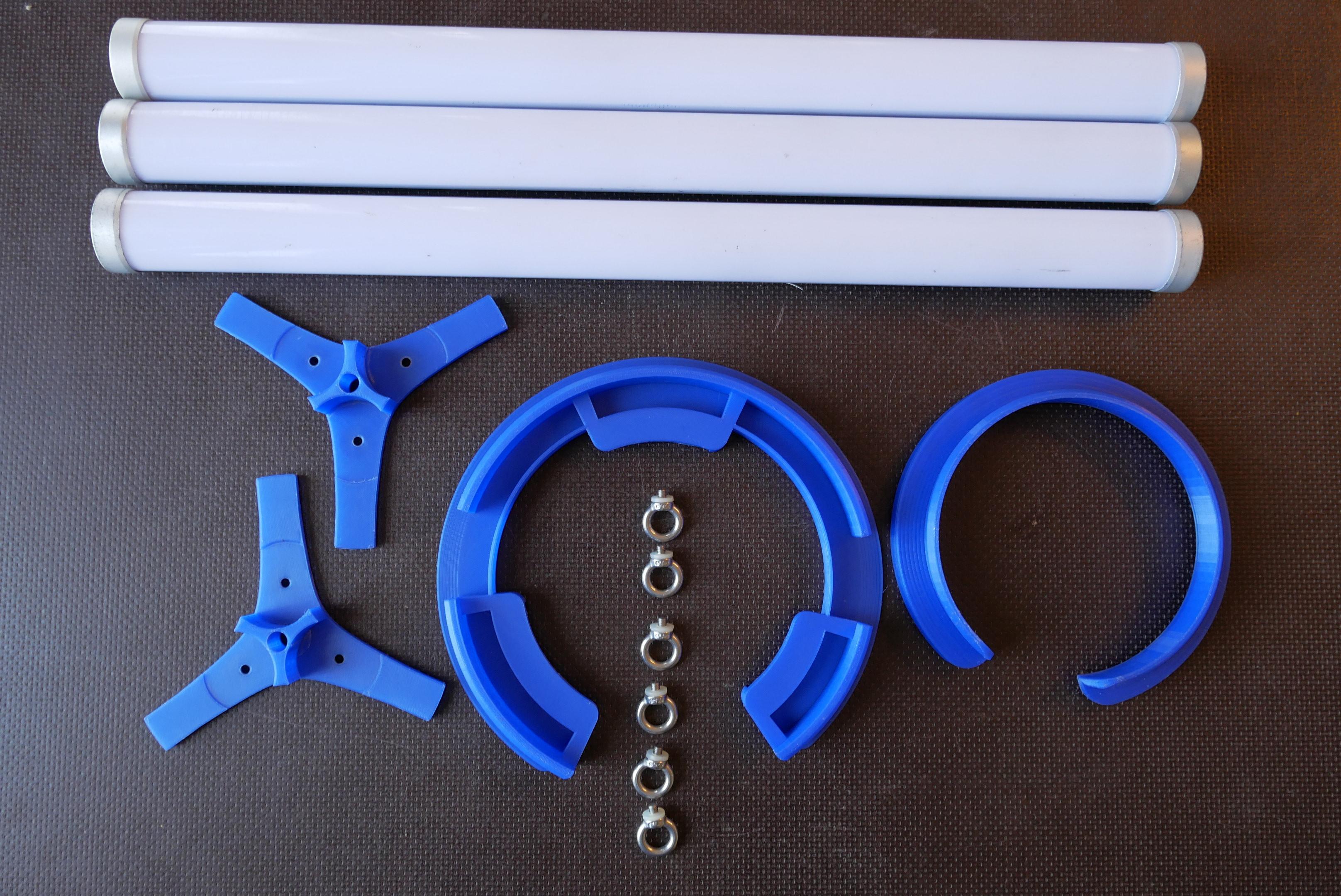

Supplies


3D Printed parts

a 24 inch Paper Ball

3 Helios Tubes

6 M5 Screw or simplier, 6 ring often provides into the 8 helios kit

and That's All

in option, if you want to put the ball at the end of a pole:

a M10 threaded rod

2 M10 medium washers

2 M10 Butterflies Nuts

Print and Glue

First, please download Gcode files optimized for a Prusa i3 MK3 printer and PLA filament, or download STL files to print them with another configuration.

Print Stats: 27Hours - 240g - 6 euros with a Standard PLA filament

You'll need to print two spinners and glue Small CrownPart 1 and 2 together. I recommend to use a strong glue but adpated to flexible materials.

Ogiv3 © 2020 by Light Club is licensed under Attribution-NonCommercial-ShareAlike 4.0 International

Screws the Tubes

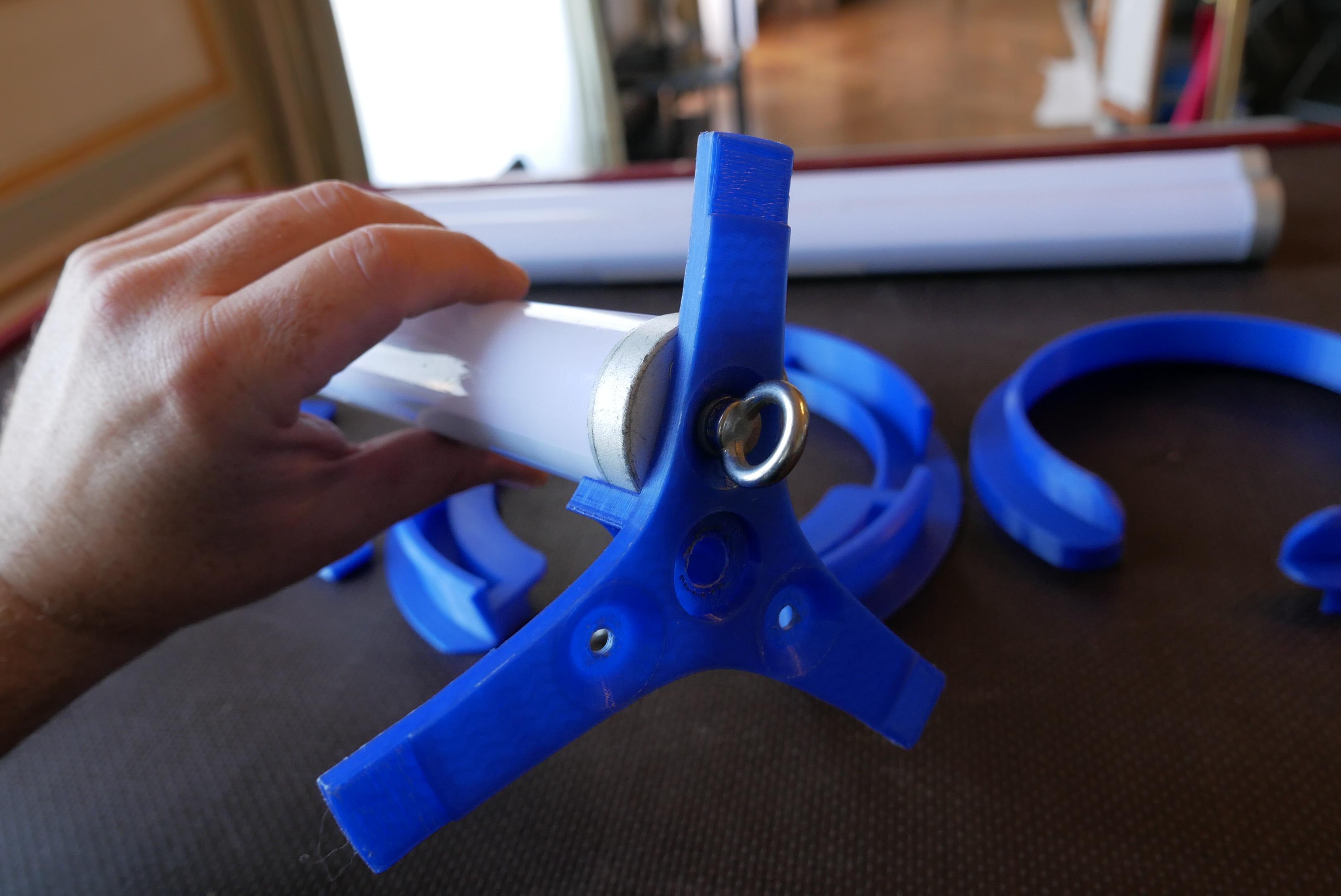

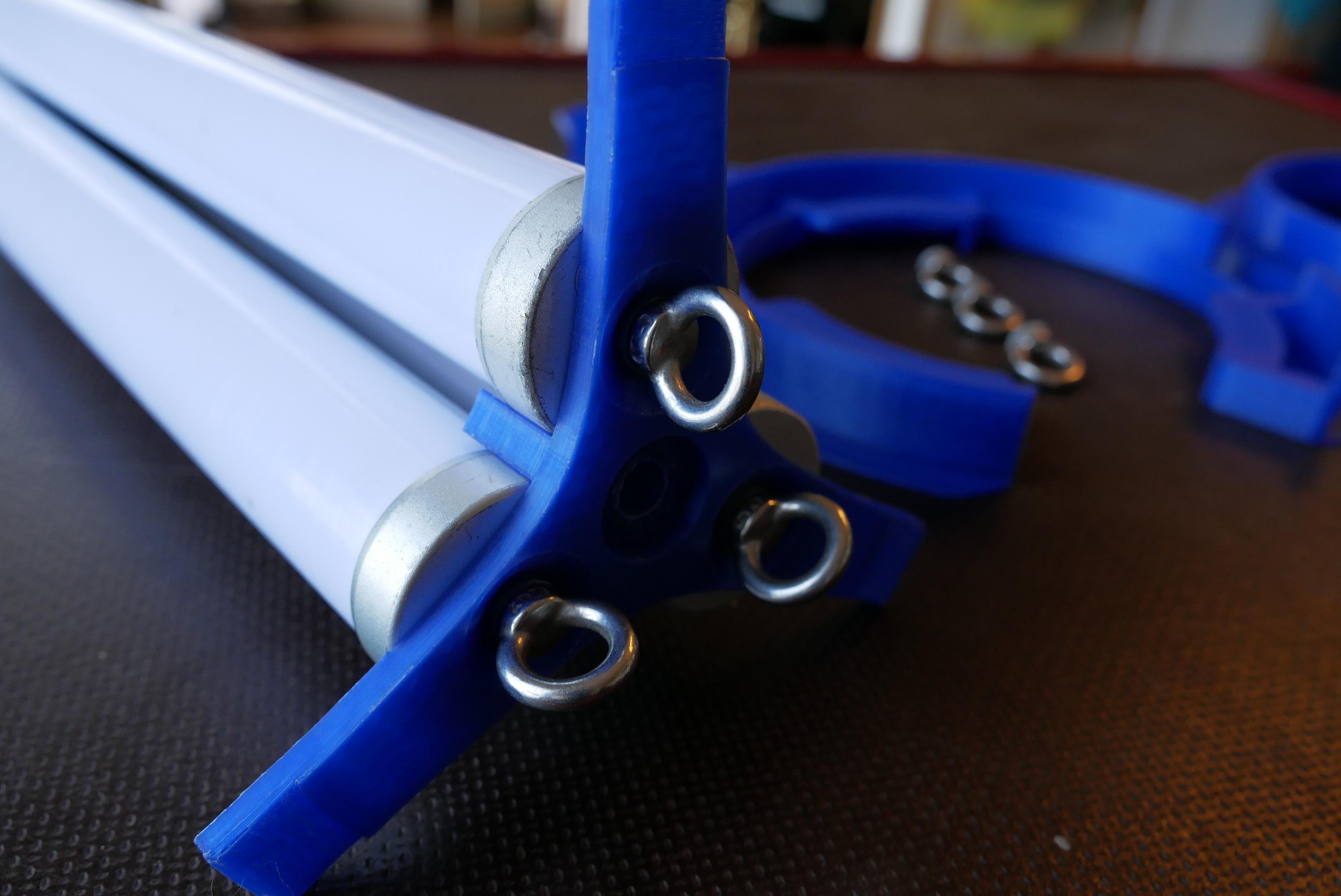

Screw the spinner to the Helios tube. It possible to use only one or two.

Twist the Crowns

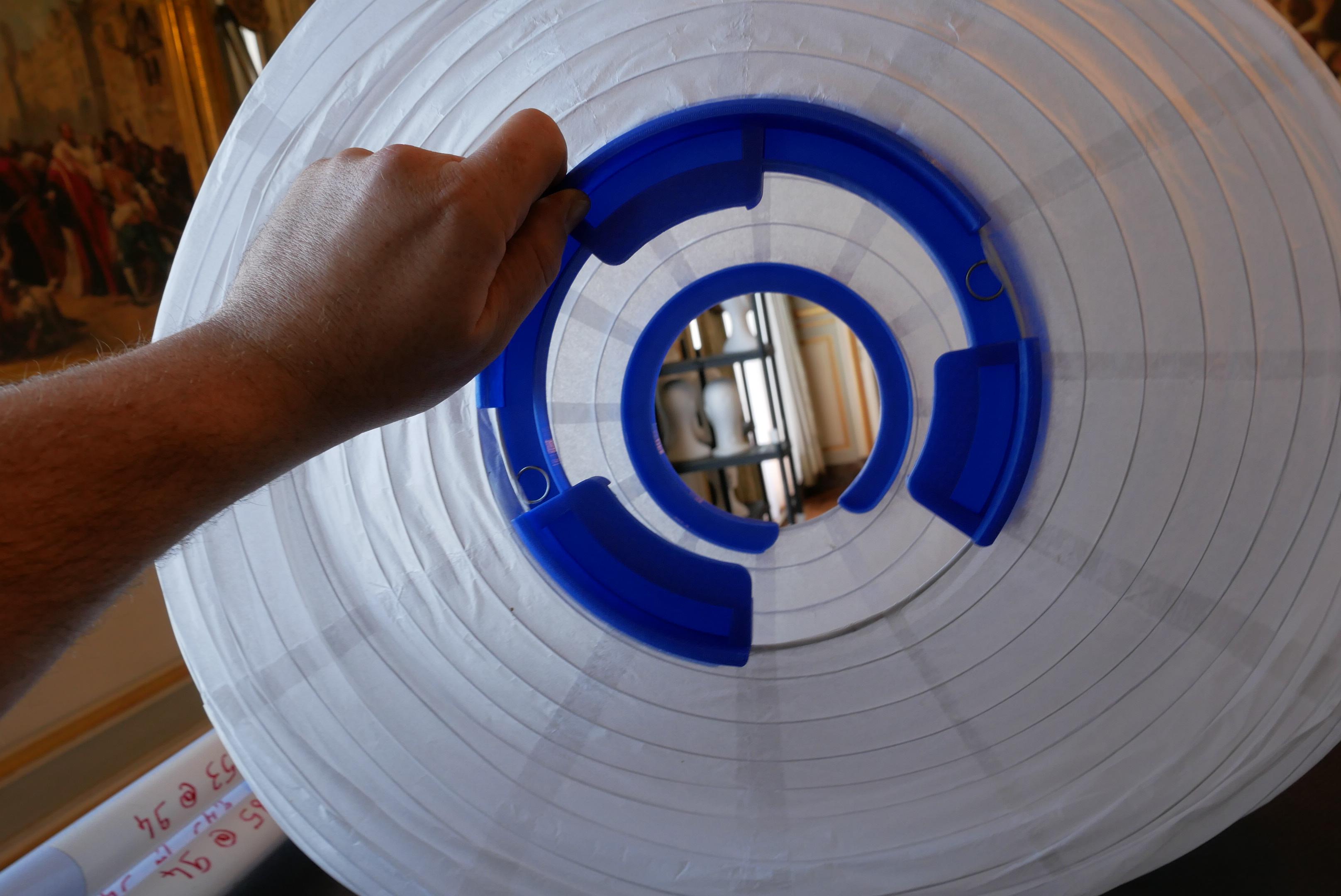

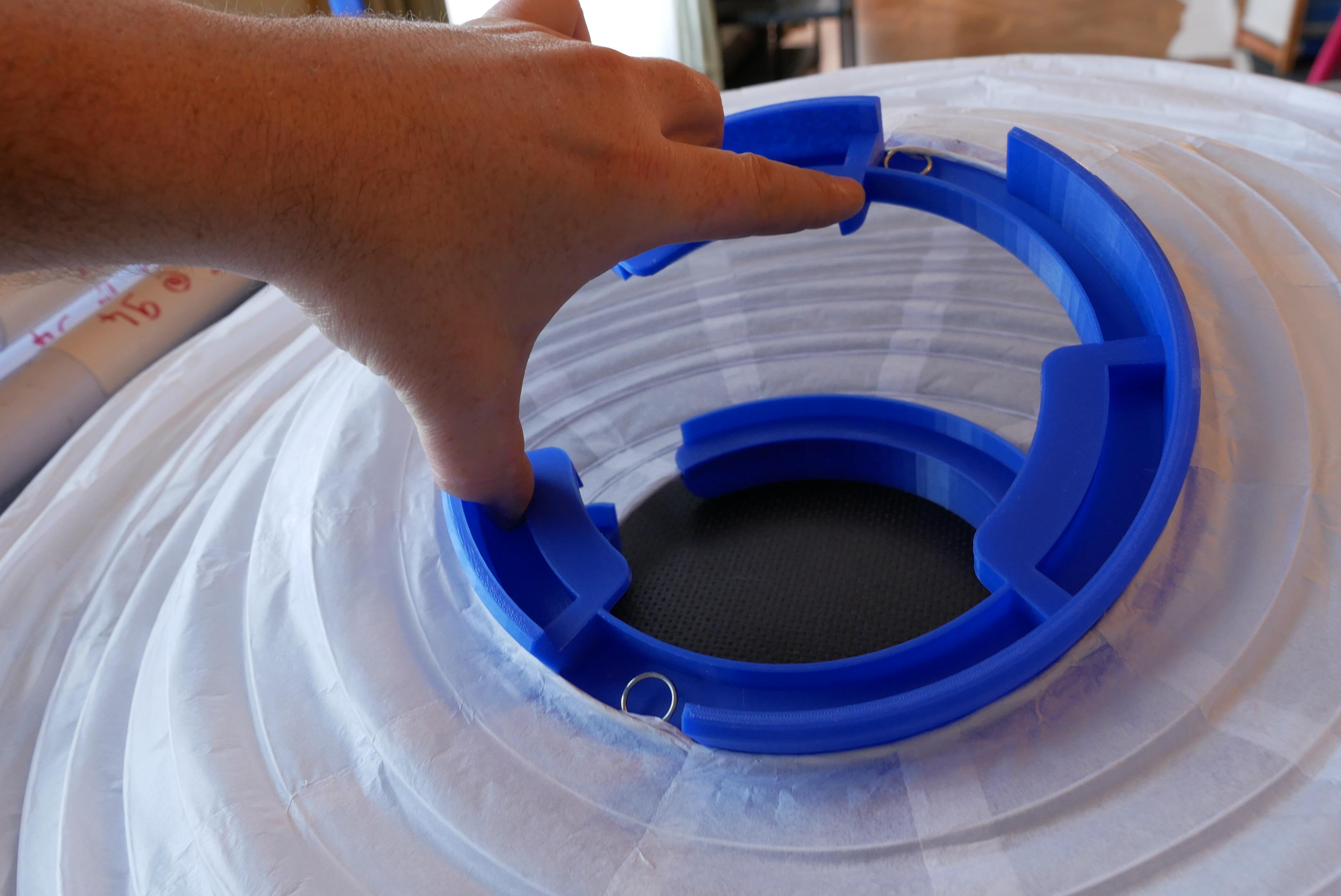

To attach the crowns to the paper ball, first you have to insert the small one and after the large one into the ball, pinch it to reduce the circumference, and release it. There is a resilience effect which strongly holds the part to the paper ball.

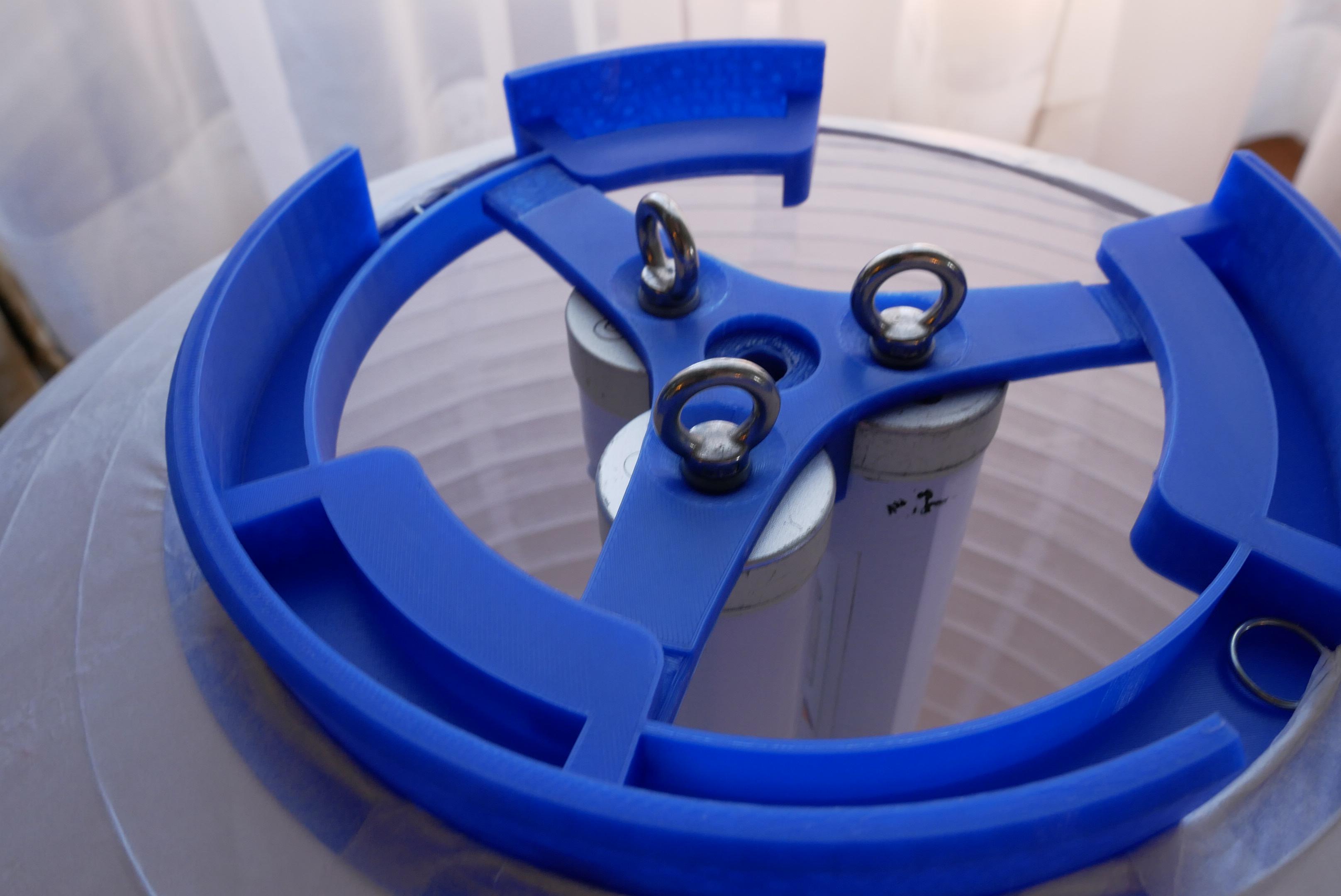

Combine the Ogiv3

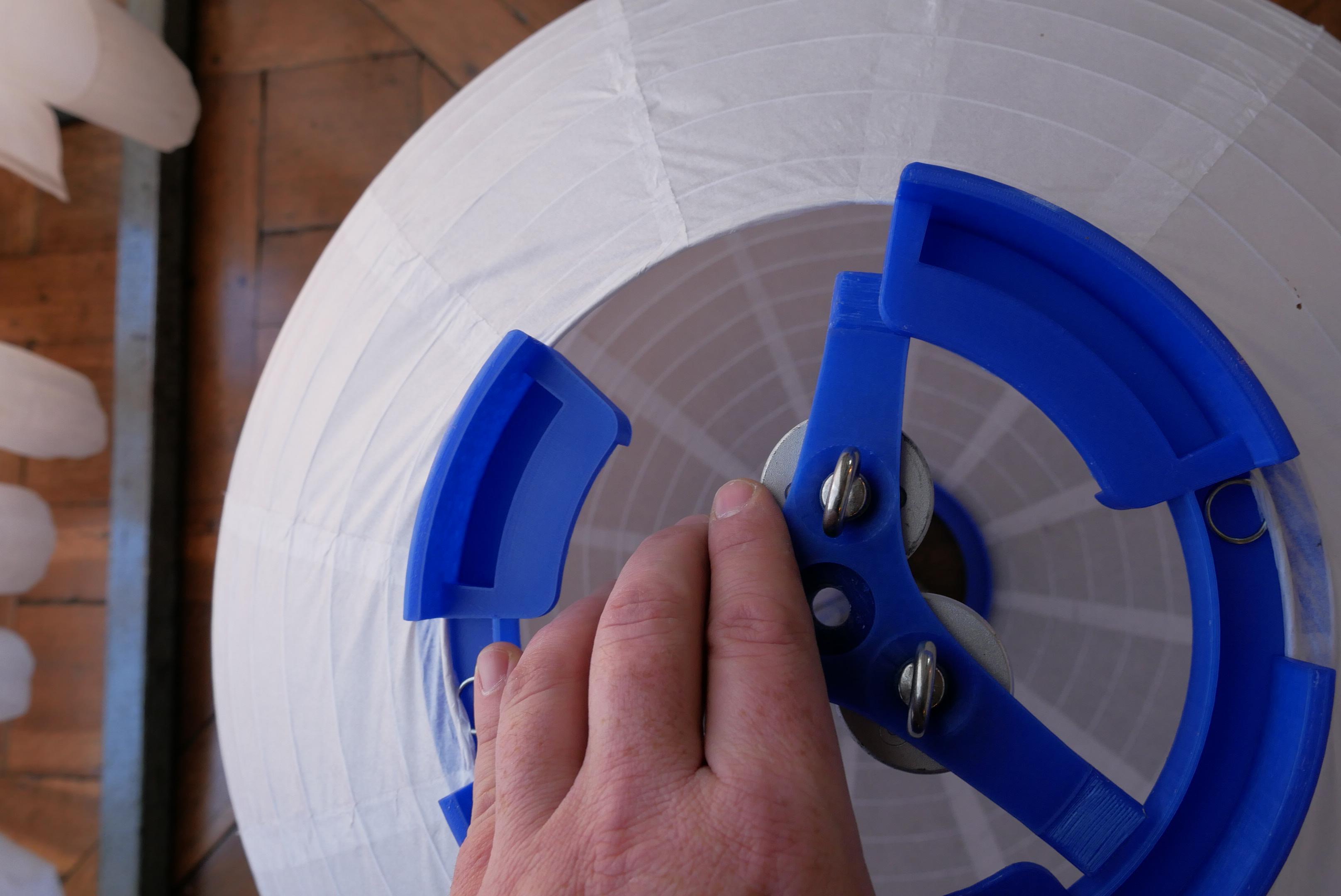

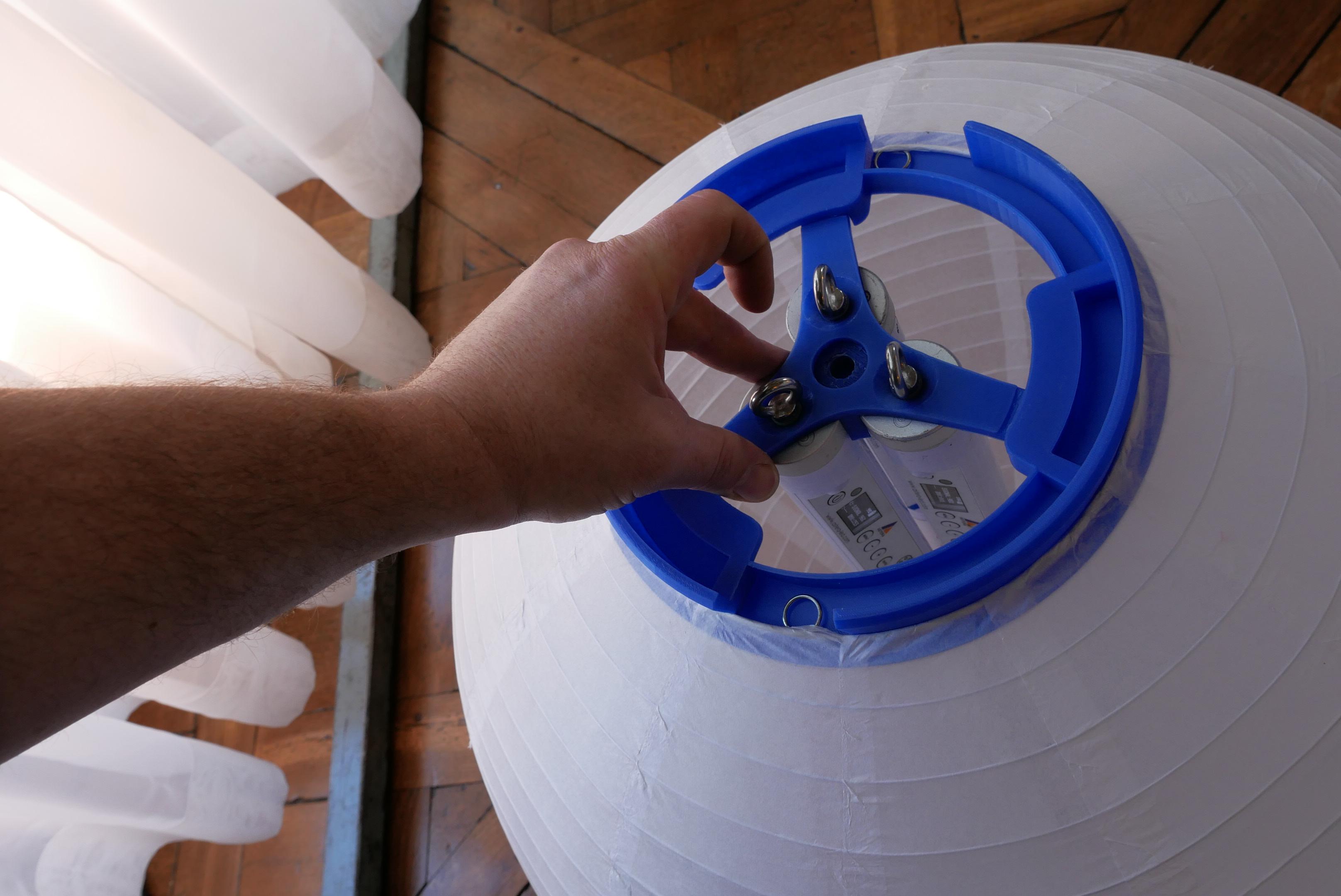

Insert the Ogiv3 into the ball through the large hole, and turn it 20 ° three times. make sure the tips go under the crown at each twist.

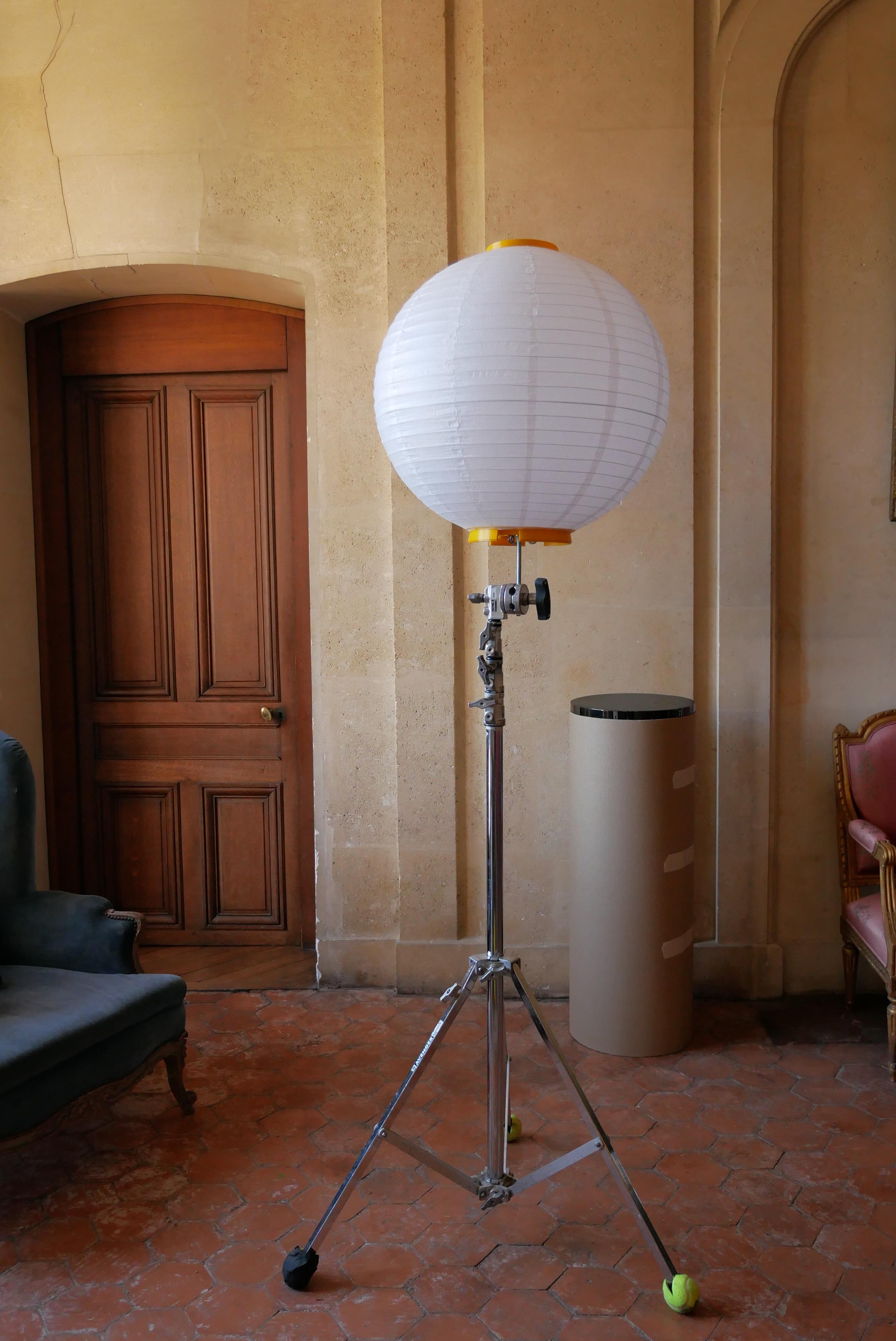

On a Pole

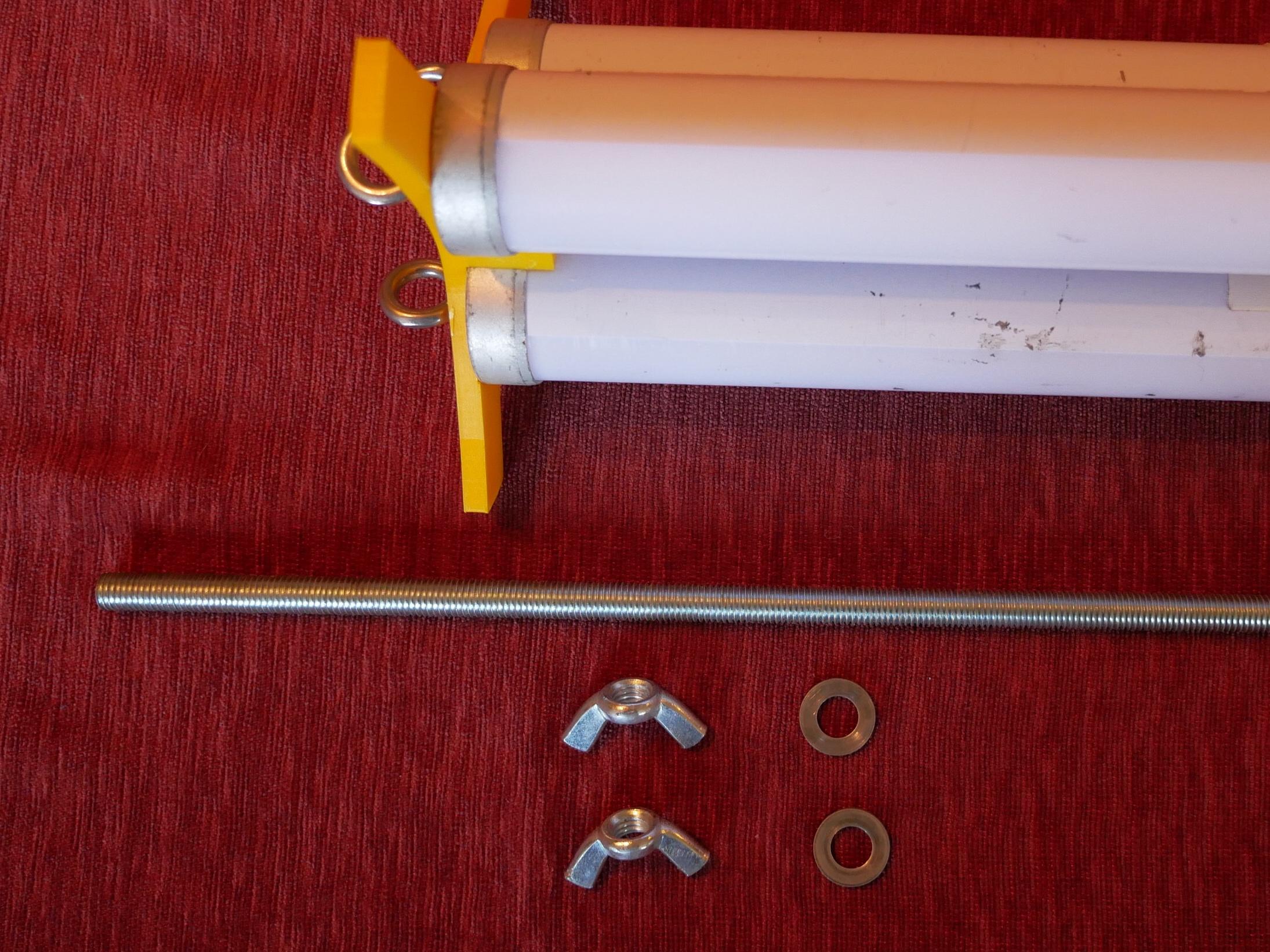

GrosPlan nuts and rings.jpg

I'm sure you already understood.

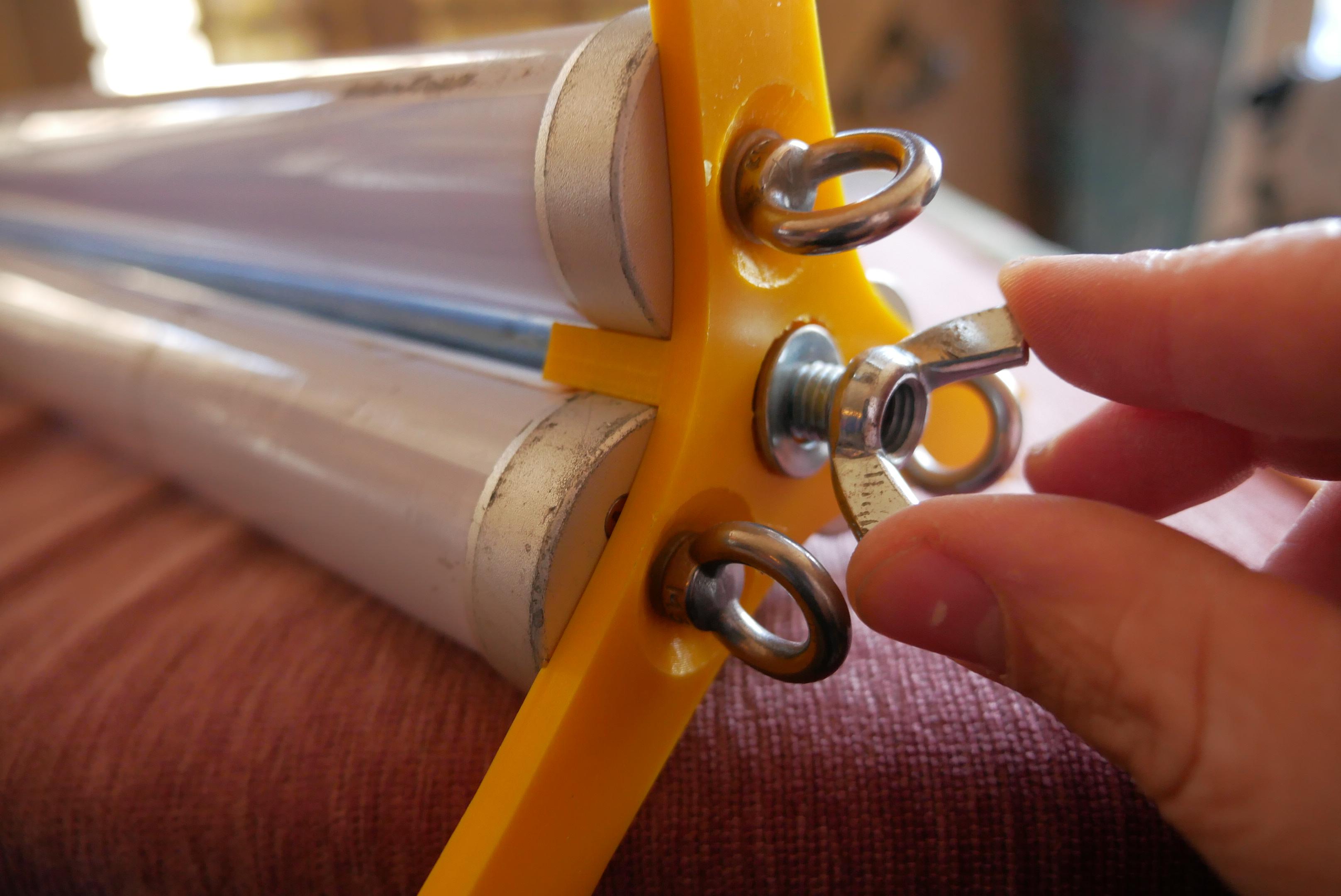

The threaded rod passes through the ogiv3, then you have to put the washers and finally screw the nuts strong enough but not too much.

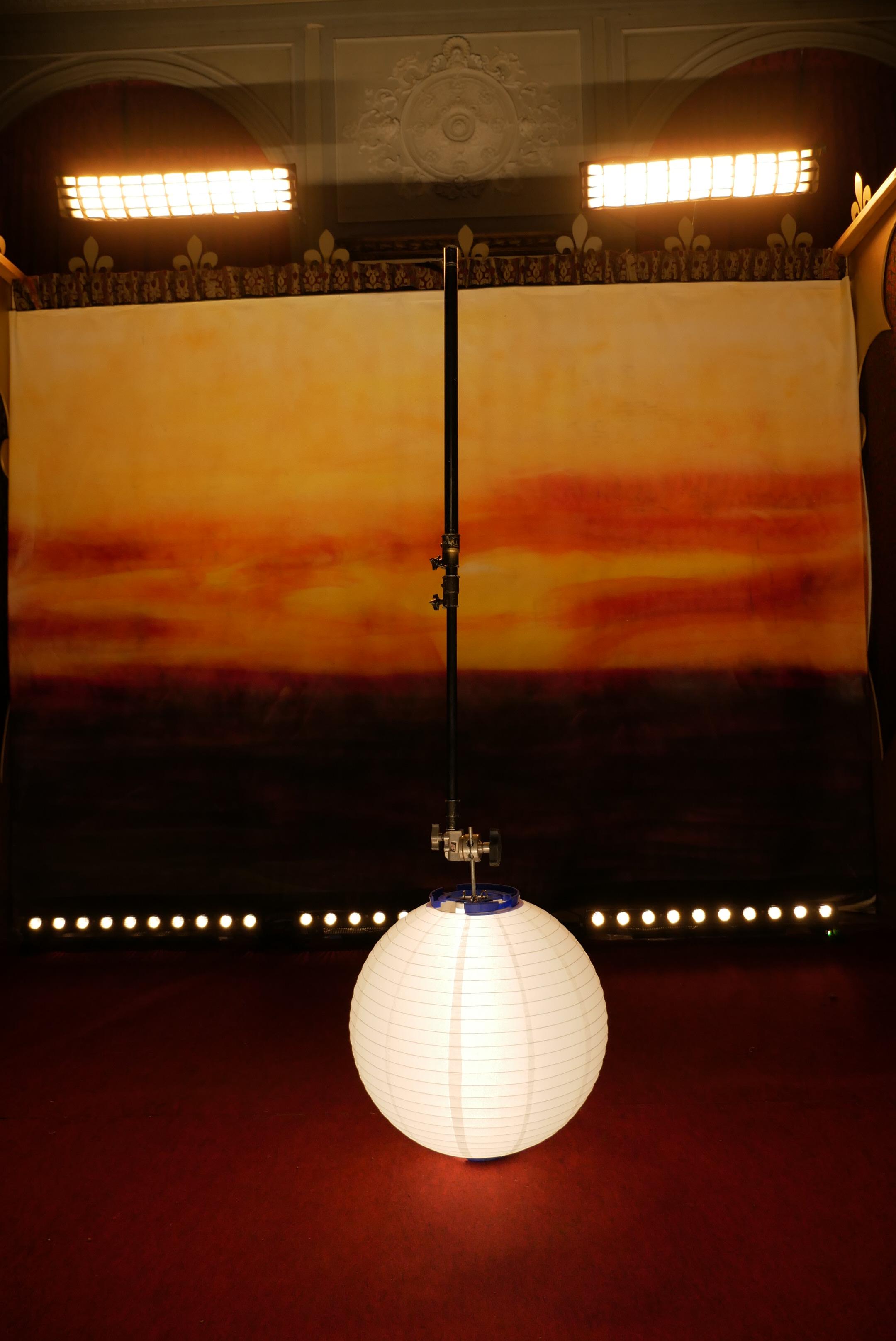

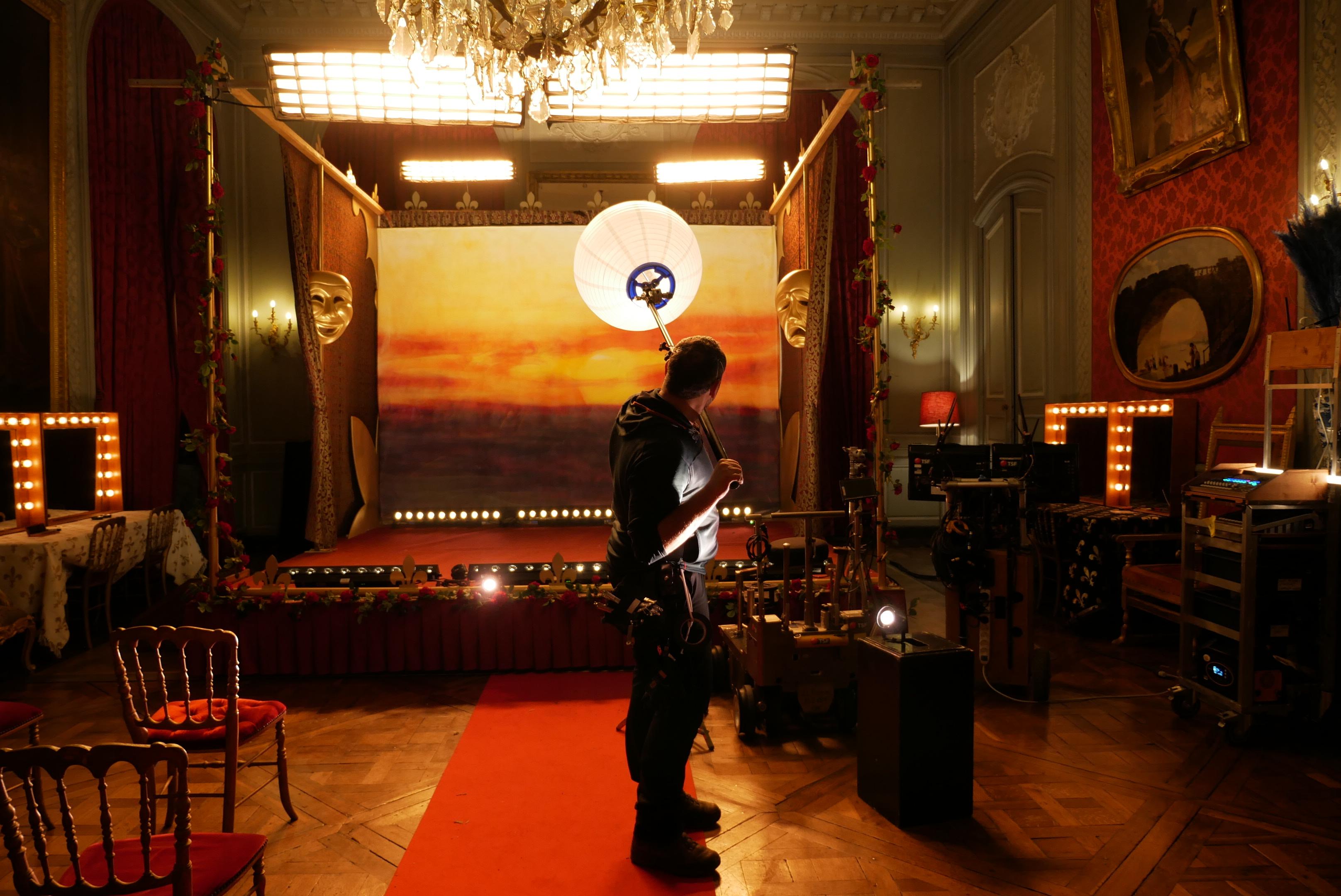

Just Light It


And that's all !!!

The paper ball can stand up alone in the both side too... not bad for a ball.

Do You Know D4LLE?

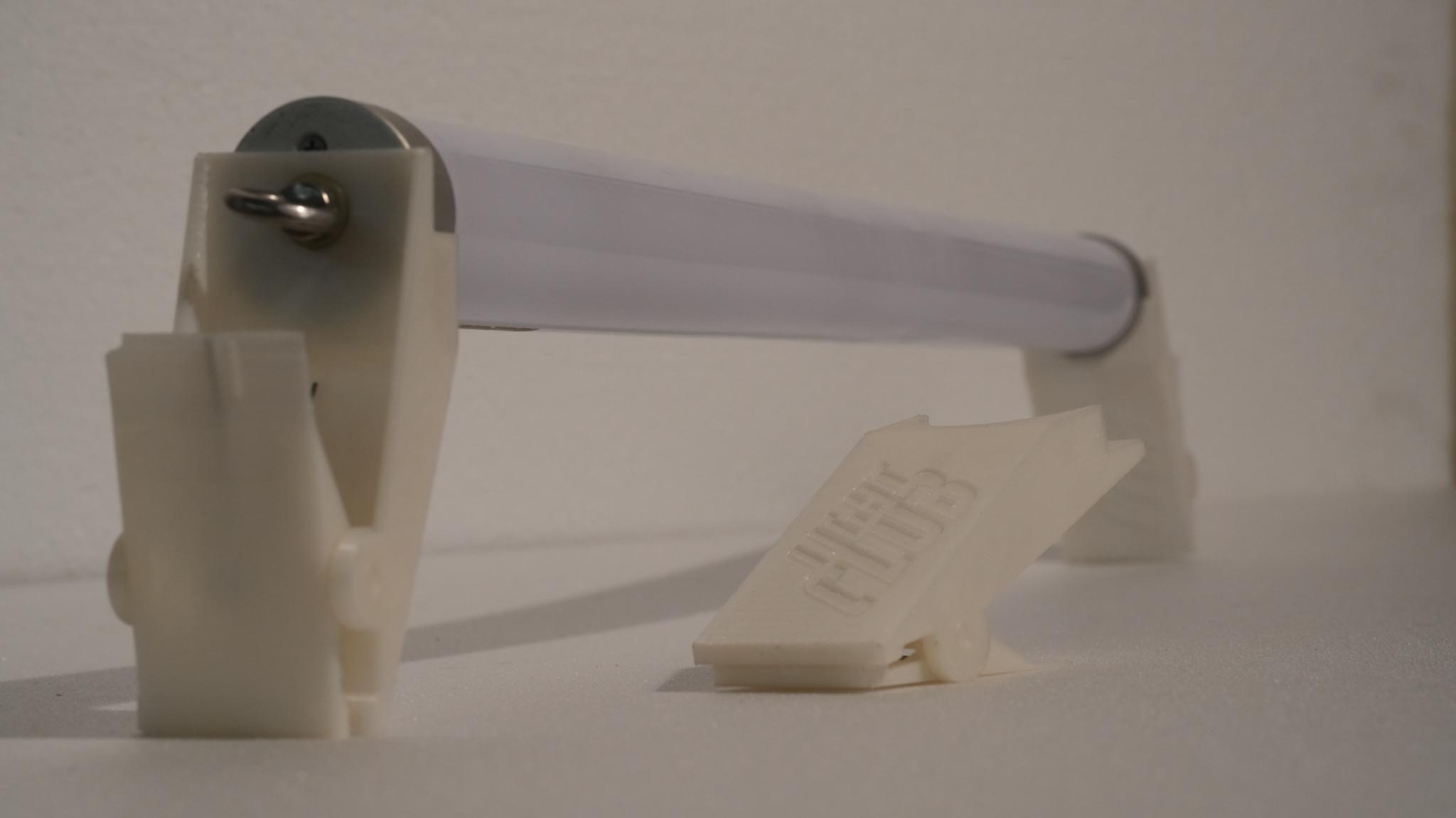

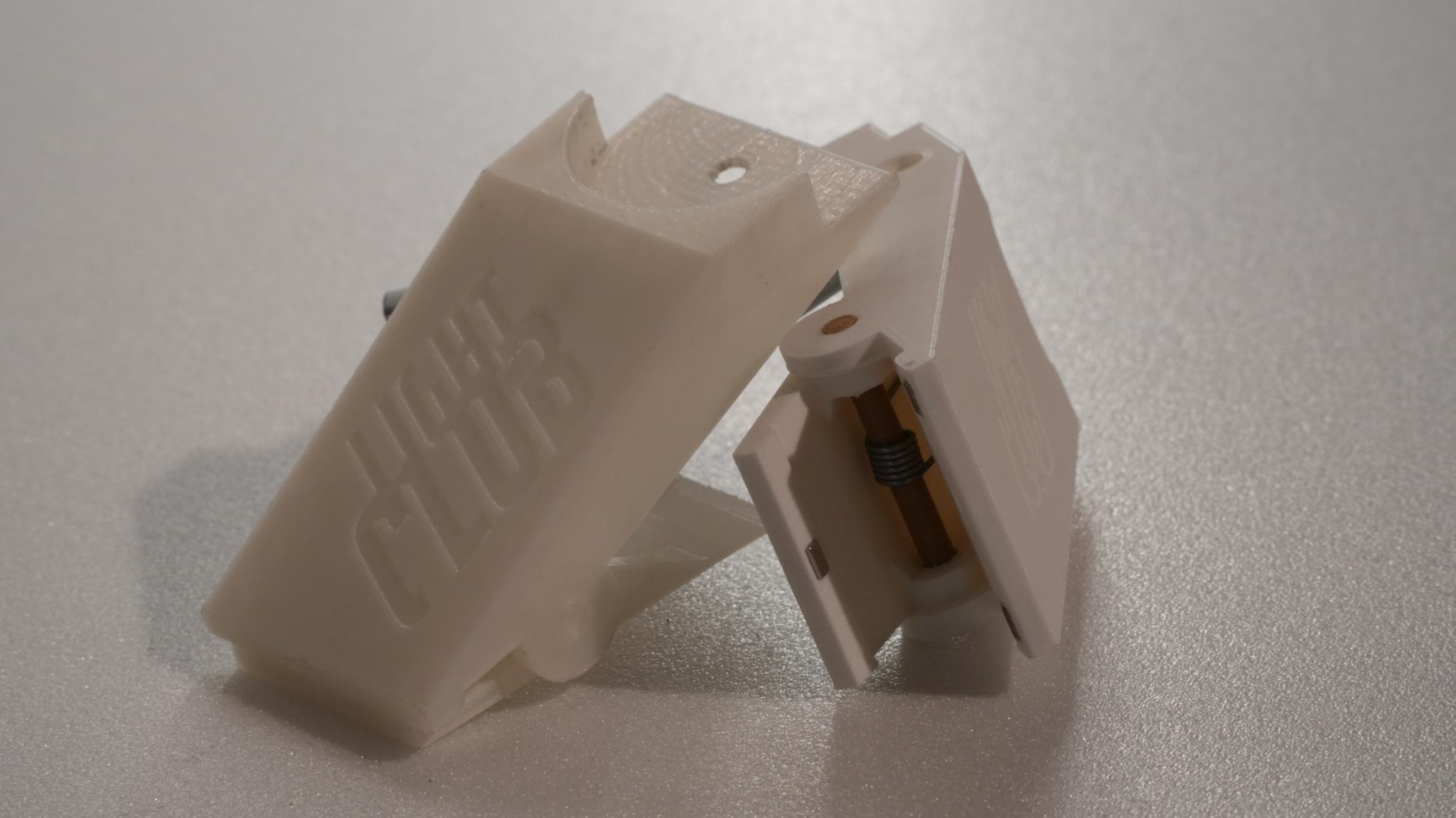

D4LLE is another accessory for helios tubes.

Have a look just there
