OBSCTACLES- AVOIDING -ROBOT

by noorsalma.ask in Circuits > Arduino

110 Views, 0 Favorites, 0 Comments

OBSCTACLES- AVOIDING -ROBOT

MY SECOND ROBOTIC SIMULATION

This is a Simple TinkerCAD Experiment known as Obstacle Avoiding Robot. In this particular experiment my simulation circuit makes the motors to rotate in the left direction if there is an Obstacle else it will make the motors rotate in forward direction.

Components Required

HOBBY GEARMOTOR.png
ARDUINO UNO .png
ULTRASONIC DISTANCE SENSOR.png

The following are the components which is required to make this circuit:

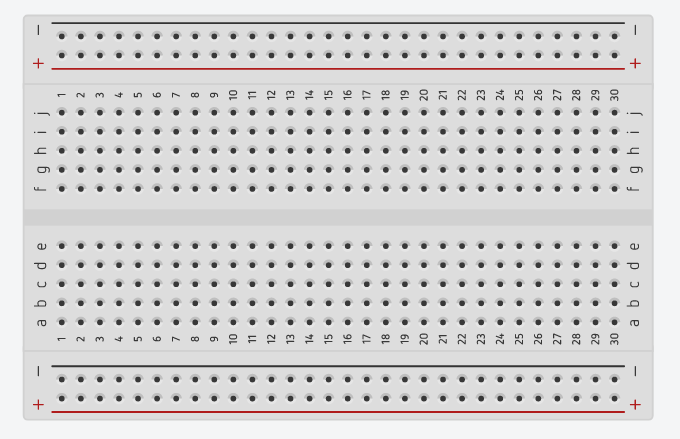

01. Breadboard - 1 Nos.

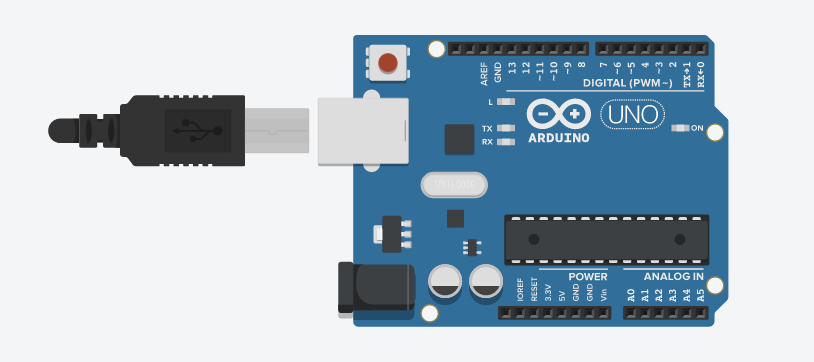

02. Arduino UNO - 1 Nos.

03. Ultrasonic Sensor - 1 Nos.

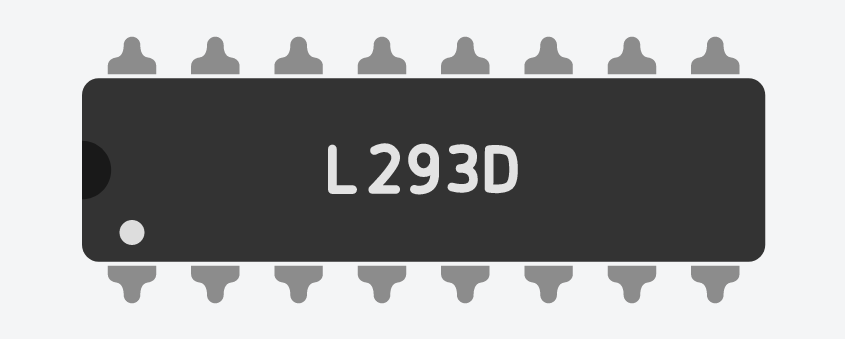

04. L293D - 1 Nos.

05. Motor - 2 Nos.

Connections

OBSCTACLE AVOIDING ROBOT.png

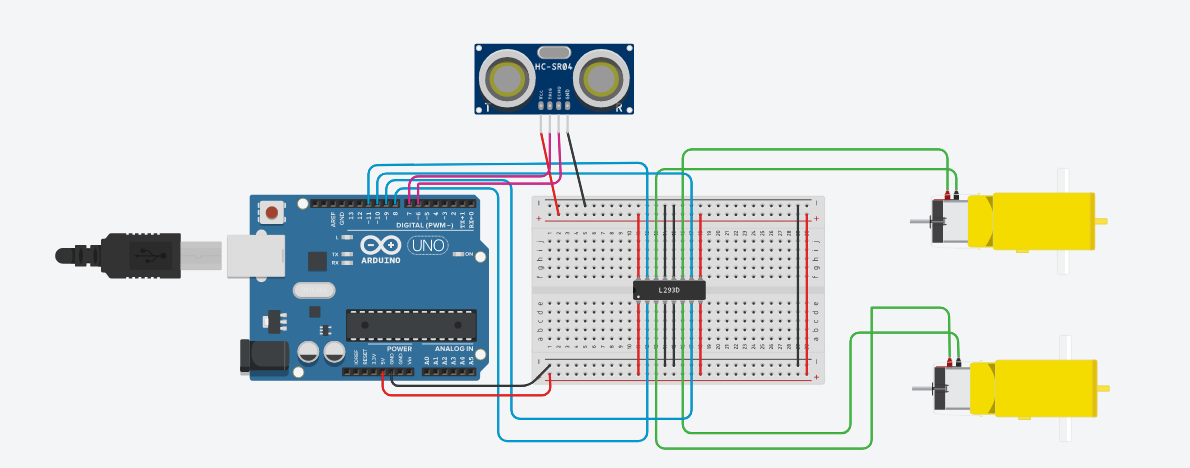

Make the following Connections using the TinkerCAD software as shown in the picture.

Code Blocks

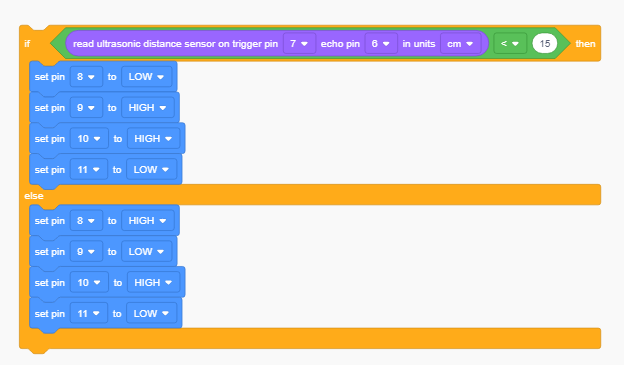

Assemble the following Code Blocks using the TinkerCAD Software as shown in the picture.
