OBJECT SENSING WITH THE LM393

by ProjecTronic in Circuits > Sensors

9 Views, 0 Favorites, 0 Comments

OBJECT SENSING WITH THE LM393

WhatsApp Image 2023-06-20 at 8.46.01 PM.jpeg

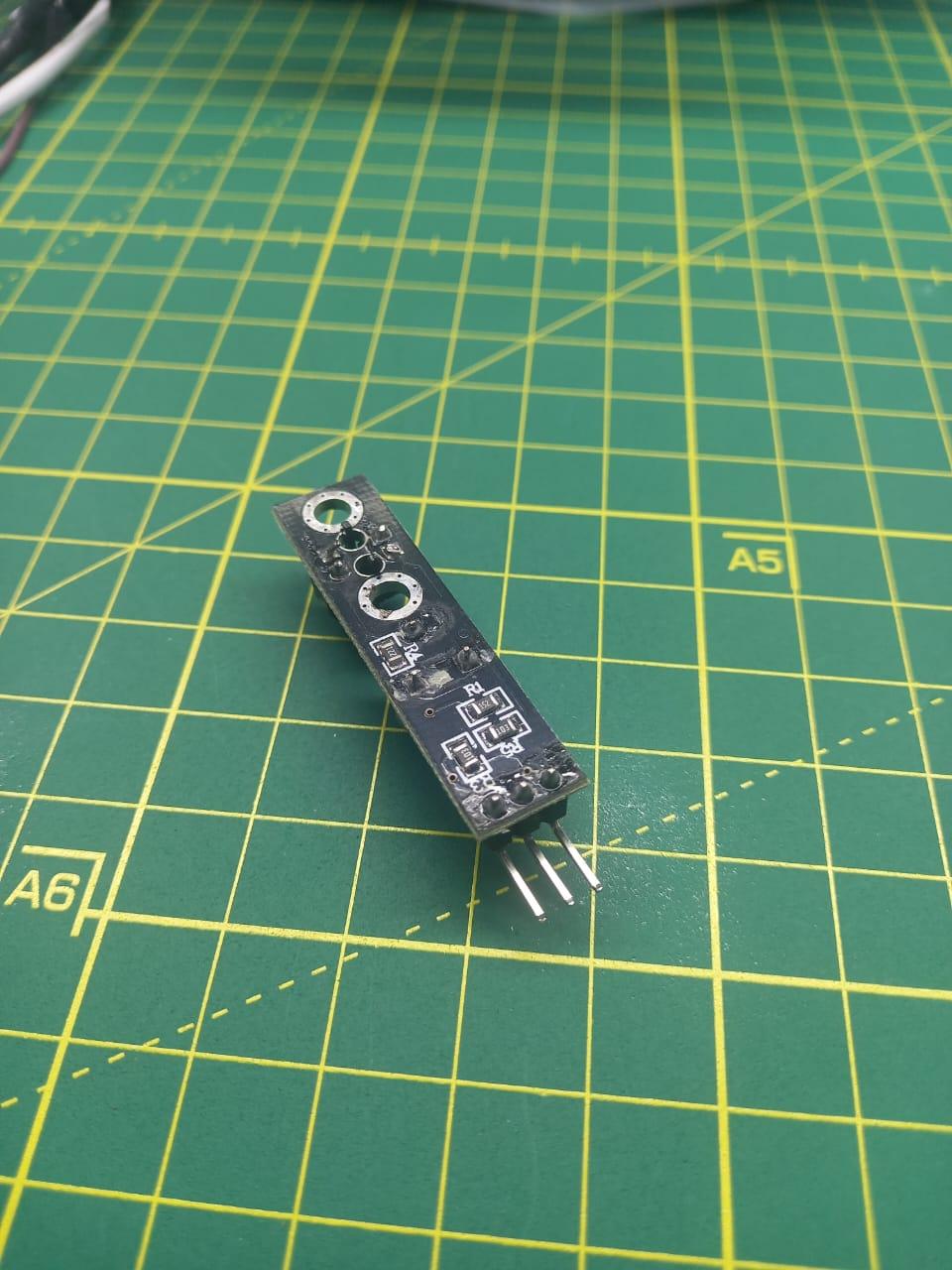

Sensor with a combined IR-LED and IR-receiver mounted side by side. The sensor can detect wheter a surface is light or dark. Suitable for linefollowing robots and optical counters. The trim potentiometer sets the light level where the output activates.

Supplies

SCHEMATIC DIAGRAM


Like all my projects, I share the schematic diagram so that you can do it yourself. The schematic diagram was designed in EASYEDA, a very professional and free electronic circuit design software, we can observe the electronic components that we use for this project and their respective values.

FUNCTIONING

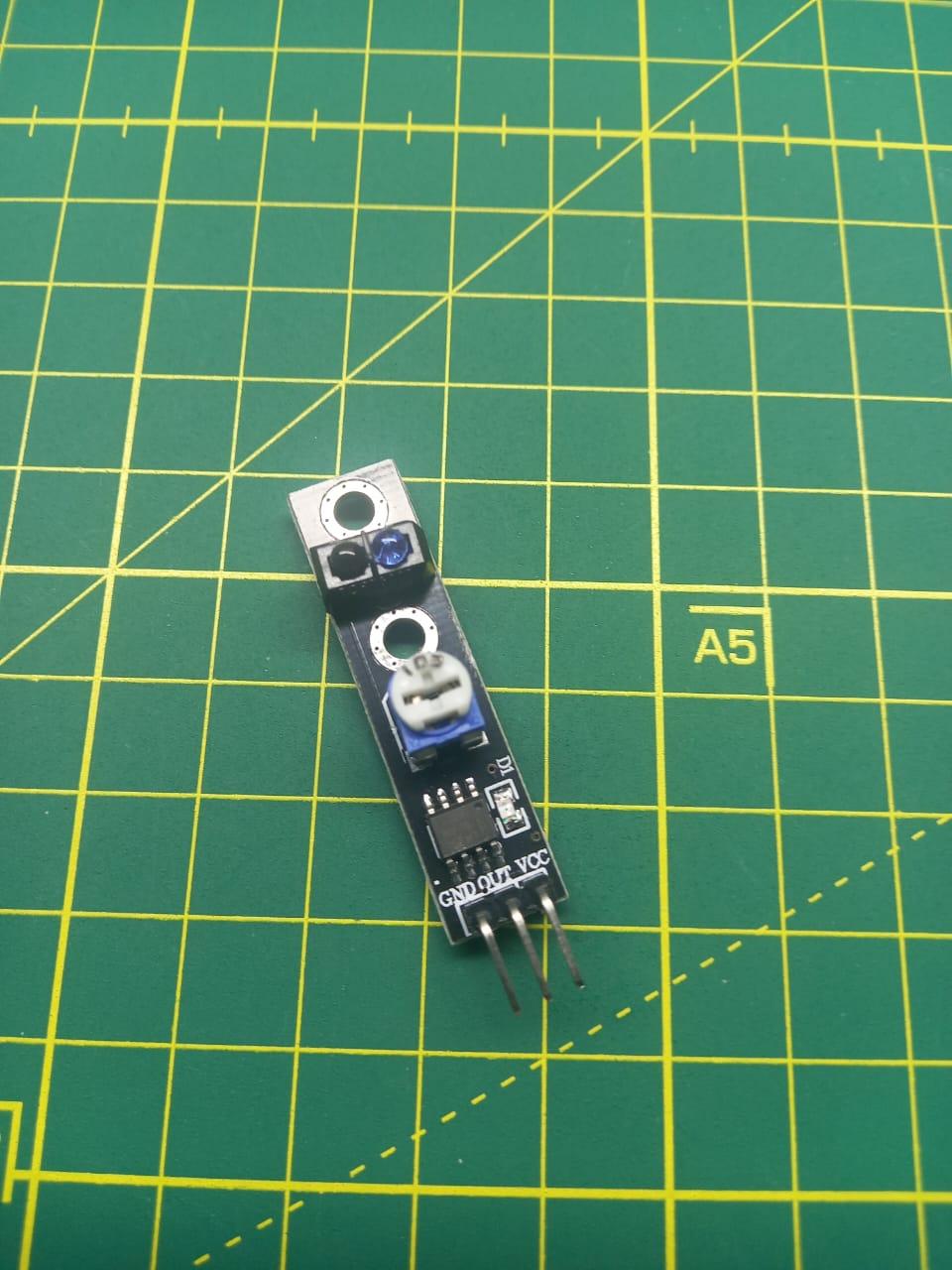

WhatsApp Image 2023-06-20 at 8.46.02 PM.jpeg
WhatsApp Image 2023-06-20 at 8.46.01 PM.jpeg

IR Infrared Obstacle Avoidance Proximity Sensors consist of a transmitter that emits IR infrared energy and a receiver that detects IR energy reflected by the presence of any obstacle in front of the module. The module has the potentiometer that allows the user to adjust the detection range. The sensor has a very good and stable response even in ambient light or in complete darkness.

ELECTRONIC COMPONENTS

  • 1 CI LM393 SMD
  • 1 IR LED INFRAROJO
  • 1 IR LED RECEPTOR
  • 1 POTENCIOMETER 103(10K)
  • 1 DIODE LED 0805 RED
  • 2 RESISTOR 1206 SMD 10K
  • 1 RESISTOR 1206 SMD 220 ohm
  • 1 RESISTOR 1206 SMD 1.5K
  • 1 PCB

FEATURE


Coverage Angle: 35°

Operating voltage: 3.3V – 5V

Detection range: 2 cm – 30 cm (adjustable with potentiometer)

Output level discrimination: Logic level outputs low when obstacle is detected

Active output level: High logic level outputs when no obstacle is detected

Current Consumption: 3.3V: ~23mA, 5.0V: ~43mA

Connection terminals: OUT: Signal from the medium, GND: Ground and VCC: Power

PCBWay

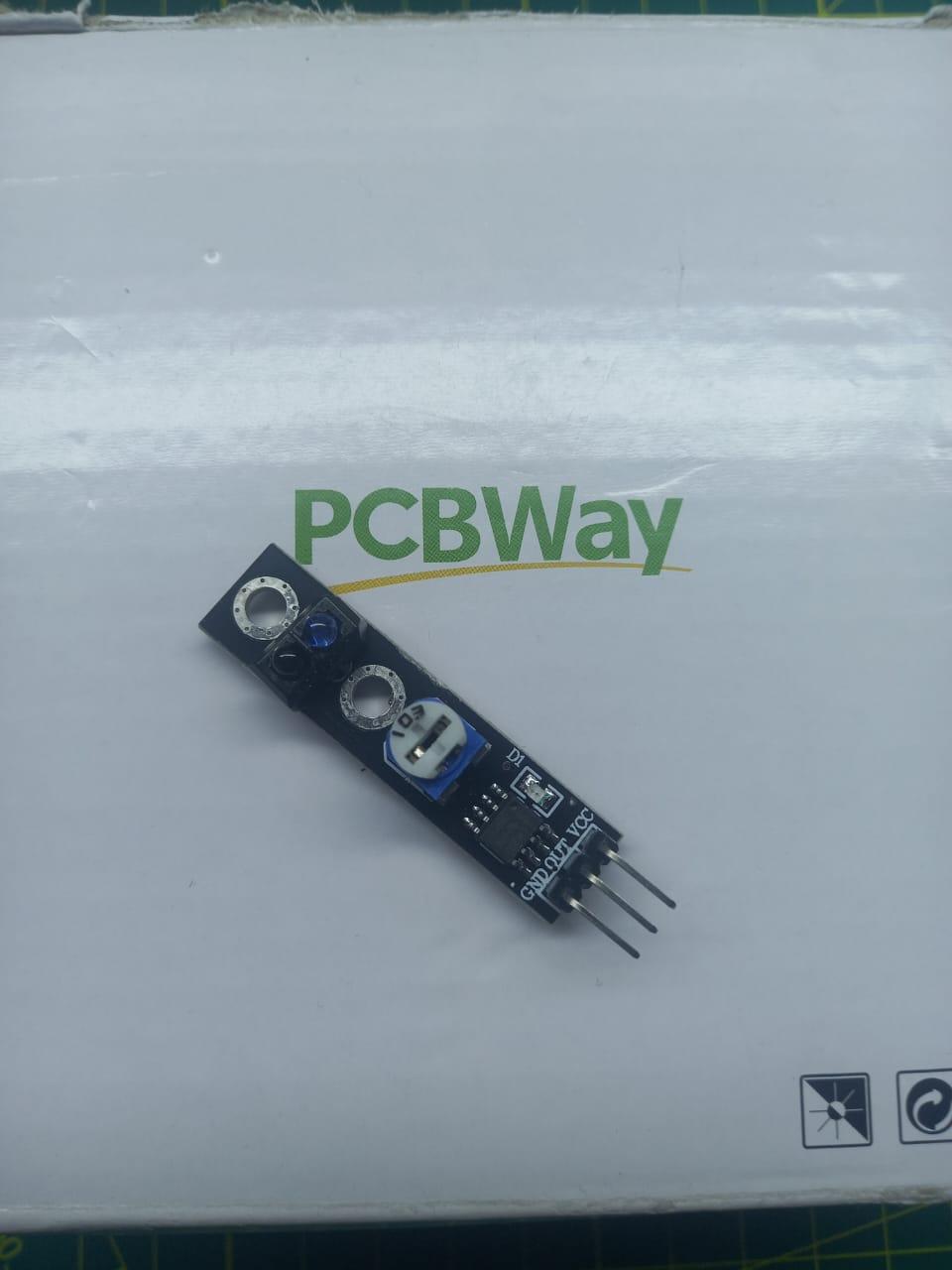

WhatsApp Image 2023-06-20 at 8.46.02 PM (1).jpeg

PCBWAY has 10 years in the electronics industry manufacturing professional PCBs, assembling PCBs managing to satisfy the demands of all parts of the world, in addition to meeting the highest quality and delivery time standards. PCBWAY allows the manufacture of your PCBs from 5 units.

This project was carried out thanks to PCBWAY, a company dedicated to the manufacture of prototypes and professional PCBs, in addition to offering you a ready assembly service with all the components in your PCBS, complying with the established quality and delivery time standards.

We thank PCBWAY, a leading company for manufacturing and assembling professional PCBs with the highest quality, PCBWAY has fair reasonable prices, punctual shipping time and 24-hour customer service, it also offers you the option of quoting all its services in his web page. Do not think twice and start manufacturing your professional PCBs from 5 units safely.

10pcbs at $5 order them here www.pcbway.com

We thank PCBWAY for the professional pcb they provide us for this project.


This project was made in the Easyeda software as we can see the tracks and the 3D image of the project working perfectly are no difficulty
