OBJECT COUNTER

In this project we will see a very easy object counter to make with few electronic components, it can sense any type of metallic objects or other materials.

GERBER PCB:

https://mega.nz/file/HdgCBI4Q#2rmOgL6bzGMarMpzw2SjTuOGq8m1aO7aEVNMhoOLsjA

We can see the schematic diagram of the project to be carried out with very few electronic components. We have all the values ​​of each electronic component to develop it ourselves, perhaps on a breadboard or a PCB.

Particularly, the infrared sensor is an optoelectronic device capable of measuring the infrared electromagnetic radiation of bodies in its field of view. All bodies emit a certain amount of radiation, this is invisible to our eyes but not to these electronic devices, since they are in the range of the spectrum just below visible light.

Its operation is simple: when an obstacle is placed in front of the sensor, the infrared signal is reflected on the receiver. When this happens, the OUT output pin is set low (0), and the module's green LED lights up, indicating that an obstacle has been detected.

The range of the sensor is from 2 to 30 cm, which can be adjusted via the potentiometer on the board.

Characteristics:

Operating voltage: 3.3 to 5 VDC.

Infrared transmitter and receiver.

Sensing distance: 2-30cm adjustable.

Potentiometer to adjust the distance.

• 1 DIODE IR 5MM
• 1 DIODE FOTODIODE 5MM
• 1 DIODE LED 5MM
• 1 RESISTOR 330 ohm 1/2W
• 1 RESISTOR 10K 1/2W
• 1 RESISTOR 100 ohm 1/2W
• 1 PRECISION POTENTIOMETER 10K
• 1 LM358N
• 1 ESPADIN 3 PINS
• 1 PCB

• VIN 5VDC
• IR SENSOR RANGE 2CM TO 30CM
• DETECTION OF ANY TYPE OF OBJECT AND MATERIAL
• COMMUNICATION WITH ARDUINO AND ANOTHER MICROCONTROLLER
• I MAX 100mA
• 5VDC DIGITAL OUTPUT

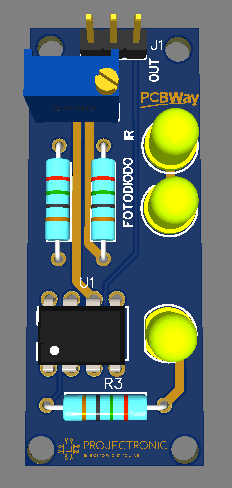

This project was made in the Easyeda software as we can see the tracks and the 3D image of the project working perfectly are no difficulty

PCBWAY has 10 years in the electronics industry manufacturing professional PCBs, assembling PCBs managing to satisfy the demands of all parts of the world, in addition to meeting the highest quality and delivery time standards. PCBWAY allows the manufacture of your PCBs from 5 units.

This project was carried out thanks to PCBWAY, a company dedicated to the manufacture of prototypes and professional PCBs, in addition to offering you a ready assembly service with all the components in your PCBS, complying with the established quality and delivery time standards.

We thank PCBWAY, a leading company for manufacturing and assembling professional PCBs with the highest quality, PCBWAY has fair reasonable prices, punctual shipping time and 24-hour customer service, it also offers you the option of quoting all its services in his web page. Do not think twice and start manufacturing your professional PCBs from 5 units safely.

10pcbs at $5 order them here www.pcbway.com

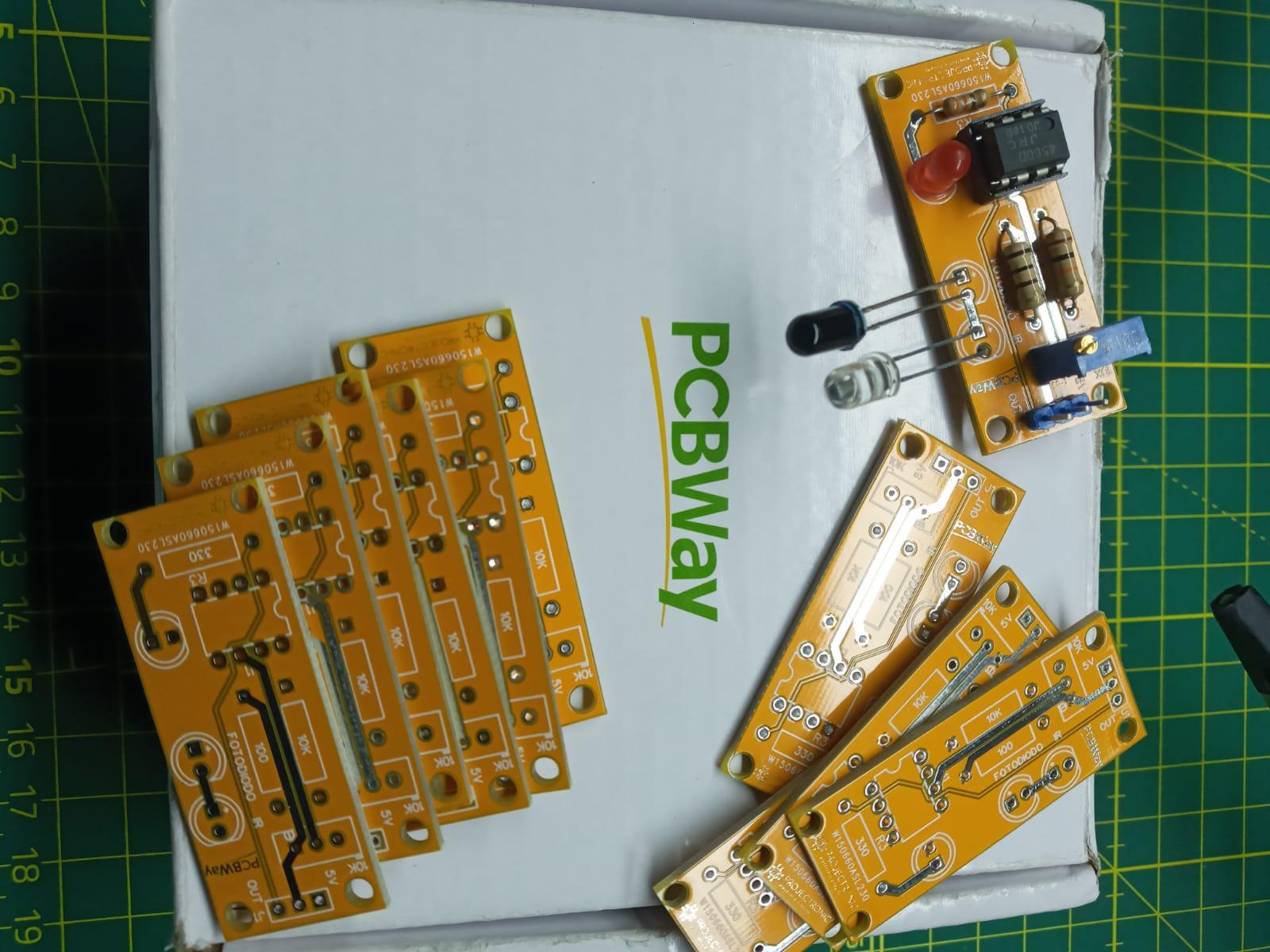

We thank PCBWAY for the professional pcb they provide us for this project.
