Non Contact AC Voltage Detector Circuit Diagram
by Creative creator in Circuits > Electronics
3265 Views, 4 Favorites, 0 Comments
Non Contact AC Voltage Detector Circuit Diagram
![Wireless AC Line Detector Circuit](/proxy/?url=https://content.instructables.com/FTZ/X8Q0/K8LUAFQF/FTZX8Q0K8LUAFQF.jpg&filename=Wireless AC Line Detector Circuit)

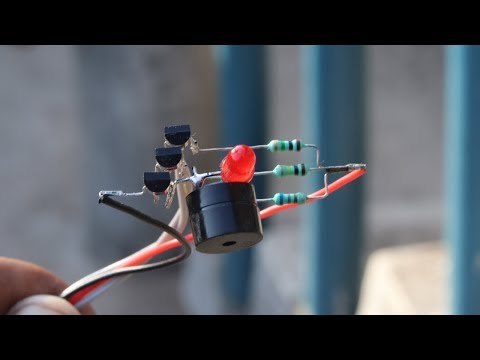

AC Voltage Identifier Circuit is a primary circuit based totally NPN transistors like BC747, BC548. The circuit is dependent on 3 distinct stages. After that, the frail sign was given solid and This circuit can run the Drove just as the bell. Here is a speedy article with a Video instructional workout for this Venture. This must likewise be feasible with CD4017 Interpret counter Yet for an easier arrangement, The transistor Technique is ideal.
How the Circuit Functions?
AC Voltage Locator Circuit depends on basic transistors’ rudiments. This is a Fundamental Enhancement Procedure. The Base Pin of the transistor_3(T3) is applied for detecting the ac signal swaying.
At the first run-through, the AC locator circuit is not active. At the factor when we are taking the sensor wire near the three Pin Outlet then the Base of the T3 receives some signal and it got conductive.
The sign which is originating from the T3 isn't any extra of sufficient to illuminate a Drove just as the Bell. Consequently, current streams from 1M to Transistor T2 transistor's Base.
Presently for the approaching base heartbeat, the T2 Got conductive and the signal was given center of the road. This time T2 was given conductive and thus, the existing streams from the 100k resistor to T1 Transistor's Base. The signal of T1 is high to such a quantity that it is able to run the Drove just as the Bell for the T3 Transistor approaching sign.
Supplies
0 Profit selling KN95 masks and Infrared Thermometer from UTSOURCE.net
https://www.utsource.net/home/healthcare
Things Needed for the Audio Amplifier:
LED: https://www.utsource.net/itm/p/6831354.html
Resistor: https://www.utsource.net/itm/p/8328095.html
Capacitor: https://www.utsource.net/itm/p/1898386.html
BC547: https://www.utsource.net/itm/p/9223667.html
Tools Needed:
Soldering Iron: https://www.utsource.net/itm/p/8423764.html
Iron Stand: https://www.utsource.net/itm/p/7722853.html
Nose Pliers: https://www.utsource.net/itm/p/7671655.html
![NON contact ac voltage detector 1.png](/proxy/?url=https://content.instructables.com/F09/ED6W/K8LUAFFR/F09ED6WK8LUAFFR.png&filename=NON contact ac voltage detector 1.png)
Here are A few Pictures for making the Circuit. I have reached the AC Voltage Identifier as truthful as could moderately be expected. You can likewise make the circuit in the Breadboard. In any case, there is probably free affiliation So I actually have Legitimately Welded all Parts. Along these lines, there won't be any free association.
![NON contact ac voltage detector 2.png](/proxy/?url=https://content.instructables.com/FFO/UYWP/K8LUAFFW/FFOUYWPK8LUAFFW.png&filename=NON contact ac voltage detector 2.png)
![NON contact ac voltage detector 3.png](/proxy/?url=https://content.instructables.com/F8C/W5Z7/K8LUAFG1/F8CW5Z7K8LUAFG1.png&filename=NON contact ac voltage detector 3.png)
![NON contact ac voltage detector 4.png](/proxy/?url=https://content.instructables.com/F5M/ULVI/K8LUAFGV/F5MULVIK8LUAFGV.png&filename=NON contact ac voltage detector 4.png)
![NON contact ac voltage detector 5.png](/proxy/?url=https://content.instructables.com/FJT/BIFO/K8LUAFJM/FJTBIFOK8LUAFJM.png&filename=NON contact ac voltage detector 5.png)
Circuit Schematics:
![NON contact ac voltage detector 6.png](/proxy/?url=https://content.instructables.com/FLJ/WZYS/K8LUAFL2/FLJWZYSK8LUAFL2.png&filename=NON contact ac voltage detector 6.png)
Here is the Non-Contact AC Voltage Locator Circuit Graph Made with Online Free Easyeda Programming.
Note:
It could be ideal in case you handle the Transistor's with care inside the occasion which you erroneously give high crude voltage into Transistor, at that factor, it will explode the AC Voltage Identifier Circuit speedy with no signal.
While checking out the AC voltage you ought not to touch the AC lines. Since this is fairly perilous it could slaughter you. Along those lines, be cautious approximately A stock. You can make use of any fundamental NPN Transistor for this project like BC547 just as BC548.
I, in reality, have fixed segments. You can utilize a Dab PCB for making this board. AC Voltage Locator will likewise chip away at the Breadboard. It may be regularly proficient. In the event that you do not have the 9V Battery 🔋, at that point you can make use of any type of intensity deliver round 9 to 12V.
Look on the video instructional workout of our help channel Innovative Maker for more records and interesting updates. You can make use of the Warmth contract tube for making sure about all the critical associations.
I accept as true with the AC Voltage Finder Circuit venture can be an inexpensive accomplishment approximately them who are making this Undertaking. On the off chance which you have any inquiries, at that point, you must remark inside the remark vicinity beneath. I will try and reply to your all inquiries. On the off chance that you like this article, at that point you may impart the articles for your companions.
