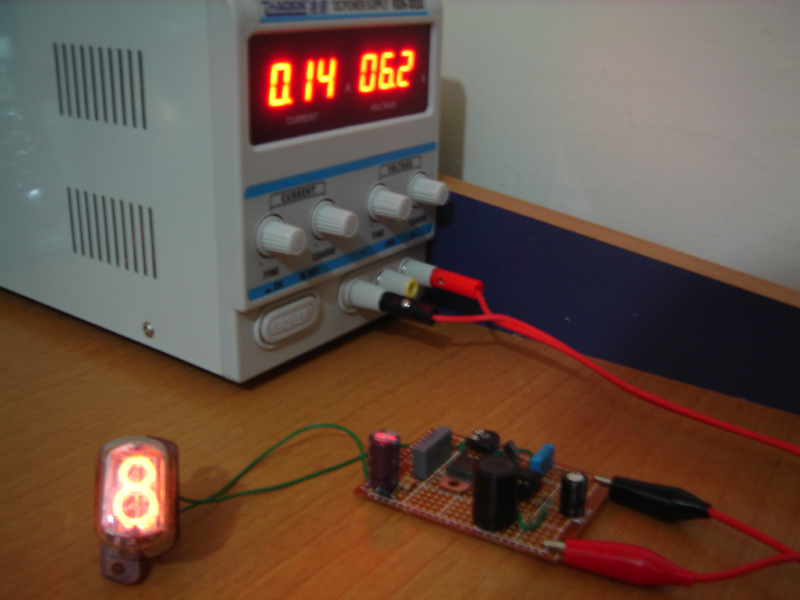

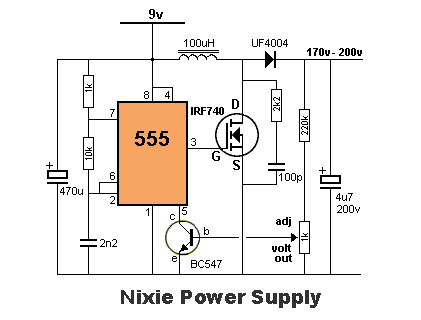

Nixie Tube HV Driver

Part List
NE555N Timer IC & Socket (8pin IC)
2.2nF Film Cap.
100pF/250V Film Cap.
BC547 Transistor
470µF/16V Electrolytic Capacitors
1K 1/4W Resistor
10K 1/4W Resistor
2K2 1/4W Resistor
220K 1/4W Resistor
1K Trimmer
4.7µF/200V E-Cap.
IRF740 Mosfet
100µH/3A Radial Inductor
