Nixie Inspired 7 Segment Display
by Barzok in Circuits > Clocks
4142 Views, 43 Favorites, 0 Comments
Nixie Inspired 7 Segment Display
![2017-05-06 17.31.23.jpg](/proxy/?url=https://content.instructables.com/FNF/J0HM/J2AWM6RK/FNFJ0HMJ2AWM6RK.jpg&filename=2017-05-06 17.31.23.jpg)
![2017-05-06 17.30.29.jpg](/proxy/?url=https://content.instructables.com/F26/CJSC/J2AWM6Q1/F26CJSCJ2AWM6Q1.jpg&filename=2017-05-06 17.30.29.jpg)
![2017-05-06 15.40.49.jpg](/proxy/?url=https://content.instructables.com/FFL/I71G/J2AWMFI4/FFLI71GJ2AWMFI4.jpg&filename=2017-05-06 15.40.49.jpg)
![2017-05-07 17.48.01.jpg](/proxy/?url=https://content.instructables.com/FVW/ZOYX/J2AWMF99/FVWZOYXJ2AWMF99.jpg&filename=2017-05-07 17.48.01.jpg)
This Instructable is the first part of a bigger project : a desktop clock with 4 pseudo Nixie 7 segment digits.
I decided to publish a dedicated Instrcutable for the Nixie because I was highly inspired by an article read on hackaday (http://hackaday.com/2015/03/03/nixie-inspired-7-segment-display/).
Here is my version which looks promising. Stay tuned for the desktop clock.

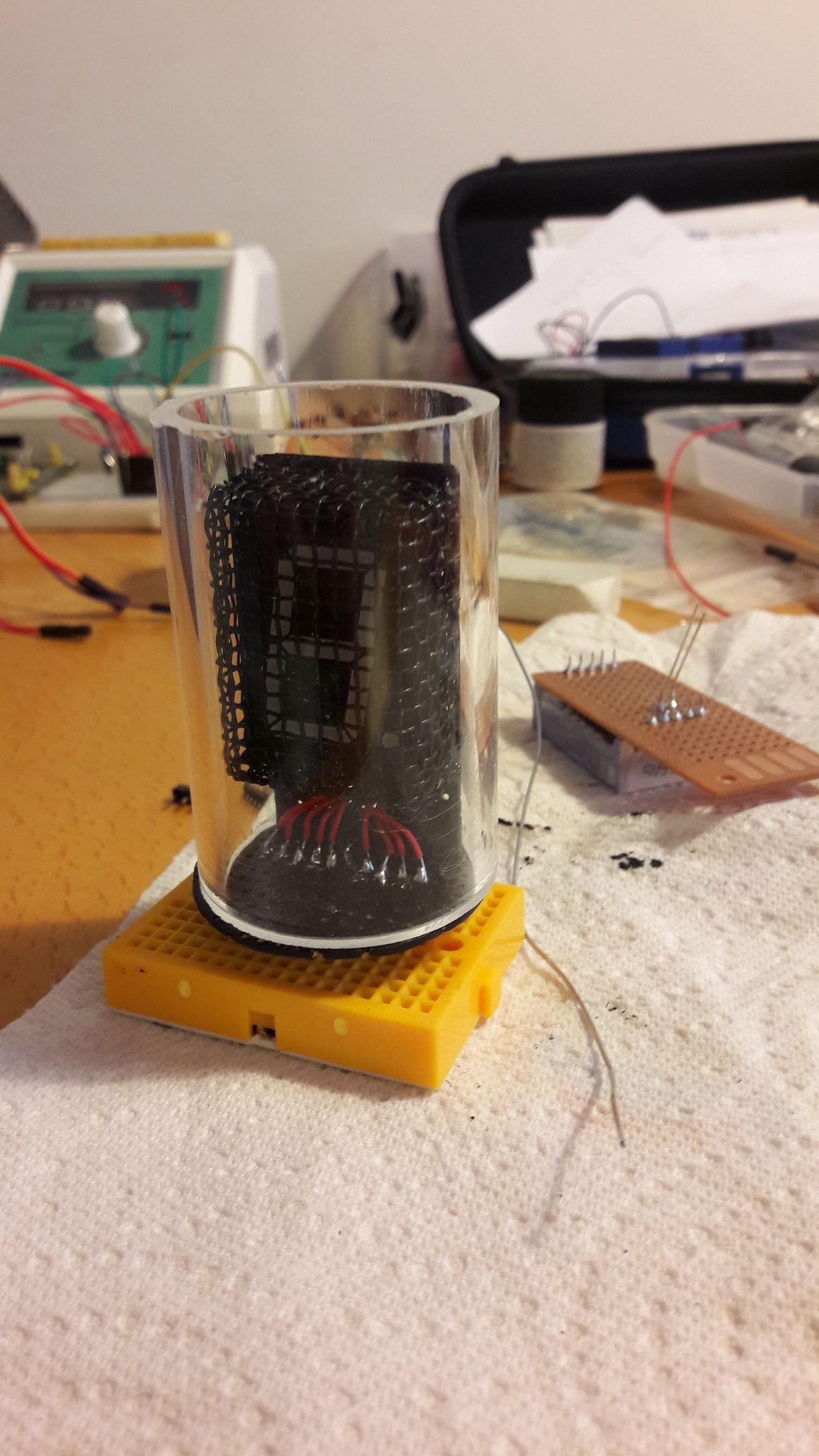

The 7 segment is a one inch high 10016AS model. I will use a plexiglass tube to make it look like a nixie tube.
The Grid
![2017-05-07 14.50.18.jpg](/proxy/?url=https://content.instructables.com/FB9/3QG6/J2AWM8CR/FB93QG6J2AWM8CR.jpg&filename=2017-05-07 14.50.18.jpg)
![2017-05-07 15.05.21.jpg](/proxy/?url=https://content.instructables.com/FBL/WJ99/J2AWM97A/FBLWJ99J2AWM97A.jpg&filename=2017-05-07 15.05.21.jpg)
![2017-05-07 15.07.25.jpg](/proxy/?url=https://content.instructables.com/FDU/07XV/J2AWM9MQ/FDU07XVJ2AWM9MQ.jpg&filename=2017-05-07 15.07.25.jpg)
![2017-05-07 15.09.35.jpg](/proxy/?url=https://content.instructables.com/F5I/RXJO/J2AWMB0D/F5IRXJOJ2AWMB0D.jpg&filename=2017-05-07 15.09.35.jpg)
![2017-05-07 15.22.43.jpg](/proxy/?url=https://content.instructables.com/F58/MK1N/J2AWMBQ0/F58MK1NJ2AWMBQ0.jpg&filename=2017-05-07 15.22.43.jpg)
![2017-05-07 15.33.04.jpg](/proxy/?url=https://content.instructables.com/FUV/4O9V/J2AWMCG8/FUV4O9VJ2AWMCG8.jpg&filename=2017-05-07 15.33.04.jpg)
![2017-05-07 16.01.15.jpg](/proxy/?url=https://content.instructables.com/FFP/C5GR/J2AWME2W/FFPC5GRJ2AWME2W.jpg&filename=2017-05-07 16.01.15.jpg)
![2017-05-07 15.54.34.jpg](/proxy/?url=https://content.instructables.com/FW9/H7OV/J2AWMDIP/FW9H7OVJ2AWMDIP.jpg&filename=2017-05-07 15.54.34.jpg)
![2017-05-07 16.09.19.jpg](/proxy/?url=https://content.instructables.com/FS0/VMAT/J2AWMEET/FS0VMATJ2AWMEET.jpg&filename=2017-05-07 16.09.19.jpg)
![2017-05-07 16.11.07.jpg](/proxy/?url=https://content.instructables.com/F2X/L1RW/J2AWMENO/F2XL1RWJ2AWMENO.jpg&filename=2017-05-07 16.11.07.jpg)

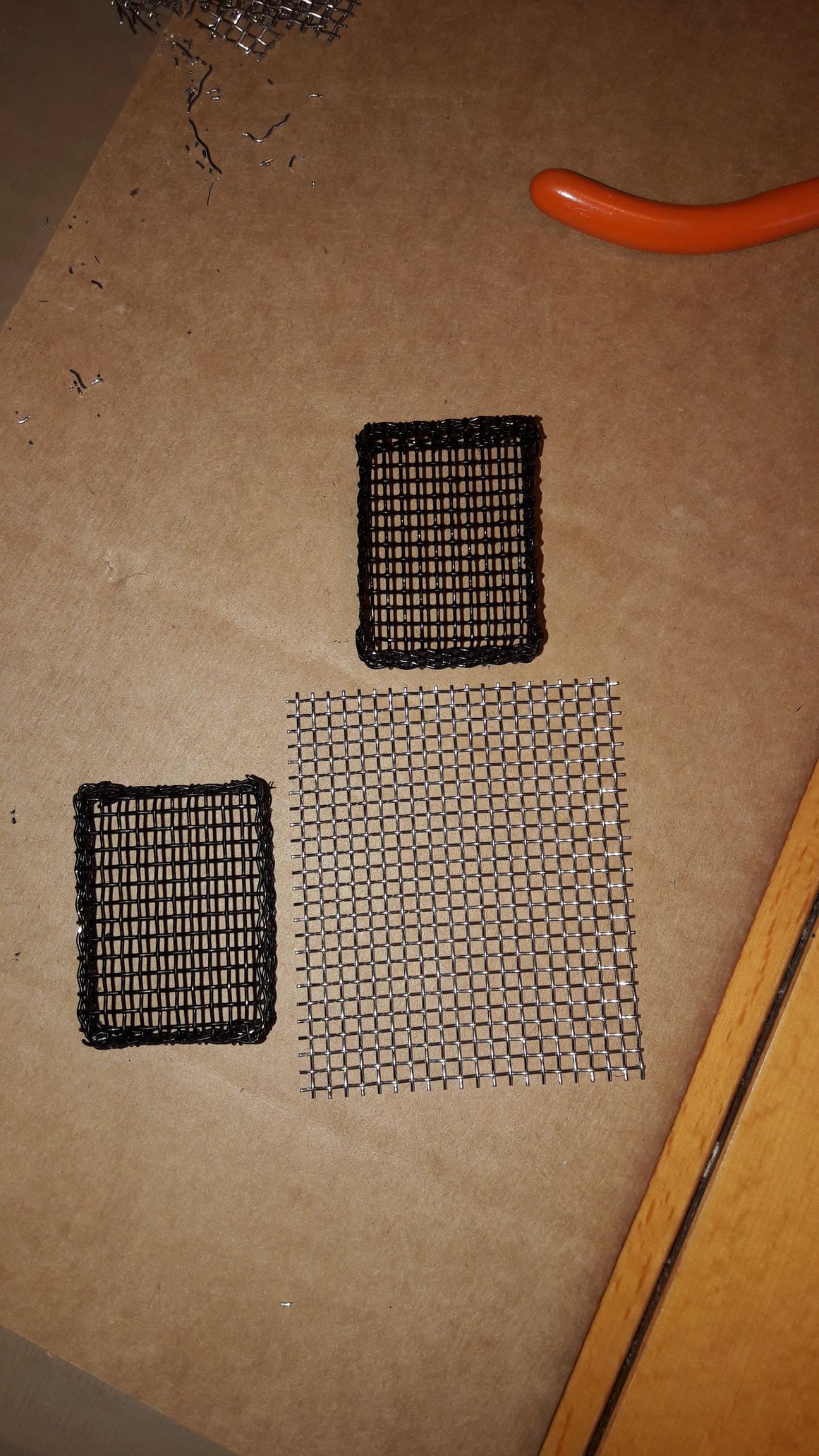

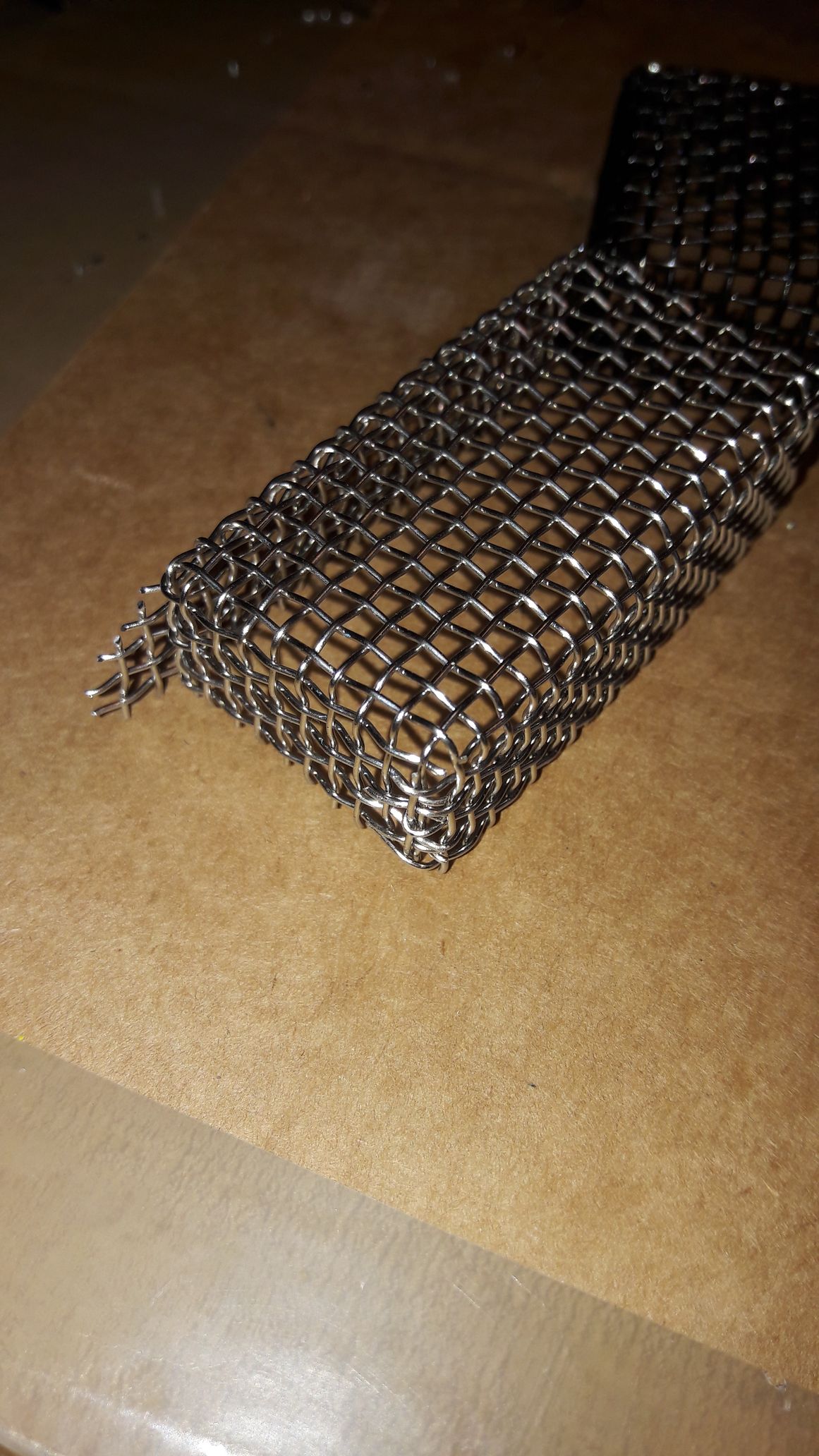

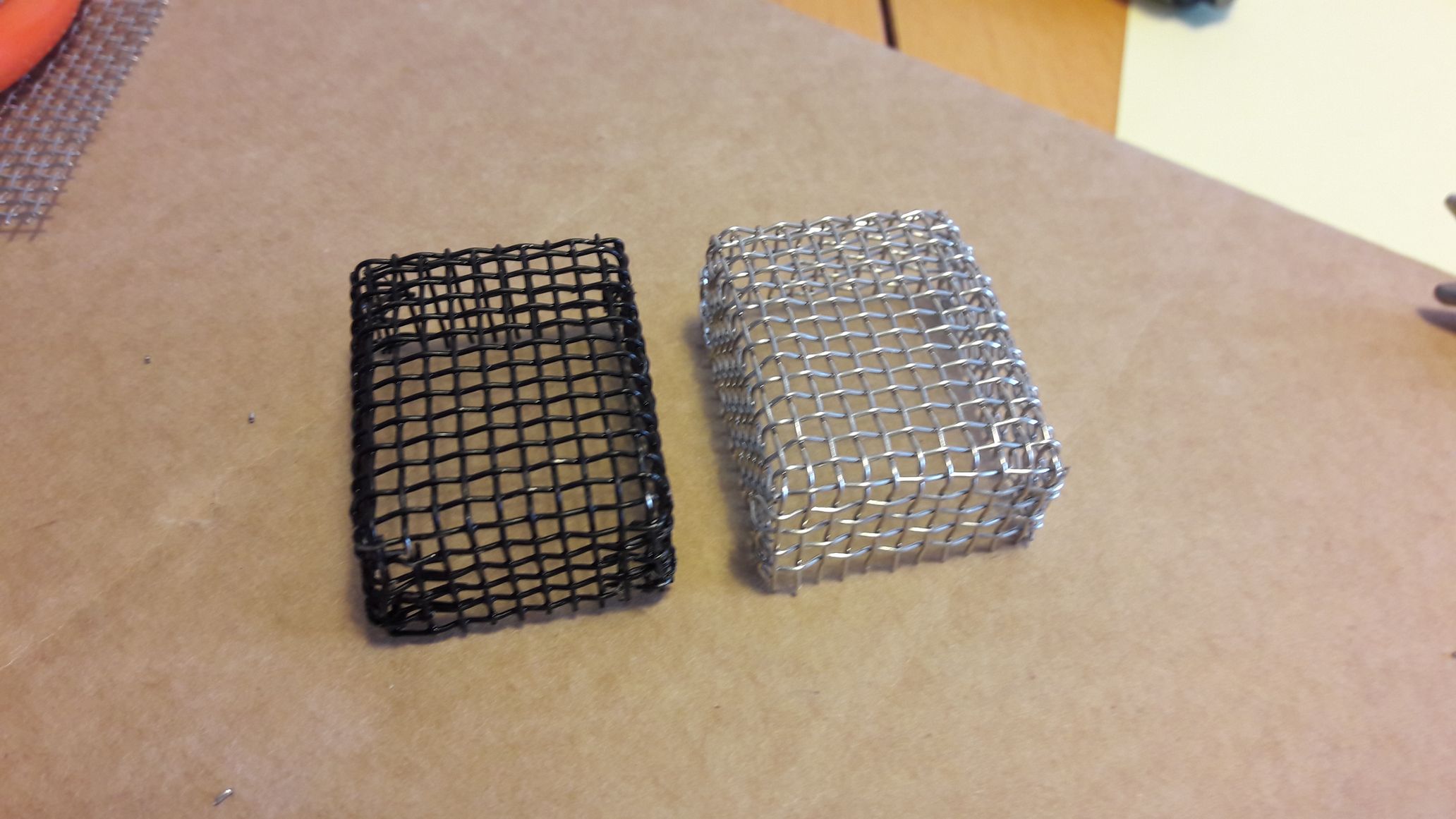

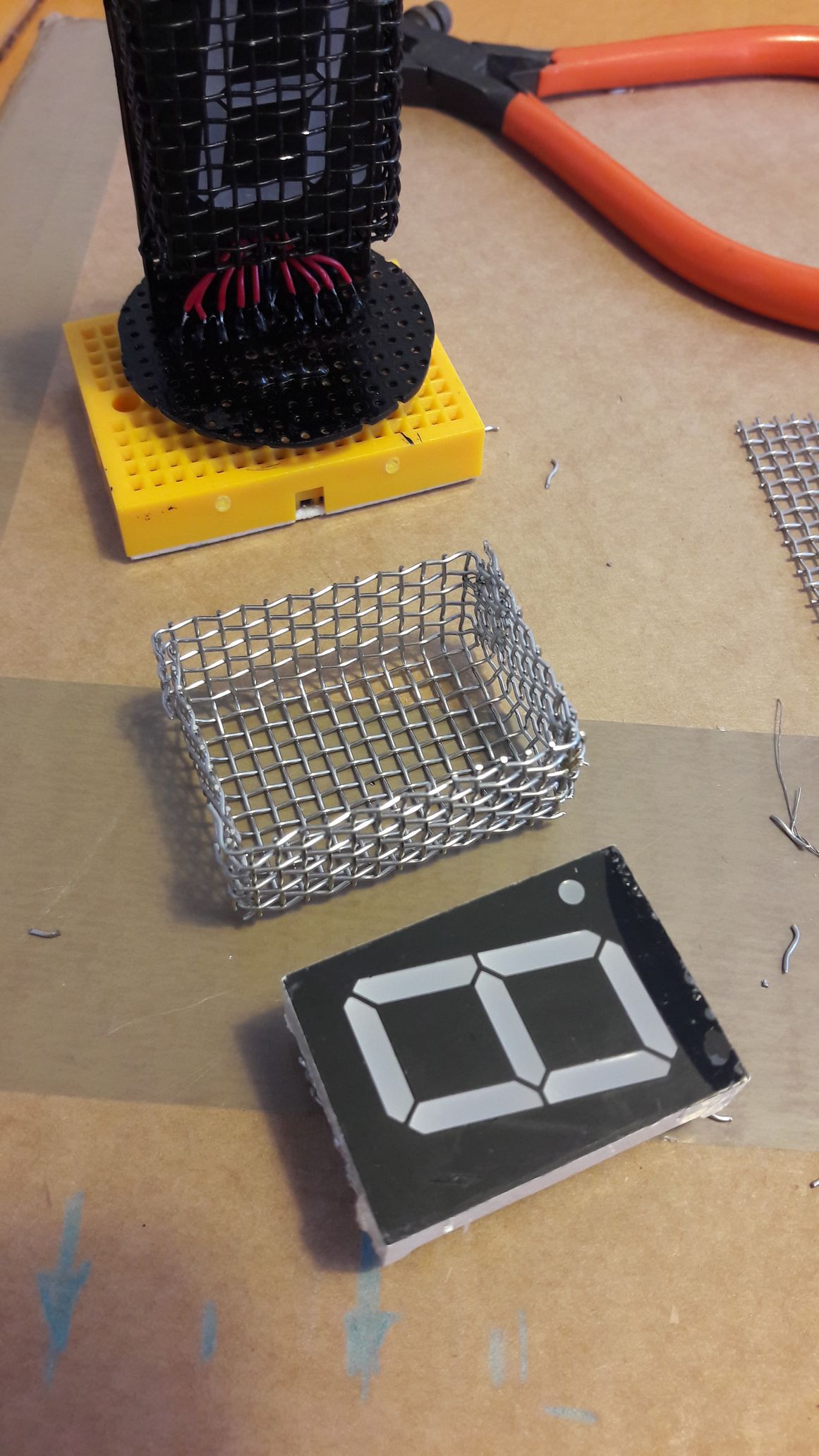

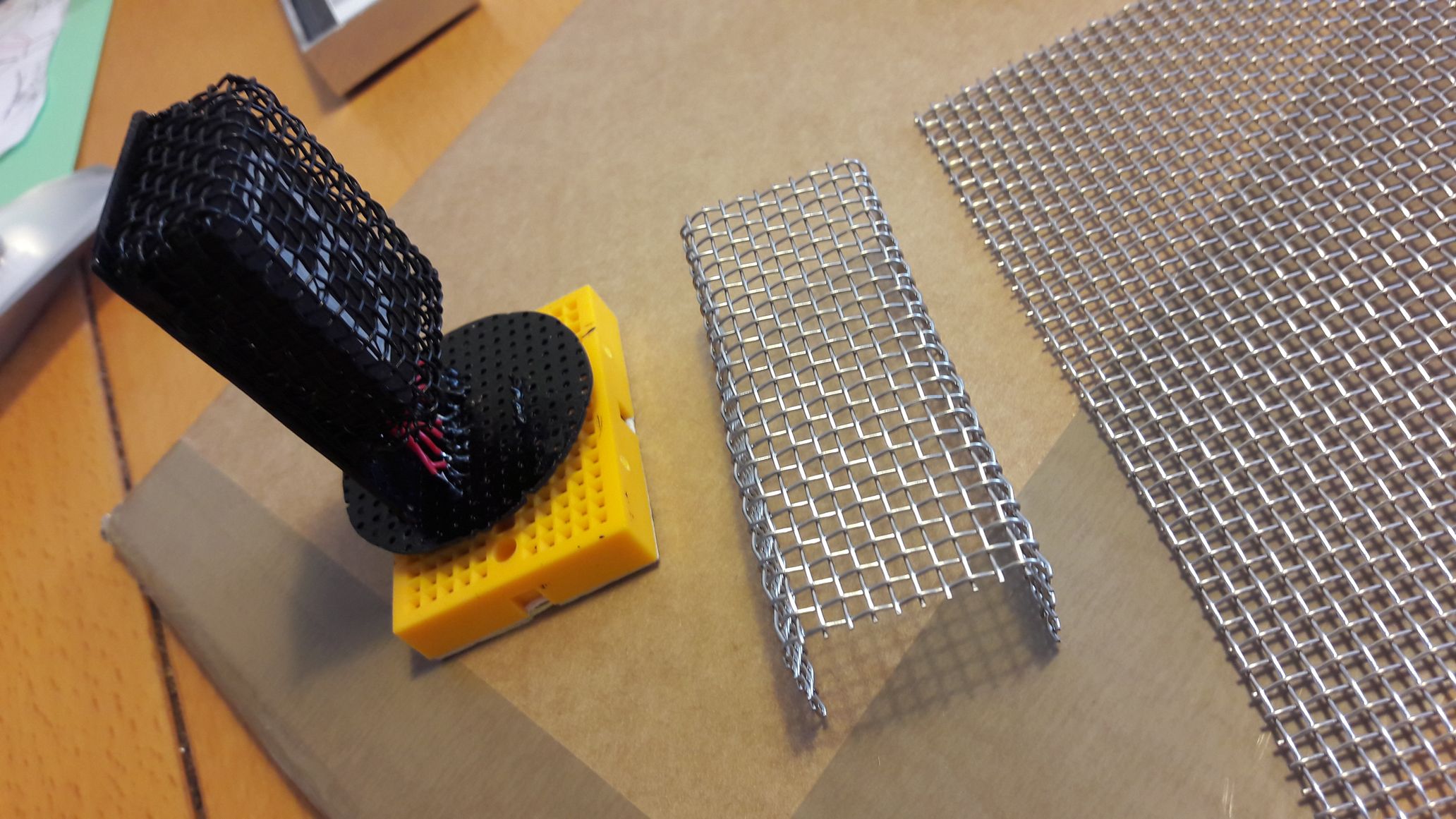

The grid is made with a metalic mesh I bought on internet.
It is shaped with pliers and painted in black.
The Display
![2017-05-06 16.09.58.jpg](/proxy/?url=https://content.instructables.com/FOA/H1I0/J2AWMFKY/FOAH1I0J2AWMFKY.jpg&filename=2017-05-06 16.09.58.jpg)
![2017-05-06 16.34.29.jpg](/proxy/?url=https://content.instructables.com/FAL/CBXR/J2AWMFPS/FALCBXRJ2AWMFPS.jpg&filename=2017-05-06 16.34.29.jpg)
![2017-05-06 16.40.23.jpg](/proxy/?url=https://content.instructables.com/FSN/I5Z6/J2AWM518/FSNI5Z6J2AWM518.jpg&filename=2017-05-06 16.40.23.jpg)
![2017-05-06 17.23.04.jpg](/proxy/?url=https://content.instructables.com/F1A/F9YG/J2AWM6LS/F1AF9YGJ2AWM6LS.jpg&filename=2017-05-06 17.23.04.jpg)
Between the display and the circuit, I inserted a Blue led (3mm size), drowned in hot glue to diffuse the glow.
The base circle is the size of the plexiglass tube.
Painting
![2017-05-06 16.53.35.jpg](/proxy/?url=https://content.instructables.com/FCD/EHE8/J2AWM5N1/FCDEHE8J2AWM5N1.jpg&filename=2017-05-06 16.53.35.jpg)
![2017-05-06 17.02.03.jpg](/proxy/?url=https://content.instructables.com/FFD/FQ3F/J2AWM5W2/FFDFQ3FJ2AWM5W2.jpg&filename=2017-05-06 17.02.03.jpg)
![2017-05-06 16.52.41.jpg](/proxy/?url=https://content.instructables.com/F63/JXTB/J2AWM5F8/F63JXTBJ2AWM5F8.jpg&filename=2017-05-06 16.52.41.jpg)
![2017-05-06 17.22.53.jpg](/proxy/?url=https://content.instructables.com/F67/TSSX/J2AWM6EO/F67TSSXJ2AWM6EO.jpg&filename=2017-05-06 17.22.53.jpg)
![2017-05-06 16.42.42.jpg](/proxy/?url=https://content.instructables.com/FIJ/11V4/J2AWM589/FIJ11V4J2AWM589.jpg&filename=2017-05-06 16.42.42.jpg)
![2017-05-06 17.03.48.jpg](/proxy/?url=https://content.instructables.com/F8Y/0UCC/J2AWM636/F8Y0UCCJ2AWM636.jpg&filename=2017-05-06 17.03.48.jpg)
Painting in black with Tamiya paint.
Preparing the 3 Others
![2017-05-07 14.49.20.jpg](/proxy/?url=https://content.instructables.com/FF1/PVIO/J2AWM73R/FF1PVIOJ2AWM73R.jpg&filename=2017-05-07 14.49.20.jpg)
![2017-05-07 17.03.13.jpg](/proxy/?url=https://content.instructables.com/FLC/KOP1/J2AWMF16/FLCKOP1J2AWMF16.jpg&filename=2017-05-07 17.03.13.jpg)
![2017-05-07 17.45.42.jpg](/proxy/?url=https://content.instructables.com/FPE/YRPC/J2AWMF8A/FPEYRPCJ2AWMF8A.jpg&filename=2017-05-07 17.45.42.jpg)
![2017-05-07 17.48.12.jpg](/proxy/?url=https://content.instructables.com/F5X/TNPP/J2AWMFF0/F5XTNPPJ2AWMFF0.jpg&filename=2017-05-07 17.48.12.jpg)

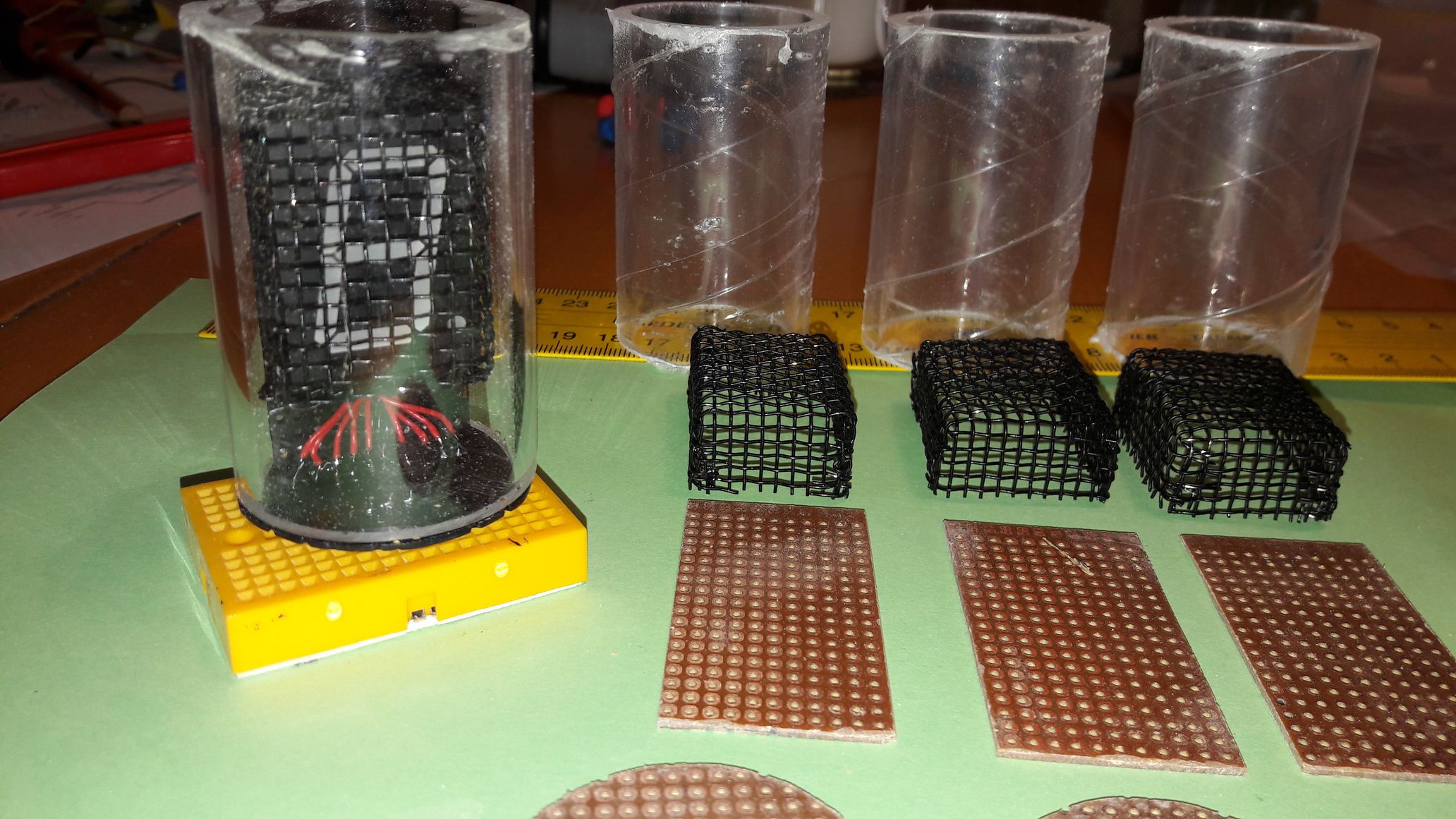

After the prototype, I prepared the stuff to make the 3 others nixie.
