Ninja Star

A Ninja Star or Throwing Star is something every kid remembers growing up seeing on TV and the movies. You can buy them at many knife stores, but did you know you can make your own at home?

Take a minute to watch our instructional video on the Ninja Star. There's a lot of detail and additional information included. Once you're finished, head on over to Step 2!

A Ninja Star can literally be made to look however you want it to.The design possibilities are almost limitless! You can find hundreds of patterns on the web, or you can use the ones provided from The Geek Pub here: Throwing Star Template

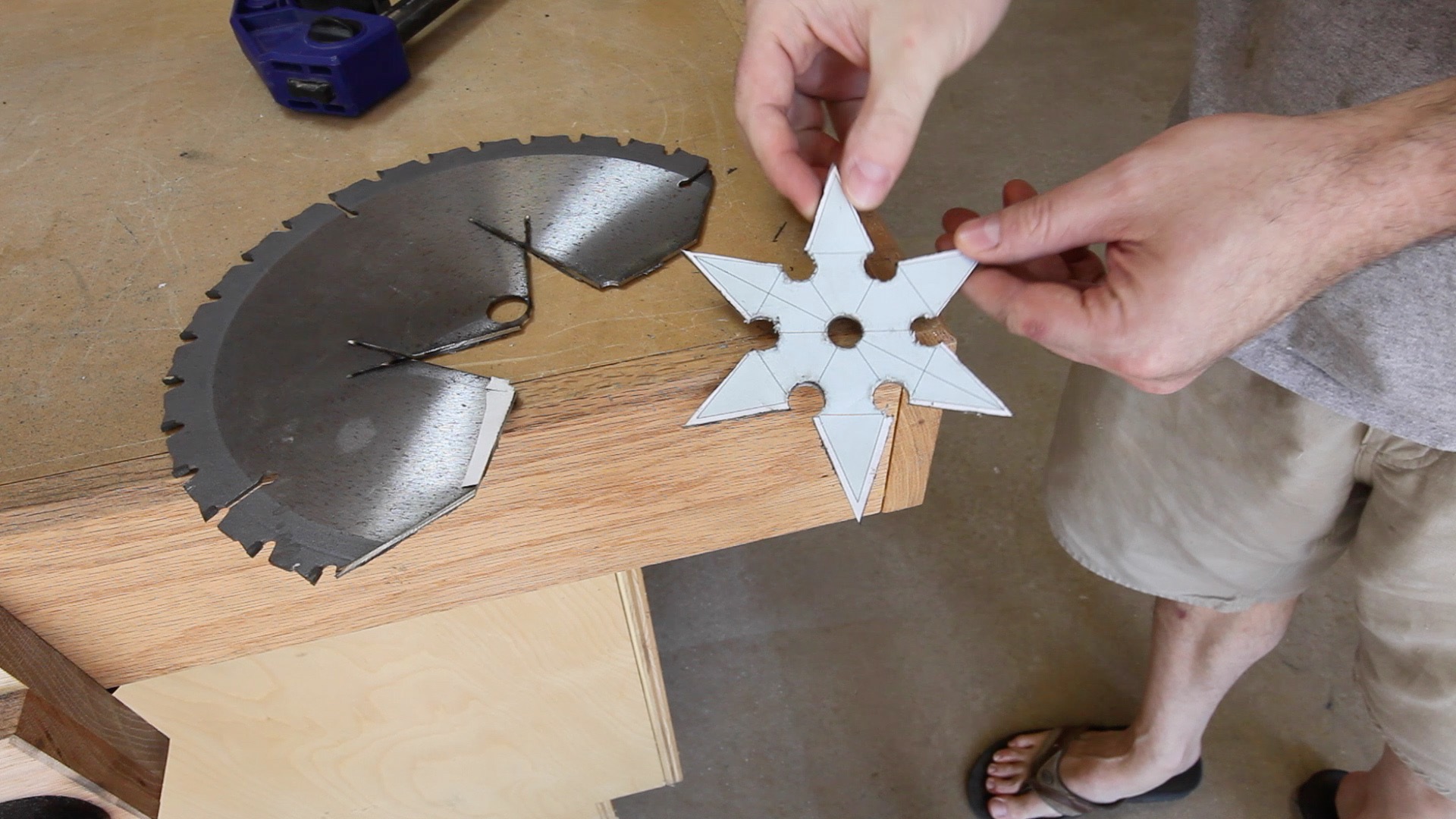

For the material you'll need some high quality steel. You can either buy a sheet of 1/8" steel from a hardware store, or you can do what I did and use an old circular saw blade. In my case, a 10" saw blade from my table saw that had a 1/8" kerf.

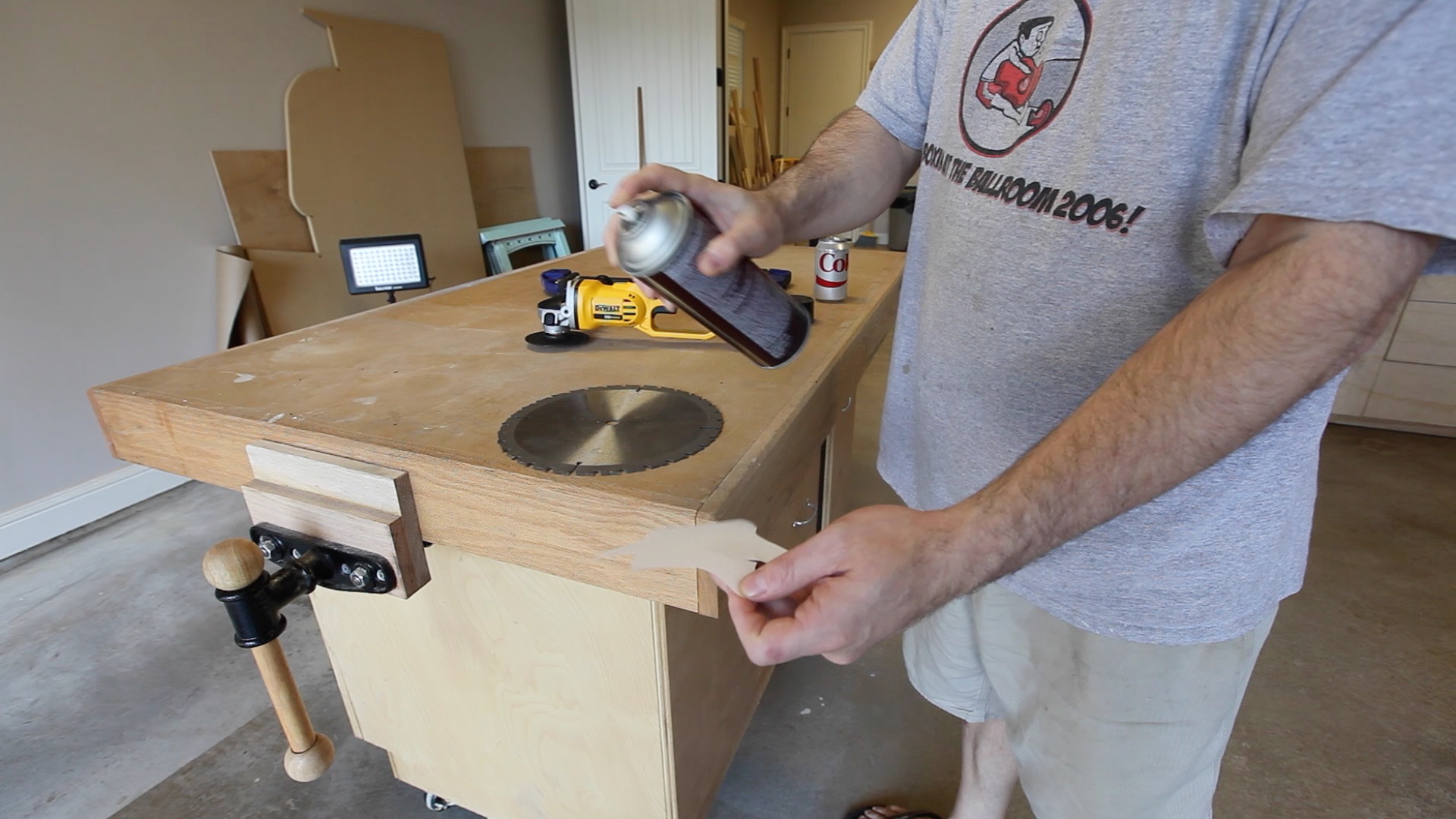

Whatever design you choose, you'll need to attach it to the material of your choosing. I recommend printing the template out and using a spray adhesive to attach it to the material.

If the design you chose has holes in it, you should always drill the holes before doing the cutting. This will drastically reduce the cutting effort as well as the drilling effort. Trying to drill the holes, or half of a hole after the pattern is cut out can be extremely frustrating.

This should probably go without saying, but please clamp the material down to your work bench or hold it with a vise. 1/8" steel flying across the room would be beyond dangerous.

I used a .045 cutoff wheel on my handheld grinder to cut out my star. This works very well. In fact, it almost cuts like butter.

If you don't have a handheld grinder, a jigsaw with a metal cutting blade will work, as will a handheld hacksaw.

Cut about 1/32" away from the lines on your template. This will allow for you to grind everything flush for a perfect finish.

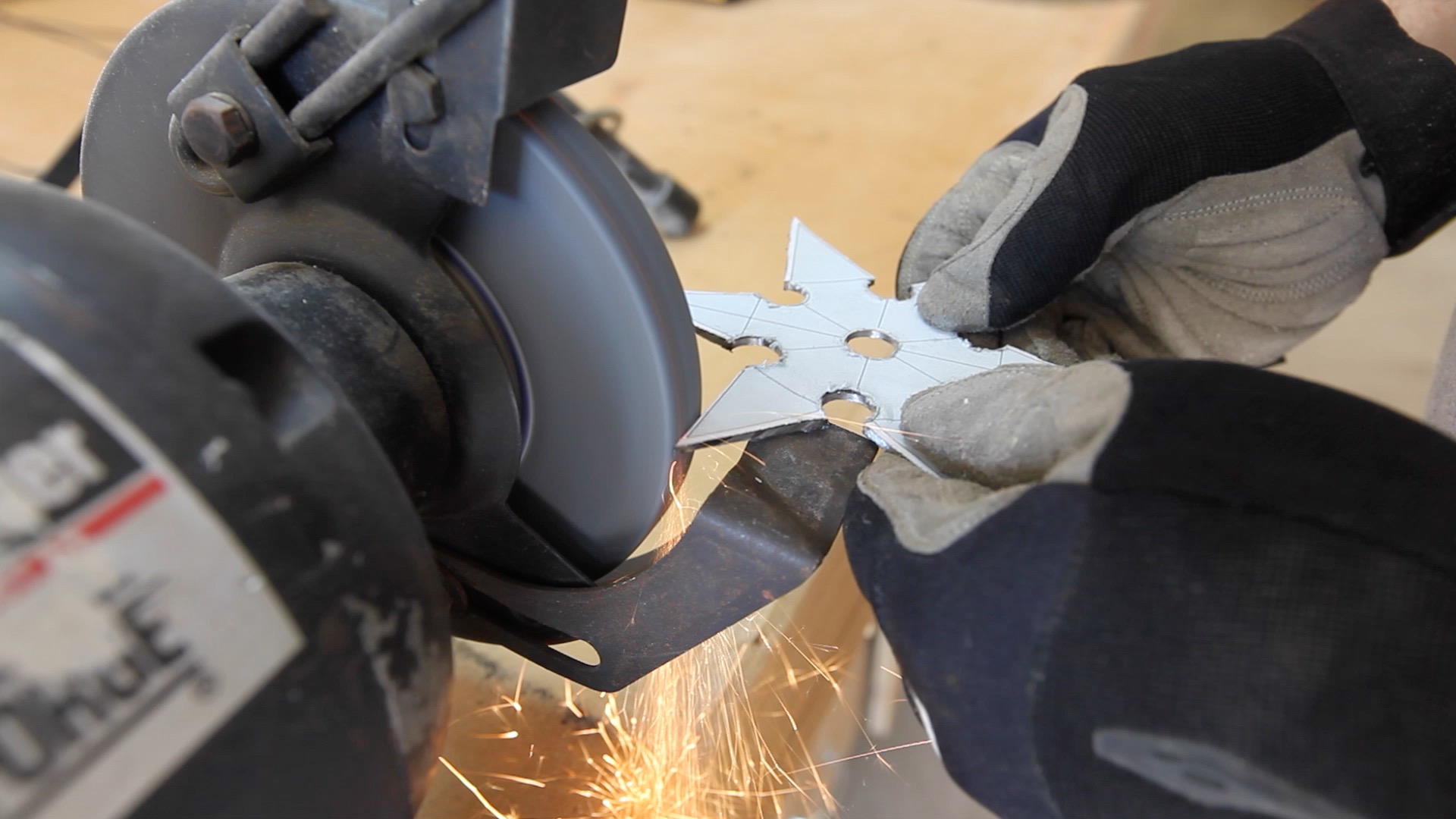

Using a bench top or handheld grinder, grind the star down to the lines on your pattern. This doesn't take much effort and will really make the star look pro when its finished. Go slow, and avoid overheating the metal. It is likely your paper template will let off a little smoke as you grind. This is normal.

Once your finished give the star a once or twice over on the wire wheel. This will remove all of the burs, any paint or rust on the star, as well as the paper template.

Some people prefer to leave their star with a brushed finish and that's fine if you like that. You could also paint it at this point of you prefer a painted star.

Using some red grit compound and a buffing wheel, buff the Ninja Star down to a nice polish.

You can take this as far as you like and move on to green compound if you want an even higher gloss finish.

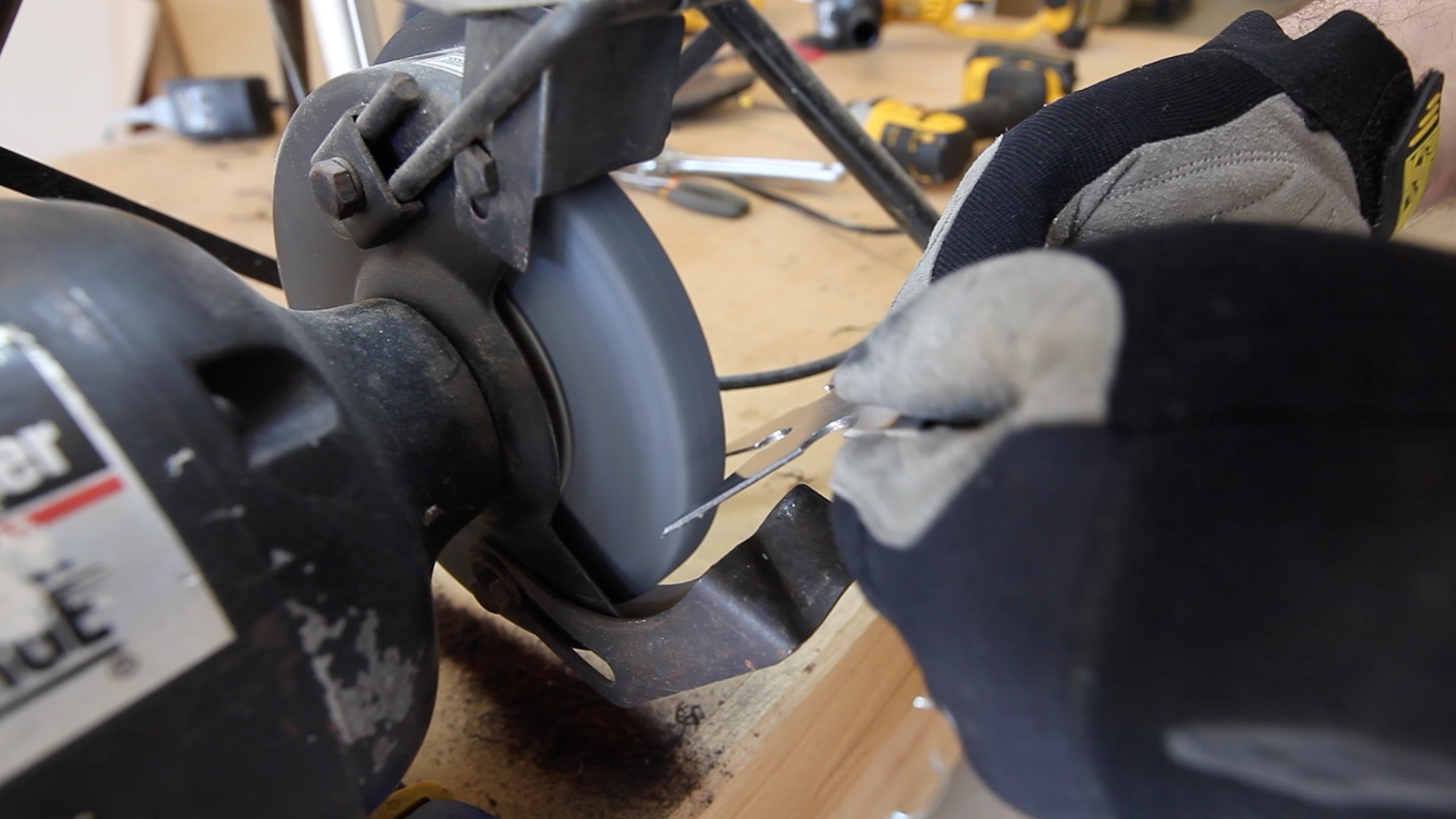

Sharpen all of the blades on the star using a high grit grinding wheel. This will make the blades of the star razor sharp.

Many people who just want the star for show, skip this step and I recommend that most of you do the same unless you actually plan to use it for sport or target practice. A sharpened Throwing Star can be very dangerous and should be locked in a safe place when not in use.

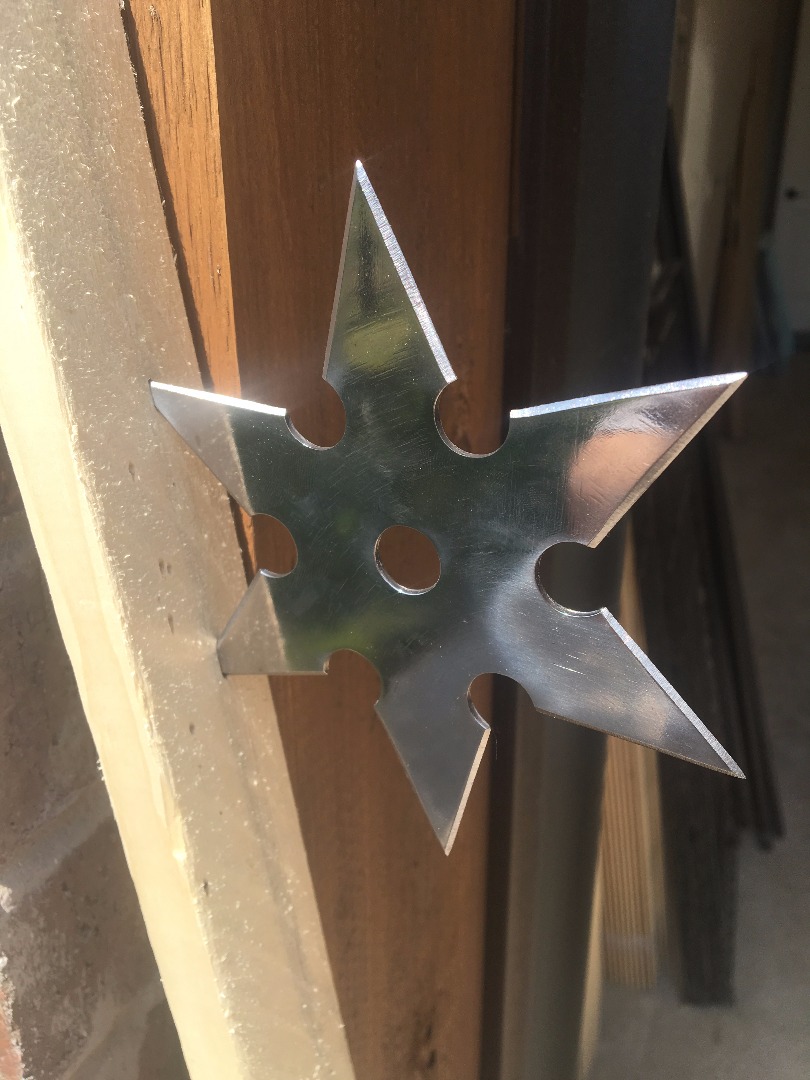

You're finished Ninja Star is going to look super awesome and should be a blast to use. Just be safe and keep it out of the hands of children.
