Nike + Plus Sensor Holder

by wanggen in Circuits > Sensors

14986 Views, 15 Favorites, 0 Comments

Nike + Plus Sensor Holder

Instructions on how to create yet another nike + holder.
I really didn't like any of the other designs so I created this one.

Items you need:

Nike + Sensor
3/4 inch shrink wrap tubing
2 Large Nails
Lighter
Paper cut into shape of a triangle

Tape
Shoes with laces

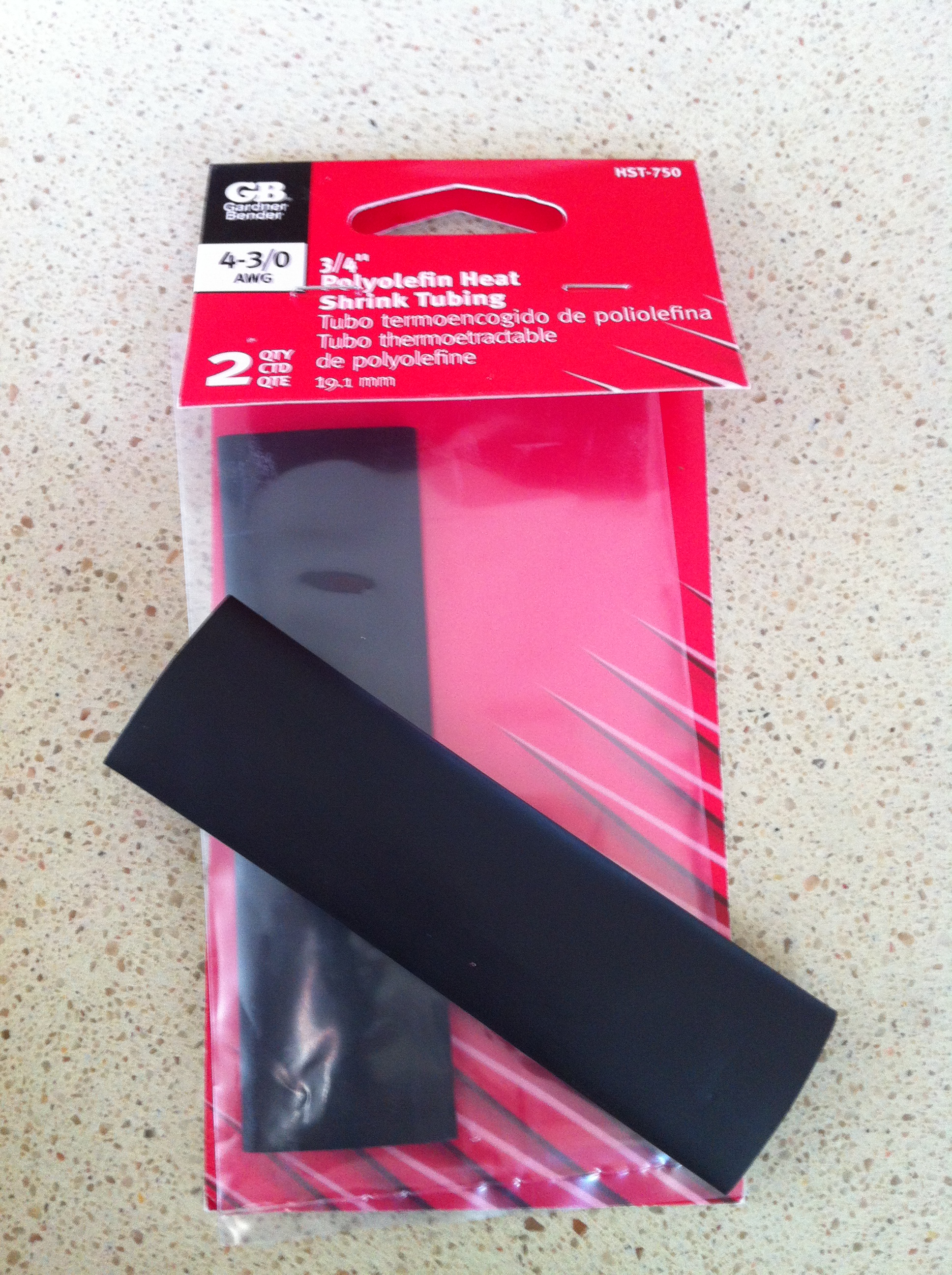

Checking the Shrink Tubing

I first checked that the Nike sensor fit in the 3/4 inch shrink tubing.  I found the right size at Ace Hardware, but I'm sure any hardware store should carry shrink tubing.  I think I spent 2 bucks on the tubing.

Marking the Sensor Direction

I have had issues with my sensor when it was not positioned a particular direction.
So I took the time to cut out a paper triangle and tape it to the sensor with the triangle pointing up with the apple upright.

Making the Holder

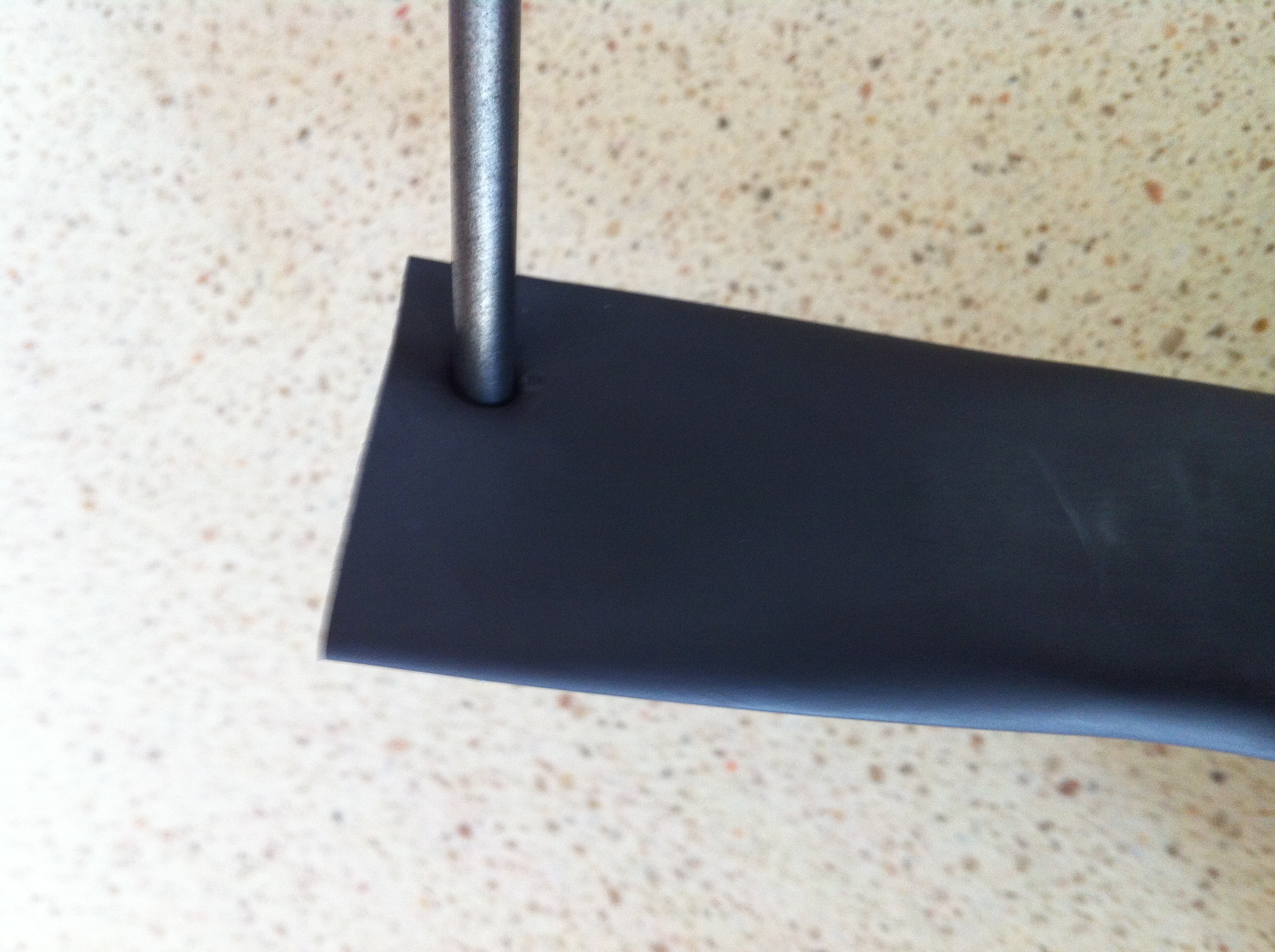

Use a large nail to puncture one end of the tubing, then use the other nail to puncture another hole in an equal position to the first hole.
Remove both nails and thread a nail through the holes.
Insert the Nike sensor into the other end of the tubing.
Cut the tubing so both ends have equal length from the Nike sensor.
Then puncture the newly cut end exactly as before.

Shrinking the Tube

I used a lighter to shrink the tubing, being careful not to burn the plastic or cook my sensor.
I moved the flame around the tubing never leaving the flame in one position for too long.
Once done and cooled you can remove the nails.  The result is a nice hole for your laces and a waterproof holder.

Lace It Up

Final step is to lace the sensor into your favorite shoe.  My favorite is the right shoe. :)
Since my holder and shoes are black, the sensor is barely visible.
I love this holder and have had no issues what so ever.
I also don't notice the sensor at all since it rides above the tongue.
