Night Light From Used Air Filter

by The weekend mechanic in Workshop > Lighting

2890 Views, 48 Favorites, 0 Comments

Night Light From Used Air Filter

This tutorial will show how to make a night lights from a used air filter out of a generator and a couple of other parts. It can be done within a day and will run off of a wall adapter (12-15v) and will use car brake lights. This light is ideal for camping because it can run off of a car battery and since it is an old school incandescent light it has a warm and natural vibe to it.

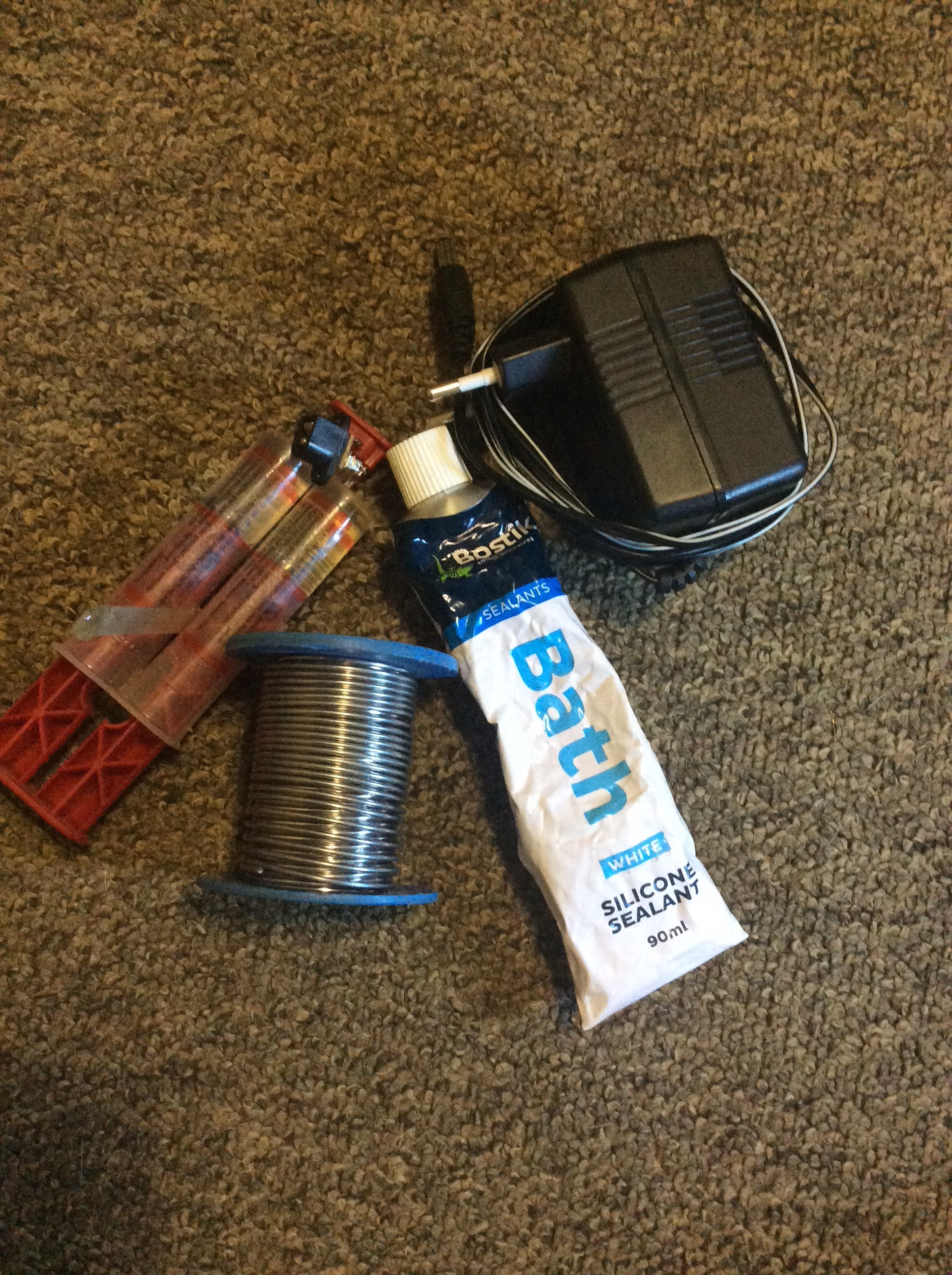

Parts

Used air filter
DC jack
12 volt adapter@2amps

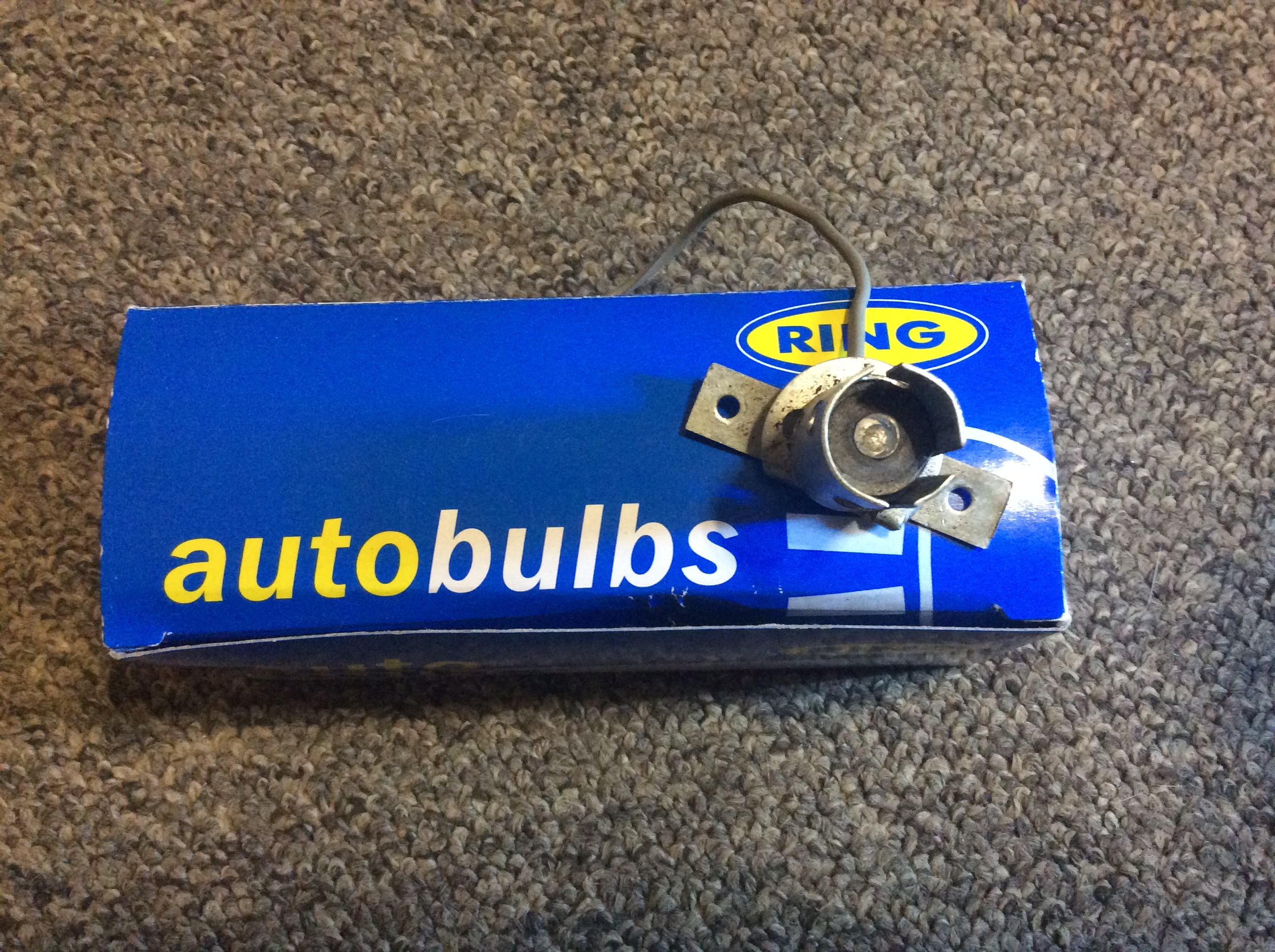

Car brake lights and sockets
Wire
Heat shrink tubing
Solder

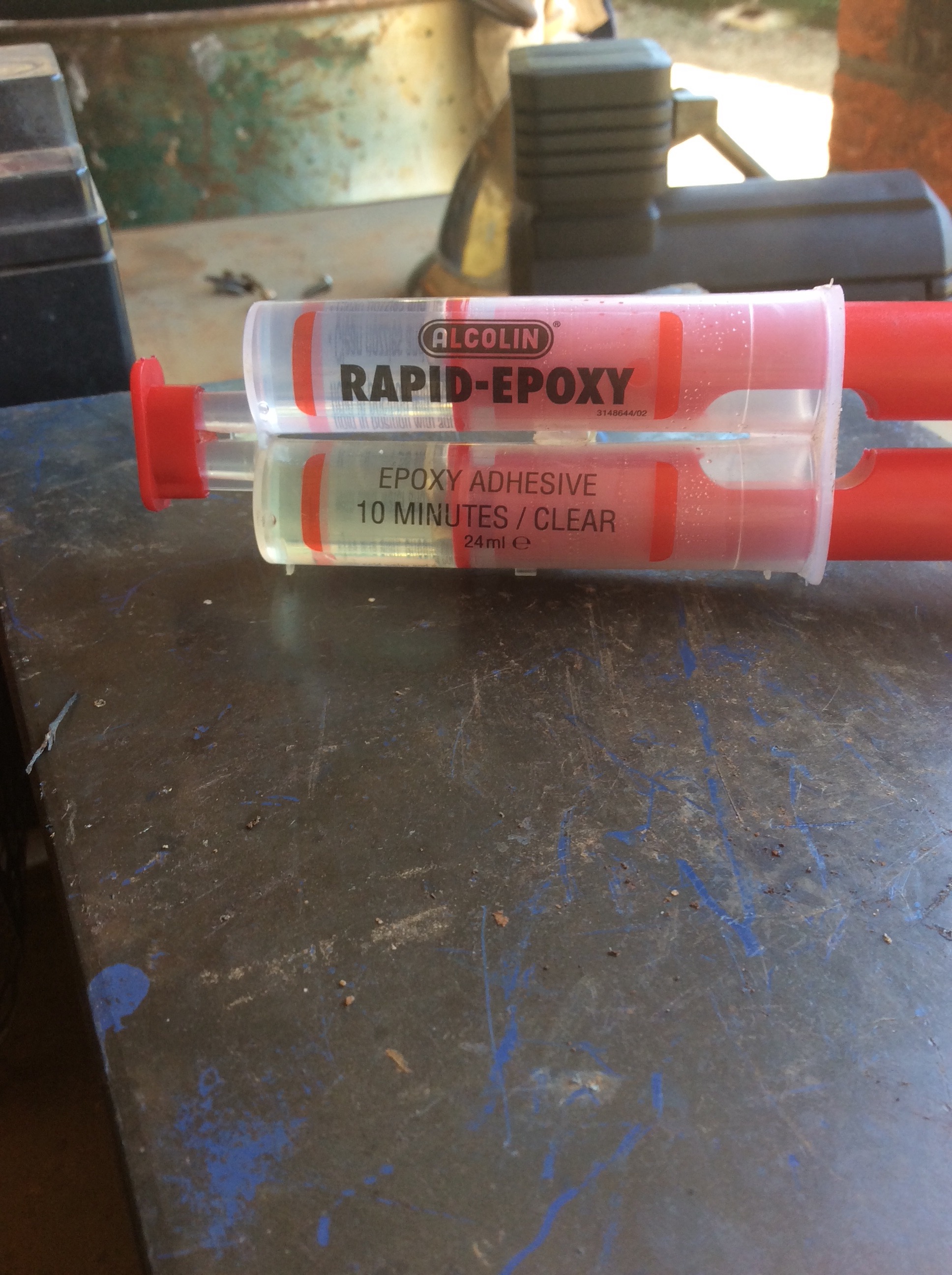

Epoxy
Silicon

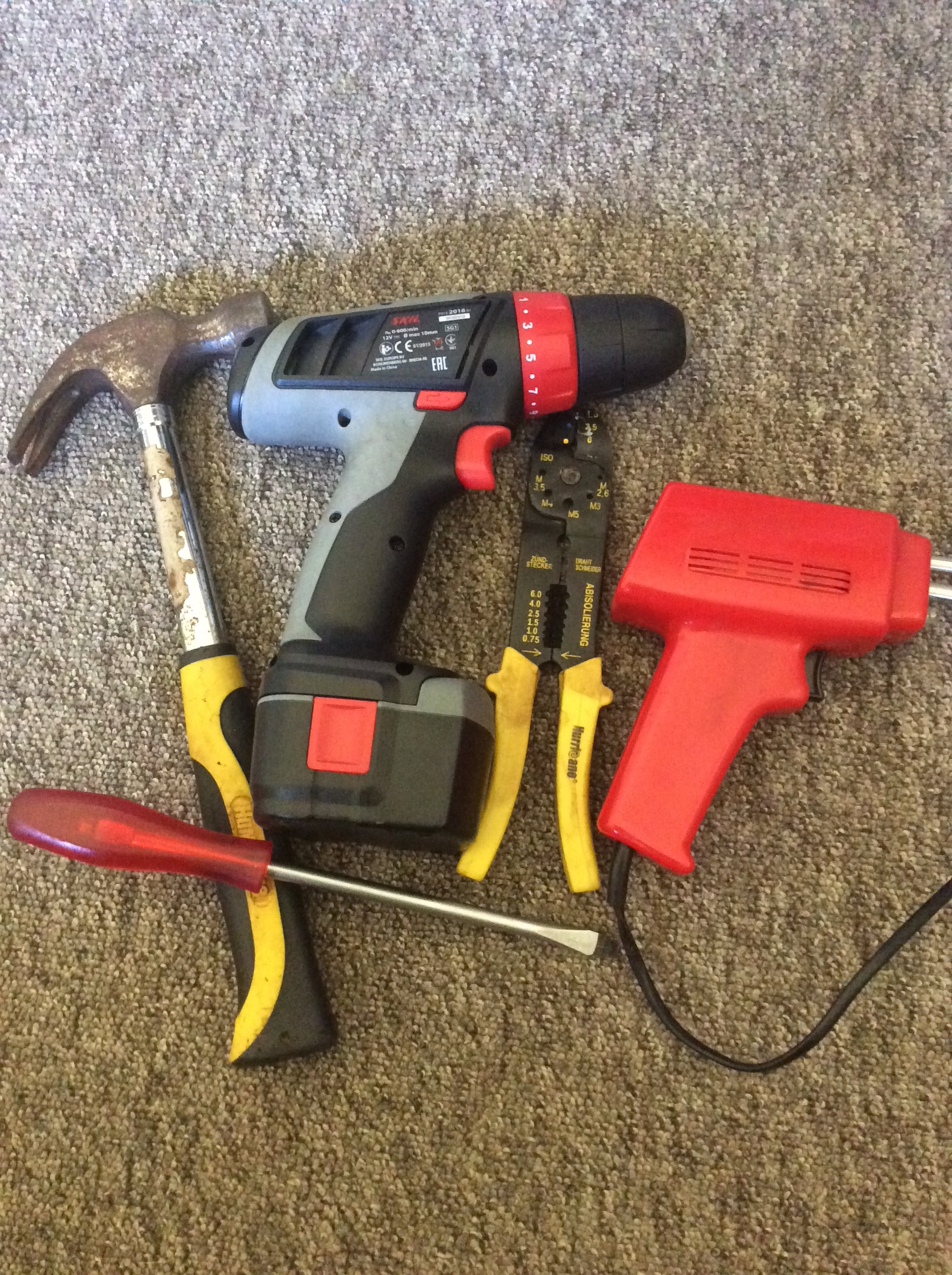

Tools

Paint brush
Drill and bits
Hammer
Screwdrivers
Soldering iron

Burning and Cleaning the Air Filter

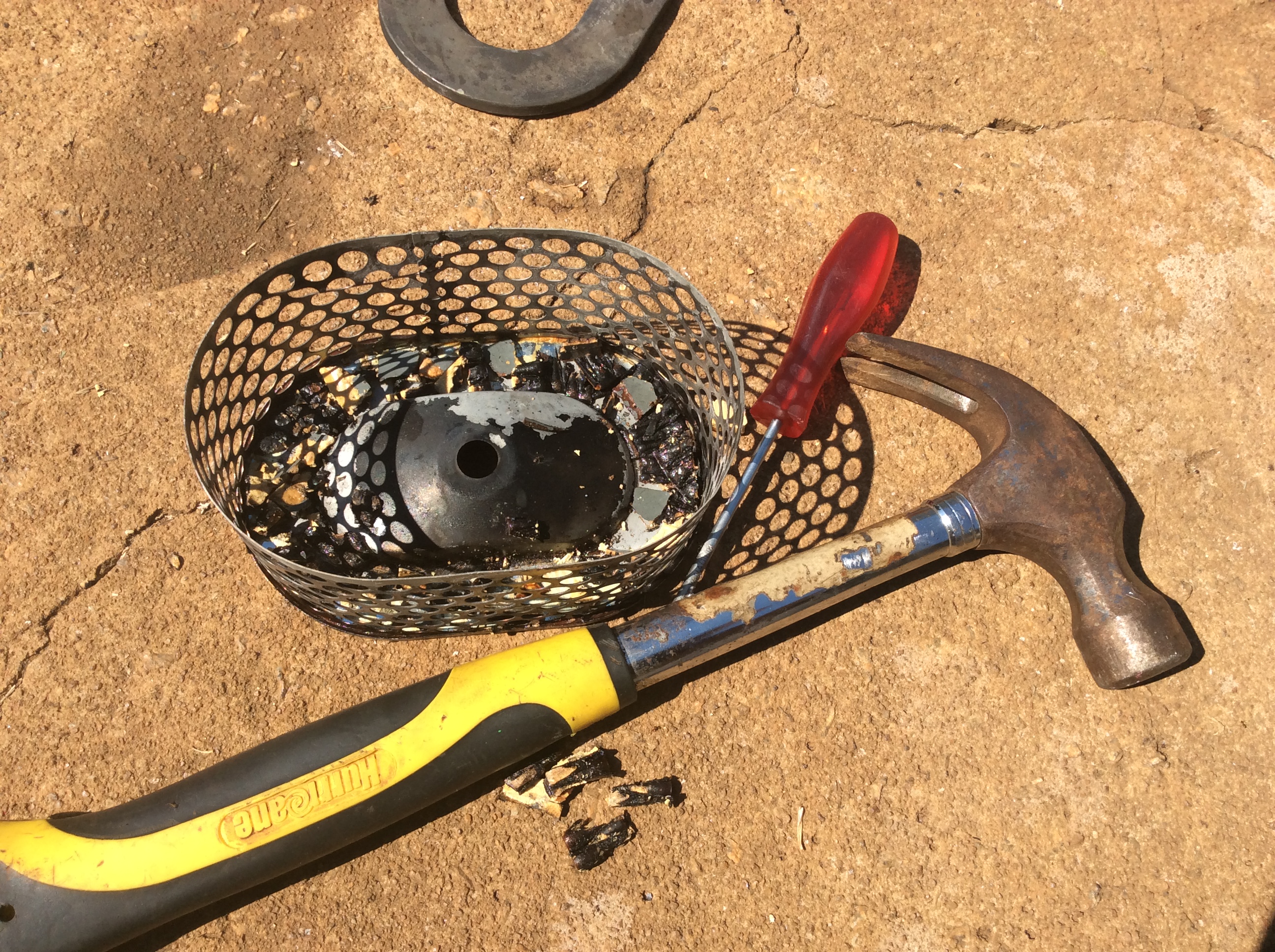

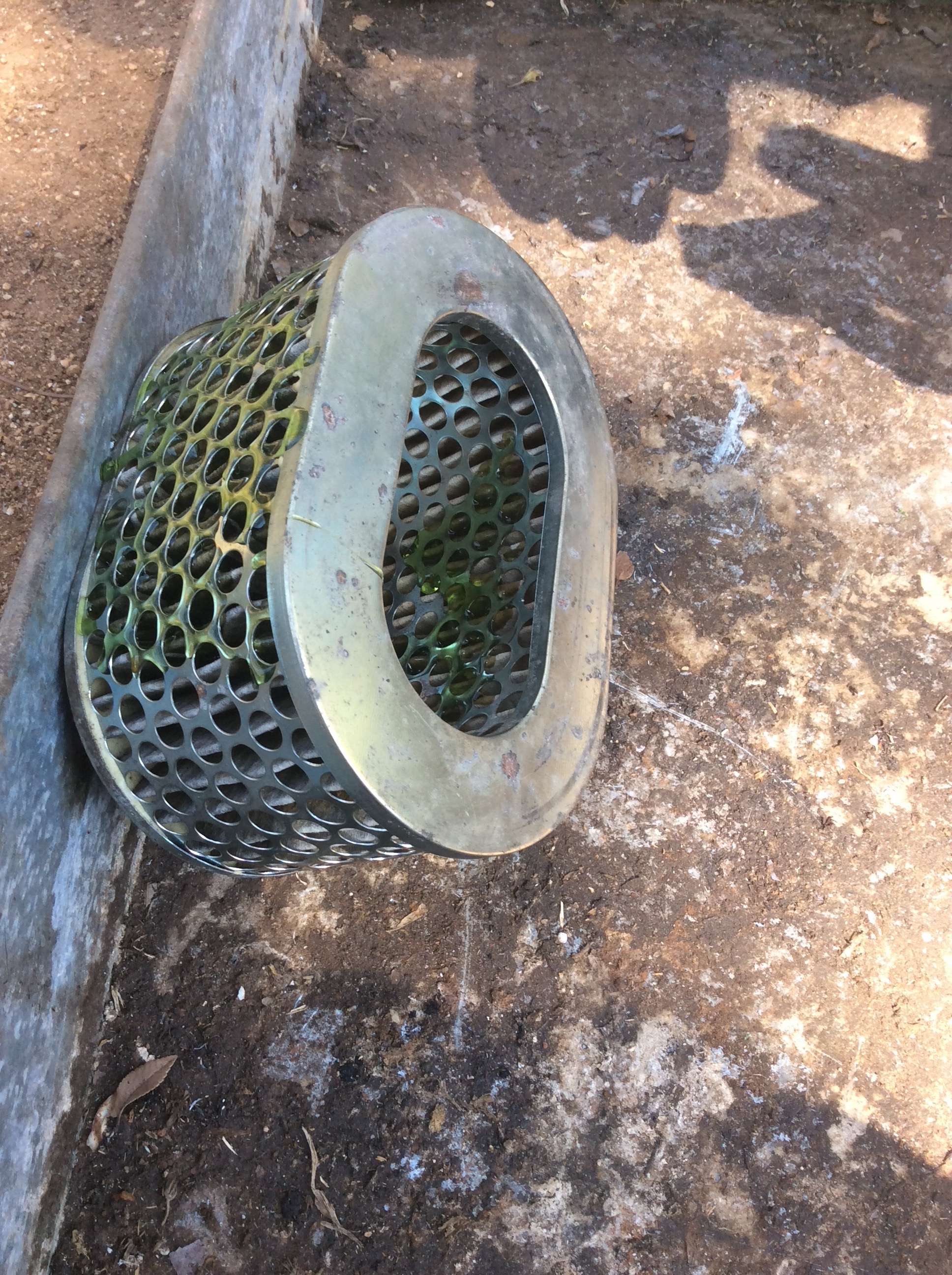

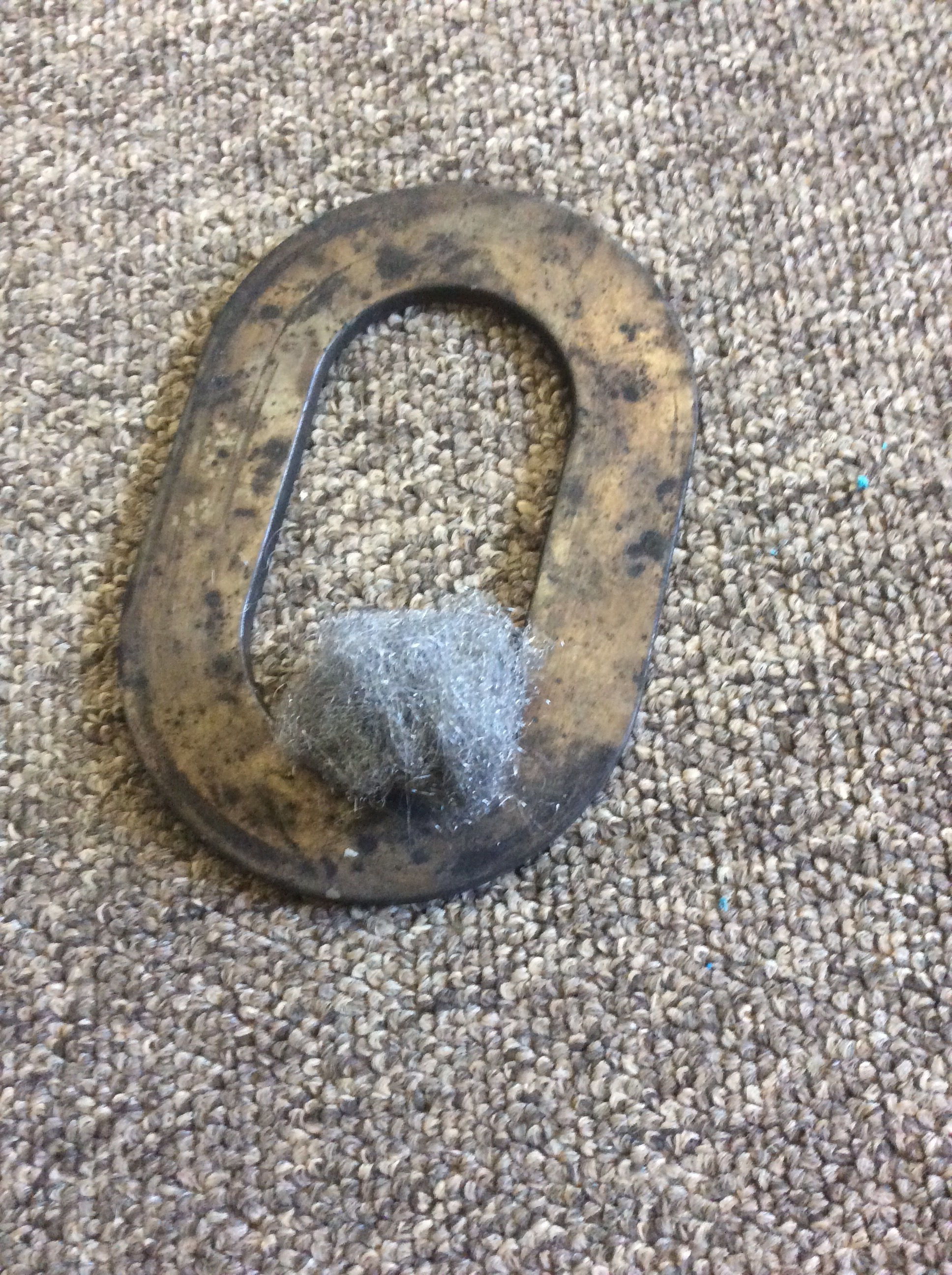

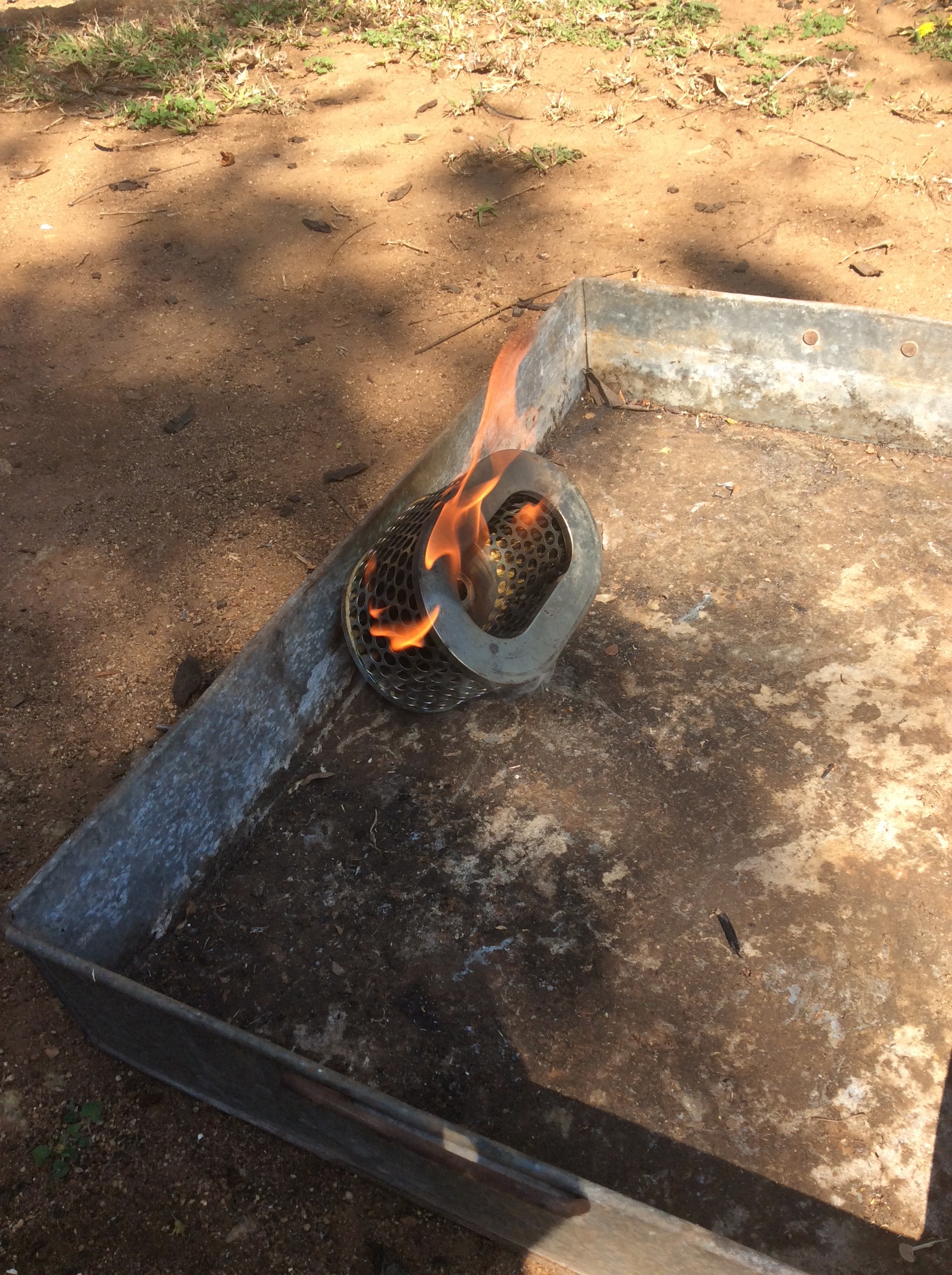

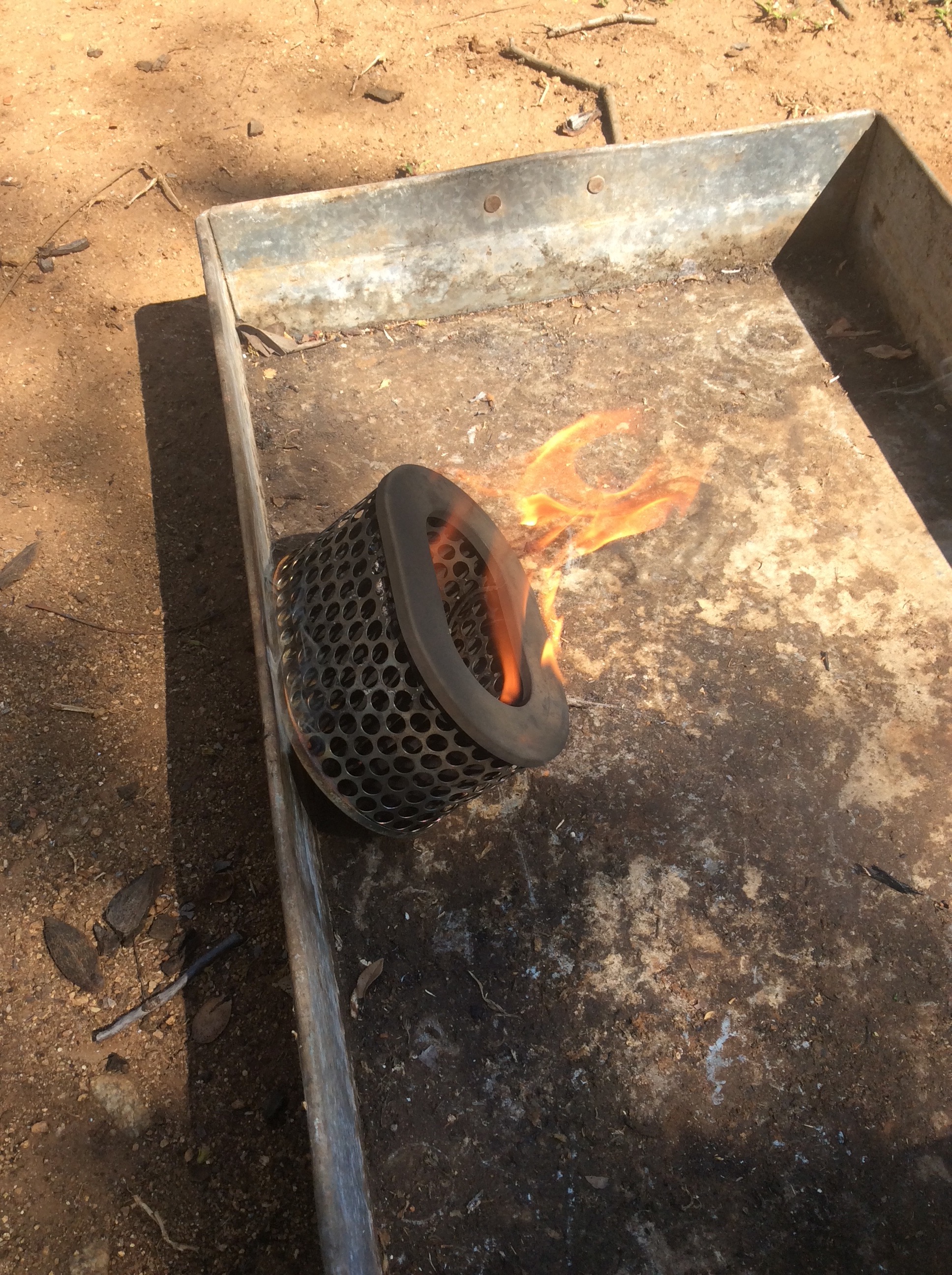

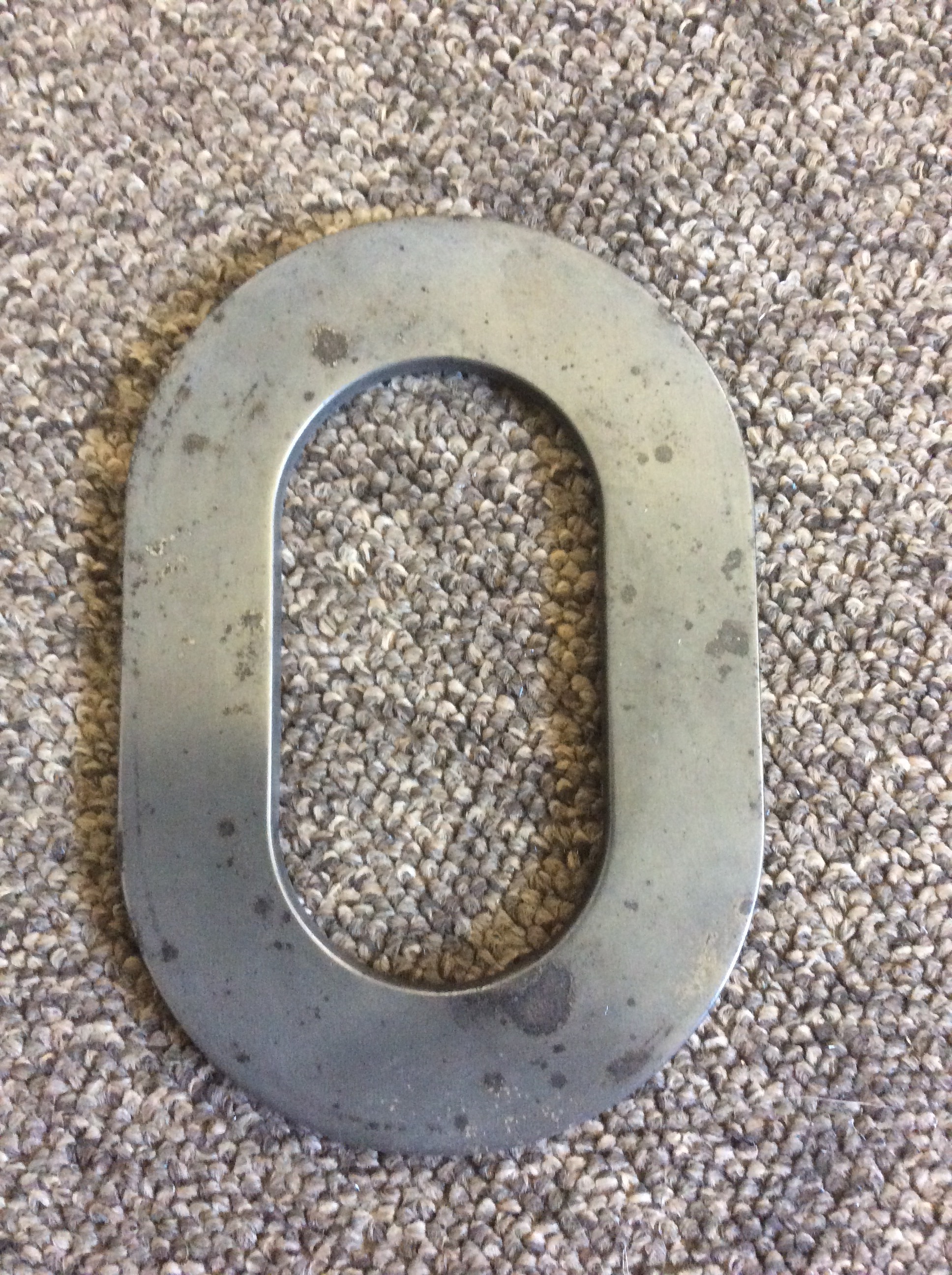

Soak the air filter in a flammable liquid or gel and light it up, to protect the grass or ground put it in a oil dish. Once all the paper and glue has been burnt away open up the air filter and break any excess glue away with a screw driver and hammer. After that get some wire wool and clean it up.

Wiring

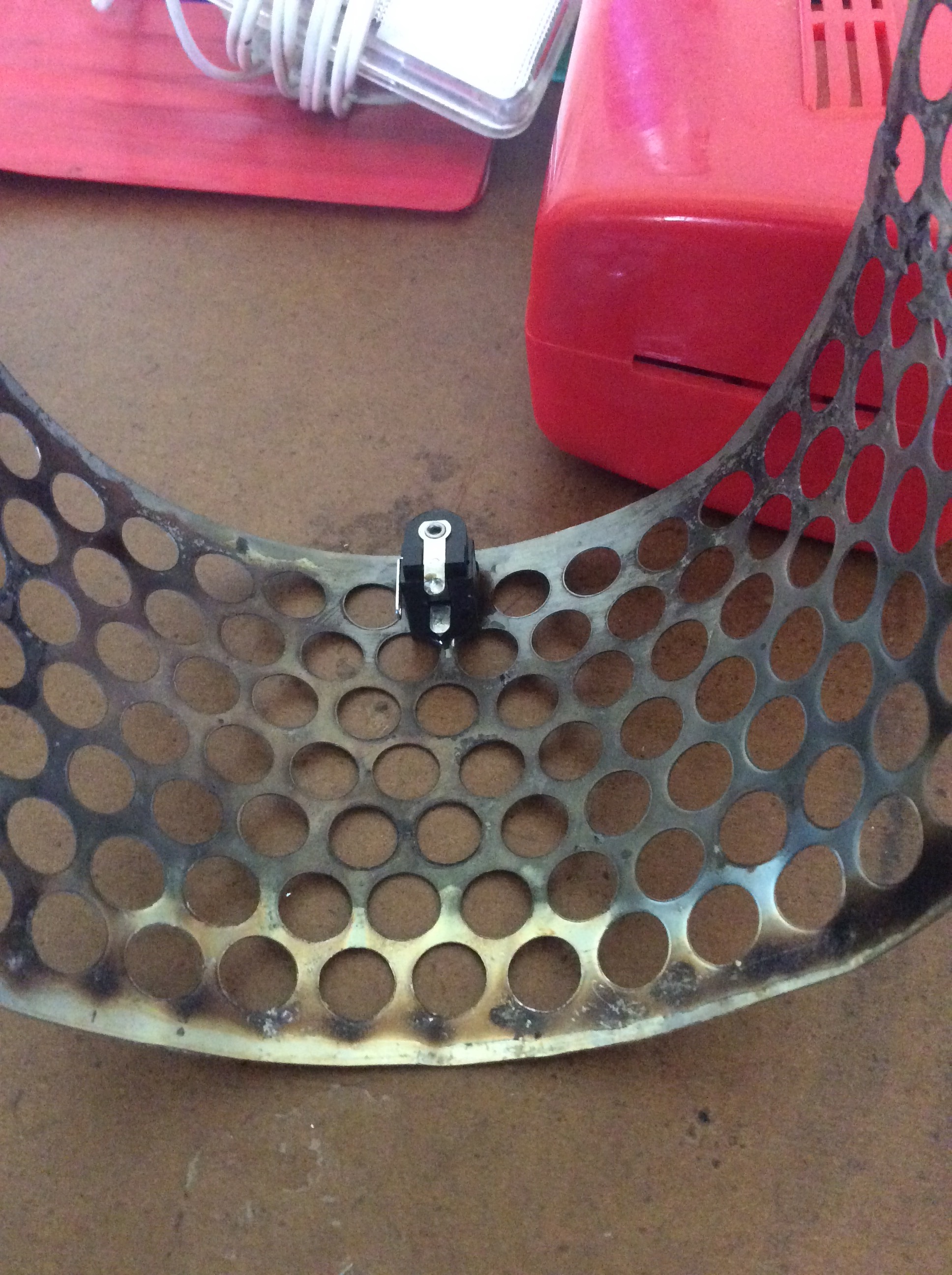

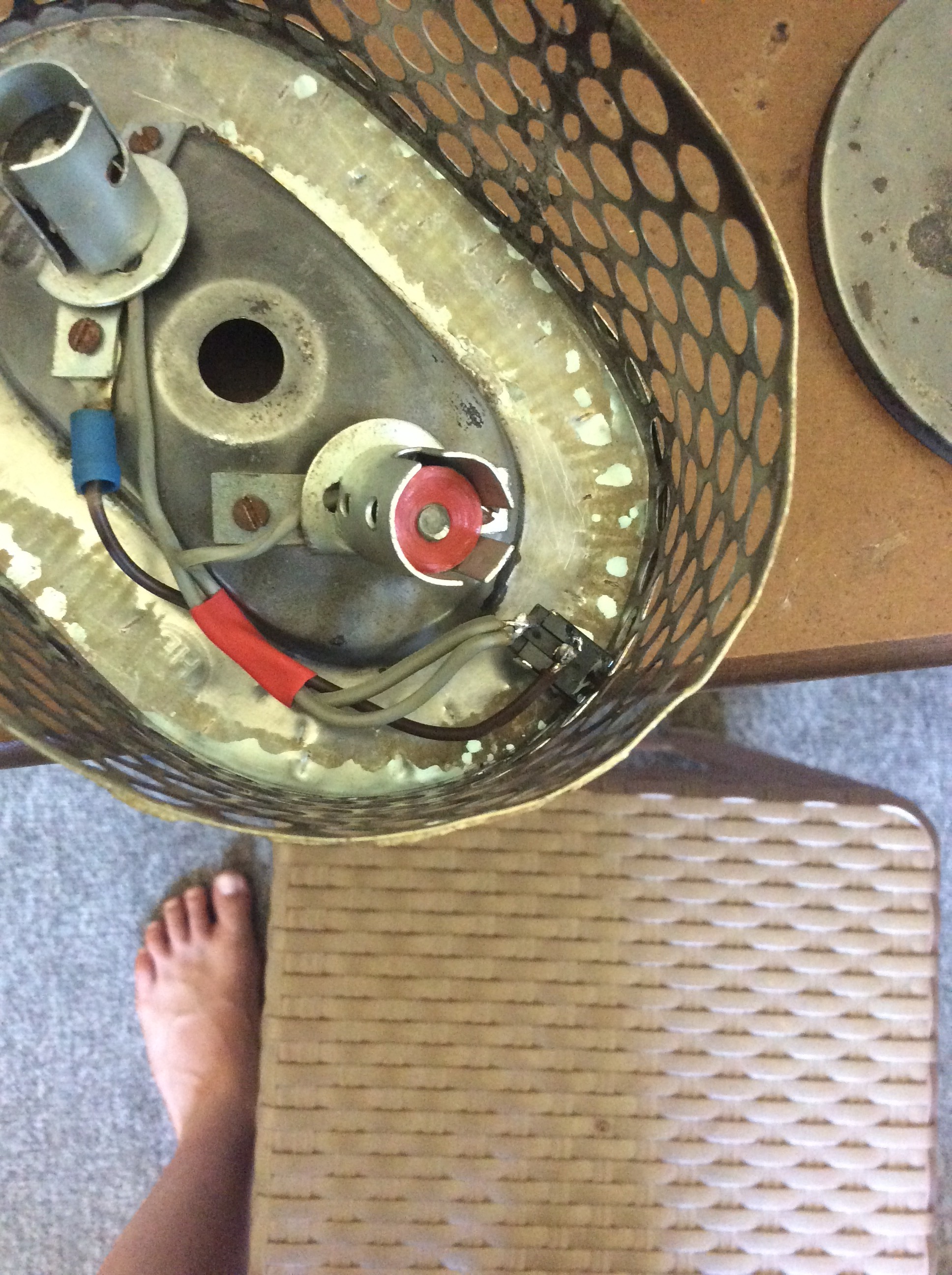

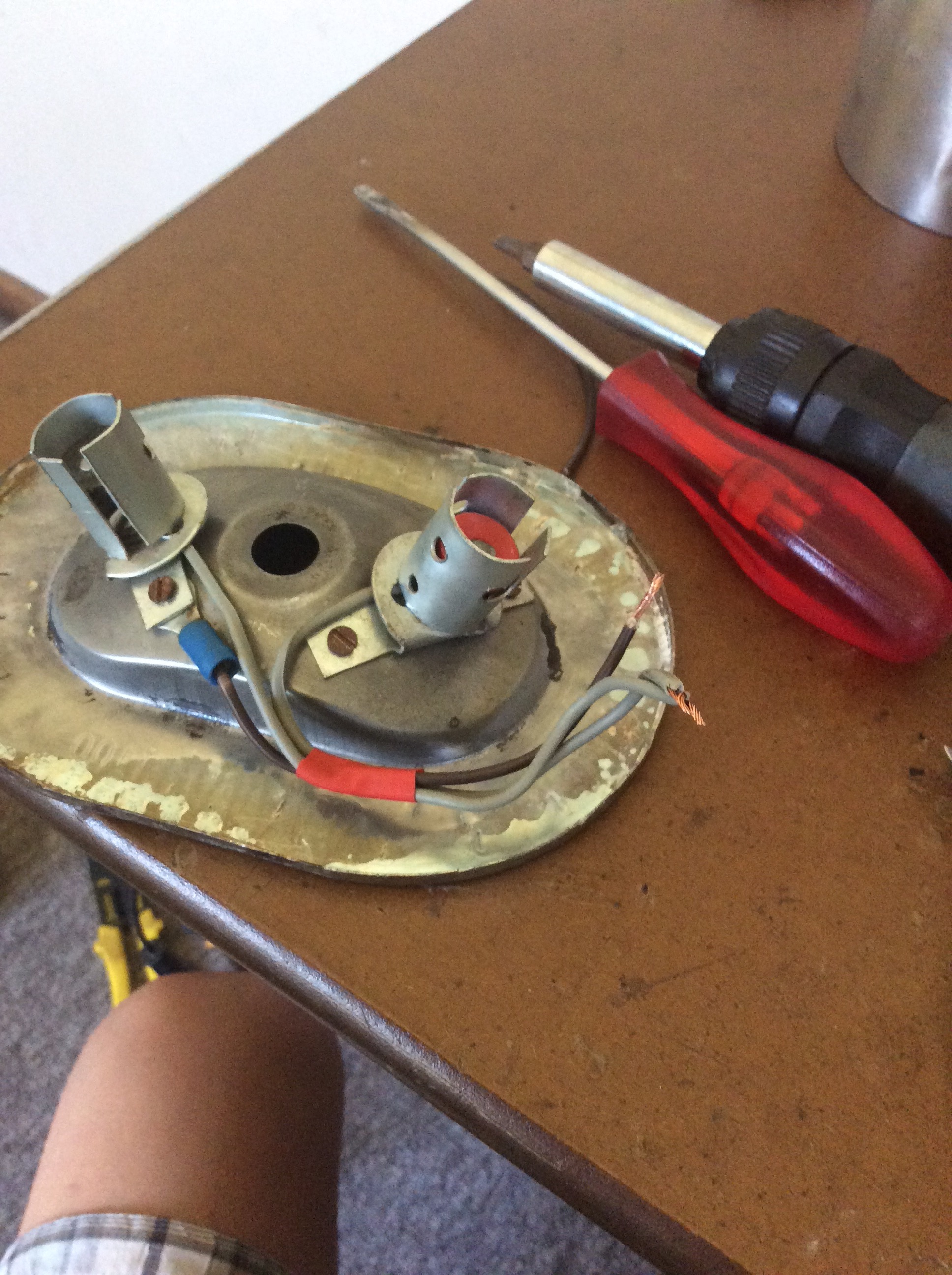

The wiring is very easy the ,two positive's join together onto the DC jack and the whole case is negative. Epoxy the DC jack to the side, after that use some heat shrink tubing to neaten up the wiring.

Painting

Take the light sockets off, clean the top and bottom plate and paint it to the color of your choice.

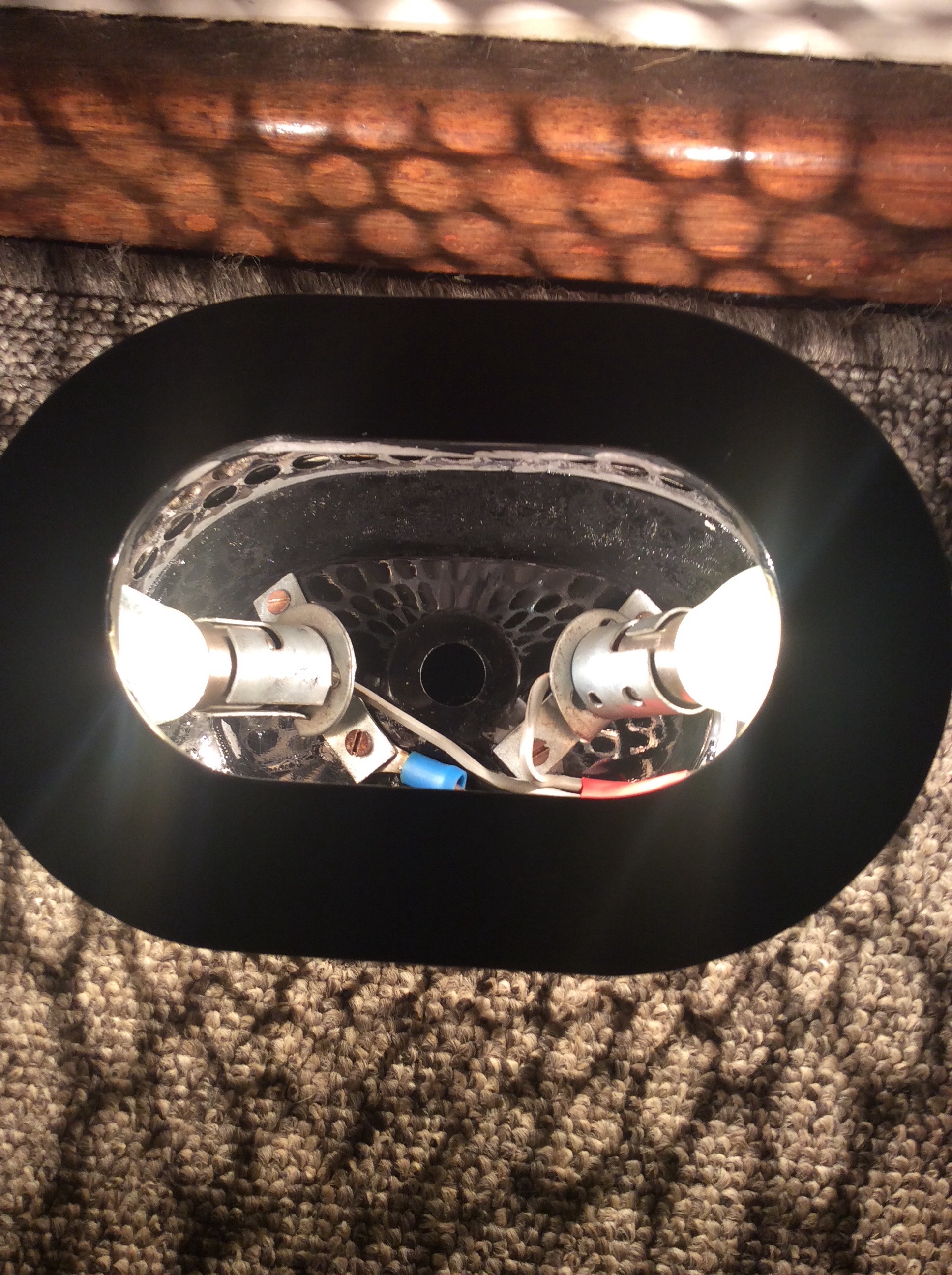

Final Product

Get your silicon and glue th pieces together once all the parts are in. This light gets pretty warm and requires a big adapter to run it, it was a cheap,quick,and simple build. The lamp can also be used for camping(it can run off a battery, and charged off solar).
