Nerf Vulcan Sentry Gun

In this instructable, I will show you how to modify a Nerf Vulcan to automatically aim and fire at targets.  As an added bonus, this gun won't fire at anyone wearing a shirt with the instructables robot on it. I had this project in mind for a long time and finally managed to find the time to bring it to life.

If you've been browsing through my other instructables, you might have noticed that I am obsessed with Nerf guns. So far, I’ve managed to infect just about everyone around me with the Nerf virus. It is really fun to see how these plastic toys turn grown men into small boys!

My main aim was for it to look awesome; which was difficult to achieve without removing the front part of the gun. But, I managed to accomplish this without removing the barrel, and I’m really happy with how it turned out!

A big thanks goes to Bob who authored an awesome write up on how to build a sentry gun.

Please do not attempt this mod unless you are convinced that you will be able to do it; otherwise you might destroy your gun.

Stuff you need

To build the base:

• Wood: 5 mm, 9 mm, 15 mm plywood
• 20 x 40 x 45 mm and 20 x 40 x 128 mm rectangular block of wood (you can also use the 1.5 mm plywood)
• Junior drum throne
• 2 x ball-bearing (12 x 28 x 8 mm)
• Axial ball bearing (80 x 105 x 19 mm)
• 12 mm wooden pole
• Wood glue
• Sand paper
• Wood filler
• Paint/paint brush
• 15 x spax/wood screws M4 x 40 mm; 4 x screws M4 x 16 mm
• 4 x wing nuts: M5
• 4 x machine screws: M5 x 16 mm
• 4 x brackets
• Two component glue

Electronics

• Servo for the turn axis: BMS-660DMG+HS
• Servo for the tilt axis: Hitec HS-805BB
• Wire
• Arduino Uno
• TIP120 transistor
• 1N4004 diode
• 1k resistor
• Pin header

Other

• Nerf Vulcan (e.g. here)
• 6 Volt battery pack
• 5 kg replacement spring for the Vulcan (e.g. here)
• Optional: Paint and plastic primer for the gun
• 3 mm lead pearls or something similar as a counter weight
• 6V 3700mAh battery pack
• 9.6V 2000mAh battery pack
• Webcam
• Laptop

Tools

• Drill (3, 5, 12, 28 (to fit the bearing) mm drill bits)
• Sander
• Scroll saw
• Soldering iron
• Claw hammer
• Phillips Head screw driver
• Hot glue gun

Things like a scroll saw and a powerful drill are useful, but not a 100% necessary. I finished the whole tilt axis with just a fret saw and a cordless drill which was far too weak to drill the 28mm hole (I used the fret saw instead).

Taking the Vulcan apart is certainly not an easy task, so be careful and try not to snap any plastic pieces.

• Start by taking the handle off. You won't have to loosen any screws. Just hold the gun down and pull it to the side, as shown in the first picture.
• Remove the screws from the belt retainer and take out the plastic inserts. Afterwards you can just pull it off.

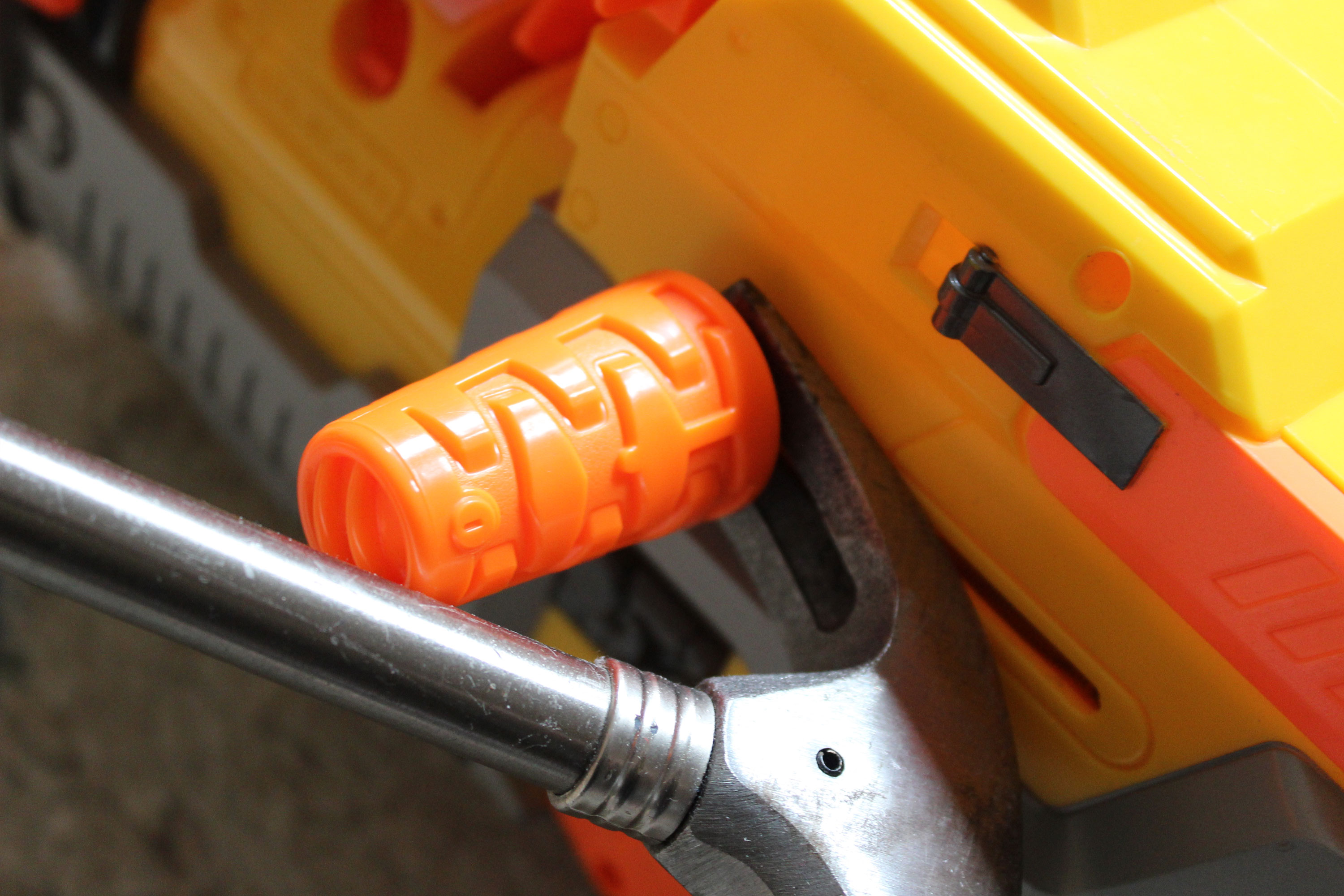

• Use a claw hammer, to pry off the bolt head.
• Remove the battery tray cover, as well as the battery tray.
  • Depending on the age of your Vulcan, there might be a sticker.
  • If there is a sticker, you will then have to cut it in half.
• Now remove all the screws from the main part of the blaster.
  • You don’t need to take the screws off which hold the barrel together unless you plan on painting the blaster.
• Carefully pry the pieces apart.
• Be careful that you don’t damage the wires.

I recommend changing the spring at this point, but that decision is up to you. When you use battery packs with higher voltage, it will increase the firing rate, but not the strength of the shot.
In my opinion, a 5 kg spring works best (the original one is a two kilo spring). I tried a 7 kilo spring in one, and although it was strong, it resulted in a lot of mis-firing.

To replace the spring, follow these steps:

• Start by removing the orange plastic piece on the plunger.
• Remove the 10 screws marked in the first picture of this step.
  • Then take off the casing.
  • Unhook the spring.
• Remove the collar and spring from the plunger (as shown in the third picture).
• Carefully remove the plunger.
• Pull the plunger out of its casing.
• After unscrewing the screw which is holding the plunger head you will be able to change the spring.

In the last picture you can see how the firing speed improved. To give you an idea of the gun’s speed after the replacement - it is about as fast as an unmodified Nerf Maverick (so it is more fun, but not dangerous).

I tried to remove the air restrictor, too but noticed no difference in the firing speed, so I just left it where it was originally

A big advantage of the Nerf Vulcan is that no extra servo is needed to fire it. The Arduino can directly be wired to the motor of the gun.

To wire the Arduino to the Motor:

• First solder one wire to the positive side of the motor - as shown in the first picture.
• Then solder a second wire to the switch - as shown in the second picture.

Either unscrew the mechanism, or use pliers to place the wire underneath it, as shown in the third picture. Now all that is left to do is to secure the wires with hot glue, as shown in the fourth picture of this step. I simply connected the two wires; But you can also add a switch, to also enable firing by pulling the trigger.

If you are planning on painting the gun, be sure to avoid painting the plunger head and the internal parts. The paint will only disturb the function and be scraped off after a time.

I've uploaded a picture to help you reassemble the Nerf gun. Be cautious so you don’t snap or break any pieces.

I originally wanted to use the base plate of the chair, but noticed that it was quite shabby. So after cutting off the cushion I replaced it with a 20x20x1.5 cm plywood plate, as shown in the pictures.

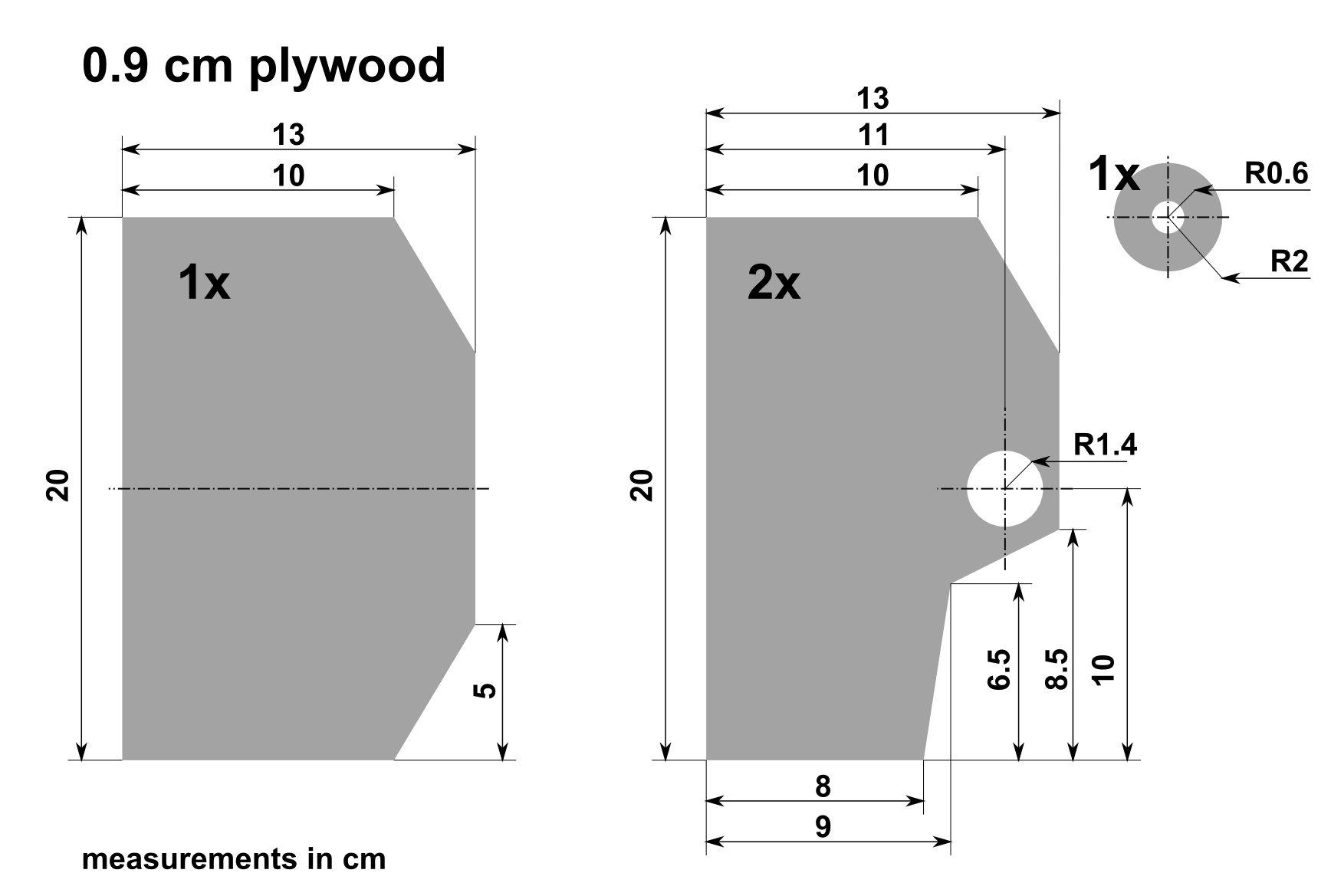

Cut a slot into the other 20x20x1.5 cm plywood plate, to fit the servo. Make sure that the axis is perfectly centered!

Now you will have to cut a hole into each of the 0.5 cm plywood or MDF plates, in order to fit the axial ball bearing (take a look at step 1 for the measurements). Glue one to plate holding the servo and the other one to the third plate. Drill a hole into the center of the third plat, which has to be big enough to allow you to screw the servo arm to the servo.

Glue the sides to the bottom plate of the box, as shown in the first picture. The piece in the front was supposed to hold the webcam. But after using the gun for the first time, I noticed that even though the base is really sturdy it moves a bit when the gun stops, which results in false detections. So I just decided to place the camera on the floor in front of the gun until I'll be able to find the time to build a tripod for the camera.

Before you paint the pieces, you should fill the holes and prime them. Next. , make sure that everything fits and screw the servo in place. In my experience the best way to position the servo arm is to screw it to the servo and to use two component glue to attach it to the top piece. Before you do so, make sure that the angle the servo can turn in both directions is the same. After the glue is set, unscrew the arm from the servo and take the plate off. Now you can screw the servo arm to the plate, to give the connection better strength.

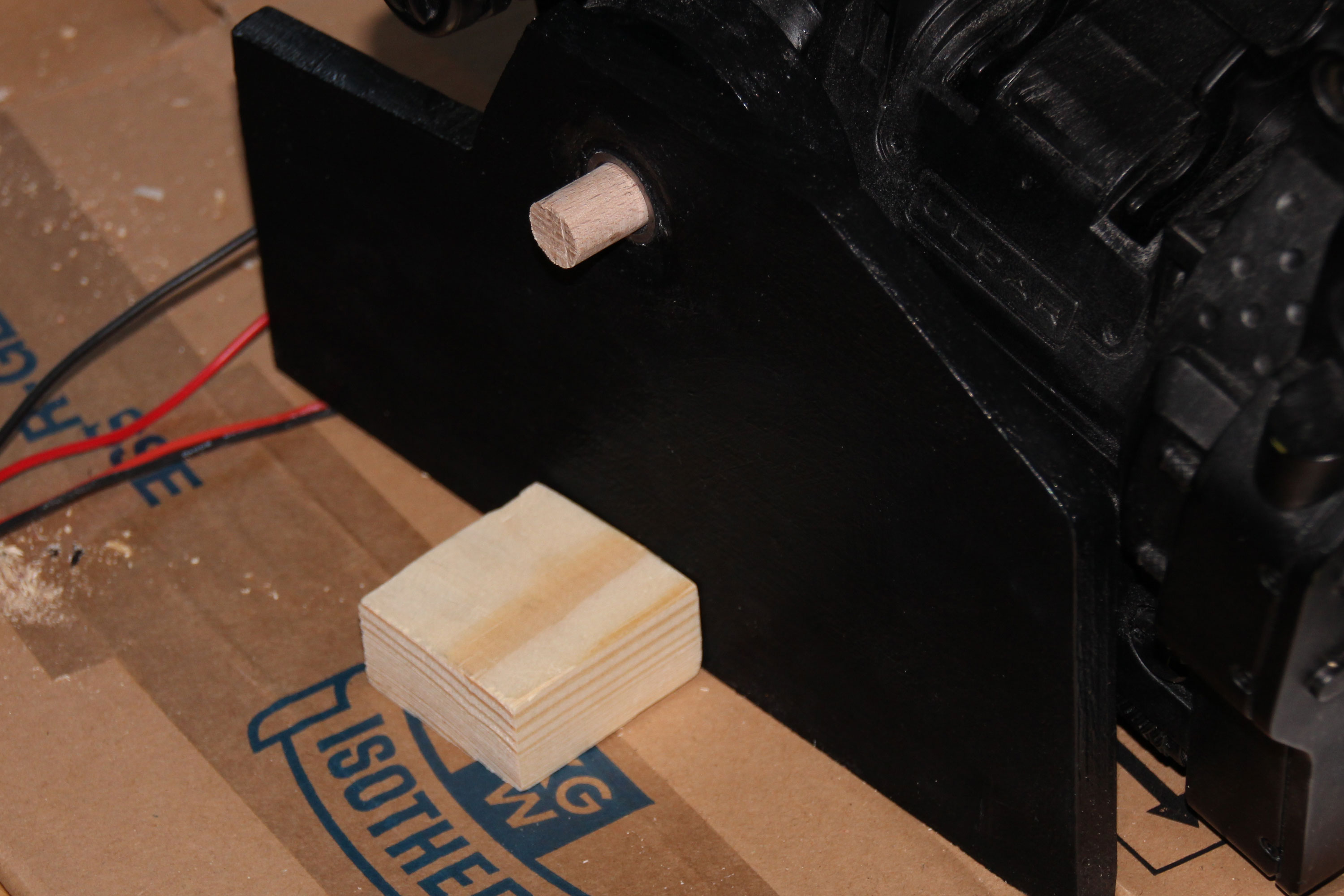

Before attaching the pole as shown in this step, I wanted build a platform. The platform should make attaching and removing the Vulcan as easy as possible; but I noticed that it didn't work. The main reason for this was that even though the center of gravity of the back and the front was pretty well balanced, the top and bottom really wasn't. So the servo didn’t have enough power to move the gun.

I decided that the best way to attach the wooden pole would be through an existing screw hole. Since the gun should be attached in its center of gravity, I had to use counterweights later on (I didn't want to take the front of the gun off, since I thought it looked good). Otherwise the center of gravity interferes with the ammo belt.

Drill a hole to fit the wooden pole through the screw hole marked in the first picture. Cut a disc with a 6 cm diameter from the 1.5 cm plywood and drill a 12 mm hole into its center. Paint the disc and place the pole through the hole. Secure it with a screw, as shown in the pictures. I suggest that you paint the pole after you've placed it in the bearings, otherwise it might not fit. Place the pole through the Nerf gun and glue the wooden disc to the plastic. Use two more screws to secure it.

Cut a wooden disc to fit the arm of the Hitec HS805BB servo. Secure it with the provided screws and screw it to the servo. Cut all the pieces from the 9 mm plywood that are shown in the second step. Be sure to round the top edges of one side, as shown in the last picture. If you don’t, your ammo belt might get stuck. Place the two ball bearings into the two identical side pieces and paint them after filling and priming. Cut a hole into the third piece to fit the servo. It’s very important that the axis is perfectly centered. You should really spend some time on this step, since it will greatly affect how well your gun will work.

Place the wooden pole holding the Nerf Vulcan between the two pieces with the bearings. Now use the 128 mm rectangular block of wood as a spacer (the lower end of the plates has to face the back of the gun). At first I tried to secure the spacer with glue, but the connection was just not strong enough. So I used M4 x 40mm wood screws, to secure it in place. It also makes it easier to take the gun apart later should it be necessary.

Glue the 45 mm rectangular block of wood to the bottom of one of the panels and cut the wooden pole to the correct length in order for it to perfectly fit into the wooden disc which you've build before. Attach the servo and screw the wooden disc to the pole, as well as the servo plate to the spacer.

Then use the brackets, screws and wing nuts to attach the base, as shown in the pictures. Using the wing nuts allows an easy disassembly of the gun and therefore assures easy transportation.

Use the lead pearls or something similar as a counter weight, until the gun is perfectly in balance. Hot glue works great to hold the pearls in place.

Connecting the two servos and the electronic trigger to the Arduino is relatively simple. The wiring is shown in the first picture. The 1k resistor protects the Ardunio from electric shorts and the diode prevents stray electricity and sparks. You can of course leave your circuit on the breadboard, but I decided to use a perfboard.
The voltage of the battery pack connected to your gun motor controls the firing rate. If you want your gun to shoot faster feel free to use a second battery pack, or one with a higher voltage rate.

Thanks a lot lo Bob Rudolph for writing the awesome code for the sentry gun (you can also download it here). Just upload the files to your Arduino. Make sure to adjust the servo positions to your gun!

PSG Arduino code:

/*
 -------------------- Project Sentry Gun --------------------
 ============================================================
 ----- An Open-Source Project, initiated by Bob Rudolph -----
*/


// Set your controller type here
// type options: "Arduino_bare", "Shield_v4", "Shield_v6", "Shield_v7", "Standalone_v3", "Standalone_v5", "Standalone_v7", "Standalone_v8"
#define type "Arduino_bare"


/* Help & Reference: http://projectsentrygun.rudolphlabs.com/make-your-own
 Forum: http://projectsentrygun.rudolphlabs.com/forum

 ATTACHMENT INSTRUCTIONS: (for using an Arduino board)
 attach x-axis (pan) standard servo to digital I/O pin 8
 attach y-axis (tilt) standard servo to digital I/O pin 9
 attach trigger standard servo to digital I/O pin 10
 attach USB indicator LED to digital pin 11
 attach firing indicator LED to digital I/O pin 12
 attach mode indicator LED to digital I/O pin 13
 attach reloading switch to digital I/O pin 3 (low-active: when on, connects pin to GND)
 attach diable plate momentary button to digital I/O pin 2 (low-active: when on, connects pin to GND)
 attach electric trigger MOSFET circuit to digital I/O pin 7

 adjust the values below to the values that work for your gun:

 */
//   <=========================================================================>
//   Begin custom values - change these servo positions to work with your turret
//   <=========================================================================>

// servo positions:
#define panServo_scanningMin 60               // how far side to side you want the
#define panServo_scanningMax 120             // gun to turn while 'scanning'
#define scanningSpeed 3000                  // total time for 1 sweep (in milliseconds)

#define panServo_HomePosition 90            // 'centered' gun position
#define tiltServo_HomePosition 90          //

#define panServo_ReloadPosition  90         // convenient position for reloading gun
#define tiltServo_ReloadPosition 85         //

//#define triggerServo_HomePosition 120        // trigger servo not-firing position
//#define triggerServo_SqueezedPosition 90     // trigger servo firing position

// more trigger settings:
#define triggerTravelMillis 1500             // how often should trigger be squeezed (in semi-auto firing)
// higher value = slower firing, lower value = faster firing

// disable plate settings:
#define disablePlateDelay 5000               // how long to disable sentry when plate is pressed (in milliseconds)

// ammunition magazine/clip settings:
boolean useAmmoCounter = false;                  // if you want to use the shot counter / clip size feature, set this to true
int clipSize = 100;                          // how many shots before the gun will be empty and the gun will be disabled (reload switch resets the ammo counter)

//   <=========================================================================>
//                      End custom values
//   <=========================================================================>


int panServoPin;                        // Arduino pin for pan servo
int tiltServoPin;                       // Arduino pin for tilt servo
//int triggerServoPin;                    // Arduino pin for trigger servo, or output to trigger MOSFET
int firingIndicatorLEDPin;              // Arduino pin for firing indicator LED
int USBIndicatorLEDPin;                // Arduino pin for USB indicator LED
int modeIndicatorLEDPin;                // Arduino pin for Mode indicator LED
int reloadSwitchPin;                 // Arduino pin for input from RELOAD switch
int disablePlatePin;                    // Arduino pin for input from disable plate
int electricTriggerPin;                 // Arduino pin for output to trigger MOSFET
boolean invertInputs;                   // TRUE turns on internal pull-ups, use if closed switch connects arduino pin to ground
// pin assignments for each hardware setup are set in the function assignPins() at bottom of code

typedef struct config_t
{
  // Booleans but int
  int controlMode;
  int safety;
  int firingMode;
  int scanWhenIdle;
  int trackingMotion;
  int trackingColor;
  int leadTarget;
  int safeColor;
  int showRestrictedZones;
  int showDifferentPixels;
  int showTargetBox;
  int showCameraView;
  int mirrorCam;
  int soundEffects;

  // Integers
  int camWidth;
  int camHeight;
  int nbDot;
  int antSens;
  int minBlobArea;
  int tolerance;
  int effect;
  int trackColorTolerance;
  int trackColorRed;
  int trackColorGreen;
  int trackColorBlue;
  int safeColorMinSize;
  int safeColorTolerance;
  int safeColorRed;
  int safeColorGreen;
  int safeColorBlue;
  int idleTime;

  // Floats
  double propX;
  double propY;
  double xRatio;
  double yRatio;
  double xMin;
  double xMax;
  double yMin;
  double yMax;

}
configuration;
configuration configuration1;

#include <Servo.h>

Servo pan;                            // x axis servo
Servo tilt;                           // y axis servo
Servo trigger;                        // trigger servo

int xPosition;                        // pan position
int yPosition;                        // tilt position
int fire = 0;                         // if 1, fire; else, don't fire

int fireTimer = 0;
int fireSelector = 1;                 //   1 - semi-automatic firing, auto/semi-auto gun

//   3 - full automatic firing, full-auto gun

int idleCounter = 0;
int watchdog = 0;
int watchdogTimeout = 2000;
boolean idle = true;
boolean scanning = false;
boolean scanDirection = true;
boolean disabled = false;
unsigned long int disableEndTime;
int scanXPosition = panServo_scanningMin;

int shotCounter = 0;                  // number of shots fires since last reload
boolean clipEmpty = false;            // is the ammo magazine empty?


byte indicator;                       // if 'a', continue, if 'z', idle
byte x100byte;                        // some bytes used during serial communication
byte x010byte;
byte x001byte;
byte y100byte;
byte y010byte;
byte y001byte;
byte fireByte;
byte fireSelectorByte;
byte scanningByte;

void setup(){
  assignPins();

  pan.attach(panServoPin);             // set up the x axis servo
  pan.write(panServo_HomePosition);
  tilt.attach(tiltServoPin);           // set up the y axis servo
  tilt.write(tiltServo_HomePosition);
  pinMode(electricTriggerPin, OUTPUT);     // electric trigger, set as output
  digitalWrite(electricTriggerPin, LOW);
//  trigger.attach(triggerServoPin);      // servo for trigger, set that servo up
//  trigger.write(triggerServo_HomePosition);

  pinMode(USBIndicatorLEDPin, OUTPUT);        // set up USB indicator LED
  pinMode(modeIndicatorLEDPin, OUTPUT);       // set up Mode indicator LED
  pinMode(firingIndicatorLEDPin, OUTPUT);     // set up firing indicator LED
  pinMode(reloadSwitchPin, INPUT);            // set up reload switch input
  pinMode(disablePlatePin, INPUT);            // set up disable plate input
  if(invertInputs) {
    digitalWrite(reloadSwitchPin, HIGH);            // turn on internal pull-up
    digitalWrite(disablePlatePin, HIGH);            // turn on internal pull-up
  }
  Serial.begin(4800);                     // start communication with computer

}

void loop() {
  if (Serial.available() >= 10) {       // check to see if a new set of commands is available
    watchdog = 0;
    indicator = Serial.read();         // read first byte in buffer
    if(indicator == 'a') {             // check for 'a' (indicates start of message)
      idle = false;
      idleCounter = 0;
      digitalWrite(USBIndicatorLEDPin, HIGH);   // light up the USB indicator LED
      x100byte = Serial.read();         // read the message, byte by byte
      x010byte = Serial.read();         //
      x001byte = Serial.read();         //
      y100byte = Serial.read();         //
      y010byte = Serial.read();         //
      y001byte = Serial.read();         //
      fireByte = Serial.read();         //
      fireSelectorByte = Serial.read(); //
      fireSelector = int(fireSelectorByte) - 48;  // convert byte to integer
      scanningByte = Serial.read();
      if((int(scanningByte) - 48) == 1) {
        scanning = true;
      }
      else{
        scanning = false;
      }
    }
    else if(indicator == 'z'){     // check for command to go idle (sent by computer when program is ended)
      idle = true;
    }
    else if(indicator == 'b'){     // start backup

      backup();

    }
    else if(indicator == 'r'){      // start restore

      restore();

    }
  }
  else{
    watchdog++;
    if(watchdog > watchdogTimeout) {
      idle = true;
    }
  }
  if(idle) {                          // when Arduino is not getting commands from computer...
    Serial.write('T');                // tell the computer that Arduino is here
    idleCounter++;                              //  periodically blink the USB indicator LED
    if(idleCounter > 1000) {                   //
      sequenceLEDs(1, 100);
      delay(10);

      //      digitalWrite(USBIndicatorLEDPin, HIGH);      //
      //      delay(250);                               //
      //      digitalWrite(USBIndicatorLEDPin, LOW);    //
      idleCounter = 0;                          //
    }                                           //
    else{                                       //
      digitalWrite(USBIndicatorLEDPin, LOW);    //
    }                                           //
    xPosition = panServo_HomePosition;   // keep x axis servo in its home position
    yPosition = tiltServo_HomePosition;    // keep y axis servo in its home position
    fire = 0;                              // don't fire
  }
  else{                   // when Arduino is getting commands from the computer...
    xPosition = (100*(int(x100byte)-48)) + (10*(int(x010byte)-48)) + (int(x001byte)-48);   // decode those message bytes into two 3-digit numbers
    yPosition = (100*(int(y100byte)-48)) + (10*(int(y010byte)-48)) + (int(y001byte)-48);   //
    fire = int(fireByte) - 48;           // convert byte to integer
  }

  if(scanning) {
    digitalWrite(modeIndicatorLEDPin, HIGH);
    if(scanDirection) {
      scanXPosition += 1;
      if(scanXPosition > panServo_scanningMax) {
        scanDirection = false;
        scanXPosition = panServo_scanningMax;
      }
    }
    else{
      scanXPosition -= 1;
      if(scanXPosition < panServo_scanningMin) {
        scanDirection = true;
        scanXPosition = panServo_scanningMin;
      }
    }
    xPosition = scanXPosition;
    yPosition = tiltServo_HomePosition;
    fire = 0;
    delay(scanningSpeed/abs(panServo_scanningMax-panServo_scanningMin));
  }
  else{
    digitalWrite(modeIndicatorLEDPin, LOW);
  }

  if((digitalRead(disablePlatePin) == HIGH && !invertInputs) || (digitalRead(disablePlatePin) == LOW && invertInputs)) {     // check the disable plate to see if it is pressed
    disabled = true;
    disableEndTime = millis() + disablePlateDelay;
  }
  if(millis() > disableEndTime) {
    disabled = false;
  }

  if((digitalRead(reloadSwitchPin) == HIGH && !invertInputs) || (digitalRead(reloadSwitchPin) == LOW && invertInputs)) {     // check the reload switch to see if it is flipped
    shotCounter = 0;
    xPosition = panServo_ReloadPosition;    // if it is flipped, override computer commands,
    yPosition = tiltServo_ReloadPosition;   // and send the servos to their reload positions
    fire = 0;                        // don't fire while reloading
    digitalWrite(modeIndicatorLEDPin, HIGH);
    delay(100);
    digitalWrite(modeIndicatorLEDPin, LOW);
    delay(100);
  }

  if(disabled) {
    xPosition = panServo_ReloadPosition;    // if it is flipped, override computer commands,
    yPosition = tiltServo_ReloadPosition;   // and send the servos to their reload positions
    fire = 0;                        // don't fire while reloading
    digitalWrite(modeIndicatorLEDPin, HIGH);
    delay(50);
    digitalWrite(modeIndicatorLEDPin, LOW);
    delay(50);
  }

  pan.write(xPosition);        // send the servos to whatever position has been commanded
  tilt.write(yPosition);       //

  if(useAmmoCounter && shotCounter >= clipSize) {
    clipEmpty = true;
  }
  else{
    clipEmpty = false;
  }


  if(fire == 1 && !clipEmpty) {           // if firing...
    Fire(fireSelector);       // fire the gun in whatever firing mode is selected
  }
  else{                     // if not firing...
    ceaseFire(fireSelector);  // stop firing the gun
  }
}

void Fire(int selector) {         // function to fire the gun, based on what firing mode is selected
  if(selector == 1) {
    fireTimer++;
    if(fireTimer >=0 && fireTimer <= triggerTravelMillis) {
      digitalWrite(electricTriggerPin, HIGH);
//      trigger.write(triggerServo_SqueezedPosition);
      digitalWrite(firingIndicatorLEDPin, HIGH);
    }
    if(fireTimer > triggerTravelMillis && fireTimer < 1.5*triggerTravelMillis) {
      digitalWrite(electricTriggerPin, LOW);
 //     trigger.write(triggerServo_HomePosition);
      digitalWrite(firingIndicatorLEDPin, LOW);
    }
    if(fireTimer >= 1.5*triggerTravelMillis) {
      fireTimer = 0;
      if(useAmmoCounter) {
        shotCounter++;      // increment the shot counter
      }
    }
  }
  if(selector == 3) {
    digitalWrite(electricTriggerPin, HIGH);
 //   trigger.write(triggerServo_SqueezedPosition);
    digitalWrite(firingIndicatorLEDPin, HIGH);
  }
}

void ceaseFire(int selector) {     // function to stop firing the gun, based on what firing mode is selected
  if(selector == 1) {
    fireTimer = 0;
    digitalWrite(electricTriggerPin, LOW);
//    trigger.write(triggerServo_HomePosition);
    digitalWrite(firingIndicatorLEDPin, LOW);
  }
  if(selector == 3) {              // for my gun, both firing modes cease firing by simply shutting off.
    digitalWrite(electricTriggerPin, LOW);
 //   trigger.write(triggerServo_HomePosition);
    digitalWrite(firingIndicatorLEDPin, LOW);
  }
}

void sequenceLEDs(int repeats, int delayTime) {
  int startDelay;
  for(int i = 0; i < repeats; i++) {

    digitalWrite(USBIndicatorLEDPin, LOW);
    digitalWrite(modeIndicatorLEDPin, LOW);

    startDelay = millis();
    while(millis()-startDelay < delayTime) {
      digitalWrite(firingIndicatorLEDPin, HIGH);
    }
    digitalWrite(firingIndicatorLEDPin, LOW);

    startDelay = millis();
    while(millis()-startDelay < delayTime) {
      digitalWrite(USBIndicatorLEDPin, HIGH);
    }
    digitalWrite(USBIndicatorLEDPin, LOW);

    startDelay = millis();
    while(millis()-startDelay < delayTime) {
      digitalWrite(modeIndicatorLEDPin, HIGH);
    }
    digitalWrite(modeIndicatorLEDPin, LOW);

    startDelay = millis();
    while(millis()-startDelay < delayTime) {
      // chill
    }
  }
}

void assignPins() {
  if(type == "Arduino_bare" || type == "Arduino_Bare") {
    // pin attachments:
    panServoPin = 8;                        // Arduino pin for pan servo
    tiltServoPin = 9;                       // Arduino pin for tilt servo
//    triggerServoPin = 7;                    // Arduino pin for trigger servo, or output to trigger MOSFET
    firingIndicatorLEDPin = 12;              // Arduino pin for firing indicator LED
    USBIndicatorLEDPin = 11;                 // Arduino pin for USB indicator LED
    modeIndicatorLEDPin = 13;                // Arduino pin for Mode indicator LED
    reloadSwitchPin = 3;                    // Arduino pin for input from RELOAD switch
    disablePlatePin = 2;                    // Arduino pin for input from disable plate
    electricTriggerPin = 10;                 // Arduino pin for output to trigger MOSFET
    invertInputs = true;                   // TRUE turns on internal pull-ups, use if closed switch connects arduino pin to ground
  }
  else if(type == "Shield_v4" || type == "Shield_v6") {
    // pin attachments:
    panServoPin = 9;                        // Arduino pin for pan servo
    tiltServoPin = 8;                       // Arduino pin for tilt servo
//    triggerServoPin = 7;                    // Arduino pin for trigger servo, or output to trigger MOSFET
    electricTriggerPin = 6;                 // Arduino pin for output to trigger MOSFET
    firingIndicatorLEDPin = 11;              // Arduino pin for firing indicator LED
    USBIndicatorLEDPin = 12;                 // Arduino pin for USB indicator LED
    modeIndicatorLEDPin = 13;                // Arduino pin for Mode indicator LED
    reloadSwitchPin = 10;                    // Arduino pin for input from RELOAD switch
    disablePlatePin = 2;                    // Arduino pin for input from disable plate
    invertInputs = true;                   // TRUE turns on internal pull-ups, use if closed switch connects arduino pin to ground
  }
  else if(type == "Shield_v7") {
    // pin attachments:
    panServoPin = 8;                        // Arduino pin for pan servo
    tiltServoPin = 9;                       // Arduino pin for tilt servo
//    triggerServoPin = 10;                    // Arduino pin for trigger servo, or output to trigger MOSFET
    electricTriggerPin = 7;                 // Arduino pin for output to trigger MOSFET
    firingIndicatorLEDPin = 12;              // Arduino pin for firing indicator LED
    USBIndicatorLEDPin = 6;                 // Arduino pin for USB indicator LED
    modeIndicatorLEDPin = 13;                // Arduino pin for Mode indicator LED
    reloadSwitchPin = 11;                    // Arduino pin for input from RELOAD switch
    disablePlatePin = 2;                    // Arduino pin for input from disable plate
    invertInputs = true;                   // TRUE turns on internal pull-ups, use if closed switch connects arduino pin to ground
  }
  else if(type == "Standalone_v3") {
    // pin attachments:
    panServoPin = 8;                        // Arduino pin for pan servo
    tiltServoPin = 9;                       // Arduino pin for tilt servo
//    triggerServoPin = 10;                    // Arduino pin for trigger servo, or output to trigger MOSFET
    electricTriggerPin = 7;                 // Arduino pin for output to trigger MOSFET
    firingIndicatorLEDPin = 12;              // Arduino pin for firing indicator LED
    USBIndicatorLEDPin = 14;                 // Arduino pin for USB indicator LED
    modeIndicatorLEDPin = 13;                // Arduino pin for Mode indicator LED
    reloadSwitchPin = 11;                    // Arduino pin for input from RELOAD switch
    disablePlatePin = 2;                    // Arduino pin for input from disable plate
    invertInputs = true;                   // TRUE turns on internal pull-ups, use if closed switch connects arduino pin to ground
  }
  else if(type == "Standalone_v5") {
    // pin attachments:
    panServoPin = 8;                        // Arduino pin for pan servo
    tiltServoPin = 9;                       // Arduino pin for tilt servo
//    triggerServoPin = 10;                    // Arduino pin for trigger servo, or output to trigger MOSFET
    electricTriggerPin = 7;                 // Arduino pin for output to trigger MOSFET
    firingIndicatorLEDPin = 12;              // Arduino pin for firing indicator LED
    USBIndicatorLEDPin = 14;                 // Arduino pin for USB indicator LED
    modeIndicatorLEDPin = 13;                // Arduino pin for Mode indicator LED
    reloadSwitchPin = 11;                    // Arduino pin for input from RELOAD switch
    disablePlatePin = 2;                    // Arduino pin for input from disable plate
    invertInputs = true;                   // TRUE turns on internal pull-ups, use if closed switch connects arduino pin to ground
  }
  else if(type == "Standalone_v7") {
    // pin attachments:
    panServoPin = 8;                        // Arduino pin for pan servo
    tiltServoPin = 9;                       // Arduino pin for tilt servo
//    triggerServoPin = 10;                    // Arduino pin for trigger servo, or output to trigger MOSFET
    electricTriggerPin = 7;                 // Arduino pin for output to trigger MOSFET
    firingIndicatorLEDPin = 12;              // Arduino pin for firing indicator LED
    USBIndicatorLEDPin = 14;                 // Arduino pin for USB indicator LED
    modeIndicatorLEDPin = 13;                // Arduino pin for Mode indicator LED
    reloadSwitchPin = 11;                    // Arduino pin for input from RELOAD switch
    disablePlatePin = 2;                    // Arduino pin for input from disable plate
    invertInputs = true;                   // TRUE turns on internal pull-ups, use if closed switch connects arduino pin to ground
  }
  else if(type == "Standalone_v8") {
    // pin attachments:
    panServoPin = 8;                        // Arduino pin for pan servo
    tiltServoPin = 9;                       // Arduino pin for tilt servo
//    triggerServoPin = 10;                    // Arduino pin for trigger servo, or output to trigger MOSFET
    electricTriggerPin = 7;                 // Arduino pin for output to trigger MOSFET
    firingIndicatorLEDPin = 12;              // Arduino pin for firing indicator LED
    USBIndicatorLEDPin = 14;                 // Arduino pin for USB indicator LED
    modeIndicatorLEDPin = 13;                // Arduino pin for Mode indicator LED
    reloadSwitchPin = 11;                    // Arduino pin for input from RELOAD switch
    disablePlatePin = 2;                    // Arduino pin for input from disable plate
    invertInputs = true;                   // TRUE turns on internal pull-ups, use if closed switch connects arduino pin to ground
  }
}

Backup:

//  contributed by Hugo K.

#include <EEPROM.h>
#include "EEPROMAnything.h"

/*
// Booleans but int
    int controlMode;
    int safety;
    int firingMode;
    int scanWhenIdle;
    int trackingMotion;
    int trackingColor;
    int leadTarget;
    int safeColor;
    int showRestrictedZones;
    int showDifferentPixels;
    int showTargetBox;
    int showCameraView;
    int mirrorCam;
    int soundEffects;

    // Integers
    int camWidth;
    int camHeight;
    int nbDot;
    int antSens;
    int minBlobArea;
    int tolerance;
    int effect;
    int trackColorTolerance;
    int trackColorRed;
    int trackColorGreen;
    int trackColorBlue;
    int safeColorMinSize;
    int safeColorTolerance;
    int safeColorRed;
    int safeColorGreen;
    int safeColorBlue;
    int idleTime;

    // Floats
    double propX;
    double propY;
    double xRatio;
    double yRatio;
    double xMin;
    double xMax;
    double yMin;
    double yMax;
*/

void backup(){

  char* Parameter;
  char* i;

  char BufferSerie[200];
  for (int z=0;z<=200;z++) BufferSerie[z]='\0';

  // Save the String Send

  byte bufferPos=0;
  char ch;
  boolean endOfString = false;

  while( !endOfString){
    if(Serial.available()){
      ch = Serial.read();

      if(ch != '!'){

        BufferSerie[bufferPos++] = ch;

      }else{

        endOfString = true;
      }
    }
  }

  // Split the received String and update the struct configuration."Value"

// Booleans
  Parameter = strtok_r(BufferSerie, ";", &i);
  configuration1.controlMode = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.safety = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.firingMode = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.scanWhenIdle = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.trackingMotion = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.trackingColor = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.leadTarget = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.safeColor = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.showRestrictedZones = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.showDifferentPixels = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.showTargetBox = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.showCameraView = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.mirrorCam = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.soundEffects = atoi(Parameter);

// Integers
  Parameter = strtok_r(NULL, ";", &i);
  configuration1.camWidth = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.camHeight = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.nbDot = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.antSens = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.minBlobArea = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.tolerance = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.effect = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.trackColorTolerance = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.trackColorRed = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.trackColorGreen = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.trackColorBlue = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.safeColorMinSize = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.safeColorTolerance = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.safeColorRed = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.safeColorGreen = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.safeColorBlue = atoi(Parameter);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.idleTime = atoi(Parameter);

// floats
  Parameter = strtok_r(NULL, ";", &i);
  configuration1.propX = strtod(Parameter,NULL);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.propY = strtod(Parameter,NULL);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.xRatio = strtod(Parameter,NULL);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.yRatio = strtod(Parameter,NULL);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.xMin = strtod(Parameter,NULL);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.xMax = strtod(Parameter,NULL);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.yMin = strtod(Parameter,NULL);

  Parameter = strtok_r(NULL, ";", &i);
  configuration1.yMax = strtod(Parameter,NULL);

  delay(20);

  // Backup on EEPROM 92 bytes, Start on 0
  EEPROM_writeAnything(0, configuration1);  //take more than 92*3.3ms

}

void restore(){

  EEPROM_readAnything(0, configuration1); // Relode Struct configuration from EEPROM

  delay(20);

  Serial.println('R');  // Tel Processing Arduino Ready for Sending Values

  //Booleans
  Serial.print(configuration1.controlMode);
  Serial.print(";");

  Serial.print(configuration1.safety);
  Serial.print(";");

  Serial.print(configuration1.firingMode);
  Serial.print(";");

  Serial.print(configuration1.scanWhenIdle);
  Serial.print(";");

  Serial.print(configuration1.trackingMotion);
  Serial.print(";");

  Serial.print(configuration1.trackingColor);
  Serial.print(";");

  Serial.print(configuration1.leadTarget);
  Serial.print(";");

  Serial.print(configuration1.safeColor);
  Serial.print(";");

  Serial.print(configuration1.showRestrictedZones);
  Serial.print(";");

  Serial.print(configuration1.showDifferentPixels);
  Serial.print(";");

  Serial.print(configuration1.showTargetBox);
  Serial.print(";");

  Serial.print(configuration1.showCameraView);
  Serial.print(";");

  Serial.print(configuration1.mirrorCam);
  Serial.print(";");

  Serial.print(configuration1.soundEffects);
  Serial.print(";");

  //Integers
  Serial.print(configuration1.camWidth);
  Serial.print(";");

  Serial.print(configuration1.camHeight);
  Serial.print(";");

  Serial.print(configuration1.nbDot);
  Serial.print(";");

  Serial.print(configuration1.antSens);
  Serial.print(";");

  Serial.print(configuration1.minBlobArea);
  Serial.print(";");

  Serial.print(configuration1.tolerance);
  Serial.print(";");

  Serial.print(configuration1.effect);
  Serial.print(";");

  Serial.print(configuration1.trackColorTolerance);
  Serial.print(";");

  Serial.print(configuration1.trackColorRed);
  Serial.print(";");

  Serial.print(configuration1.trackColorGreen);
  Serial.print(";");

  Serial.print(configuration1.trackColorBlue);
  Serial.print(";");

  Serial.print(configuration1.safeColorMinSize);
  Serial.print(";");

  Serial.print(configuration1.safeColorTolerance);
  Serial.print(";");

  Serial.print(configuration1.safeColorRed);
  Serial.print(";");

  Serial.print(configuration1.safeColorGreen);
  Serial.print(";");

  Serial.print(configuration1.safeColorBlue);
  Serial.print(";");

  Serial.print(configuration1.idleTime);
  Serial.print(";");

  //Floats
  Serial.print(configuration1.propX);
  Serial.print(";");

  Serial.print(configuration1.propY);
  Serial.print(";");

  Serial.print(configuration1.xRatio);
  Serial.print(";");

  Serial.print(configuration1.yRatio);
  Serial.print(";");

  Serial.print(configuration1.xMin);
  Serial.print(";");

  Serial.print(configuration1.xMax);
  Serial.print(";");

  Serial.print(configuration1.yMin);
  Serial.print(";");

  Serial.print(configuration1.yMax);
  Serial.print("!");

}

EEPROMAnything.h

#include <EEPROM.h>
#include <Arduino.h>  // for type definitions

template <class T> int EEPROM_writeAnything(int ee, const T& value)
{
    const byte* p = (const byte*)(const void*)&value;
    int i;
    for (i = 0; i < sizeof(value); i++)
	  EEPROM.write(ee++, *p++);
    return i;
}

template <class T> int EEPROM_readAnything(int ee, T& value)
{
    byte* p = (byte*)(void*)&value;
    int i;
    for (i = 0; i < sizeof(value); i++)
	  *p++ = EEPROM.read(ee++);
    return i;
}

In order to run the sentry gun processing code, you will need to install the 32 bit version of the Processing ID environment first. You can download it here.

Create a folder named "Processing" and copy the files provided with this step into it. Furthermore you will have to copy the files in the "copy these into processing root or system32" folder to your root system.

You can find a detailed description on how the software works on the project sentry gun page here. The only major new thing is the surf classifier to detect the instructables robot. It can be controlled with these lines:

<pre>public boolean use_surf = true;
public int surf_sensivity = 3;
public String surfRefFile = "D:/Sentry/robot_live2.jpg";
