Vending Machine for Birds


A vending machine for birds that rewards them with food when they drop something in a hole. Electronics and enclosure materials cost <100 USD/EUR. I've designed a PCB and PVC pipe enclosure and dispenser (described below). The circuit is not complex, but I think a custom PCB makes it easier for people who are not electronics hobbyists to build this. I've made a few different enclosures out of scrap for this, but will share the PVC pipe enclosure details since it's sturdy, waterproof, and the materials can all be found at the hardware store.

There were two main inspirations for me to start and document this project

  • Hans Forsberg - designed his own machine and was the first person I learned of that had birds (magpies) bringing items to deposit on thier own
  • Josh Klein - makes his Crowbox designs freely available and supports people who want to build it

I would like to thank PCBWay for helping me get the PCB made.

MAIN FEATURES

  • portable
  • saves power until a warm body is present
  • battery or mains powered
  • one moving part
  • accessible components and materials
  • rodents can't break in and get the food
  • cheap to build
  • customizable

ELECTRONICS, SENSORS, AND POWER

The circuit is all analog, using four NE555 timers and one LM358 dual op amp. The sensors are all made using IR phototransistors and IR LEDs. The PCB has headers broken out so you can monitor and control it with a microcontroller or SBC. It runs on 5-6VDC (use 5V if planning to power a USB device with the vending machine)

Power consumption at 5V is as follows:

Without RPi Zero W

  • Idle with Powerbank Keep-Alive and TImer enabled: 18mA
  • Timer uses 8mA
  • Powerbank Keep-Alive uses 4mA
  • ^With both of these disabed it uses 6 mA
  • IR LEDs on: 320mA
  • IR LEDs and motor on: 510mA

With RPi Zero W and wide-angle camera module

  • Idle with Powerbank Keep-Alive and TImer enabled: 220mA
  • IR LEDs on: 520mA
  • IR LEDs and motor on: 820mA

So with the Rpi and camera you could get about 2 days out of a 20,000 mAh power bank. With just the vending machine you could get about 10 days.

Modules

  • Powerbank Keep-Alive: 555 sinks current every 7-22 seconds for 0.7-2.2 seconds to keep USB power banks on while sensors are in standby - the powerbank keep-alive can be disabled.
  • IR LED ON/OFF: 555 keeps the IR LEDs used by the sensors on for 22 seconds after the last PIR trigger
  • Op Amps: LM358 used as comparators to adjust the threshold of the sensors and send signals when they are triggered
  • Motor Controller: 555 turns on the dispenser vibration motor when the deposit sensors are triggered, tuns it off when the dispense sensor is triggered
  • Timed Dispense: 555 dispenses food every 10-100min - timed dispense can be disabled
  • Daytimer: Phototransistor that puts the timer in reset while it's dark outside - brightness threshold can be adjusted or disabled (Rev. B)
  • PIR Sensor: Sends a signal to turn on the sensor IR LEDs
  • Deposit/Dispense Sensors: IR phototransistors and IR LEDs used as proximity sensors to monitor the deposit and dispense chutes
  • Hopper Level Sensor: IR phototransistor and IR LED to detect when the food level gets low (Rev. B)
  • Monitoring/Control: lines for monitoring and triggering events with an external controller (Rev. B)

PCB, BOM AND GERBERS

Kicad Files (Github): https://github.com/src1138/VMFB

Gerbers, PCB and BOM (PCBWay): https://www.pcbway.com/project/shareproject/Vending_Machine_for_Birds_11f2a4da.html

Current Version is Rev. B Ver. 1.1.

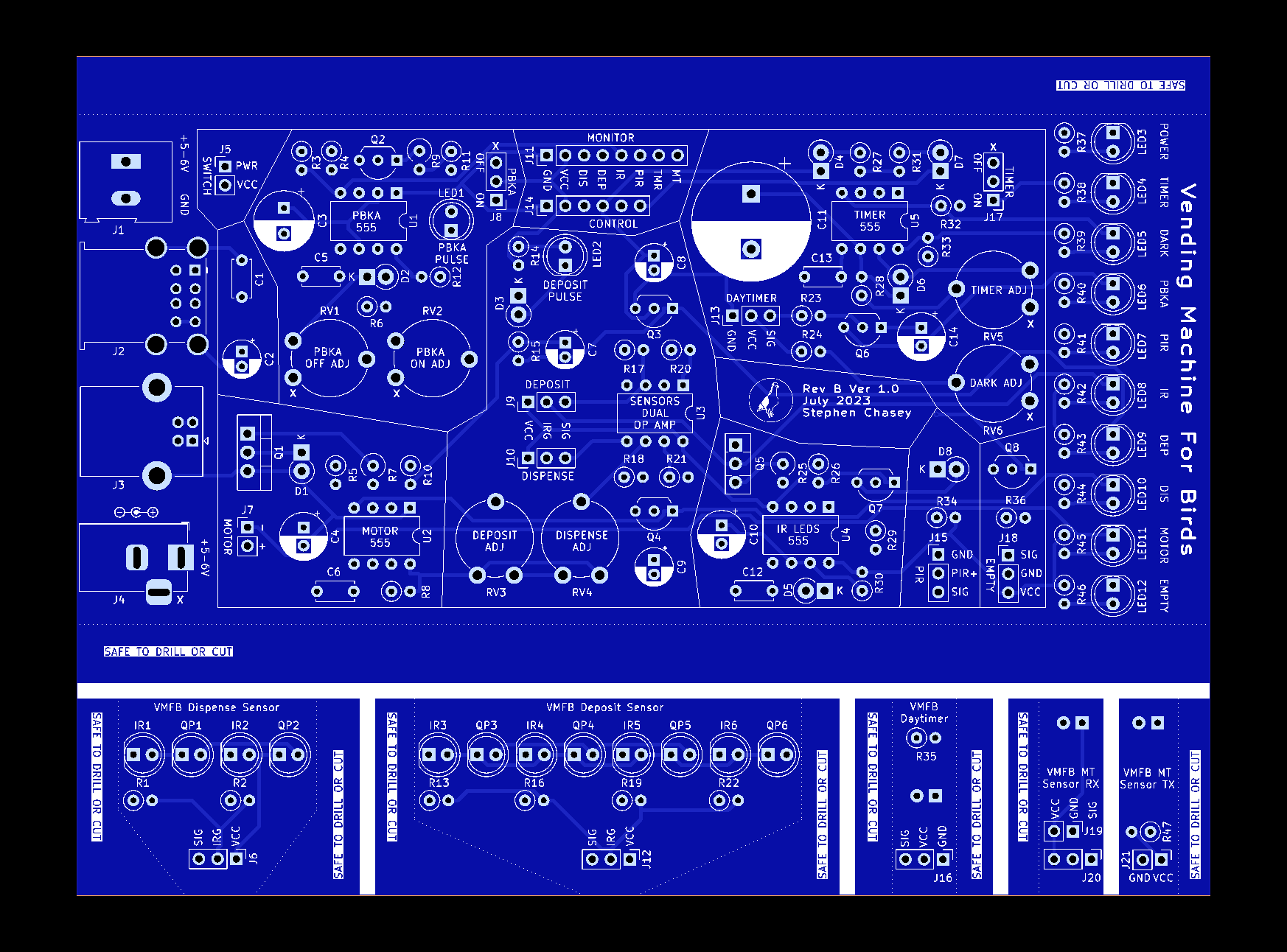

PCB Front

PCB Back


I priced the BOM for an earlier version of the board, including the PIR and motor for the vibration dispenser at Mouser and it came to 33.82 EUR. Mouser is not the cheapest source, but they have a pretty good selection of parts.

https://cdn.hackaday.io/files/1847547904515136/Winkelwagentje_jul28_0317.xls

If you shop around just a bit you could get the BOM for ~25 EUR. If you are an electronics hobbyist you probably have most if not all the parts on-hand.

CRITICAL COMPONENTS

This project uses commodity components, and you can confidently use alternatives with similar specs. There are a few points to keep in mind.

  • For the phototransistors, they should have a photocurrent of around 10mA. If they have a lower photocurrent, you should replace the 10K resistors on the non-inverting op amp imputs with a higher value. For instance, if your phototransistors have a photocurrent of ~1mA, use a 100K resistor intead.
  • I use NE555Ps here - you could use other models, but keep in mind that the transistors controlling the IR LEDs (BD139) and motor (TIP41C) need a bit of current to their base. If for instance you use the CMOS 555 that can only source about 10mA, you may need to replace these transistors with ones that have more gain.
  • All resistors can be 1/4 watt except the 22R on the motor controller 555 output (1 watt) and the 47R on the IR LED 555 output (1/2 watt)

SHORTCUTS

  • The PCB has footprints for USB type A, USB type B, barrel jack and screw terminal power input. You only need to populate the one(s) you will use.
  • The Timer and Powerbank Keep-Alive are not essential and you don't have to populate the parts for them if you don't need/want to use them.

HOW IT WORKS

States

  • Standby - No PIR trigger in the last 22 secs (IR LEDs are off)
  • Sensors On - PIR was triggered in the last 22 secs (IR LEDs are on)
  • Dispensing - Dispenser motor is on

Modes

  • Normal (dispenses on deposit)
  • Timer (dispenses every x minutes AND dispenses on deposit)

Event Sequence

  • PIR sensor sees a warm body
  • PIR triggers IR LED 555
  • IR LED 555 turn on sensor IR LEDs for 22 secs after last PIR trigger
  • When something is dropped in the deposit hole, the deposit sensor sees it
  • The deposit side of the dual op amp sends a pulse to trigger the motor 555
  • The motor 555 turns on the vibration dispenser motor - it times out after 11 secs
  • When something is dispensed, the dispense sensor sees it
  • The dispense side of the dual op amp sends a pulse to reset the motor 555
  • The dispenser motor is stopped

When timed dispense is triggered, it sends a signal to turn on the sensor IR LEDs and triggers the motor controller to start the vibration dispenser. When something is dispensed, the motor stops.

FAILURE MODES

  • Deposit sensor jammed
  • Sensor will not trigger a dispense event until it is unjammed. The sensor uses an inline capacitor to limit the signal to a pulse each time it is triggered.
  • Dispense sensor jammed
  • Vending machine will not dispense until the sensor is unjammed.
  • Peanut hopper jammed or empty
  • Dispense motor will stop after ~10 seconds.

MONITORING

I have been using a Raspberry Pi Zero W with a wide-angle camera module running MotionEyeOS with my vending machine just to record videos with motion detection. Now I am using the GPIO pins to monitor and log events, trigger video recording based on sensor status, show status information on a video overlay, and enable manual record/stop for vide and dispensing of a peanut via the web interface. The python and shell scripts for this are on GitHub: https://github.com/src1138/VMFB/tree/main/motioneye_scripts

DISPENSER

Dispenser: two-layer vibration platform with offset holes made from 3mm PVC sheet and 15mm M3 brass standoffs. I used a small 24x12mm 2VDC motor attached to the dispenser with brass standoffs and 3mm PVC sheet.

The dispenser typically dispenses a peanut or two within 3 seconds. Since it is a vibration dispenser, the enclosure should be level and mounted securely to insure relaible dispensing.

Here are some detail pics of the PVC pipe-based container and dispenser in the latest iteration of thie project. I cut away part of the coupler that holds it together to better show the assemblly.

Hopper and Dispenser

Top screw end cap removed


Top baffle and 5mm pipe slice removed


Lower baffle and 10mm pipe slice removed


Coupling and 18mm pipe slice removed


Dispenser assembly side view


A closer look at the dispenser motor.


The dispenser drops peanuts into a funnel made from the top of the PET bottle. There is about 12cm between the two, making it difficult for rodents small enough to get into the machine to get to the food. PVC is tough enough to keep larger rodents from gnawing or breaking thier way in.

PVC ENCLOSURE

The PVC enclosure contains the battery, electronics and sensors, dispenser, peanuts, and deposited items. The platform is a 35cm plastic tray for a plant pot, attached to the deposit chute with 4 90-degree brackets, four M4 bolts and two hose clamps.

I used bits of electrical or duct tape to make the PVC pipes and joints fit securely tight. This way it is easy to disassemble/modify/repair. It's a good idea to wrap upward-facing joints to prevent water ingress during heavy rains.

You can load peanuts (or whatever) by unscrewing the top cap and pouring them in. I made two baffles from 3mm PVC sheet to reduce the pressure on the vibration dispenser.

You can unload the deposited items by unscrewing the cap on the lower half of the vending machine.

  • The PIR and Daytimer sensors are taped in place inside the enclosure over holes that let them see out.

  • The deposit sensor is strapped with rubber bands to a piece of 50mm PVC pipe glued to the inside of the 2x50mm adapter so that it looks across the end of the deposit chute.
  • The dispense sensor is double sided taped to the inside of the enclosure just below where the dispensing hole will be. If the motor is mounted in front of it, you can use something carbon black to hide it from the sensor.
  • The empty sensor is two boards that can be mounted on or under a baffle inside the hopper. The LED and phototransistor should be facing each other, against opposite sides of the baffle so the phototransistor won't see the led unless the feed level has fallen below where the sensors are
  • The vibration motor is secured by two small PVC plates and brass standoffs. I used part of a 50mm end cap and taped a piece of black shrink tubing on it to avoid triggering the dispense sensor. Terminal strips are east to use as an eccentric load. You just need two joined ones. One goes on the motor axle, one gets a bolt and nut to increase the load imbalance.
  • For wiring above the funnel, use heat shrink big enough to contain the wires and duct tape or electrical tape to route them down against the inside of the enclosure past the funnel. This way the wires are secure but still have slack.

The funnel is the top of a 1.5L PET bottle. I put foam tape around the top to keep debris and food out of the bottom of the vending machine and to hold the routed wires securely. The tip is cut off and glued to a 32mm male end cut from an extra elbow joint I had. This way it can spin freely when in place and put less stress on the wires if you rotate the upper levels to aim the camera or position a solar cell

The dispense chute is 2x32mm 45° F/M elbow joints attached together. The male end goes out a 32mm hole in the enclosure. I used pieces cut from the female end of that extra 32mm joint to make braces to better secure it and position the female end in the center of the enclosure for the funnel to go into.

  • No camera? Don't need 50mm PVC arm or hole. You can just use a pieve of PVC pipe
  • No 110 to2x50mm adapter? Use a 110x50mm y joint and mount the sensor looking sideways across the 50mm opening with matte black on the other side. Helps to leave a little slack on the IR LED and sensor leads so you can mount it flat against the pvc and bend their leads to aim them. Since this path has just one bend in it, you may need to raise the platform a bit to lengthen the path before the bend, and paint the inside matte black to minimize light getting in
  • Would work ok if you substitute 100 or 125mm for 110mm provided you can find the t and y joints.
  • You could substitute pvc end caps for the screw caps. Use tape to make sure they fit securely
  • Can be mounted on the ground, horizontal or vertical railing, or pole

The enclosure shown above is 112.5 cm tall and can be broken down into 5 parts.


From top to bottom

Hopper and Dispenser

  • 110mm screw end cap
  • 110mm coupling
  • 110mm PVC pipe 88mm long
  • 110mm PVC pipe 18mm long
  • 110mm PVC pipe 10mm long
  • 110mm PVC pipe 5 mm long
  • 3x 110mmx3mm PVC disc (lower dispense platform and baffles)
  • 96mm disc (upper dispense platform)
  • 50mm end cap (for motor shield)
  • 2x40mmx3mm PVC discs (to secure motor)
  • 4x 15mm M3 standoffs
  • 2x 10mm M3 standoffs
  • 4x M3 washers
  • 2x M3 screws
  • 35x120mm matte black material (shrink tubing or similar)

Hopper and dispenser

Dispenser assenbly


Baffle assenbly


There is more detail about the dispenser assembly above.

Camera Mount

If you don't plan to mount a camera on this vending machine, you can replace this and the 88mm long pipe segment from the Hopper and Dispenser with one 20-25mm piece of 110mm PVC pipe.

  • 110mmx50mm 90° T-joint F/F
  • 50mm 90° elbow joint M/F
  • 50mm PVC 60mm long
  • transparency film 25x25mm
  • 50mm end cap
  • 110mm PVC 115mm long
  • 75x35x3mm PVC rectangle

Camera mount assembly

Camera enclosure


Dispense Chute and PCB/Battery Enclosure


  • 110mm 90° T-joint F/F/F
  • 110mm coupling
  • 110mm PVC 85mm long
  • 110mm screw end cap
  • 2x 32mm 45° elbow joint M/F
  • 32mm elbow joint (to cut 5mm and 10mm slices from the female side to brace the dispense chute, and the entire male side to fit the funnel into the chute)
  • 3mm PVC sheet to cut and form a cowl for the PIR
  • Top part of a 1.5L PET bottle with the screw top cut off - or something like it
  • 10mm foam tape
  • 190x95x3mm PVC sheet to mount the PCB on

Dispenser chute and PCB enclosure assembly

Dispenser chute assembly


PCB enclosure assembly


Platform and Deposit Chute


  • 2x 110mmx2x50mm adapter
  • 2x 50mm 45° Y-joint F/F/F
  • 3x 50mm PVC 60mm long
  • 2x 50mm PVC 98mm long
  • 50mm PVC 115mm long
  • 50mm PVC 30mm long (to cut about a third from and glue to the bottom adapter for mounting the deposit sensor)
  • 50mm emd cap
  • 50mm coupling
  • 2x 60mm hose clamps
  • 4x 90° braces
  • 6x 20mm bolt/shoulder washer/nut to fit braces
  • ~35cm plastic plant pot tray
  • 50mm plastic end plug (cut to make cup for dispenser)
  • 40mm platic end plug (place at top of dispense chute to prevent things from dropping in from the upper enclosure
  • 160mm hose clamp to brace depost chute and platform

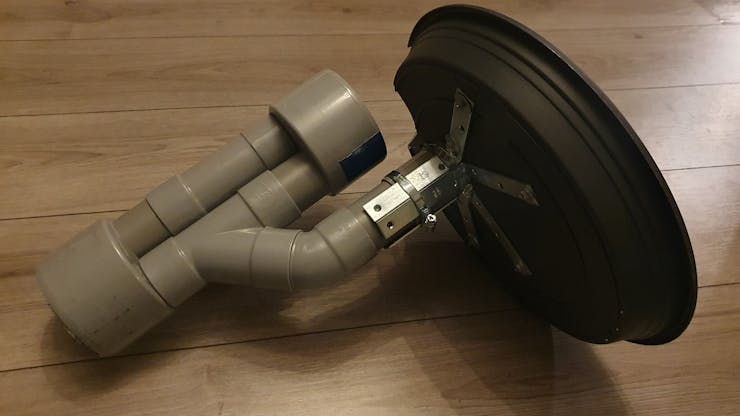

Platform and deposit chute assembly

Lower deposit chute assembly


Cord intake assembly


Deposit sensor mount


Deposit chute assembly minus platform


Platform assembly


Deposit Collecto


  • 110mm end cap
  • 110mm PVC 85mm long
  • 110mm Y-joint F/F/F
  • 110mm screw end cap

Deposit collector assembly

FEED

I used peanuts in the shell to attract birds to the area and shelled peanuts in the vending machine. If you live in an area with lots of pigeons, using peanuts in the shell will not attract them as much since they can't eat them (can't get the shell off) and you have a better chance of attracting corvids. Shelled peanuts are easier to dispense reliably - peanuts in the shell are less dense, more irregular in shape, and jam easily. Dry cat and dog food also works.

BIRD CONDITIONING

Along with learning and having some fun, the goal is to get a birds to bring something, drop it in a hole, and get a reward. Birds need some conditioning for this, so there are a few phases to progress though to help them figure this out.

Conditioning Stages

0 - Put food in the area you plan to mount the vending machine to start attracting birds

(1-2 weeks)

- Food Provided, Timed Dispense, Deposit Provided

(2-3 weeks)

2 - No Food Provided, Timed Dispense, Deposit Provided

(1-2 months)

3 - No Food Provided, No Timed Dispense, Deposit Provided

(4-6 months)

4 - No Food Provided, No Timed Dispense, No Deposit Provided

Time estimates are based on my own experience over the past year or so, but Phase 3 duration is a guess. As of July 2023 I have not yet seen a bird deposit an item I didn't provide. Unfortunately I had to take my machine down in May due to some new HOA regulations prohibiting feeding the birds in my neighborhood. I plan to redeploy it when I find another suitable location.

SIMILAR PROJECTS

Corvid Cleaning in Sweden: https://corvidcleaning.com/

Started by Christian Günther-Hanssen on 2013. Got scooped by the media - not ready to share details yet.

Their site has an informative timeline of similar projects: https://corvidcleaning.com/index.php/timeline/

Puy de Fou Park in France: More of a stunt than a sustainable effort, but very cool.


The Crowbar by Crowded Cities: https://www.crowdedcities.com/

Wishful thinking by a Dutch Startup. Design looks nice but does not appear very functional.

The Crowbox: http://www.thecrowbox.com/

Open source project based on Joshua Klein's idea. Latest version uncovers food instead of dispensing it.

Original Version

Current Version


Steve Joy: https://www.youtube.com/@4STEVEJOY34/videos

I think Steve Joy was the creator of the CrowKit. There is footage of crows using it as intended.

Hans Forsberg: https://www.youtube.com/channel/UCtkv3wuEP-Veur4iYJWkBgA

Real accomplishment getting wild magpies to exchange bottlecaps and other items for food. This project really got me started on my own.

Tomas and Olof Morsing (The Magpie Recycling Project): https://www.youtube.com/channel/UCEhPdSIMrLNynfwnkibVzZg/videos?view=0&sort=da

Other than Forsberg, one of the few successful examples out there. Huge contraption, but if I had my own yard I'd build big too :)

Crowbuddy: https://www.youtube.com/@CrowbuddyNL/featured

Gijs-Peter Kuijpers developed a movable, battery-powered, solar-charging cabinet that dispenses dog kibble for depositing litter. Seems to be an active project with an installation at the Vienna Zoo!

Christophe Vieren:

At the suggestion of one of his students, Sébastien Audibert, he built a device and has video of a magpie picking up a flattened can on the ground a few meters from his device, approaches the device and deposits it.

His blog is no longer accessible since I originally posted this :(

It used to be here: https://christophevieren.fr/collecter-les-dechets-grace-aux-corvides-sauvages

In the end, for the purpose of getting wild, untrained birds to exchange stuff for food, the only the success in getting wild birds to exchange litter for food I've seen so far was had by:

  • Christophe Vieren
  • Steve Joy
  • Hans Forsberg
  • Tomas and Olof MorsingHopper and Dispenser


Supplies

Handy Tools

  • Screwdriver
  • Drill
  • Hacksaw
  • Hole Saw - for larger holes
  • Step Drill - for smaller holes
  • Crimping Tool
  • Soldering Iron
  • Matte Black Spray Paint

Materials

BOM for the PCB is available at PCBWay here: https://www.pcbway.com/project/shareproject/Vending_Machine_for_Birds_eda585b3.html

For the PVC enclosure:

  • 110mm PVC pipe - 1M
  • 50mm PVC pipe - 1M
  • 2x 32mm 45° joint
  • 2x 110mm to dual 50mm adapter
  • 110mm 90° T-joint
  • 110mm 45° T-joint
  • 4x 110mm screw cap
  • 1x 50mm 90° joint
  • 3x 50mm 45° joint
  • 110mm straight joint
  • 50mm straight joint
  • 50mm 45° T-joint
  • 50mm end cap
  • 50mm end plug
  • 3mm PVC plate 500x200mm
  • 1.5L PET bottle

Enclosure


There are three main parts to this project

  1. Enclosure
  2. Electronics
  3. Dispense Mechanism

Let's start with the enclosure and containers for the peanuts and deposited stuff (bottlecaps, butts, etc.)

Enclosure

The dispenser enclosure can be made out of almost anything - my first two were made from discarded wood. My current version is made of PVC (BOM listed above).

Since it uses a vibration motor, it's good to put it on someting that won't resonate this to minimize noise and avoid startling off birds and sturdy enough that a bird landing won't shake it enough to dispense a peanut.

Railings and fences make a good foundation for a base provided they are not too wobbly. You could also make a wall-mounted one or one that attaches to a table. It just needs to be stable enough to take a bird or two landing on it and hopping around without tilting or shaking too much.

The only real requirement is that it is:

  • light-tight so the phototransistors are not triggered by ambient light (I also spray painted the inside matte black to reduce internal reflections)
  • big enough to contain the electronics, batteries and dispense and deposit chutes
  • can stand up to a little rain (painting or laquering helps if you use wood)
  • can be drilled and cut so you can mount chutes and sensors

Electronics


The schematic should hopefully be clear enough. This can be built on breadboards or stripboard, but I have also made a custom PCB.

MOTOR

For the motor I used a small 2V DC motor. So far no problems hitting it with ~5 volts for a second or so.

SENSORS

For the sensors, I used pairs IR LEDs and phototransistors with the positive LED pin and the negative phototransistor pin joined. The other phototransistor pin goes to an op-amp non-inverting input. If you use several pairs you can join all the phototransistor negative terminals together since they are all going the same place. If any of them see enough reflected IR light from a passing object they will trigger the op amp. I cut open a large heat-shrink tube to attach to the inside of the enclosure where the sensors are pointing. This lets you turn up the sensitivity without getting triggered by your own enclosure.

The dispensing hole is about 25mm in diameter. It took two pairs side-by-side to reliably detect nuts/nut pieces dropping out from any side of the hole.

The deposit hole in my case is a 50mm PVC joint, large enough for most bottlecaps, cigarette/cigar butts, batteries, etc. It took 3 side-by-side pairs with an extra LED to cover this opening.

DISPENSER

The Dispenser is a two-layer vibration platform with offset holes made from 3mm PVC sheet and 15mm M3 brass standoffs. I used a small 24x12mm 2VDC motor attached to the dispenser with brass standoffs and 3mm PVC sheet.

DEPOSIT

There is a 50mm hole cut in the tray with a 50mm PVC joint used as a chute to the collection jar. There should be only downward slopes, no horizontals else things are likely to get stuck there.

For the deposit sensor, and it's heatshrink backstop it's good to keep tham a cm or so away from the edge of the opening so they don'e get dirty - a dirty backstop will trigger the sensor, and a dirty phototransistor may not see something that is deposited.

Dispense Mechanism


VIBRATION DISPENSER

This project uses a vibration feeder made from two jar lids with offset holes. The nuts drop though the first lid and when the vibration motor is on, they make their way to the hole in the second lid and get dispensed. I tried so, so many ways to do this before I figured this out. It is reliable and dispenses 1-3 nuts per shot. Usually within one second of the deposit.

RODENT-PROOF

There are a lot of rats and mice in this city, to the point where feeding the birds has been temporarily forbidden at times when the rats get a little out of hand. I don't want to contribute to this, or attract these guys to my home.

This development was accidental. For the dispenser there is a ~25mm hole in the peanut jar lid where the peanuts get out. I was thinking of making dispenser tops with different sized holes to try it with smaller and larger materials. I didn't want to worry about lining things up every time, so I used the top of a 2L PET bottle as a funnel a few cm away from the jar lid to guide falling peanuts into the dispensing chute.

Rats and squirrels can't easily fit in the 32mm dispensing chute, the 25mm hole in the jar lid, or get though the glass and metal of the peanut jar. They could probably chew through my cheap pine enclosure, but it woudn't get them closer to the food. Mice are small enough to get in there, but can't get any footing in the funnel to reach the jar lid.
