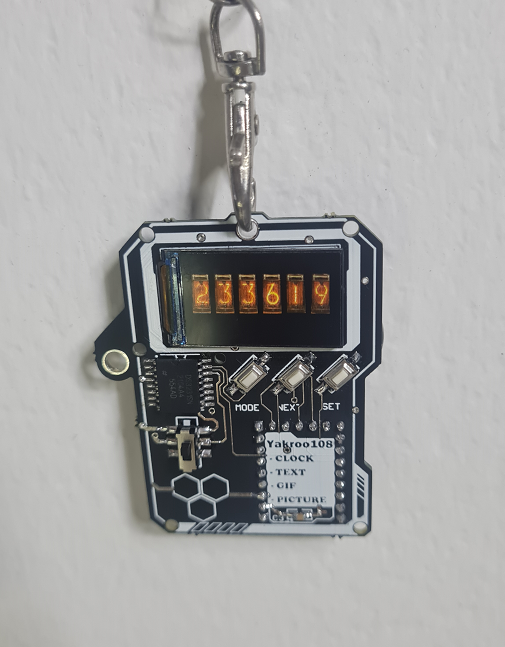

Neck Watch PICO ZERO(cyberpunk)

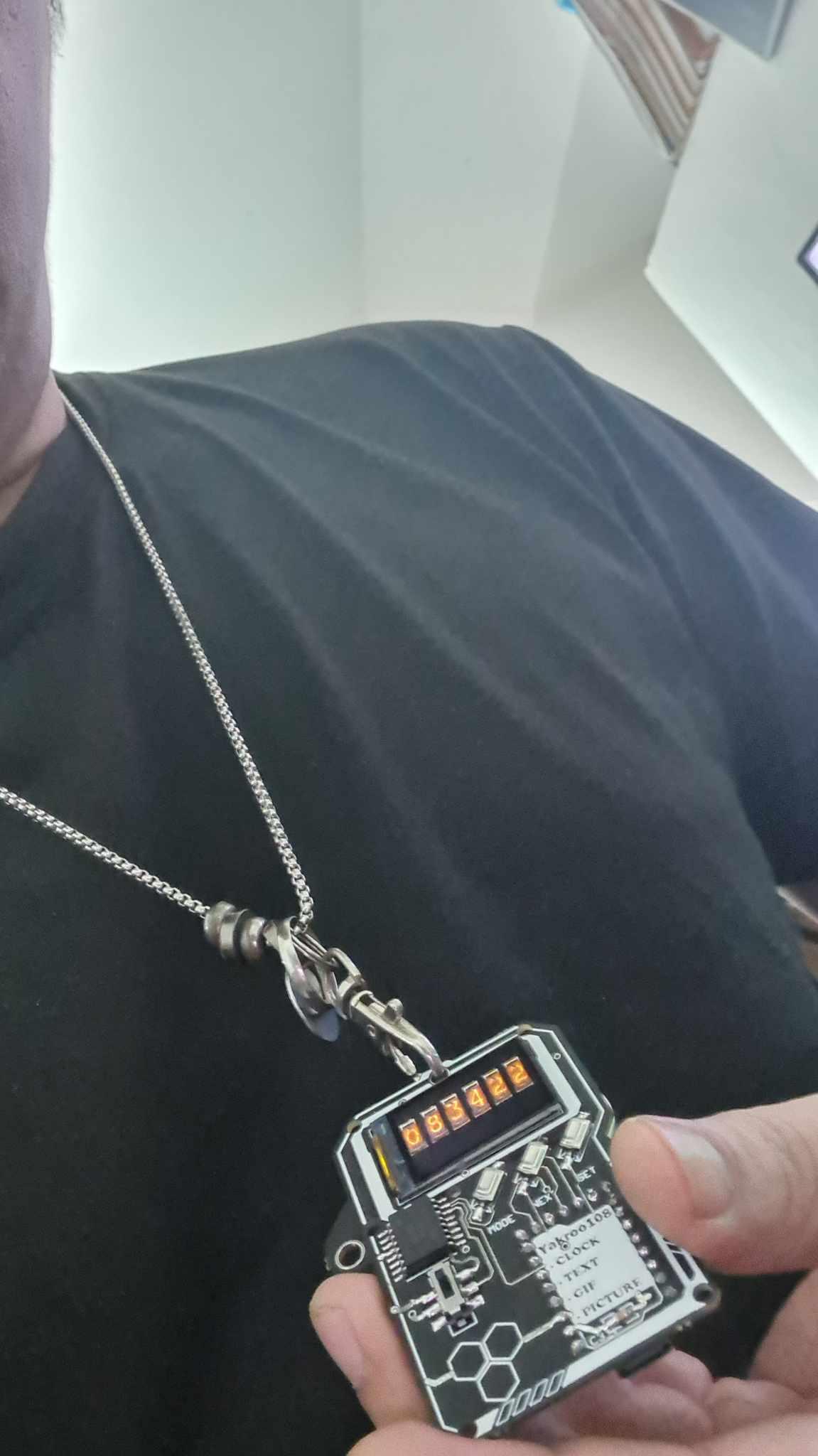

This is a neckband watch that can see the time, see pictures, show Text Moving, show Gif animations. Style cyberpunk

Features

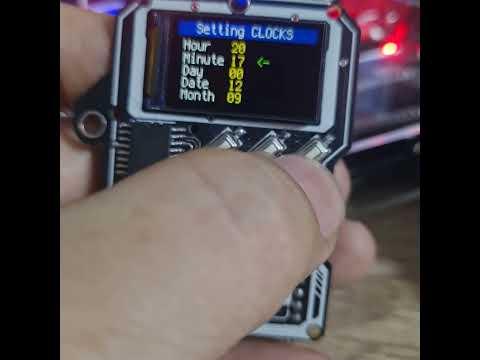

  1. Clock

  2.Text moving

  3.Gif animation

  4.Show picture

  5.Sleep mode (Power saving mode, when left open for 3 minutes, turn off the screen.)

1. Raspberry PICO ZERO

2.ds3231

3.St7789

4.Batterry CR2032 x2

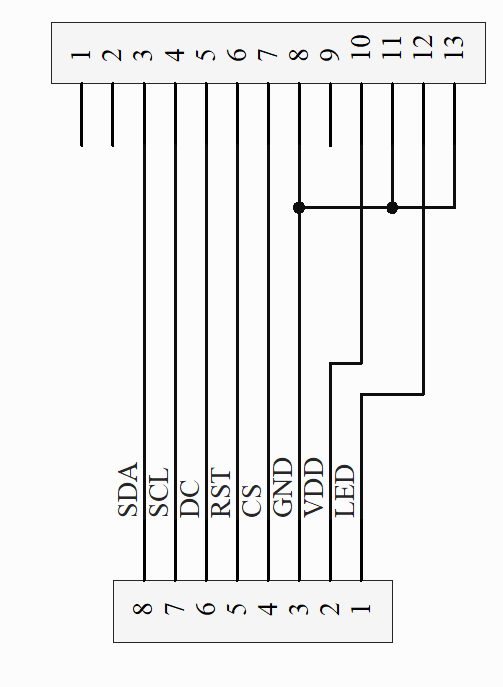

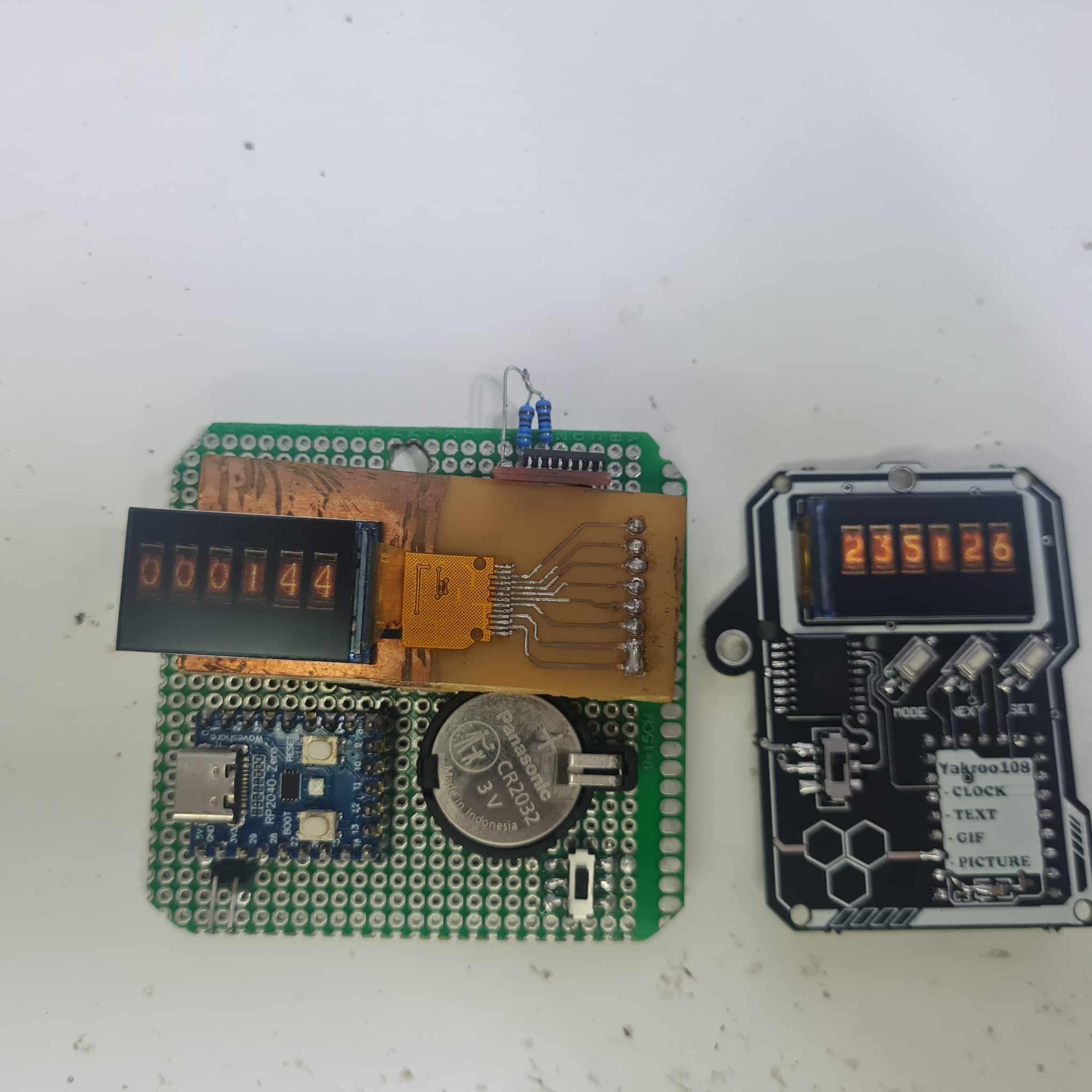

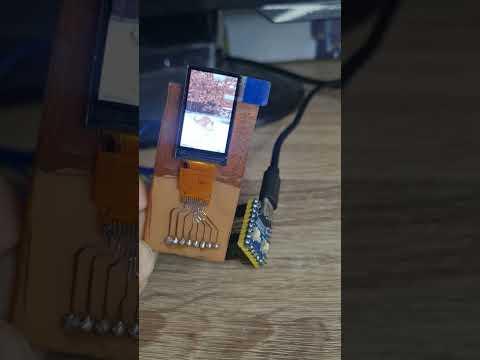

test acquired display ST7789 By writing related programs

, displaying text, displaying images, displaying animation

Test results :

   from the experiment can be used for more than 1 week, depending on the frequency of looking at the clock.

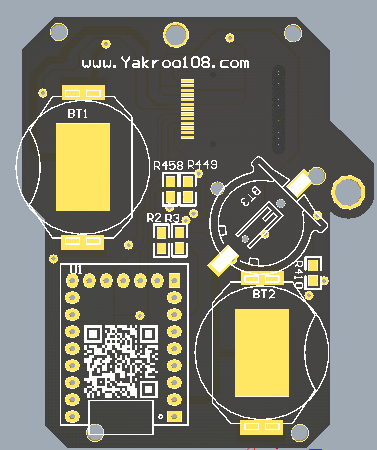

go to design circuit

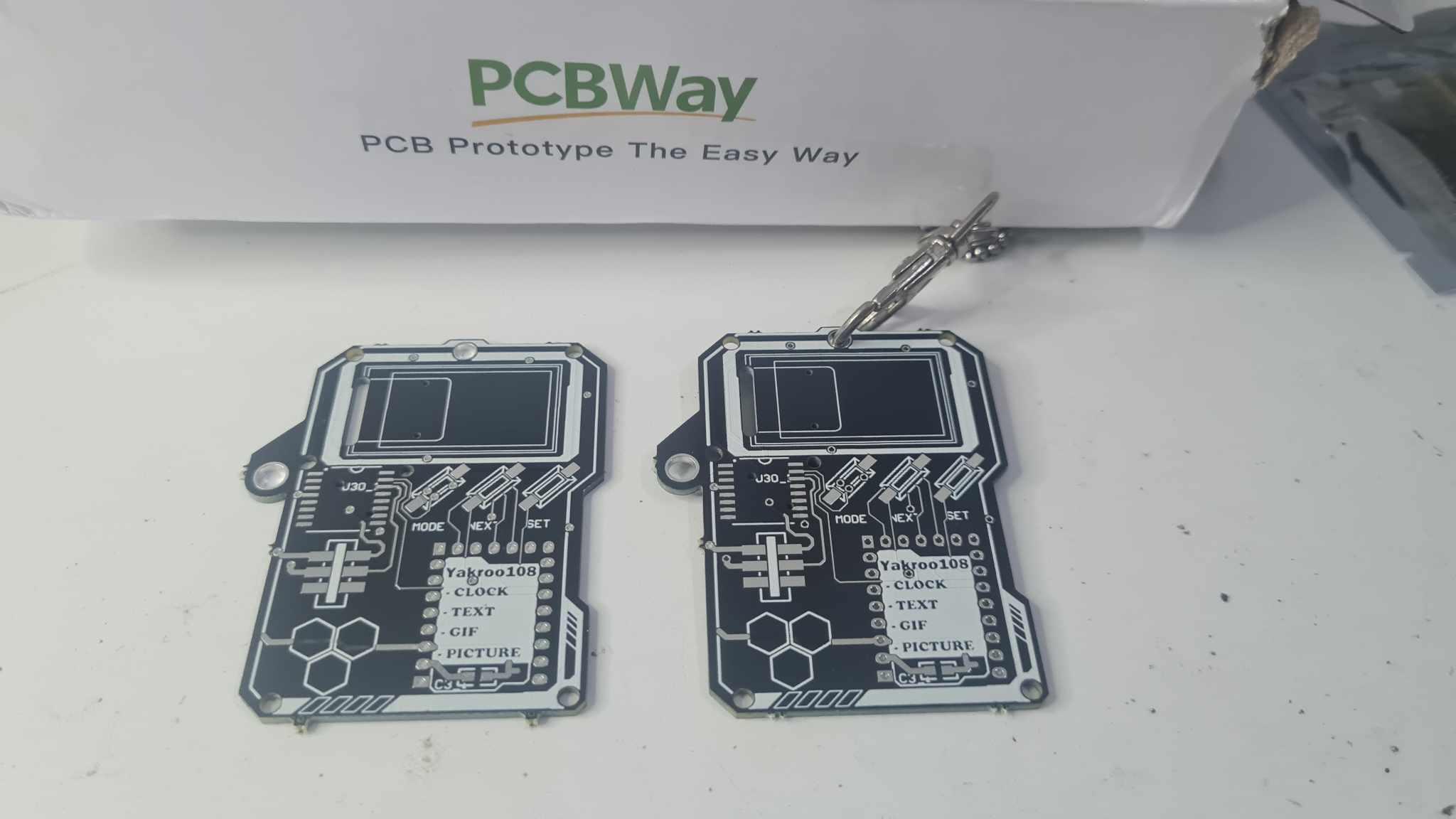

still use the service of PCBWAY as before

PCBWAY continues to maintain the same standard of operation. Fast, accurate, clear work and fast delivery. Still as impressed

Software for Neckwatch Use Micropython

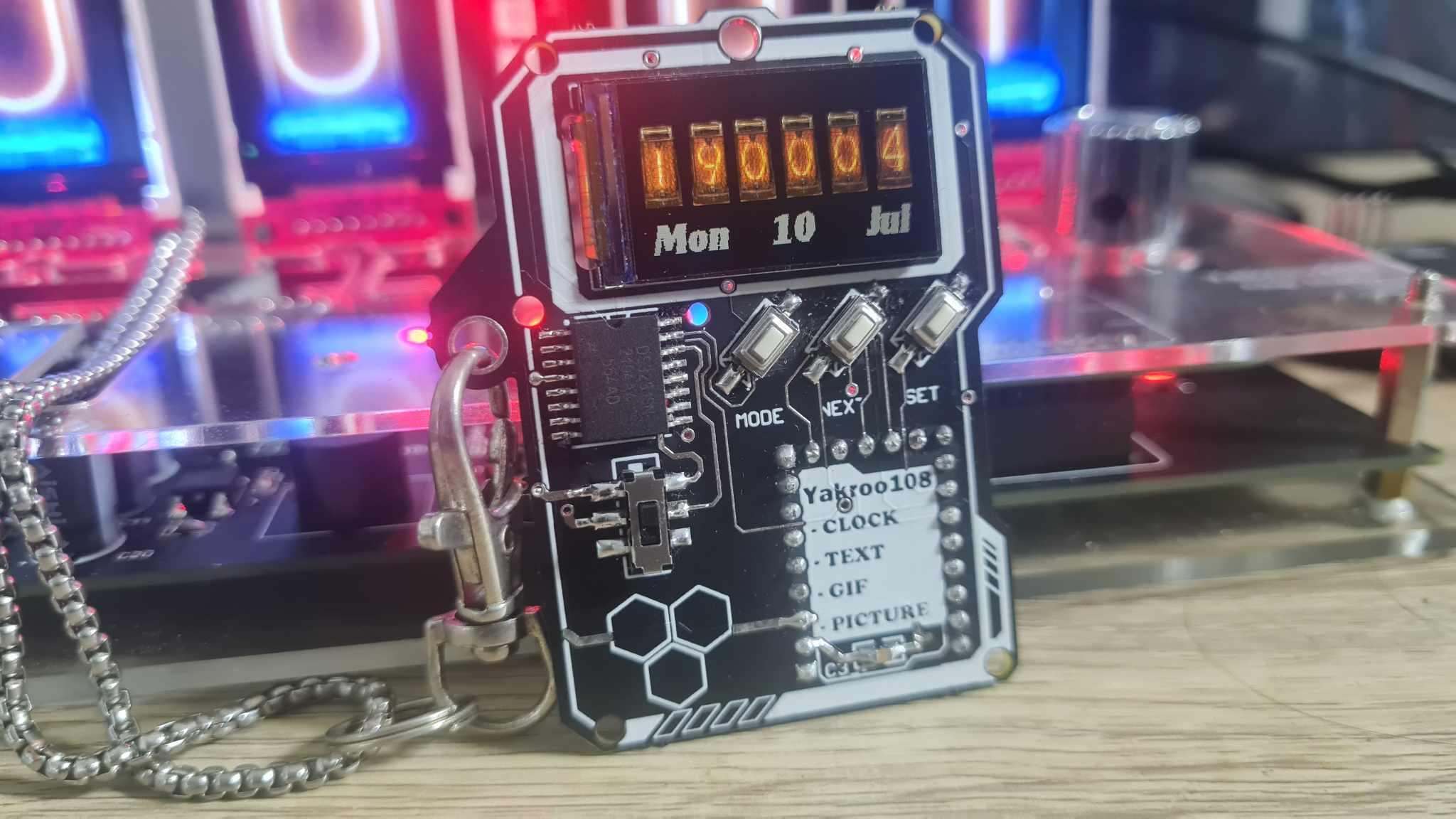

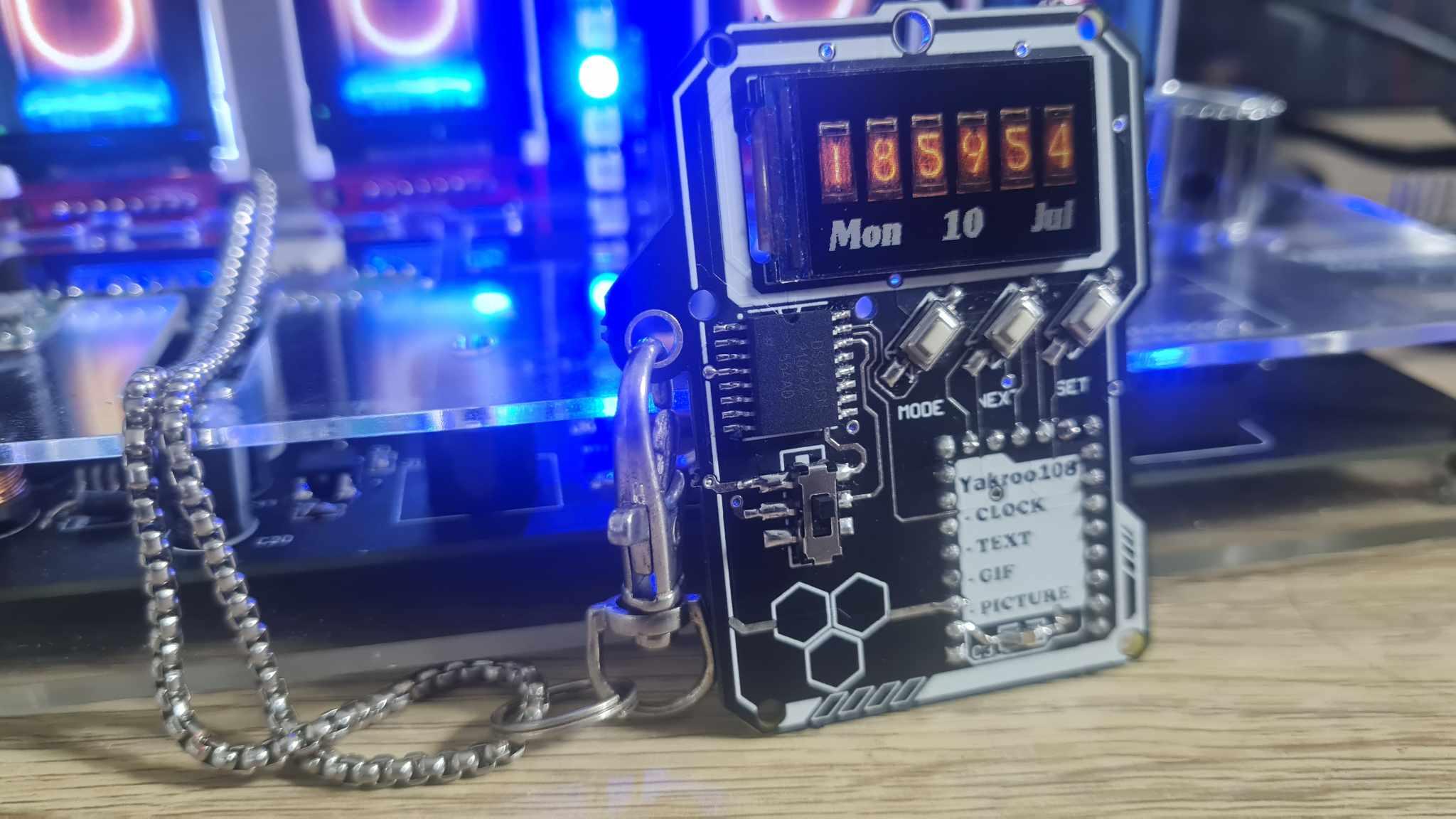

1.Display Clock

2.Text Moving

3.Gif animation

4.Display Picture

CODE: sample

https://github.com/YakrooThai/NeckWatch/tree/main/necklace%20watch6

Update the old Neck Watch to be rechargeable when the battery runs out and work continuously without interruption.

ORDER PCB:

https://www.pcbway.com/project/shareproject/Neck_watch_PICO_ZERO_286e4f2d.html
