Names and Design Led Fidget Spinner

A fidget spinner made from single microcontroller atmega 8 and 8 leds

full youtube link is here..

https://youtu.be/3qsVScKIML8

pcb file open in diptrace

stl file for 3d print

hi

To make this one you require:

1 smd leds(8 pc)

2 atmega smd(1 pc)

3 330 ohm smd resistor(8 pc)

4 fecl3 solution(1 box)

5 copper clad

6 bearing(1 pc)

7 button cell(3 nos)

8 usbasp programmer

9 soldering iron

10 flux

hi

you can download the pcb file and print it by using a laser printer and then transfer the toner on pcb clad.

now mix the solution in cold water and put the circuits and let the etching process be done.

after etching remove the black carbon layer by using thiner or petrol

hi

now first put the liquid flux on the layer of pcb and put the atmega 8 and solder with pointed soldering iron

next pcb put all the led negative one side and positive one side and solder them.

then put the resistor and solder them too...

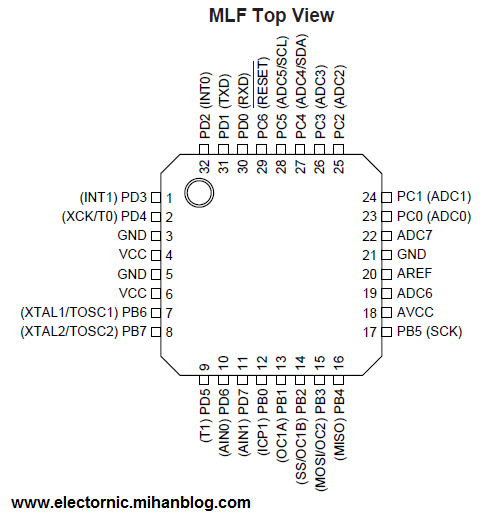

now take a thin insulated motor winding wire and connect them as shown in image with diagram

prog pin written should be connected to female header pin for usbasp programming

print the model by using 3d printer

clean a bearing of 26mm diameter by petrol

download winavr software and usbasp device driver and install it.

download links http://winavr.sourceforge.net/download.html

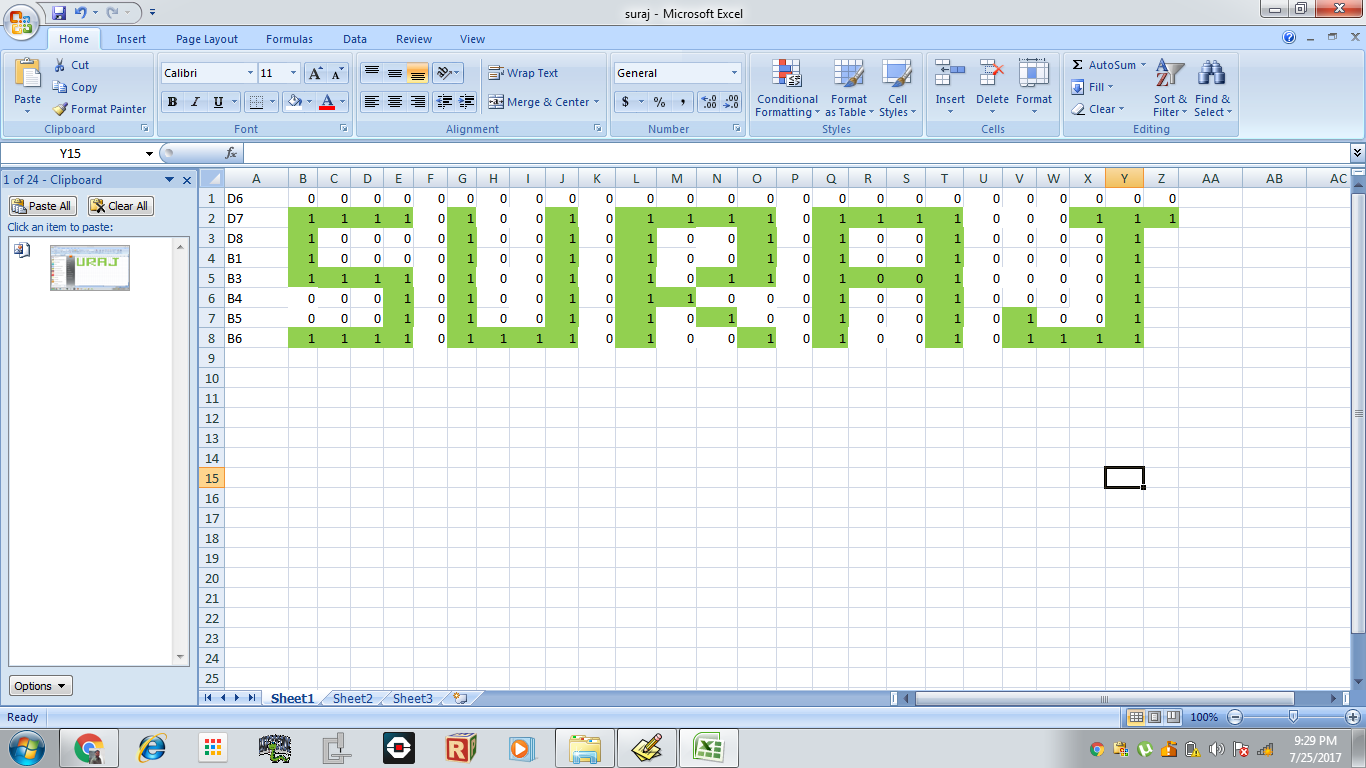

LIKE FOR A LETTER S WE NEED TO JUST SEE THE EXCEL SHEET AND PUT 0 AND 1 ACCORDINGLY In this way we write the names and to program it use fischel programmer

http://www.fischl.de/usbasp/

now first click on make all in tools

then make program to dump the code.
