NU-ROBOT - Deliver Medicines and Masks to the Rooms.

my hospital.PNG

this is my hospital that a robot send medicine in each room with two floors.

You can find the 3D design here

https://www.tinkercad.com/things/lOXuR4aFwtR-funky...

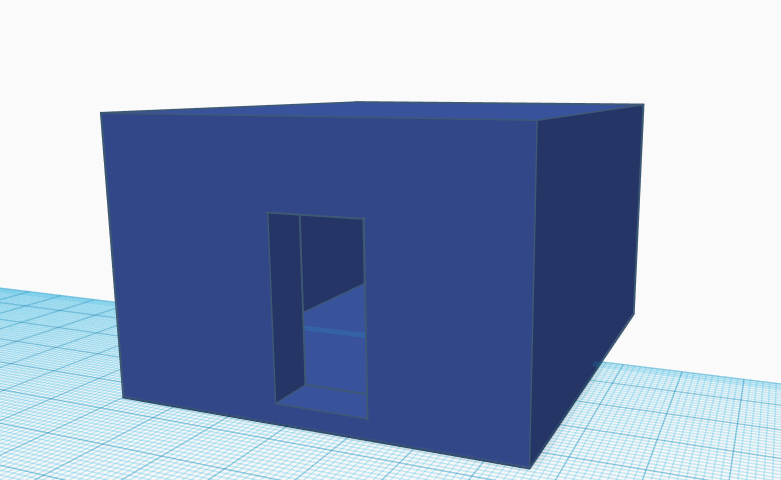

First Room of Hospital


this is my first room of the hospital made by a box and box holes to cut

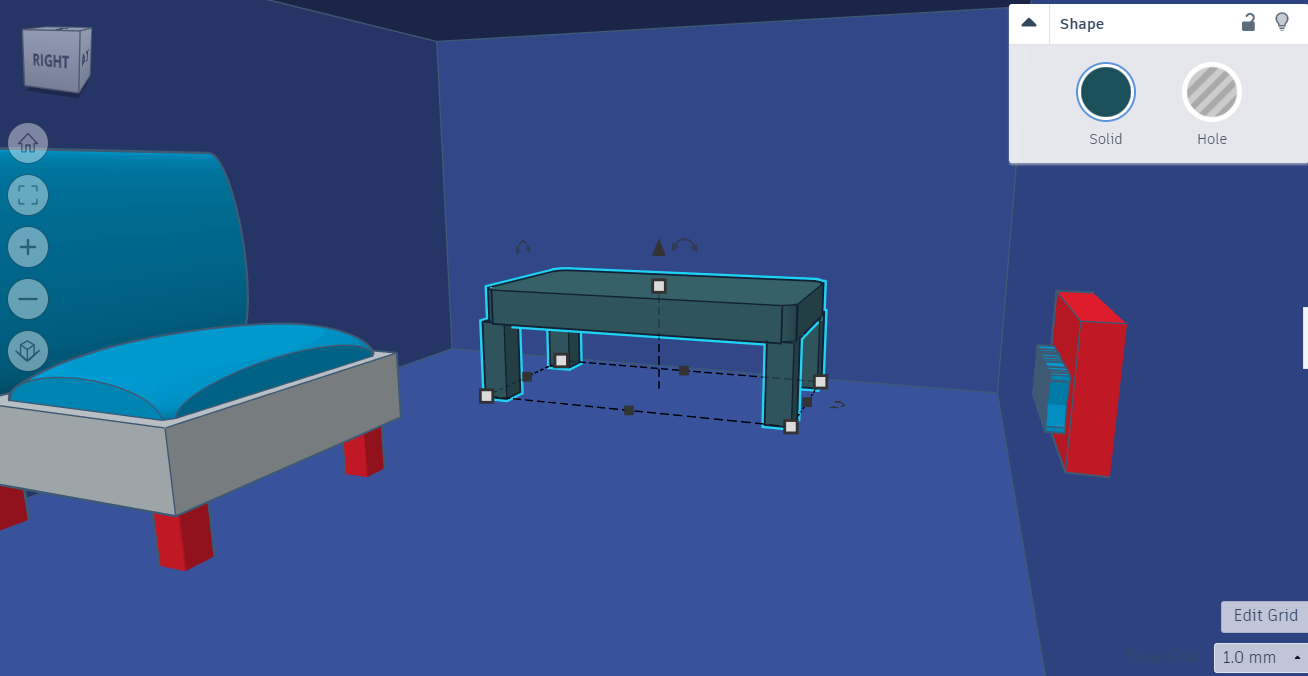

Inside the Room

INSIDEROOM WITH A CHAIR BED AND MASK DROP.PNG

this is the inside of all the room with a bed a chair to sit on and a drop box to drop medicines

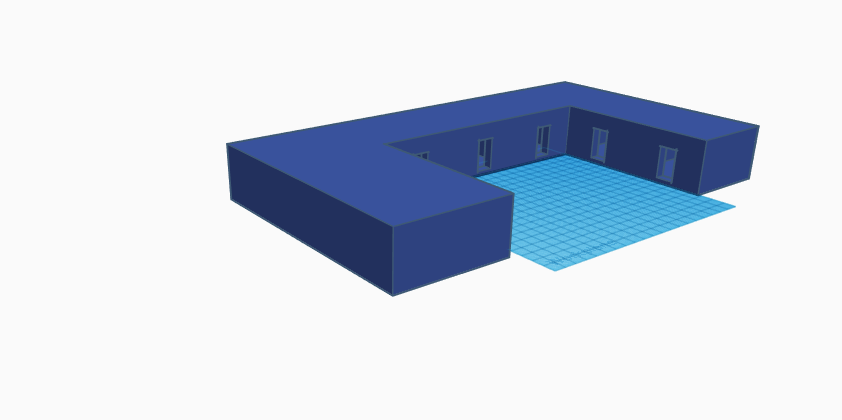

First Floor of the Hospital

first floor.PNG

this is the first floor with all the same room. I had to copy and paste all of the rooms. there were max 7 rooms.

Adding a Elevator

Adding a elevator.PNG

adding a elevator so the robot go to the second floor. what I did was make a box a turned the color gray

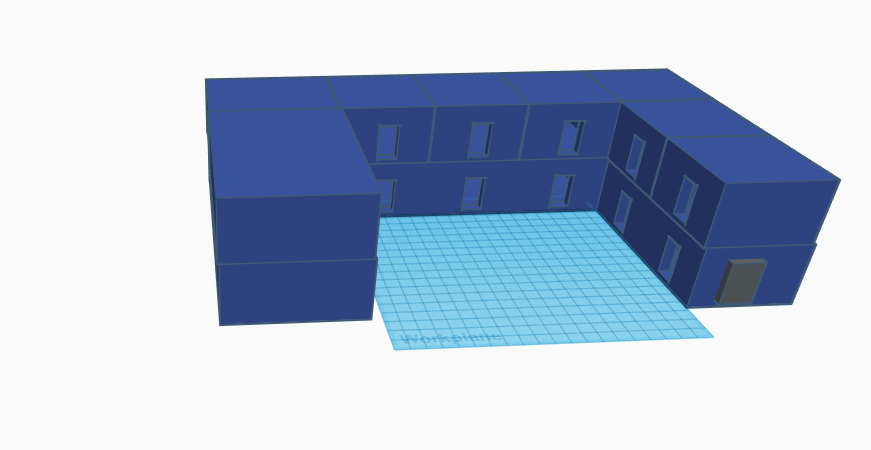

Adding the Second Floor

adding the second floor.PNG

this is the first floor with the second floor. I copied and pasted the first floor and put it on top of the first floor.

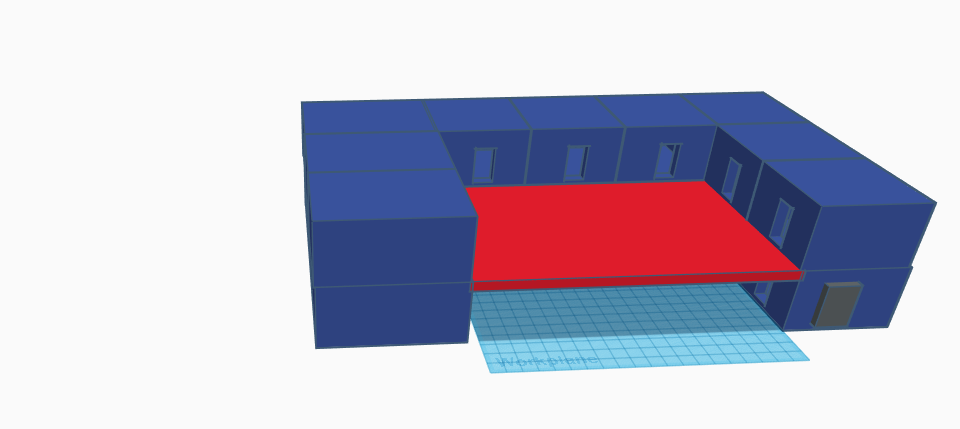

Layer of Hospital With Two Floors

adding the platform.PNG

I added a layer for both the floors so the robot can send medicines on the second floor

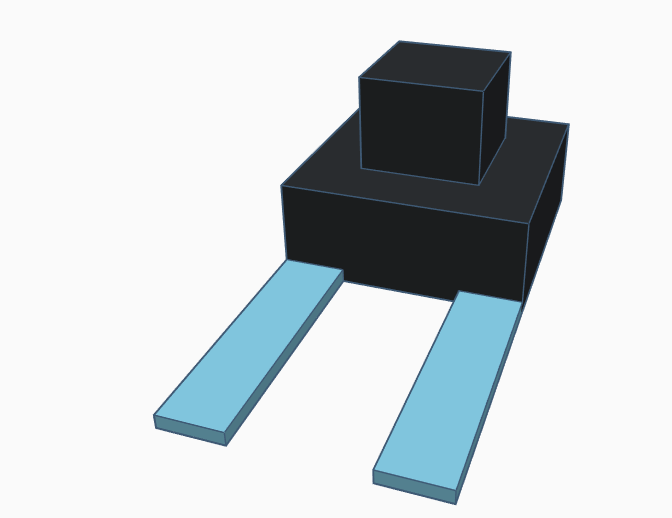

Making the Medi Robot

medi robot.PNG

this is the medi robot that will take medicines in to all the rooms in the hospital

Boxes With Medicines

boxes with medicines.PNG

these are the boxes with medicines that the robot will place in the rooms

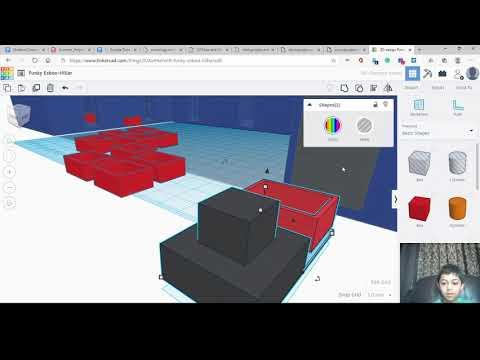

Final Presentation

Shlok's explaining his desing for Robot delivering masks and medinice in the hospitals.
