NES Zapper Outlet Switch
by BrittLiv in Circuits > Remote Control
21395 Views, 215 Favorites, 0 Comments
NES Zapper Outlet Switch
In this Instructable I am going to show you how to put a remote control that enables radio sockets into a NES Zapper. As well as how to make a duck hunt lamp, to put it to good use.
This is a great way to safe energy, because believe me turning off electronic equipment has never been so much fun (not just for kids). Especially if the socket is normally hard to reach.
Don't worry, if you don't know anything about electronics, as long as you know how to solder you are fine.
Take a look at the video, to see it in "action". As you can see, I've added a small switch at the bottom of the handle, which turns the sockets on and the trigger can be used to turn them off again. It has a range of about 100 ft.
This is a great way to safe energy, because believe me turning off electronic equipment has never been so much fun (not just for kids). Especially if the socket is normally hard to reach.
Don't worry, if you don't know anything about electronics, as long as you know how to solder you are fine.
Take a look at the video, to see it in "action". As you can see, I've added a small switch at the bottom of the handle, which turns the sockets on and the trigger can be used to turn them off again. It has a range of about 100 ft.
Stuff You Need
Zapper
What you need:| • |
Radio switch + remote control socket (I used this one, but it is only for European sockets. If you are looking for an US version, check out this one . I couldn't find an exact match, but taking a look at it, it might even be better, because you won't have to shorten it) |
| • | NES zapper (I found a broken one at a flea market, if you can't find one/ don't want to destroy a working one just use an other type of toy gun) |
| • | Litz wire |
| • | Solder |
| • | Sanding paper (high grid I used 1000) |
| • | Small push button switch |
| • | Flat diamond file |
| • | Hot glue gun |
| • | Soldering iron |
| • | Screw driver |
Lamp
What you need:| • | Thick frame (I used "RIBBA" from Ikea, depending on what frame you use you might need spacers) |
| • | Green, white, black and orange vinyl |
| • | LED strips |
| • | paque acrylic plate according to your frame size (If you don't want to buy it you can also use vellum behind the original glass) |
| • | Hot glue gun |
| • | Screw driver |
| • | Ruler |
| • | (a cutting plotter is useful, but not necessary) |
| • | (depending on your LED strips you might need a soldering iron) |
| • | (certainly helpful are: a sticker squeegee and a spray bottle with soapy water) |
Take Everything Apart

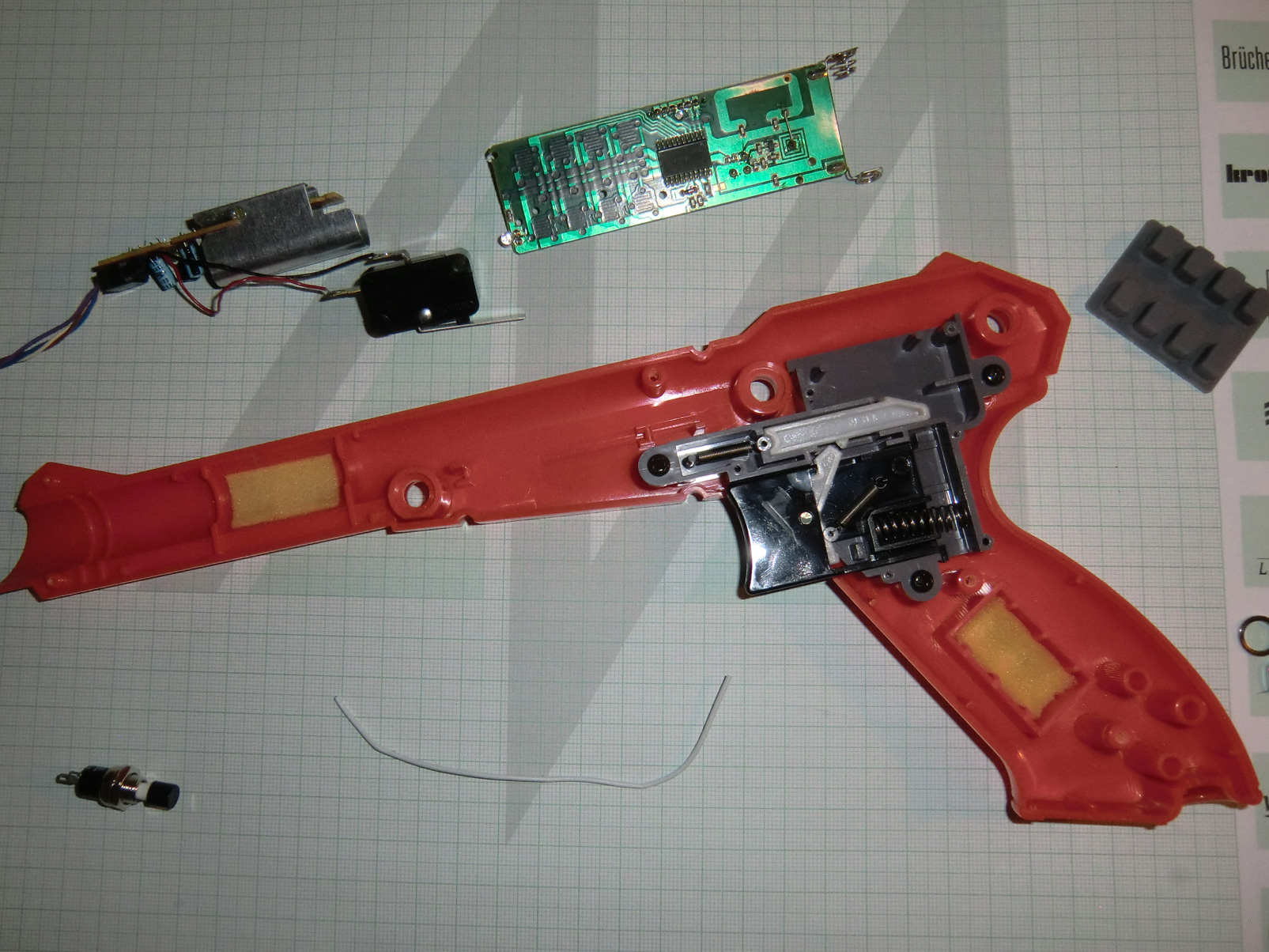

Start by taking the zapper and the remote control apart. Depending on your remote, you might have to shorten the pcb (Make sure not saw off any important parts...).
I decided to fit the remote into the barrel, because fitting it into the handle would have meant to get rid off a screw.

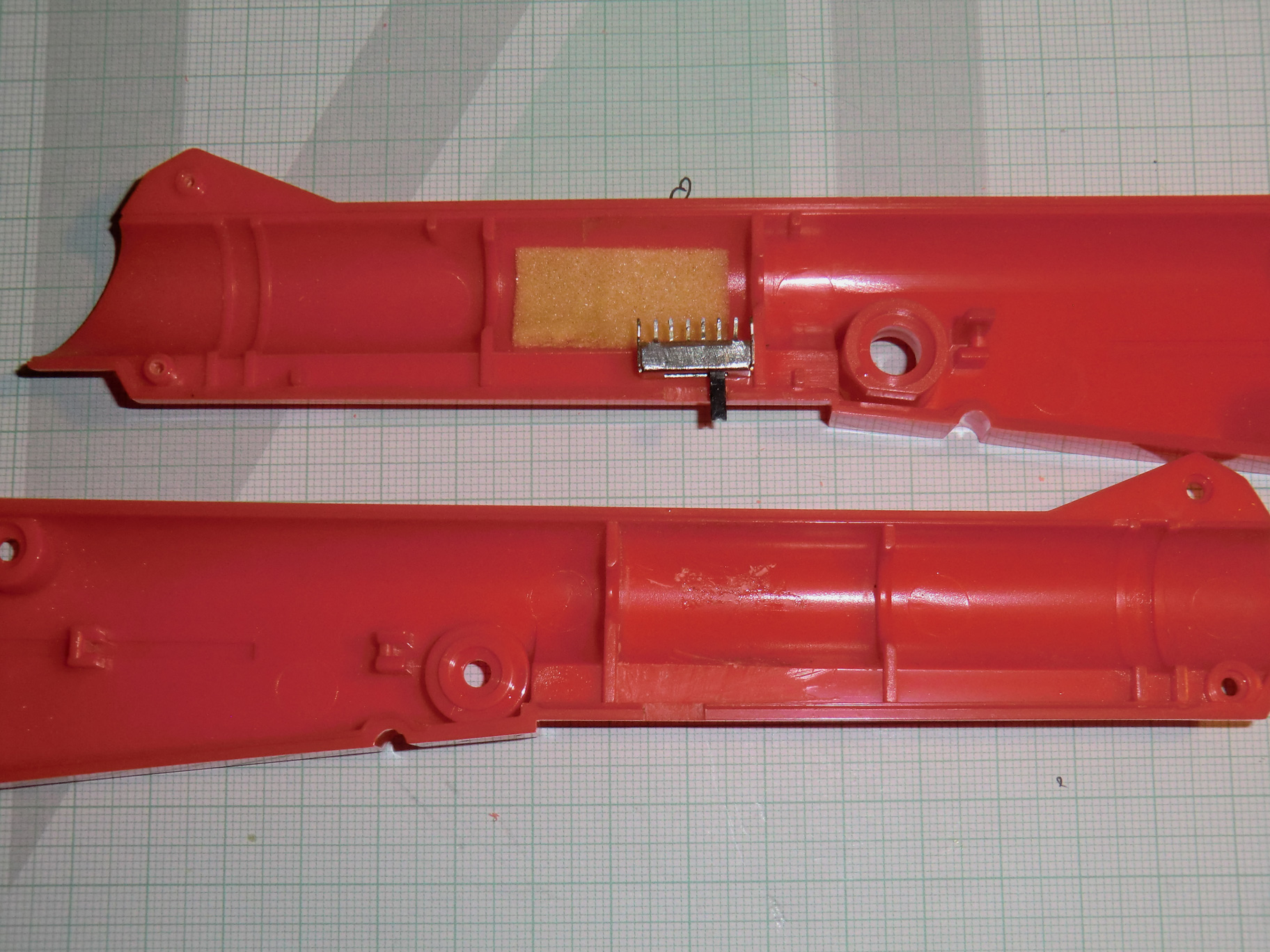

Unsolder the switch, that changes the channels and use the diamond file to make a small hole for it, as shown in the third and fourth picture. Make sure it fits and move on the the next step.
I decided to fit the remote into the barrel, because fitting it into the handle would have meant to get rid off a screw.
Unsolder the switch, that changes the channels and use the diamond file to make a small hole for it, as shown in the third and fourth picture. Make sure it fits and move on the the next step.
Wiring

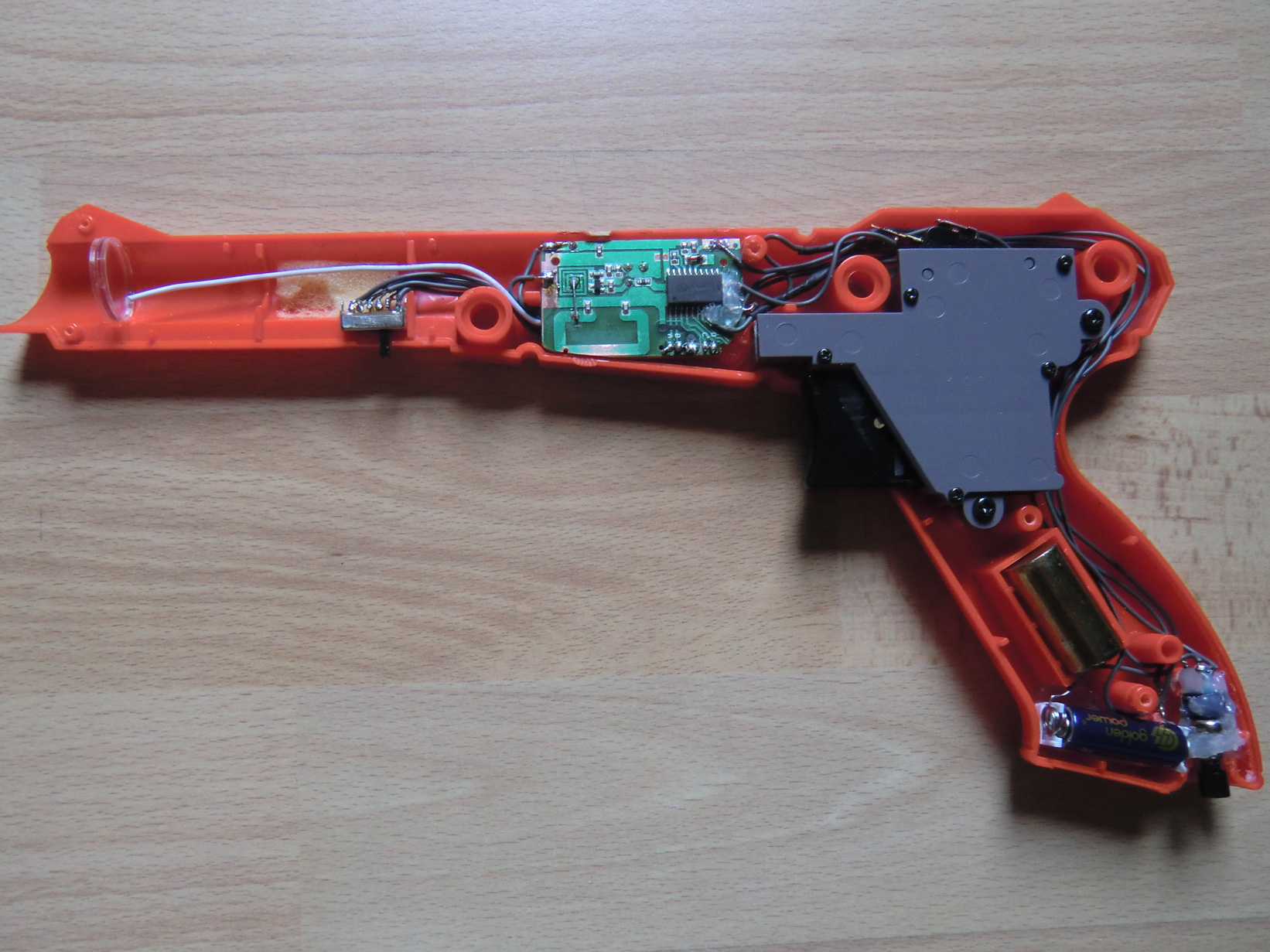

I used hot glue to secure the new on-switch where the power wire used to be and placed the battery compartment next to it (use the diamond file to make it fit, if it doesn't, but be careful not to damage the gun).
You can see the wiring in the third picture (click on the small "i" to see it in a higher resolution).
Carefully use the sand paper, to get rid of the protection coat on the pcb, where the wires go, but make sure not to damage the copper. Once your are done, test the function and put it back together.
You can see the wiring in the third picture (click on the small "i" to see it in a higher resolution).
Carefully use the sand paper, to get rid of the protection coat on the pcb, where the wires go, but make sure not to damage the copper. Once your are done, test the function and put it back together.
Lamp
The best way to scale an 8 or 16 bit image is by using the nearest neighbour algorithm. You can find it in gimp by selecting "None" as Interpolation method under "Image" ->"Scale Image". In Photoshop you can select it under "Resample Image" in the "Image Size" window.
I layered the image, starting with the white vinyl,as shown in the first two pictures. This prevents the light from shining through. Use soapy water, to place the image onto the glass.
I've uploaded my files, in case you would like to use the same image.
I layered the image, starting with the white vinyl,as shown in the first two pictures. This prevents the light from shining through. Use soapy water, to place the image onto the glass.
I've uploaded my files, in case you would like to use the same image.
Attach the LED Strip

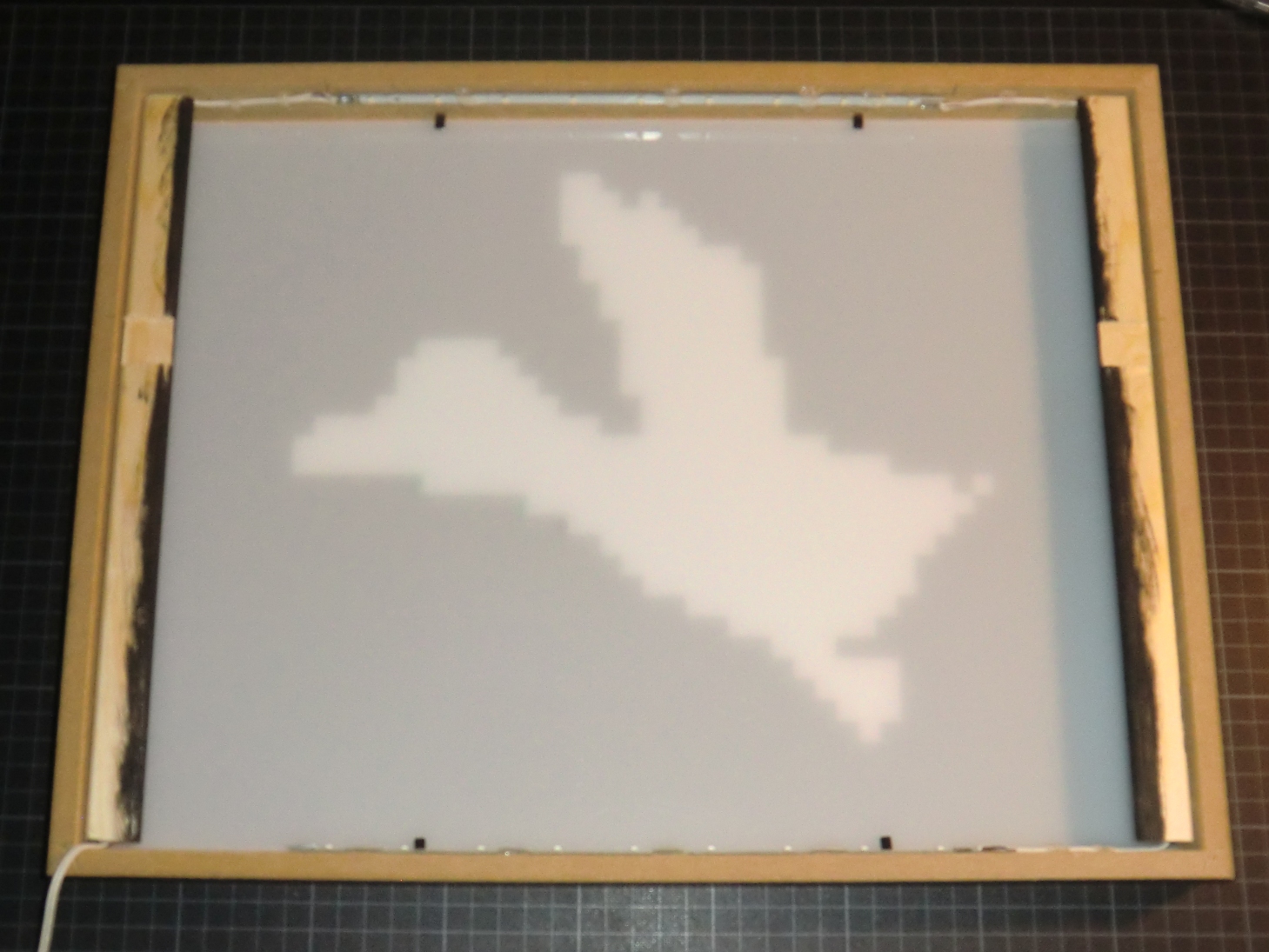

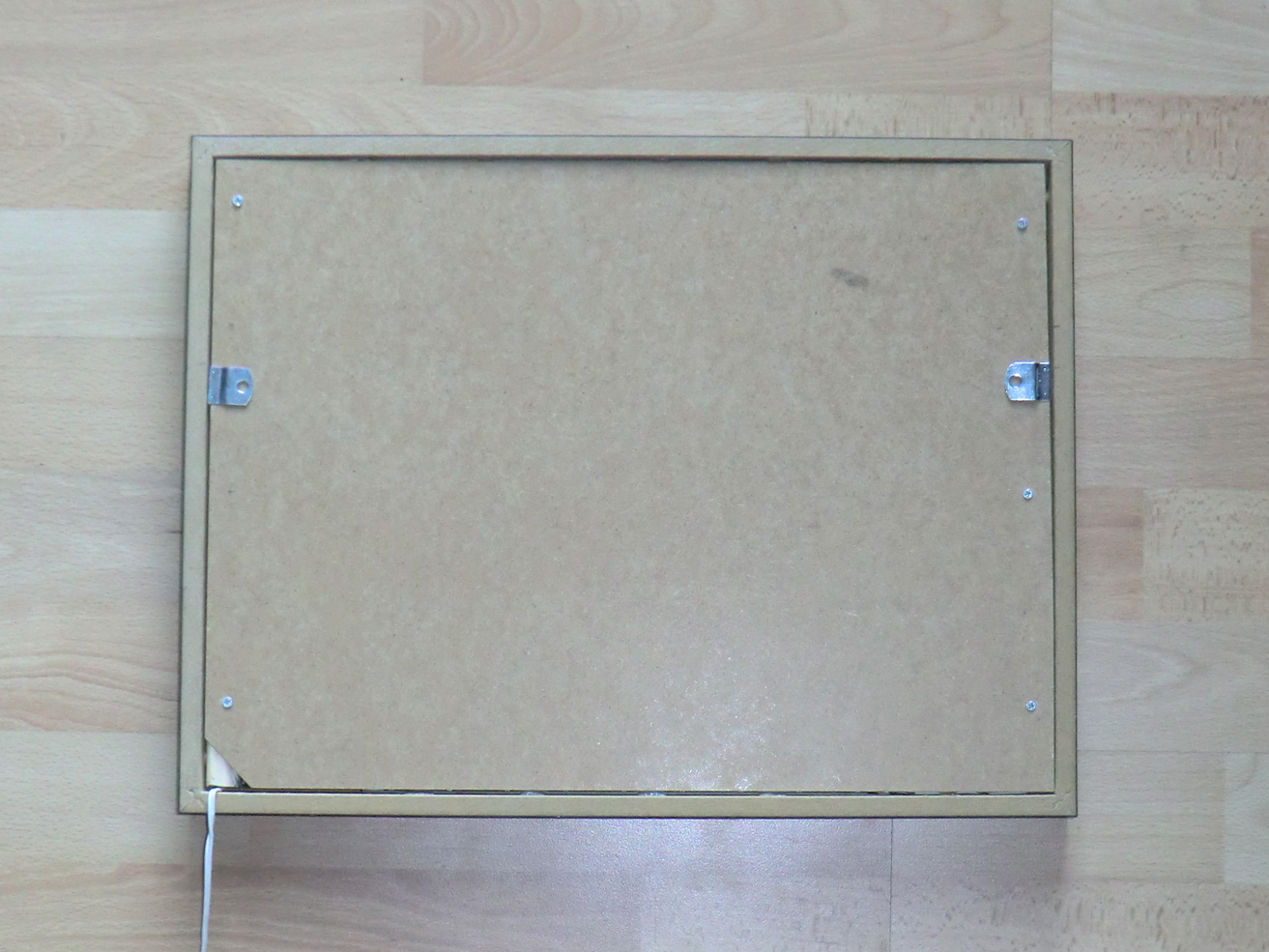

I couldn't find a frame, which had the right thickness and size, that's why I used wooden spacers to screw the back panel to. As you can see in the second picture, I forgot about the metal things that hold the frame. So I had to cut a bit of the wood away, it's probably better to place the spacers at the long sides, in order to save you the trouble.

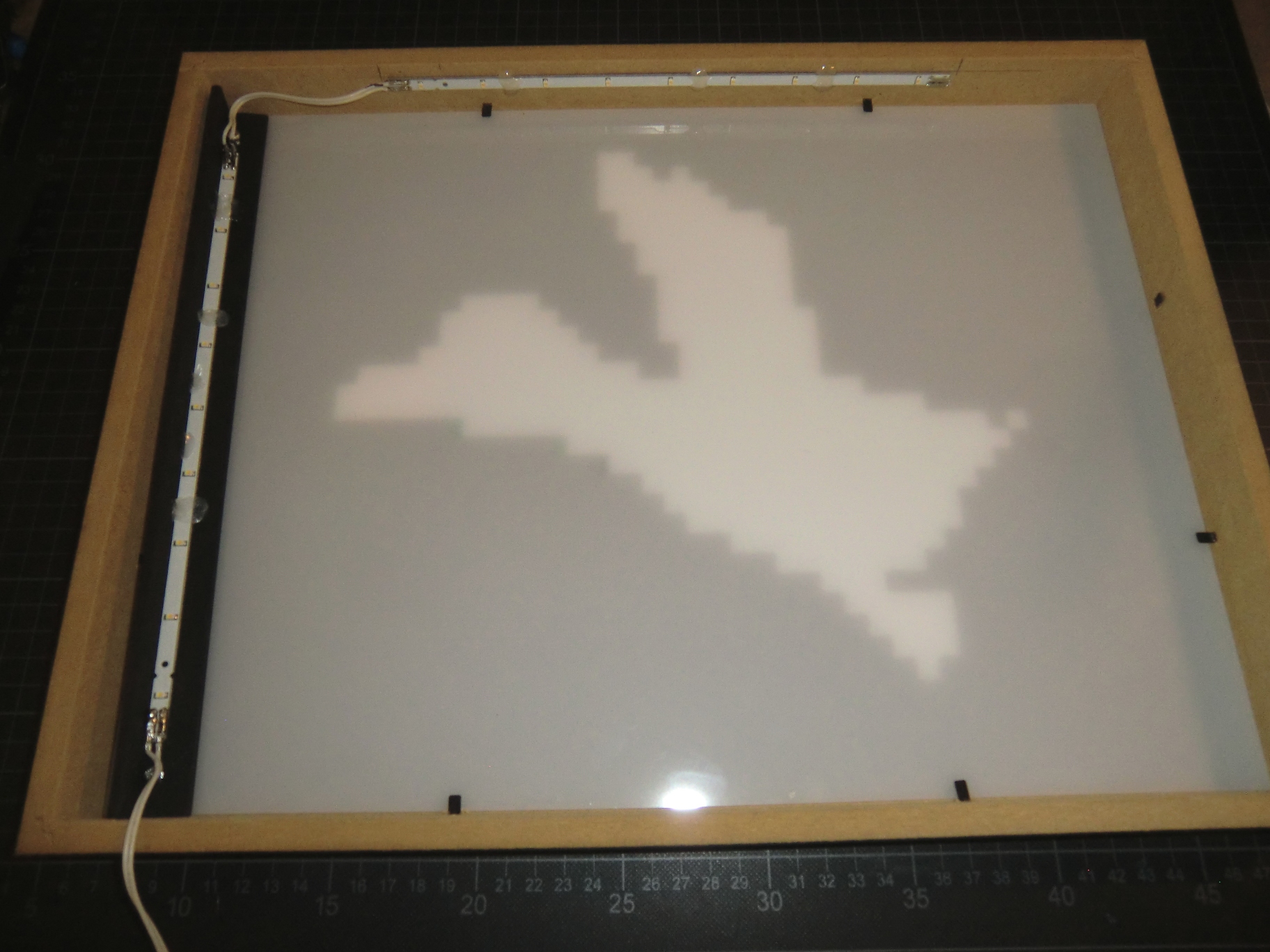

Simply glue the led strips with hot glue to the frame and spacers as shown in the pictures and wire every thing up (If you don't know, how to solder LED strips, check out this awesome instructable).
Congrats! You are done.
Simply glue the led strips with hot glue to the frame and spacers as shown in the pictures and wire every thing up (If you don't know, how to solder LED strips, check out this awesome instructable).
Congrats! You are done.
BONUS: Mario Coin Block Lamp

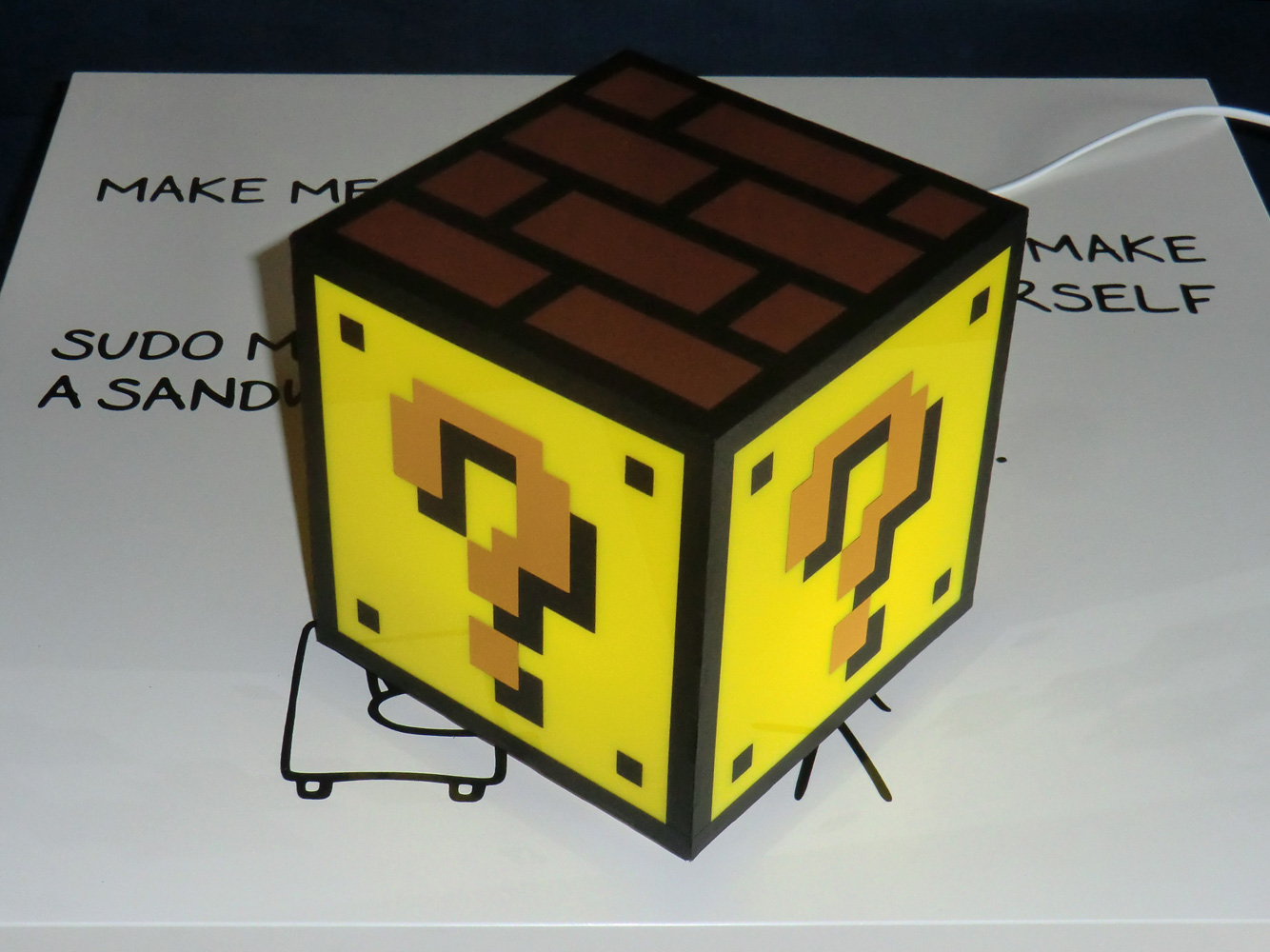

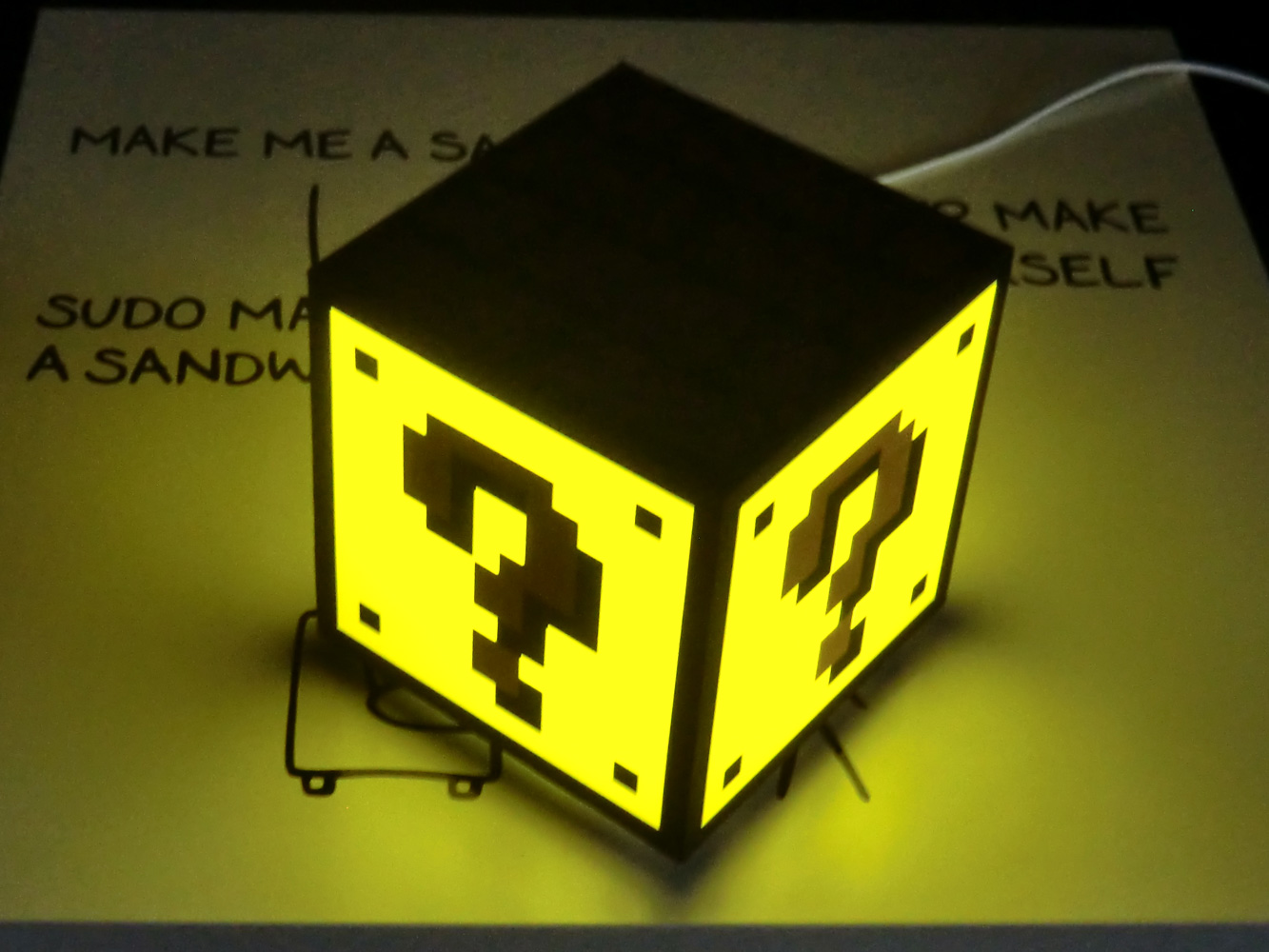

In this bonus step I am going to show you an easy way, how to make a Mario coin block lamp, that turns on and off with a little tap on the top.
What you need:
Tools
Start by carefully taking the key shaped lamp apart. I've uploaded the files, so that you can cut your own block. I used plywood for the bottom and the spacer (to safe money, but you can use acrylic as well). Spray paint the top brown and assemble the box, by carefully glueing the sides together.
I used a Dremel to grind away the plastic spacers from the bottom of the lamp as shown in the third picture, but a file should work as well. Glue the spacer to the lamp.
Cut the vinyl and stick it to the block. Now glue the lamp to the block and enjoy your new light.

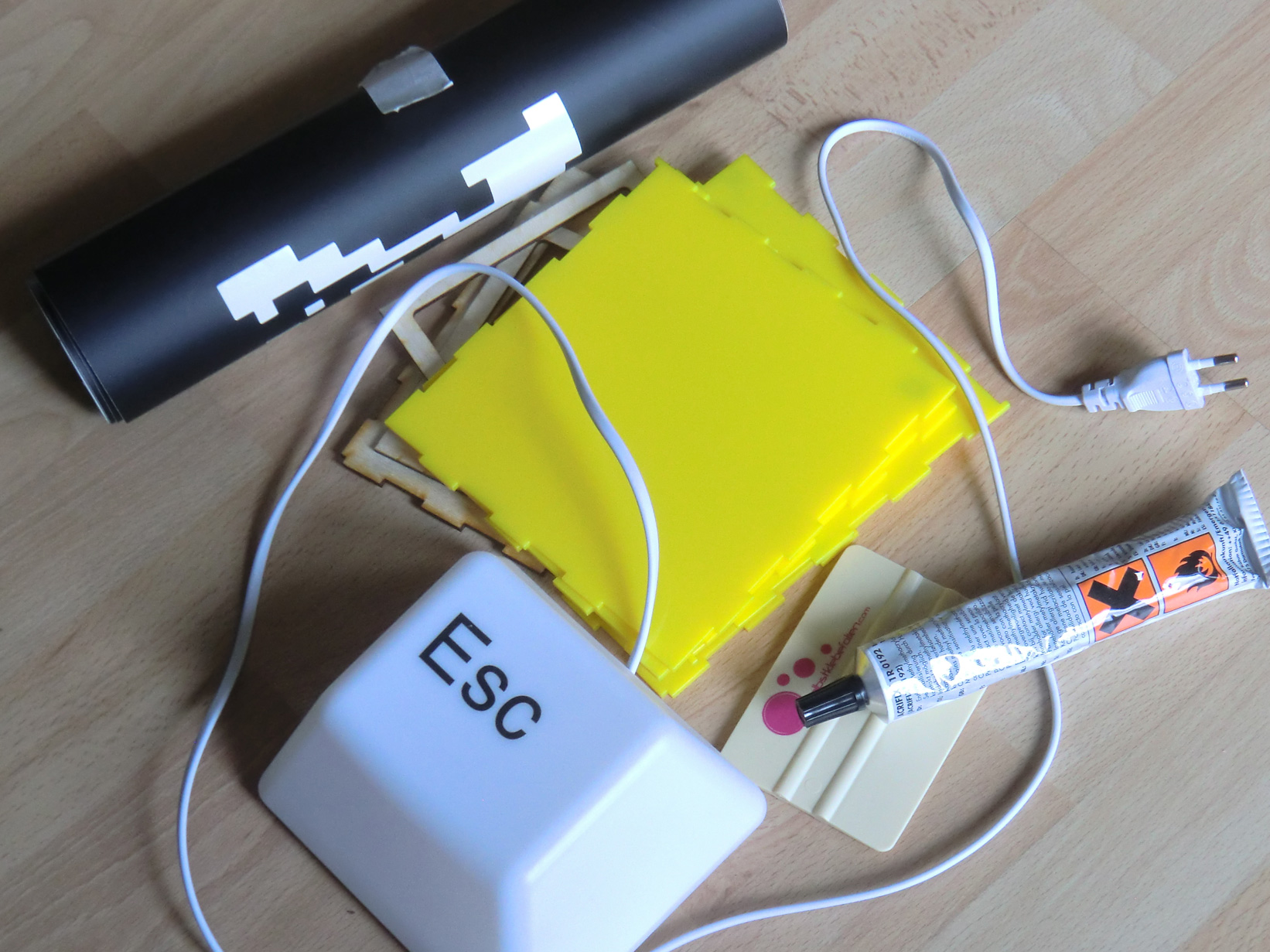

What you need:
| • | Black and orange vinyl |
| • | Brown spray paint |
| • | Key Shaped LED Nightlight Button Lamp (e.g. here) |
| • | 3 mm yellow acrylic, 3mm plywood |
| • | Glue |
| • | Laser cutter (or e.g. http://www.ponoko.com/) |
| • | A cutting plotter is helpful, but not necessary |
| • | Dremel |
Start by carefully taking the key shaped lamp apart. I've uploaded the files, so that you can cut your own block. I used plywood for the bottom and the spacer (to safe money, but you can use acrylic as well). Spray paint the top brown and assemble the box, by carefully glueing the sides together.
I used a Dremel to grind away the plastic spacers from the bottom of the lamp as shown in the third picture, but a file should work as well. Glue the spacer to the lamp.
Cut the vinyl and stick it to the block. Now glue the lamp to the block and enjoy your new light.
