My Tube Amplifier.

Tube amplifier cost is not over 200€.
You need to buy lamps , I found from ebay Ucranian cheap from old stock ,
It uses 3 Preamps , two for aux and plus one for phono input , two pairs of el84 are amplifies 2X7 watt rms. class A.
Transformers I bought from a local manufacturer.
All other components found it from scrap.

Deco.

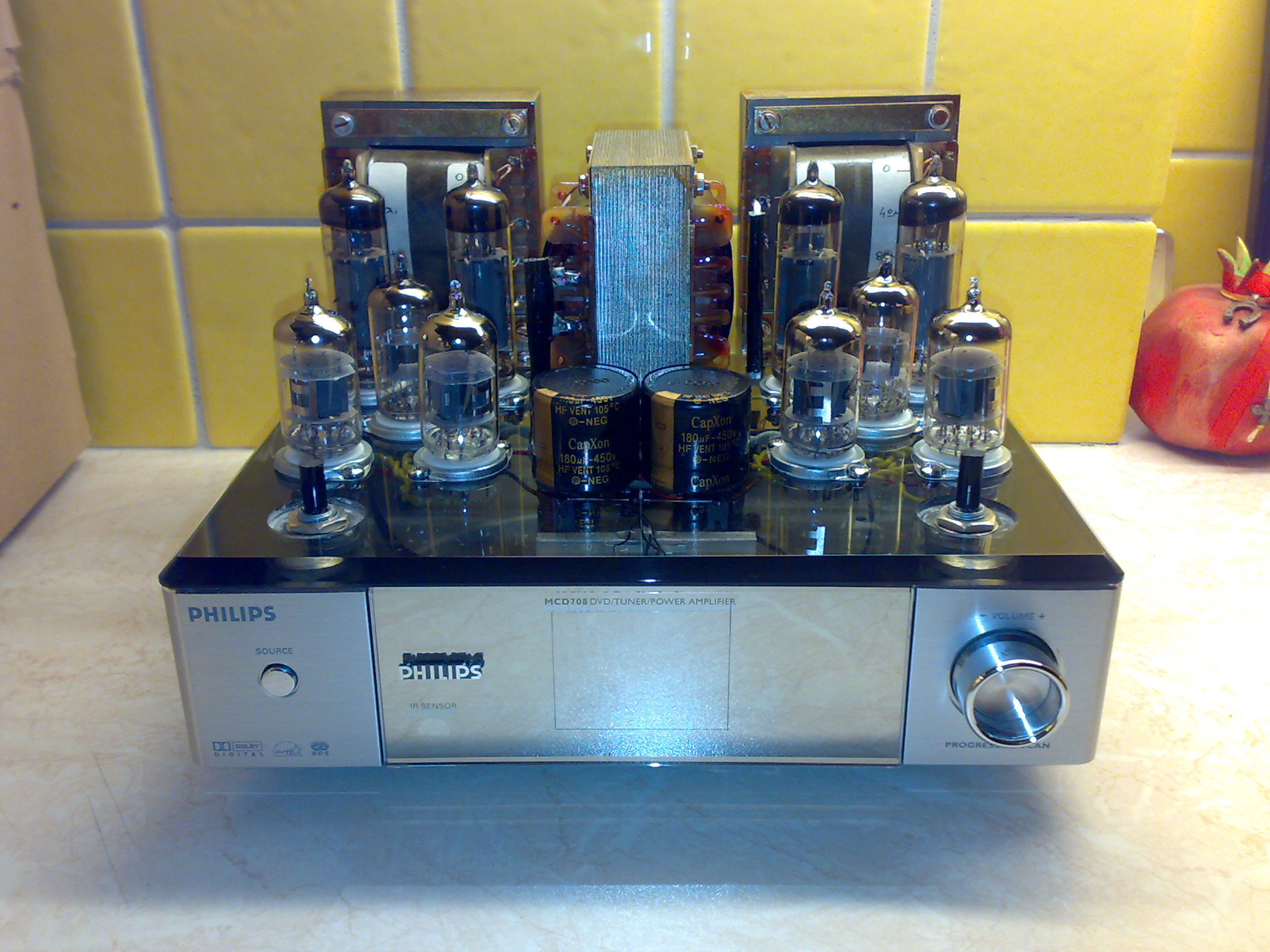

A plastic base from a broken audio system can be the top. I placed the critical parts for the best view above.

Handmade.

Everything you need are welding skills and patience.I also add equalizer with three pots in the middle front.

Extra Features.

Inside the shell of broken audio system made the volume meter with some led lights , all power for extras get it from a dvd player supply pcb. 5v,12v.
The power tranformer for the lamps are outside, 220v - 220v. 250 watt.
I worked with it almost 4 monthes to finish it , to get the best of it you need knowledge from someone old technician who workes with amps in the past.
