My Mini Sword

by king sourav in Workshop > Metalworking

185 Views, 2 Favorites, 0 Comments

My Mini Sword

mini sword ( DIY )

As i'm grate lover of different type of weapon (eg:- GUN'S , SWORD'S ), and i can't keep such thing with me right now . So i thought why not at least make miniature version of sword that i can keep with me.

Supplies

  • Brass and copper metal sheets
  • file (it's a metal instrument use for carving or shaping metal, wood etc.)
  • Blowtorch gun ( gas torch)
  • Junior hacksaw
  • metal cutter
  • paper
  • glue

DRAWING ON PAPER


First draw a sword structure.

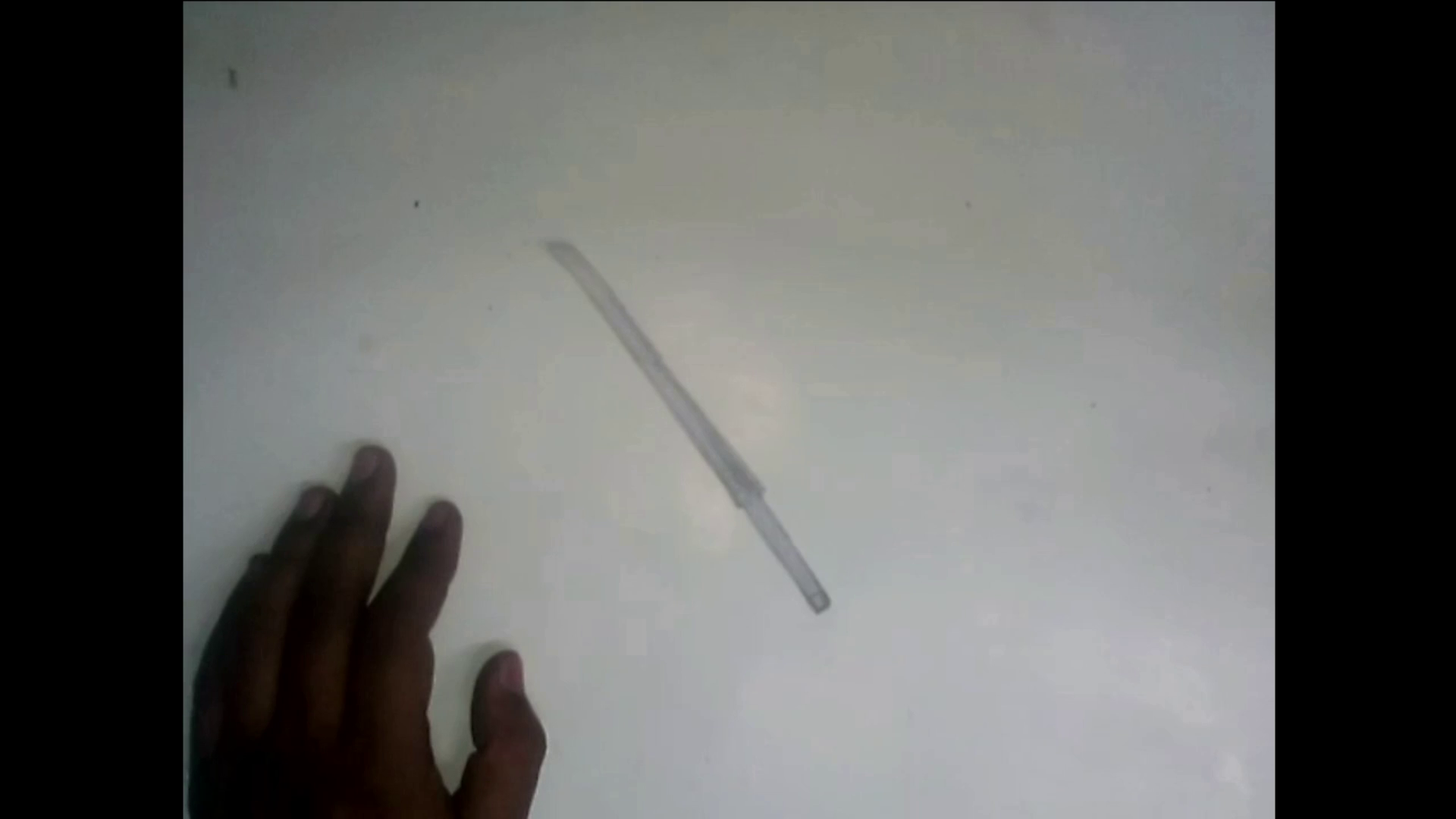

CUTTING SWORD STRUCTURE FROM PAPER


Cut the sword structure drawn on paper.

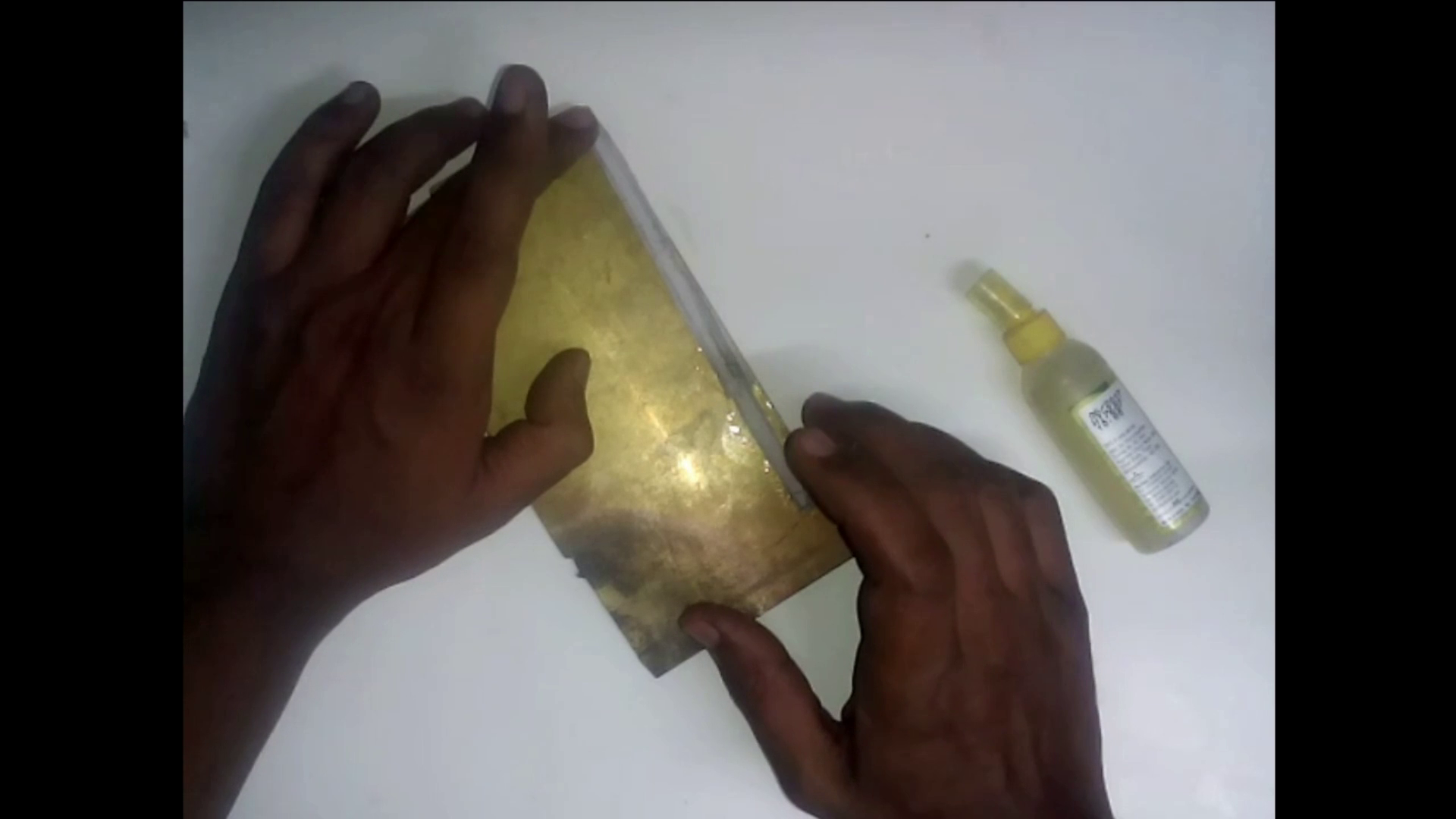

STICK PAPER SWORD ON METAL SHEET


CUTTING METAL SWORD STRUCTURE


Cutting sword structure from metal and remove the paper.

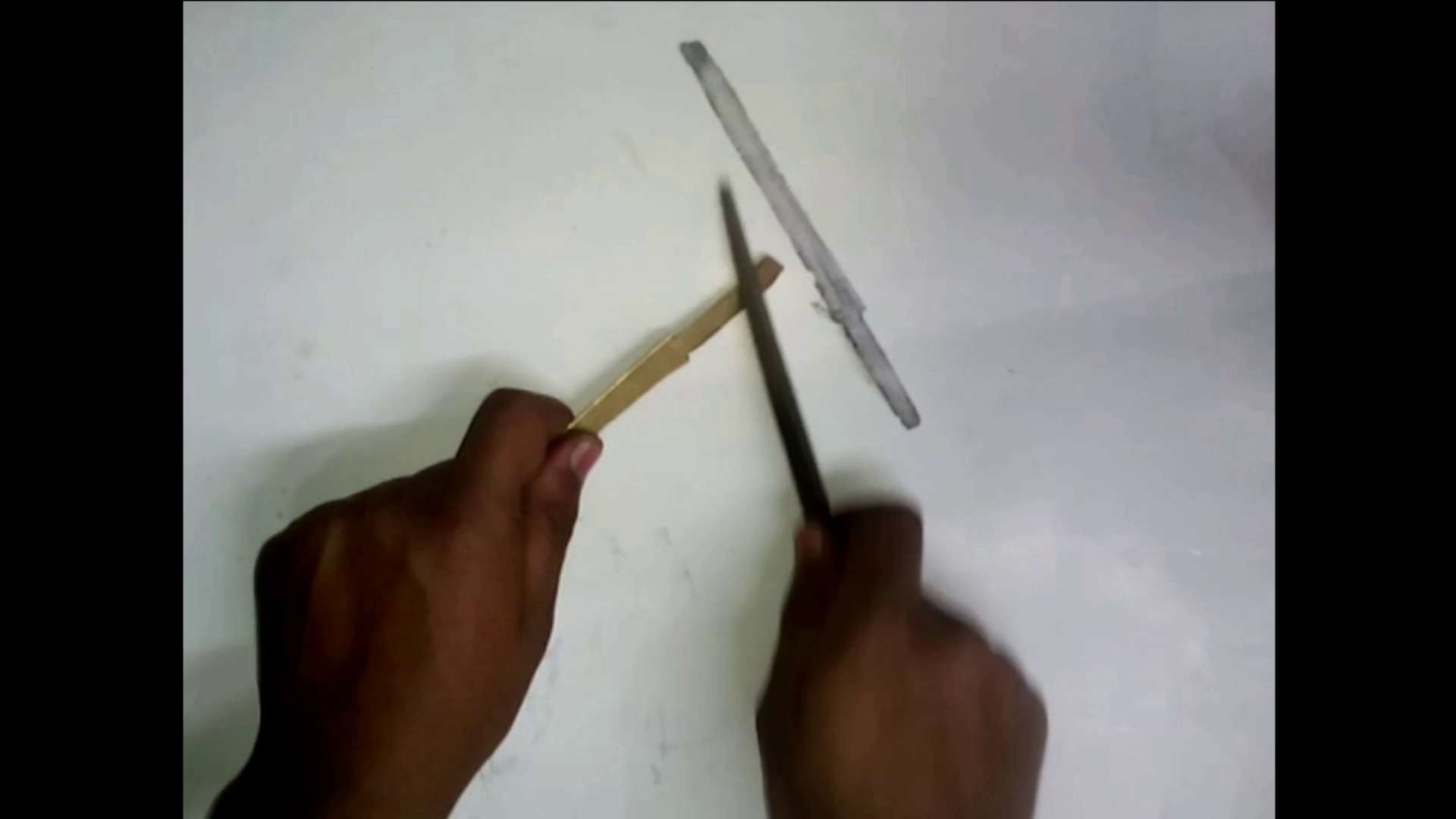

SHAPING THE SWORD


Shaping the sword by using file.

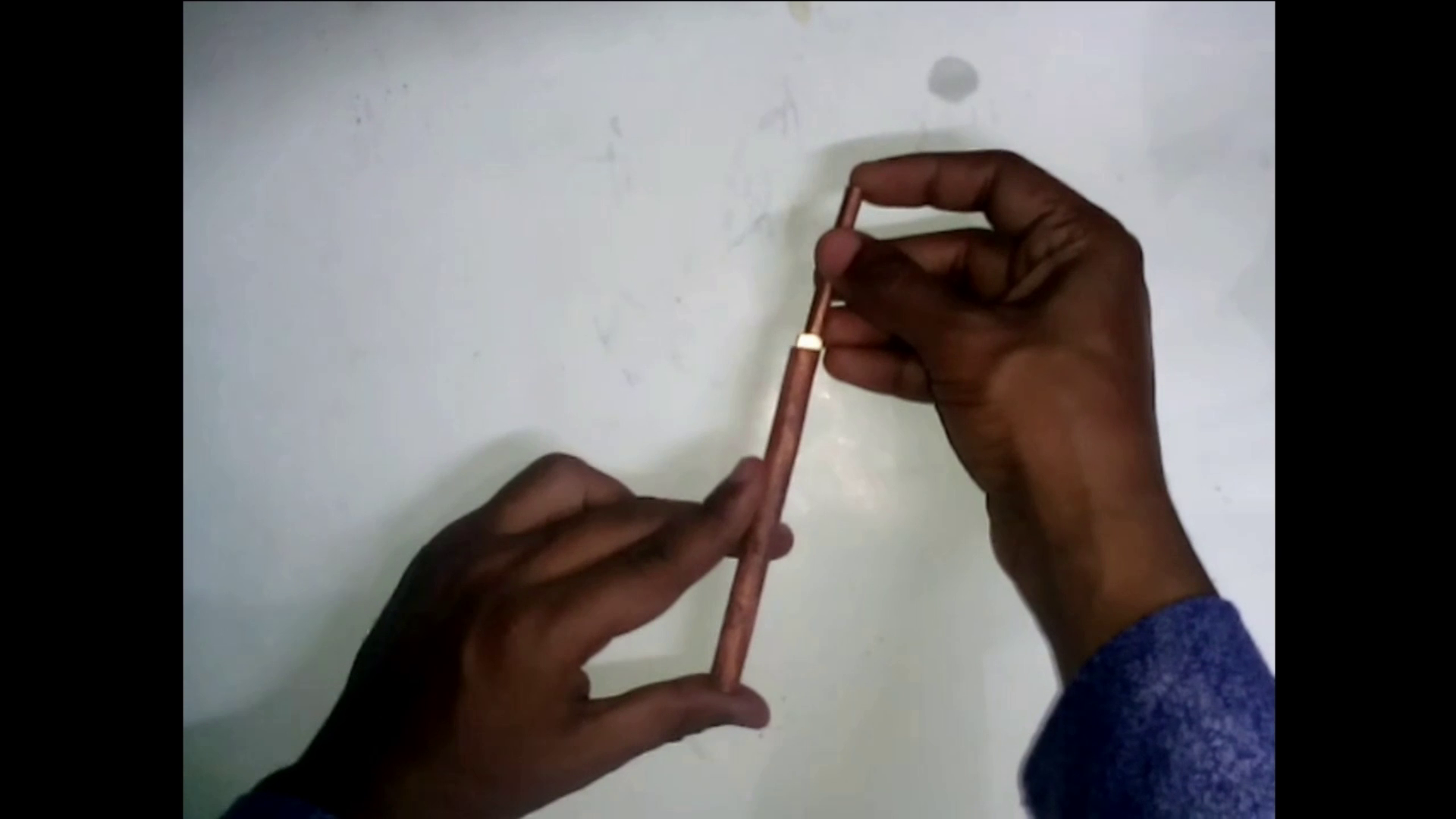

MAKE THE SWORD COVER AND HANDEL


ATTACHING THE HANDLE GUARD

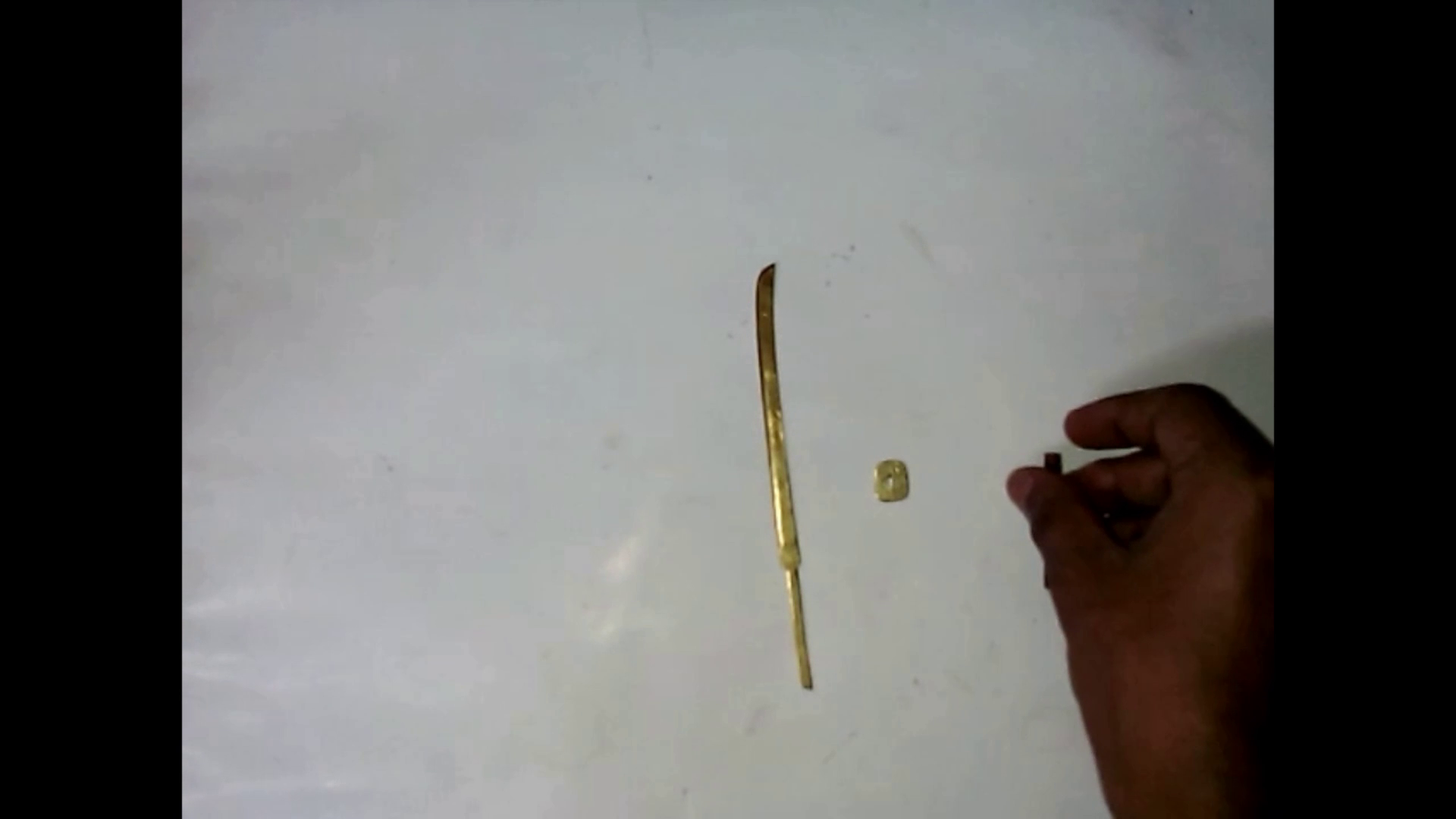

ARRANGING ALL THE MATERIAL


AFTER SOLDERING ALL TOGETHER


DRAW SWORD HOLDER ON PAPER


CUT SWORD HOLDER FROM PAPER

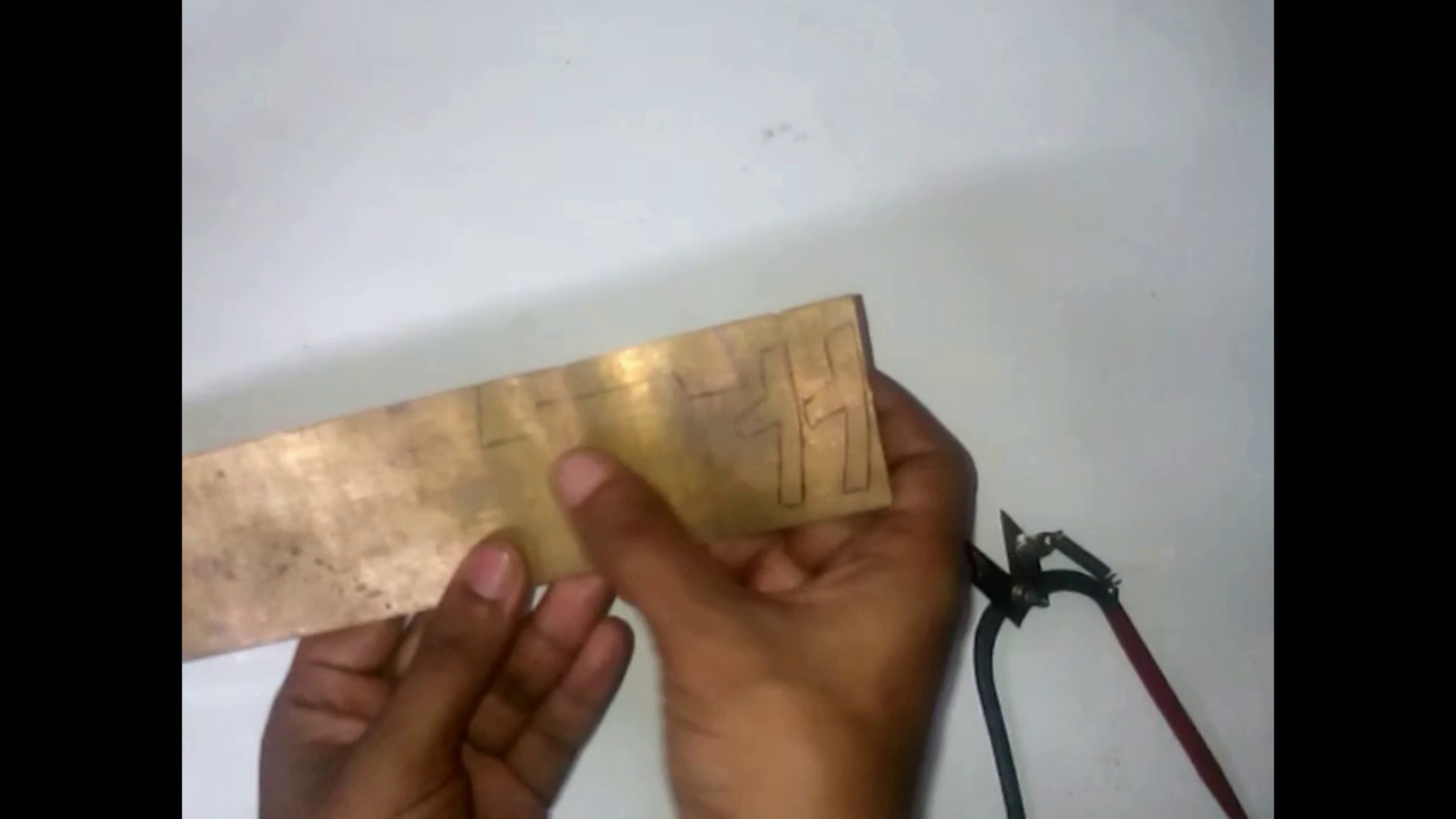

CUT SWORD HOLDER FROM COPPER METAL SHEET


AFTER SOLDERING THE SWORD HOLDER

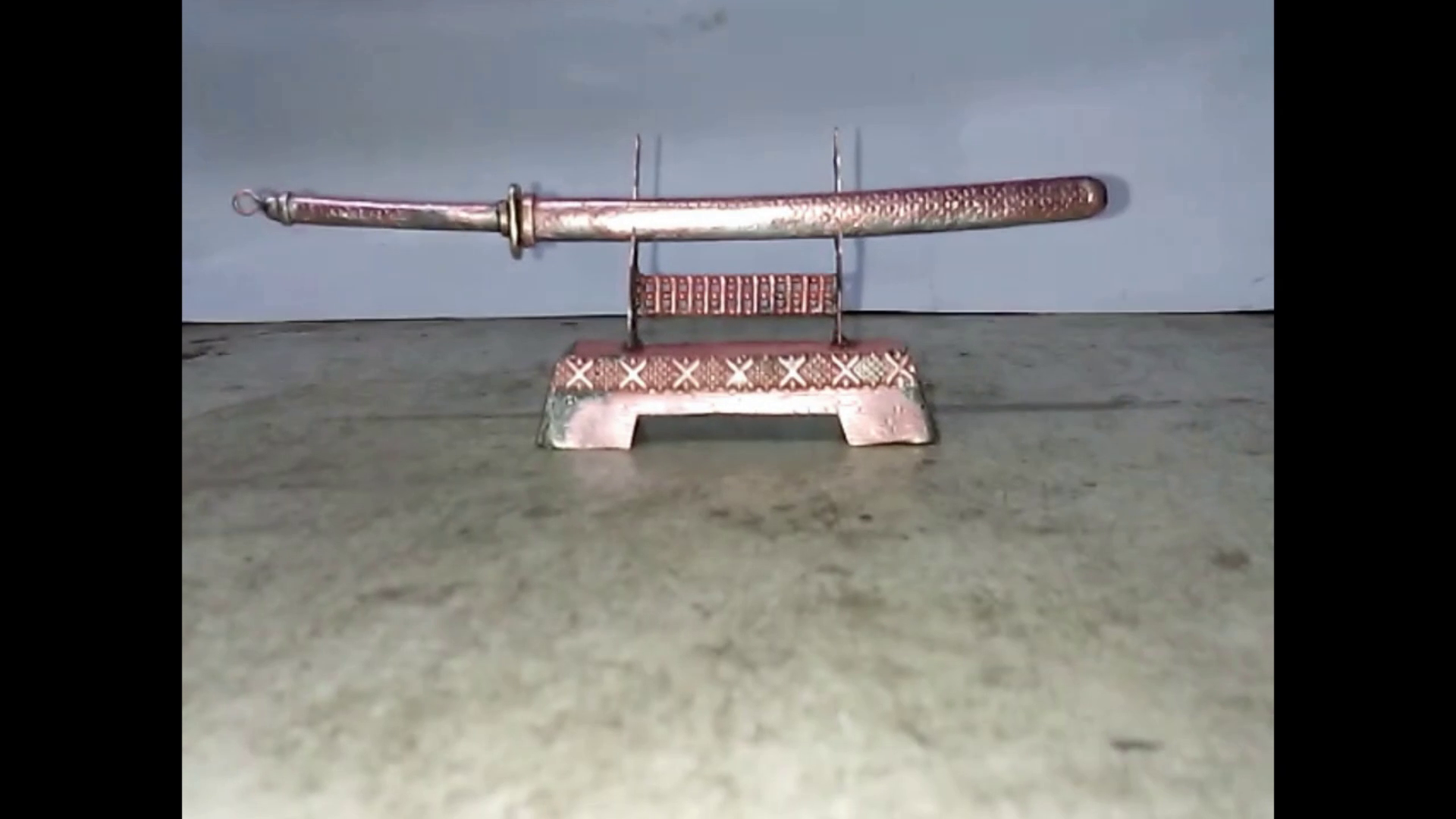

SWORD HOLDER AND SWORD
