My LED Cube

by n8man in Circuits > LEDs

27312 Views, 36 Favorites, 0 Comments

My LED Cube

IMG_1752 copy.JPG
Robot point.jpg

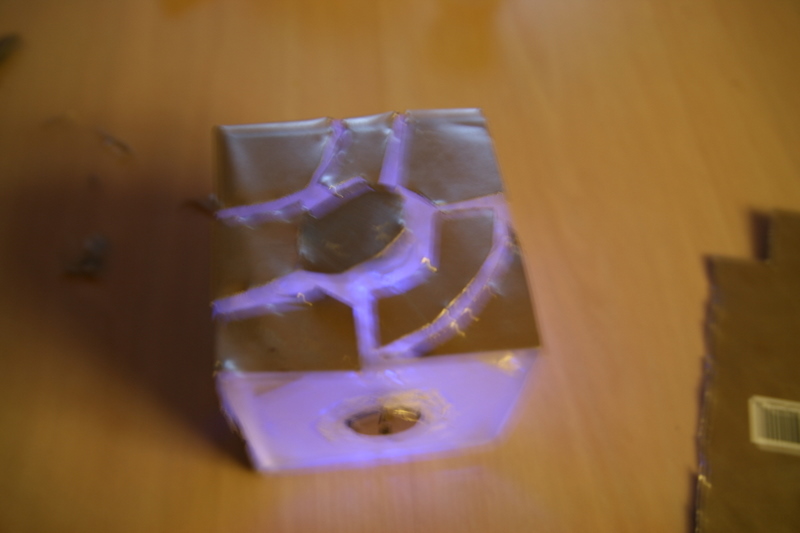

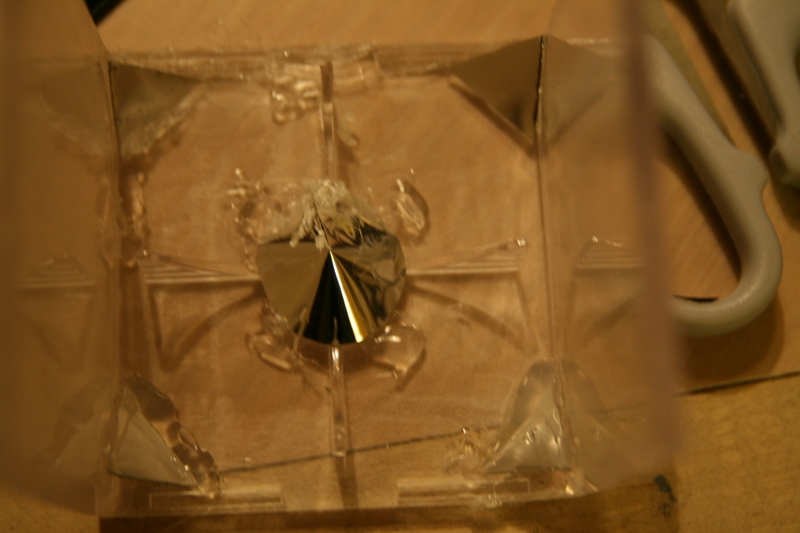

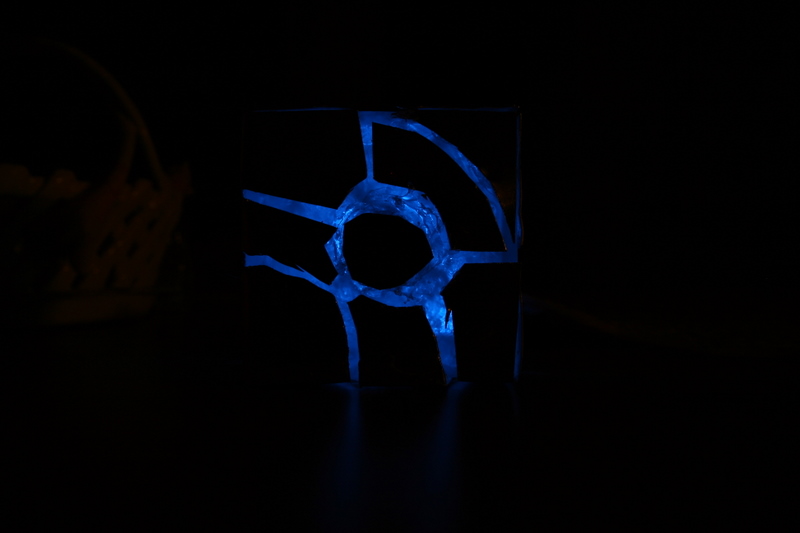

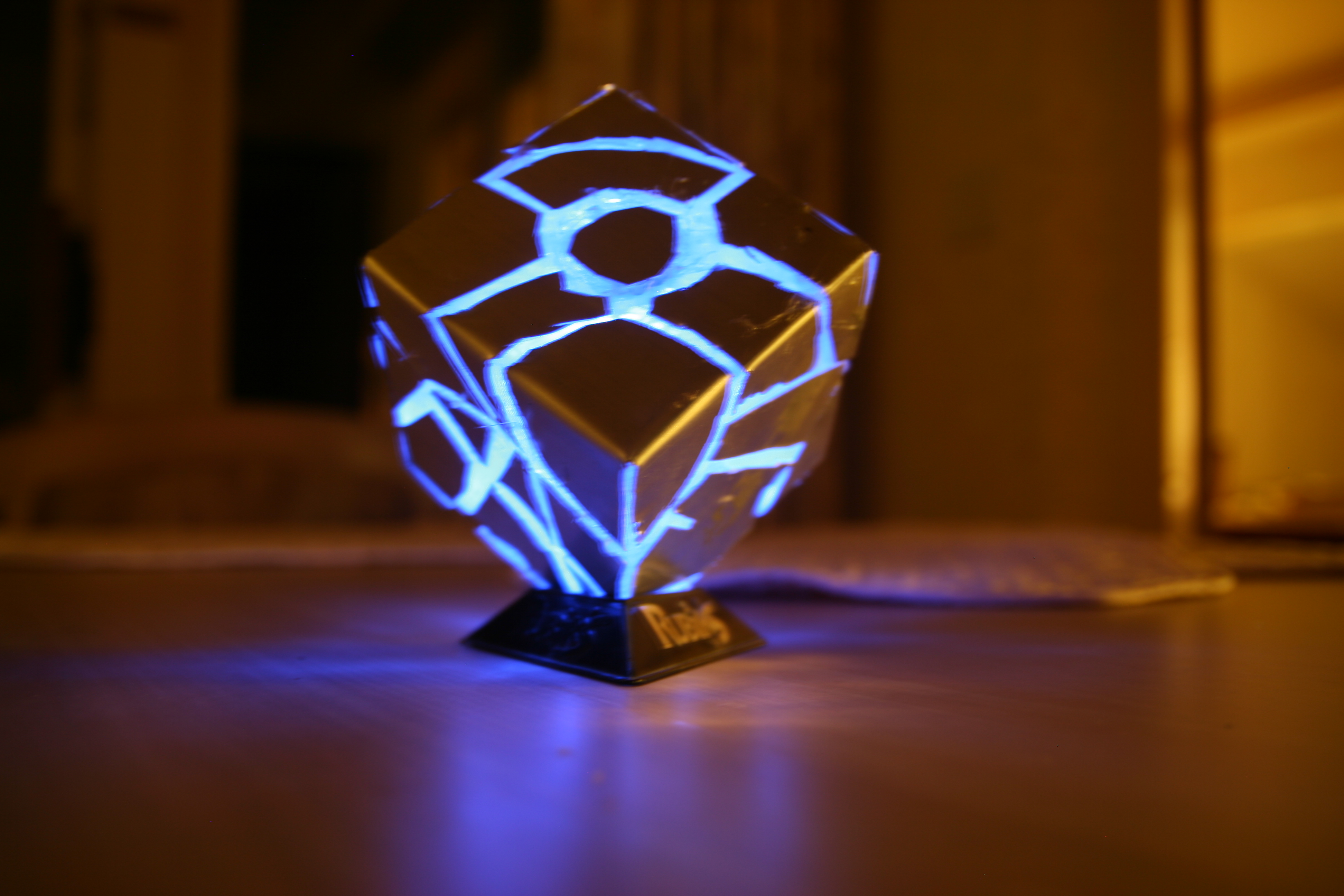

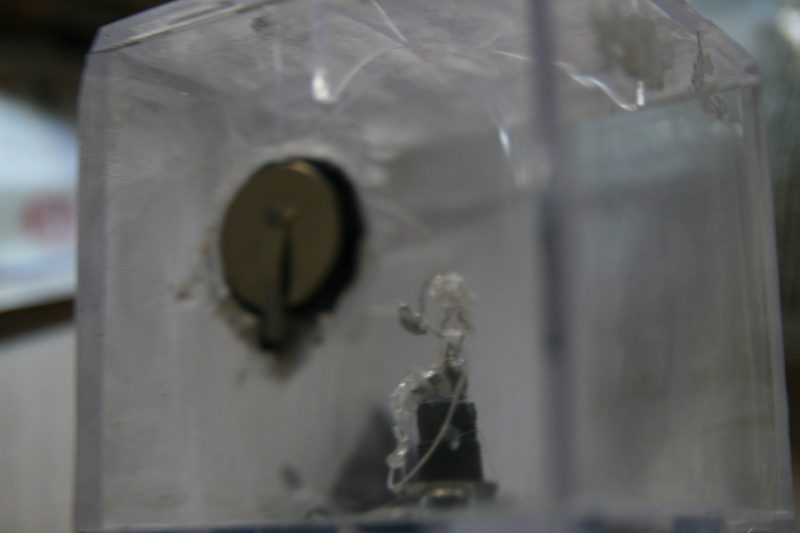

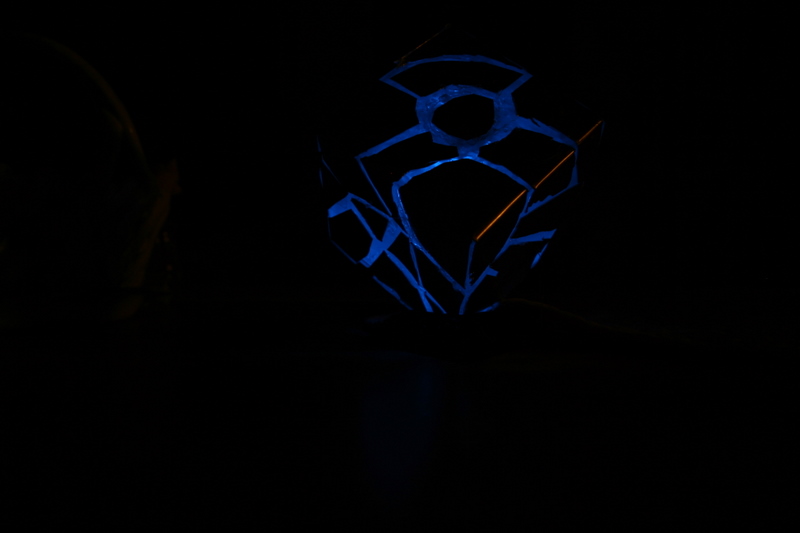

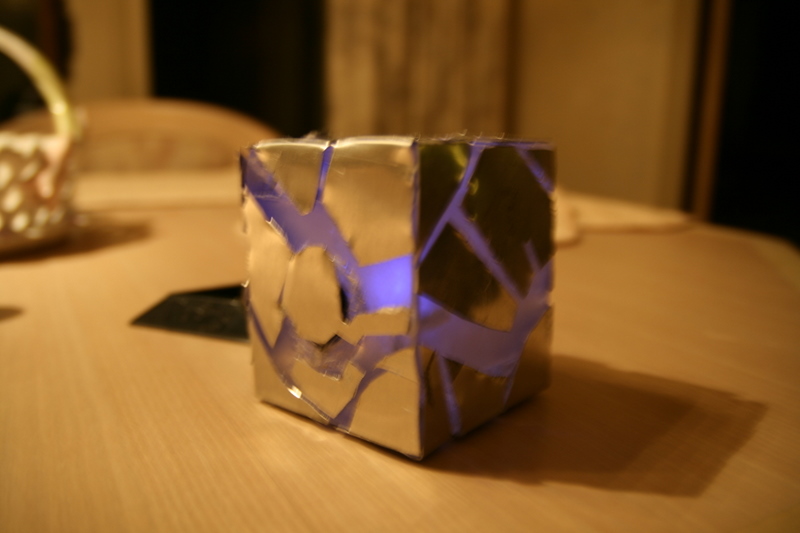

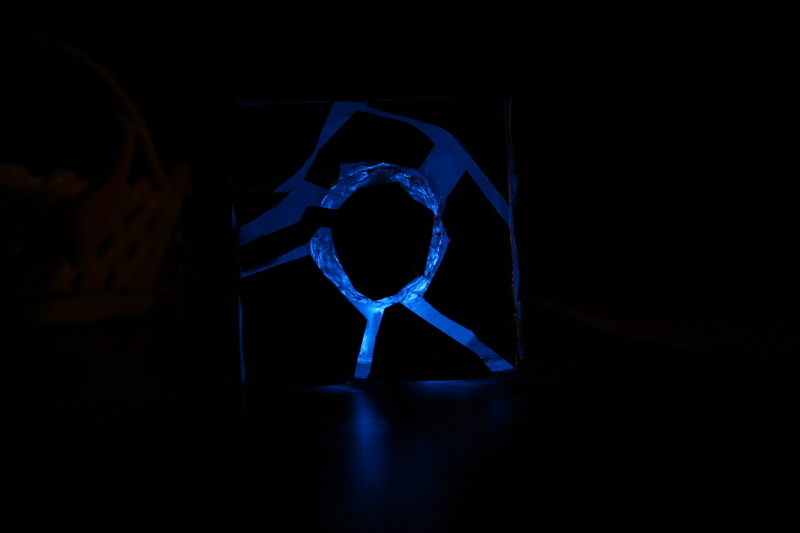

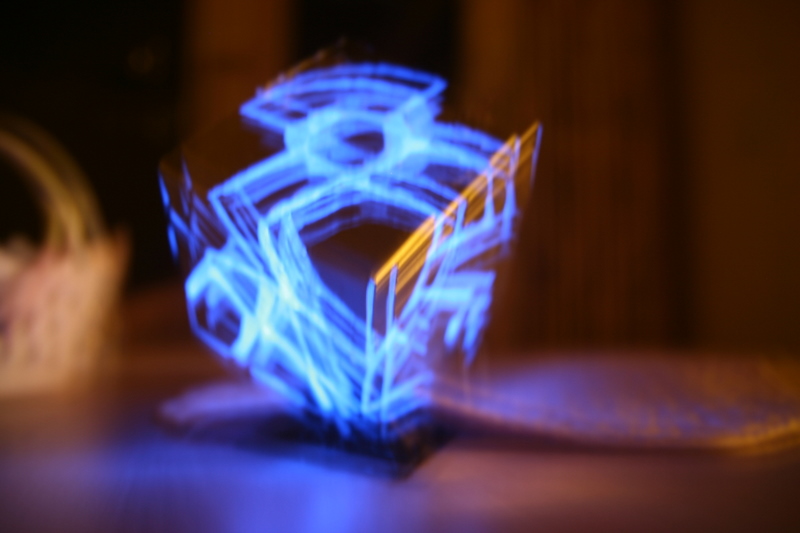

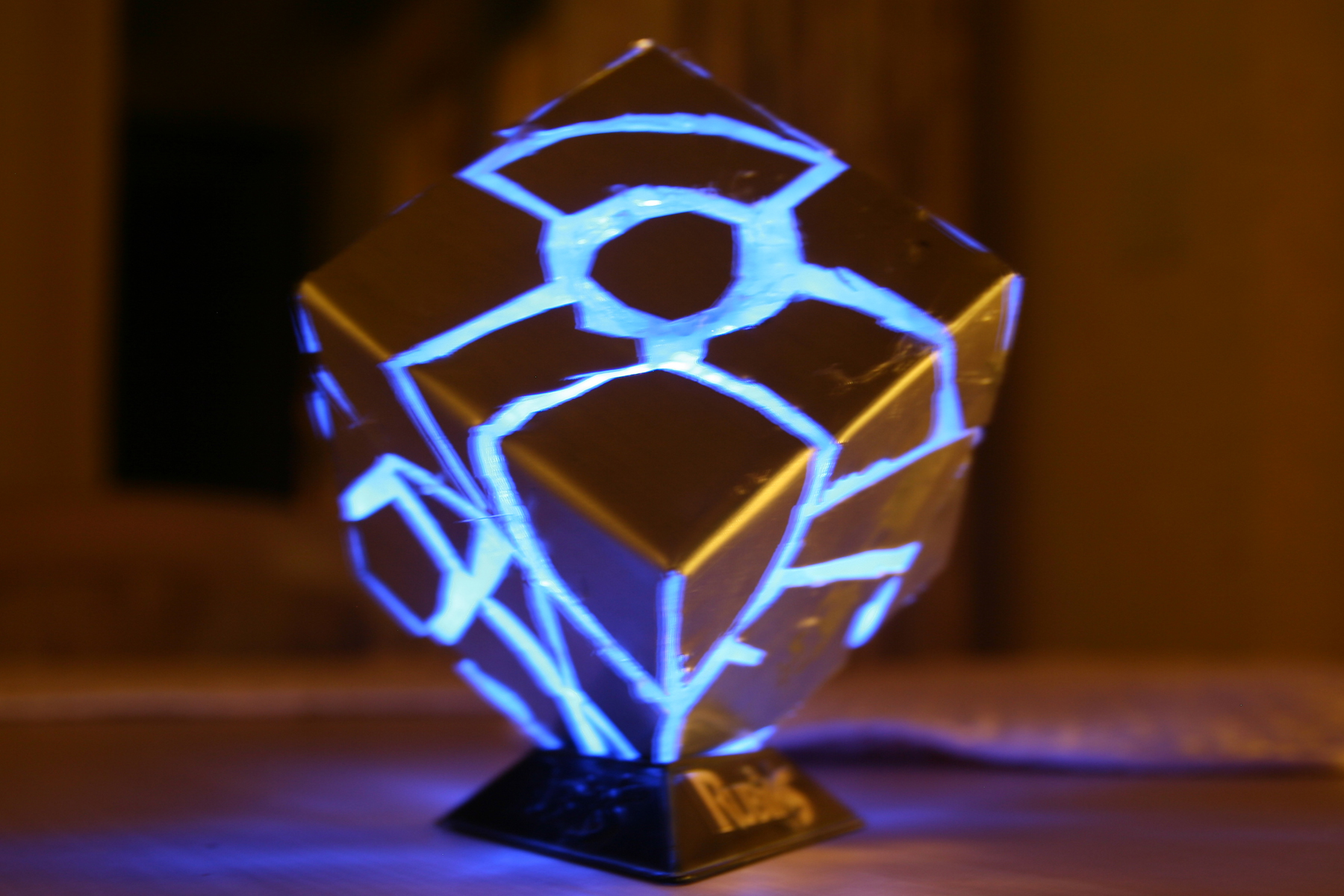

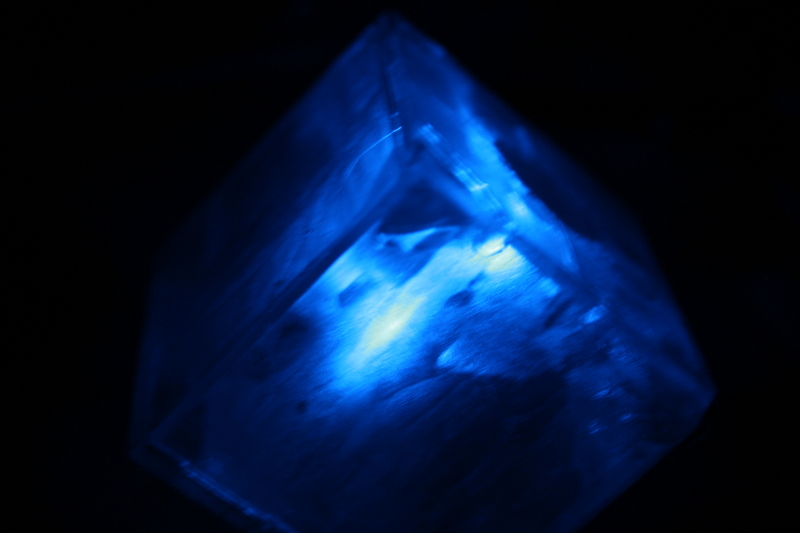

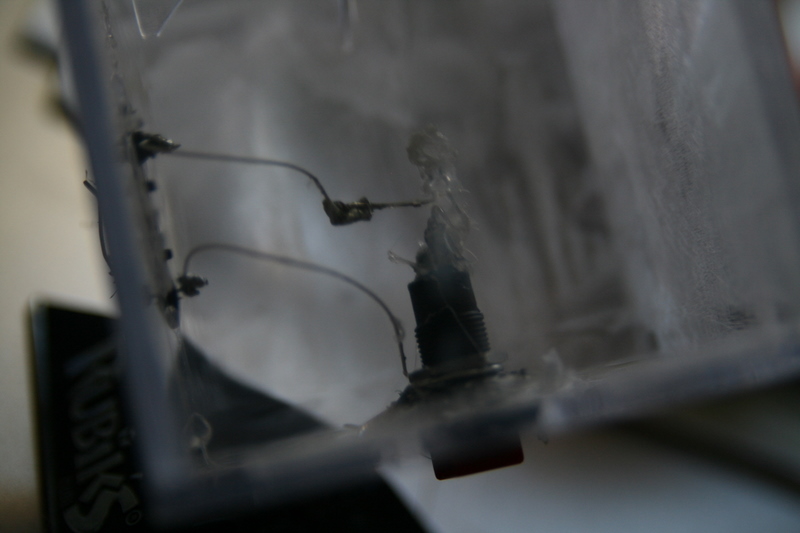

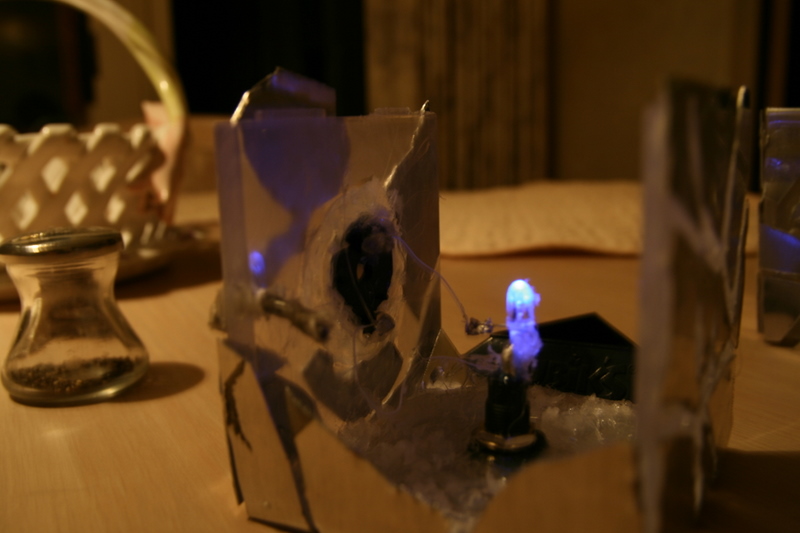

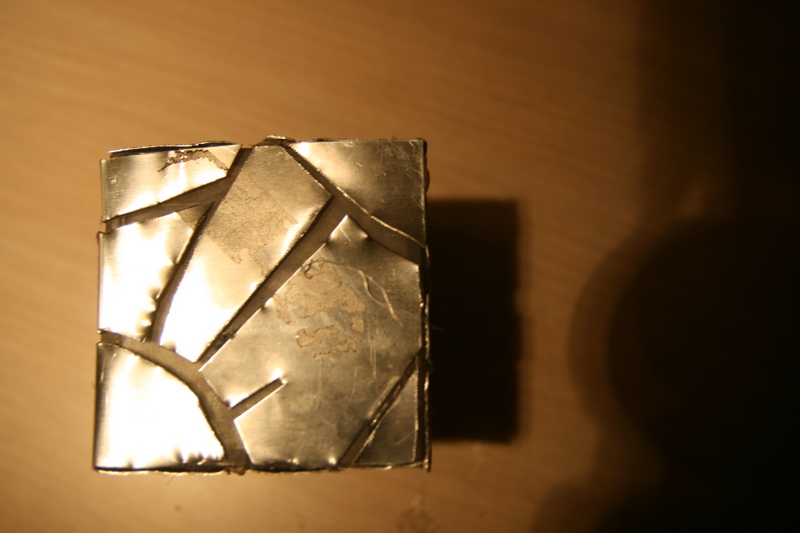

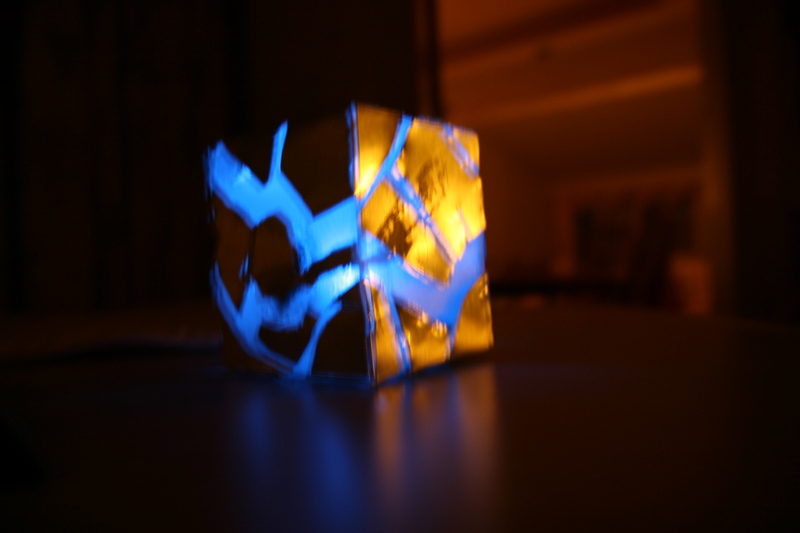

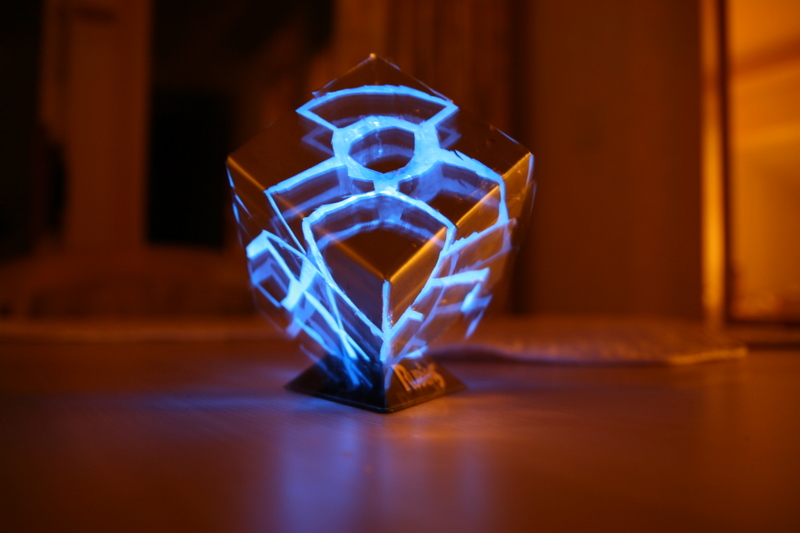

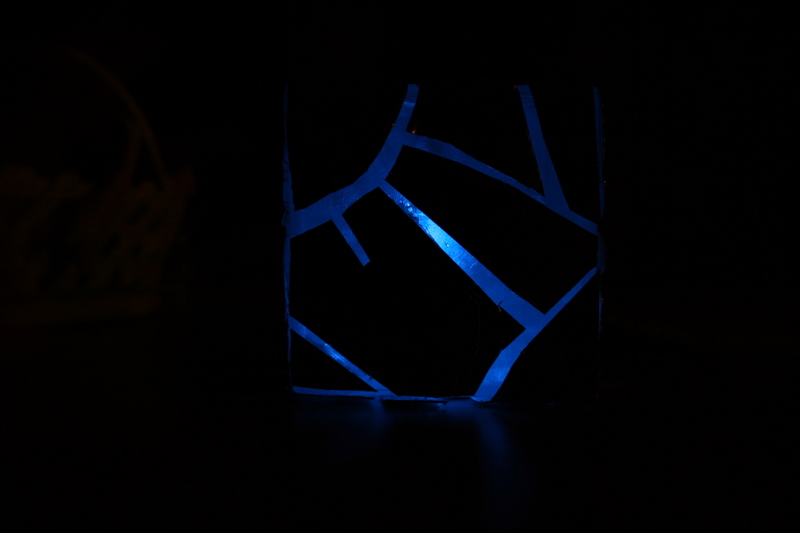

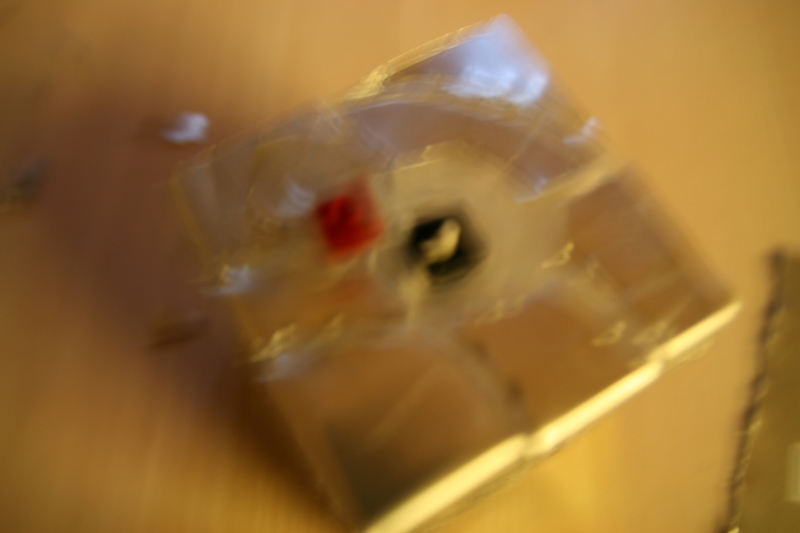

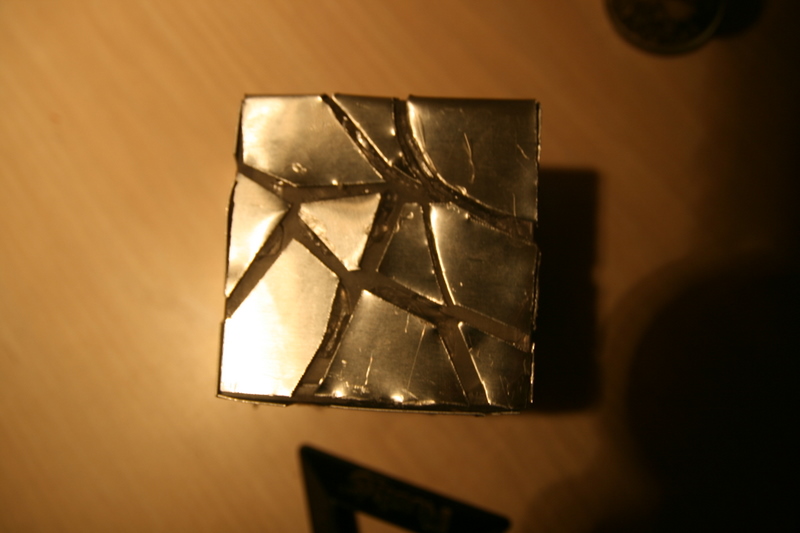

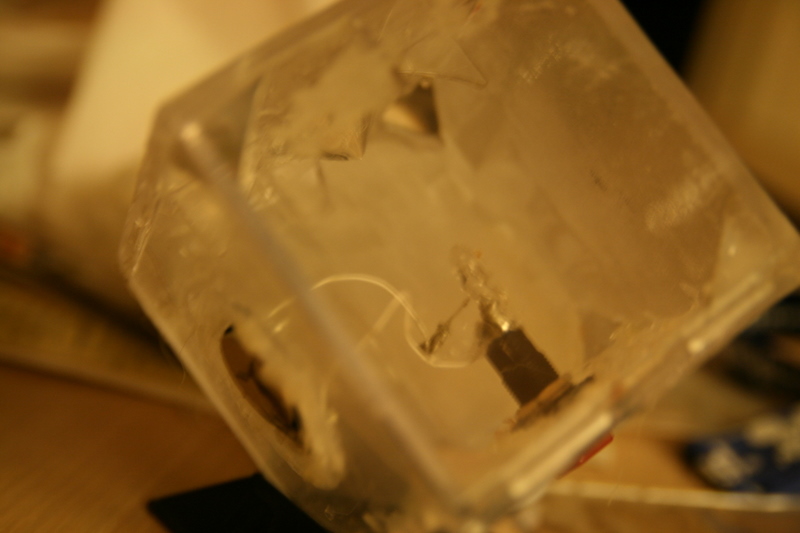

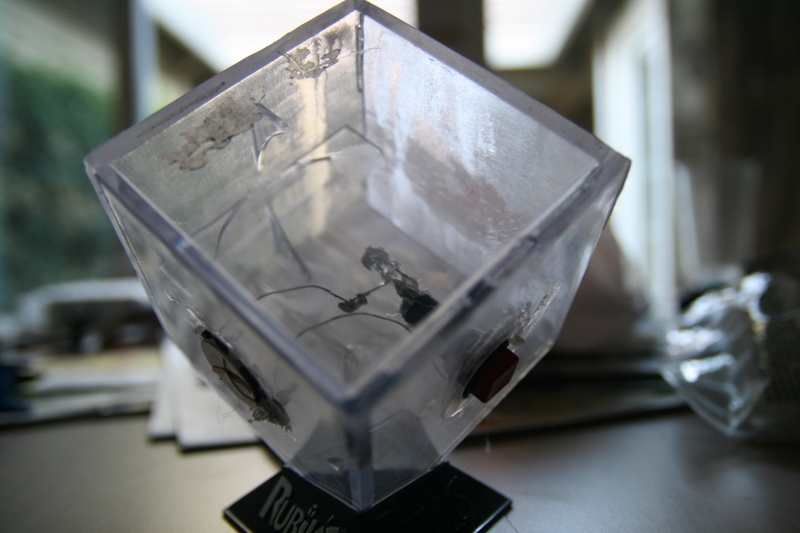

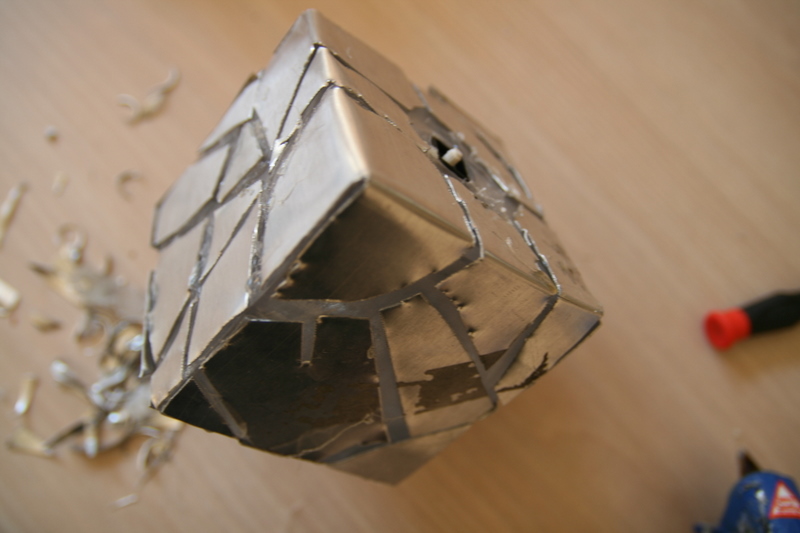

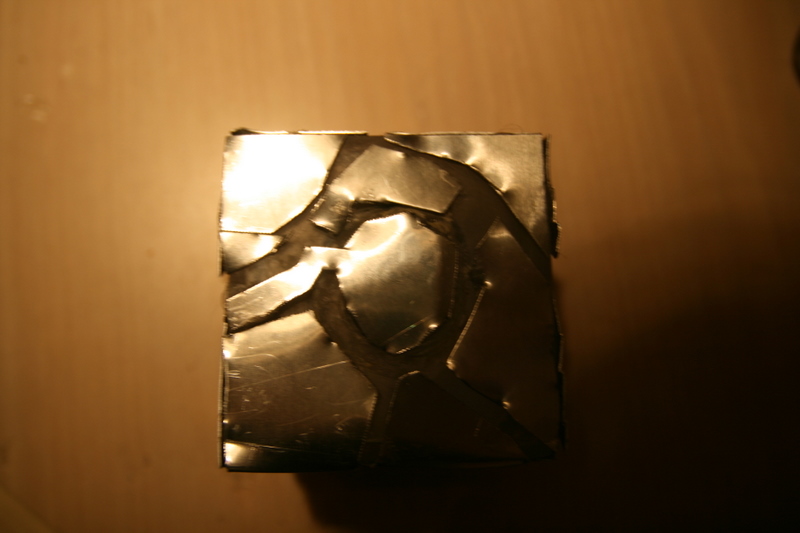

Here is my LED cube based on Alex the Great's Awesome Led Cube. I used a premade plexiglass cube made for holding an autographed baseball ( golf ball ones work better but I had a baseball cube and it works better with the parts I used). I used one 2032 3v battery, a battery holder from Radioshack, a push on push off switch from radio shack, an 4800 mcd LED from Marl, and wire from radio shack for the circuitry. I added reflective alluminum from a kalidescope and made a cone from some flimsy reflective plastic to spread the light that is sent from the LED.

I am having problems with the slideshow right now if you only see the robot.
